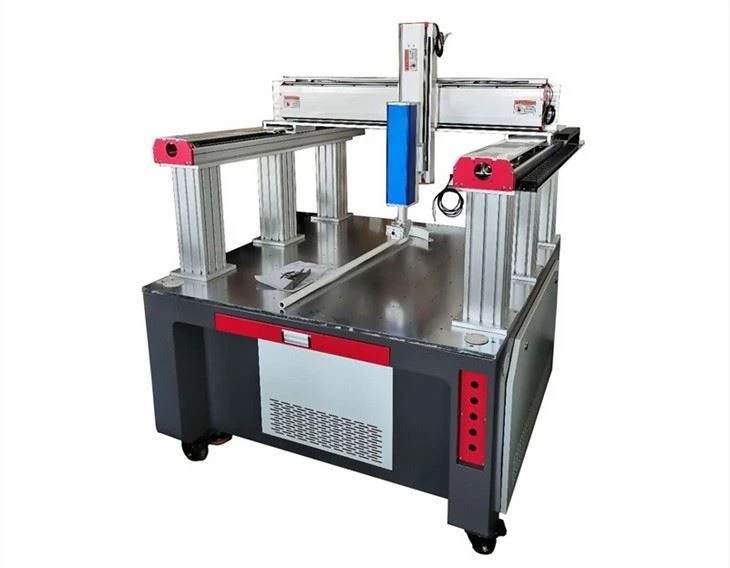

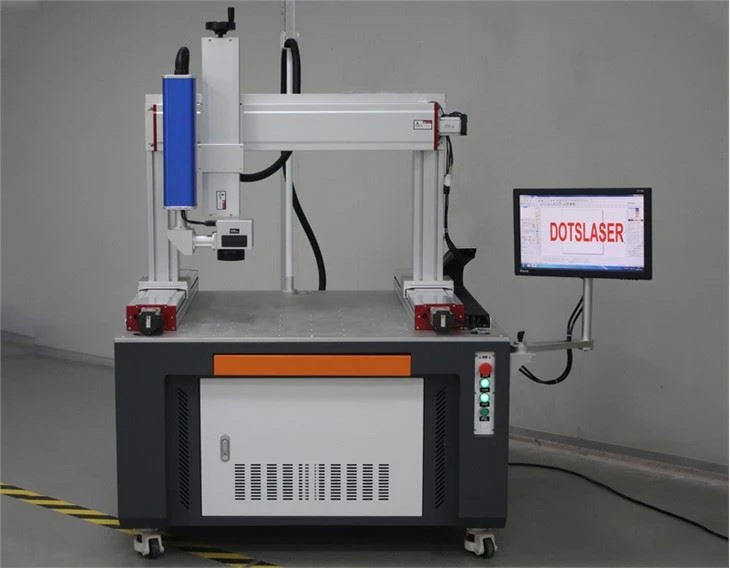

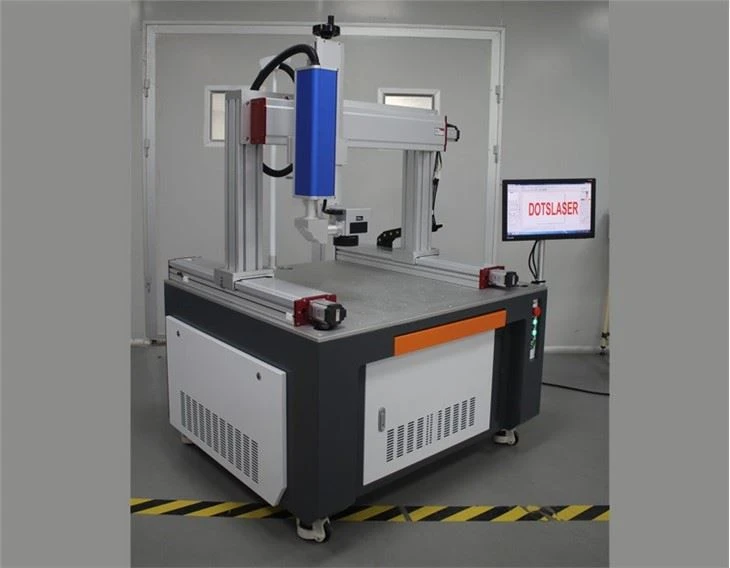

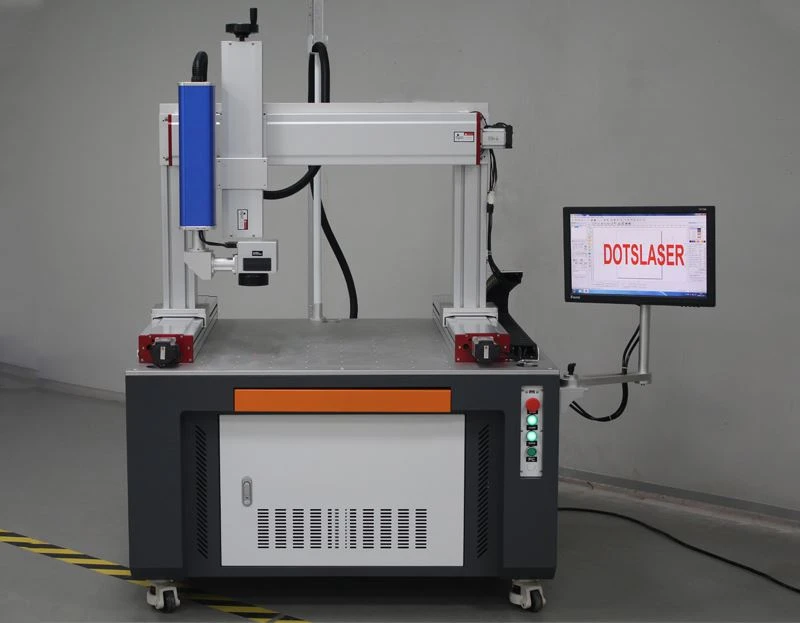

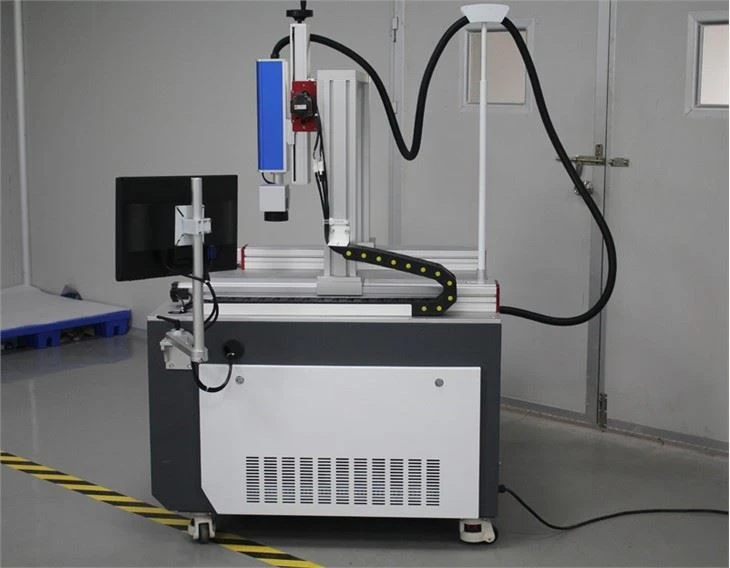

Loj Cheeb Tsam Fiber Laser Engraver
Saib cov yees duab ntawm thaj chaw loj fiber ntau laser engraver
Khoom Description
Loj Cheeb Tsam Fiber Laser Engraver yog tsim rau cov neeg siv khoom uas muaj thaj tsam loj ntawm kev ua raws cai. Peb cov khoom yuav tsum tau customized, vim hais tias cov cheeb tsam tsis siv, lub laser thiab lub zog siv ntawm lub workpiece cov ntaub ntawv yuav txawv. Muaj plaub yam tseem ceeb: loj-hom lens laser npav tshuab, XY hluav taws xob platform stitching laser npav tshuab, dynamic loj-hom laser npav tshuab, loj-hom non-splicing platform laser npav tshuab. Cov khoom siv plaub no muaj lawv tus kheej qhov zoo thiab qhov tsis zoo, uas haum rau ntau lub sijhawm thiab ua tau raws li qhov xav tau sib txawv.
Lub ntsiab parameter:
| Qauv | DS-LM50/DS-LM60/DS-LM80/DS-LM100 |
| Laser zog | 50W,60W,80W,100W |
| Laser wavelength | 1064nm ua |
| Rov ua qhov tseeb | ± 0.003mm |
| Chaw ua haujlwm | 400x400mm, 600x600mm, 800x800mm, 900x900mm, 1000x1000mm, 1200x1200mm, ntau qhov dav yuav tsum tau kho. |
| Txias hom | Cua txias |
| Machinery Test Report | muab |
| Video tawm-kev soj ntsuam | muab |
| Core Components | Laser generator |
| lav | 1 xyoo |
| Siv Tau Kev Lag Luam | Chaw ntiav pw, khw muag khaub ncaws, khw muag khoom siv hauv tsev, chaw tsim khoom, chaw tsim khoom, chaw kho tshuab, khoom noj khoom haus & dej haus, ua liaj ua teb, tsev noj mov, khw muag khoom, khw luam ntawv, kev tsim vaj tsev, hluav taws xob & mining, khw muag khoom noj & dej haus, lwm yam, tuam txhab tshaj tawm |
tshuab cov ntsiab lus

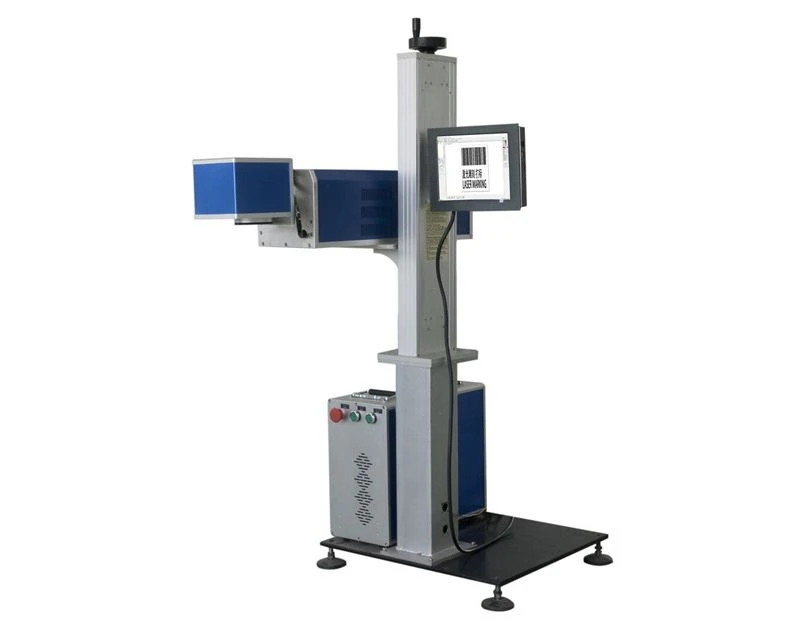

1. loj-hom lens-hom laser npav tshuab
Lub tshuab cim no feem ntau paub txog laser npav los ntawm kev hloov lub lens, thiab nws yog ib qho khoom siv feem ntau. Nws qhov kev ua haujlwm feem ntau yog 100 * 100mm, 160 * 160mm, 200 * 200mm, yog tias yuav tsum tau 400 * 400mm thiab 600 * 600mm, yuav tsum tau hloov kho ntxiv.
Ua tib zoo mloog rau qhov xav tau qhov tob thaum siv nws, vim tias ib zaug qhov ntau ntxiv, lub zog ntawm lub laser yuav txo tau lub zog ntawm cov txheej txheem nto; nws lub lens zooms nyob rau hauv, lub focal ntev yuav loj, cov txheej txheem siv yog yooj yim thiab siv tau, tsis muaj nqi, yeej tsuas xav tau tsuas yog hloov lub lens.
2. XY motorized platform splicing laser npav tshuab.
Qhov kev tsim no feem ntau yog kos rau ntau yam, txav lub platform, thiab tom qab ntawd kos rau ntu tom ntej, txhawm rau rov ua haujlwm thiab xaws ua ke rau hauv hom. Nws cov kab yog cov nyias nyias, thiab lub teb lo ntsiab muag siv yog me me.
Muaj qee qhov yuam kev hauv nws qhov tseeb, yog li yuav muaj qhov tshwm sim uas qhov sib txuas tsis nyob ntawm lossis cov seams tsis tuaj yeem pom ntawm qhov muag liab qab. Tsis tas li ntawd, nws cov nqi kuj tseem siab heev, cov txheej txheem ntawm ntau daim ntawv cim yuav tsum tau saws, thiab qee daim npav tswj tsis txhawb kev sib tw.

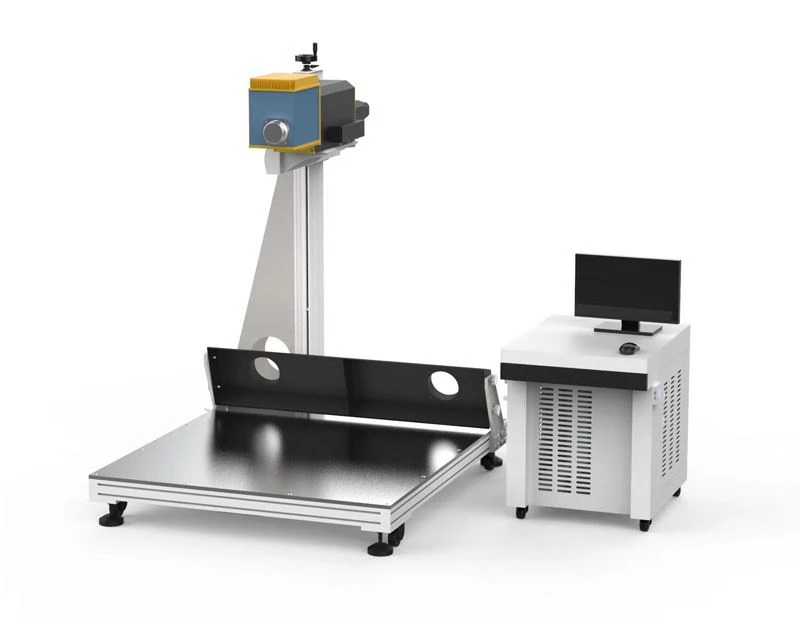

3. dynamic loj-hom laser npav tshuab.
Cov cuab yeej no muaj qhov zoo ntawm tsis deforming lub ntug loj, thiab tuaj yeem ua tau raws li qhov zoo thiab ceev ceev. Thiab nws tsis xav tau lub lens, tsuas yog lub lens tiv thaiv. Raws li kev ua tiav, suav nrog galvanometer + tswj daim npav + software, thiab lwm yam, nws tsim nyog rau CO2laser marking tshuab.

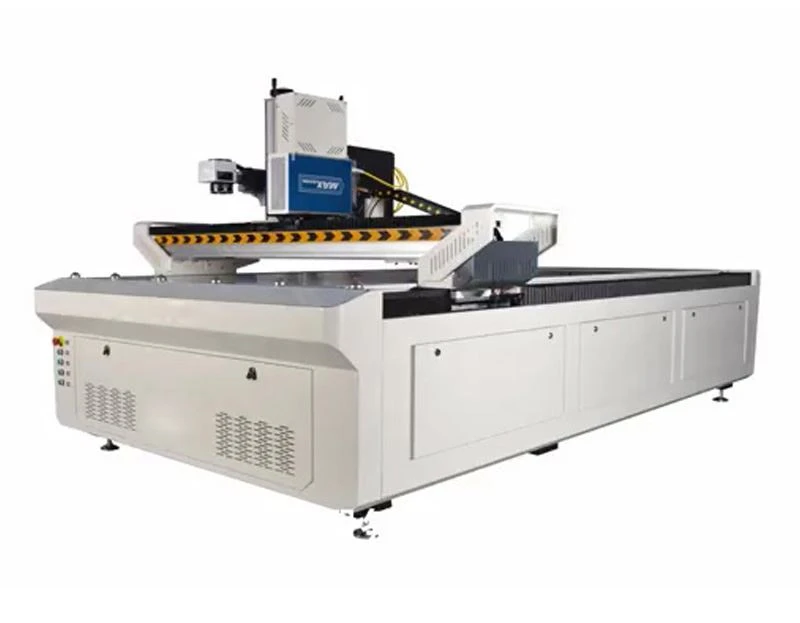

4. loj-hom tsis-spling platform laser npav tshuab
Cov cuab yeej no yog ib txoj hauv kev ua haujlwm tsis tshua muaj tam sim no hauv khw. Tag nrho cov hom loj yog cim los ntawm XY platform thaum lub sij hawm kos npe. Nws tuaj yeem ua tiav tsis muaj qhov sib txawv, nrawm nrawm, tsim nyog lub zog thiab nyias cov kab ntoo. Nws qhov ceev thiab qhov tseeb yog qhov siab heev, thiab nws yog qhov tsim nyog rau ntau qhov xwm txheej uas yuav tsum tau muaj qhov tseeb.
Cov qauv ntawm cheeb tsam loj fiber ntau laser npav tshuab
pob
FAQ
Q1: Hom twg loj cheeb tsam laser npav tshuab haum rau kuv?
Q2: Lub sijhawm khoom xa tuaj nws yuav siv li cas?
Q3: Peb yuav ua li cas yog tias peb tsis paub siv?
