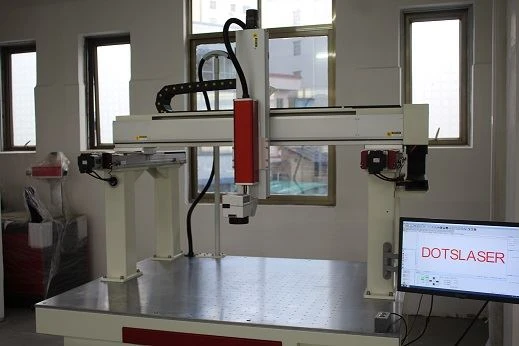

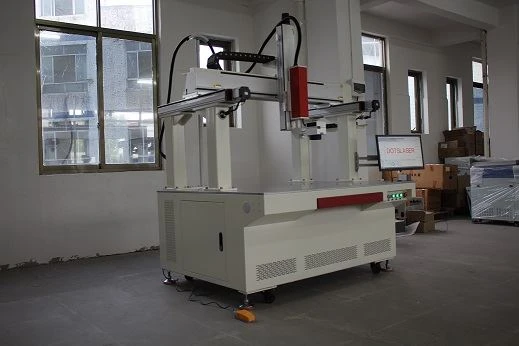

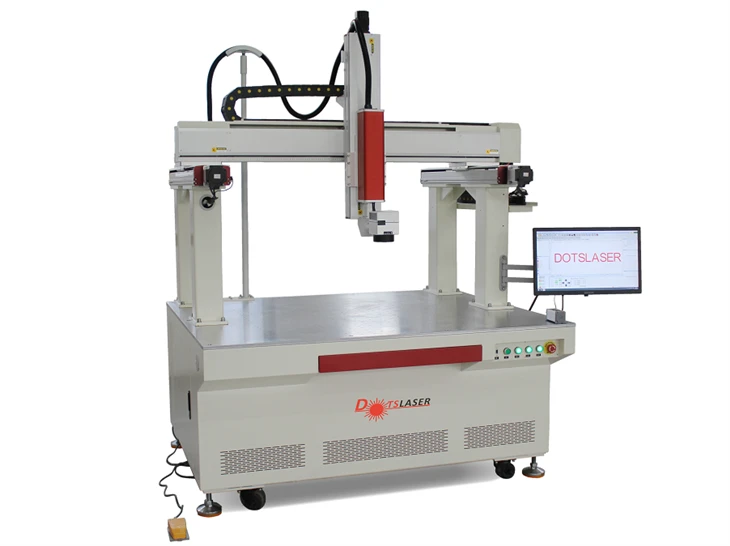

Laser Xim Tshem Tawm Tshuab
Laser Xim Tshem Tawm Tshuab
Khoom Description
Laser xim tshem tawm lossis ablation yog txheej txheem thaum lub sijhawm ua haujlwm txheej txheej tau xaiv tshem tawm ntawm qhov chaw siv hluav taws xob laser (feem ntau yog mem tes). Cov khoom absorbing yog rhuab los ntawm laser zog thiab evaporates los yog sublimates. Cov khoom pob tshab yog ablated nyob rau hauv nws cov khoom muaj zog.
Kev tshem tawm cov xim laser yog txheej txheem uas siv cov kab hluav taws xob siab siv laser tshem tawm cov txheej txheem ntawm cov xim ntawm qhov chaw. Txoj kev tshem tawm txheej no yog ob qho tib si meej thiab tswj tau, yog li nws yog qhov zoo tagnrho rau kev siv cov txheej txheem ib txwm siv, xws li tshuaj tua kab lossis abrasive blasting, yuav ua rau puas tsuaj lossis tsis zoo.
Cov txiaj ntsig ntawm Laser Xim Tshem Tawm
Kev tshem tawm cov xim laser muaj ntau cov txiaj ntsig ntawm cov txheej txheem ib txwm muaj. Nov yog vim li cas koj yuav tsum sim nws lwm zaus koj yuav tsum tshem cov xim!
Tsawg Cov Khoom Siv Hluav Taws Xob
Laser xim tshem tawm tsis tshua muaj kev phom sij dua li cov tshuab tsoos. Txij li thaum lasers vaporize xim ncaj qha los ntawm qhov chaw uas tsis xav tau tshuaj los yog abrasives, txoj kev no ua rau yuav luag tsis muaj lwm yam pov tseg.
Precision thiab tswj
Laser xim stripping muab koj meej tswj cov txheej txheem tshem tawm. Koj tuaj yeem kho lub laser qhov kev siv zog thiab tsom mus rau lub hom phiaj tshwj xeeb ntawm cov xim tsis muaj kev puas tsuaj rau cov khoom hauv qab lub tsho tiv no ntawm cov xim.
Efficient thiab nqi-zoo
Laser tshem tawm cov xim yog sai dua thiab muaj txiaj ntsig ntau dua li cov qauv siv. Muaj lub sijhawm teeb tsa tsawg dua thiab koj tuaj yeem strip xim, nyob ntawm lub zog ntawm koj lub laser thiab cov xim tuab npaum li cas.
Ntau yam
Nws tuaj yeem siv rau ntau yam khoom siv, suav nrog hlau, yas, thiab cov khoom sib xyaw, tsis muaj kev puas tsuaj. Cov tshuab laser kuj tseem muaj kev tu ncua tsawg, nrog cov khoom siv tsawg dua thiab tsuas yog siv qee zaus piv rau cov khoom siv tshem tawm xim.
Main tsis
| Ua haujlwm raug | ± 0.001 hli |
| Laser zog | 100W/200W |
| Laser wavelength | 1064nm ua |
| Kev Ntsuas Qhov tob | 0-1 hli |
| Marking Ceev | 0-7000mm/s |
| Cov ntsiab lus tseem ceeb | Lub cev muaj zog, PLC, laser qhov chaw, galvo scanner |

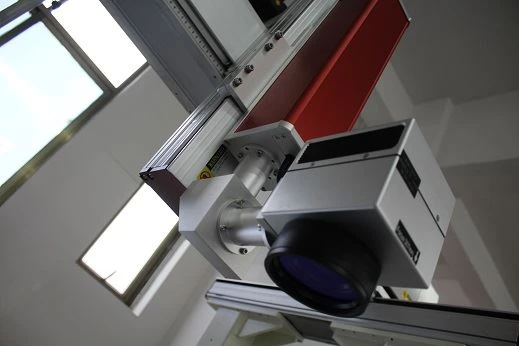

| Kos Lub Taub Hau Hom | Kev kub ceev Galvo Scannerv |
| Hom kev ua haujlwm | Pulsed |
| Chaw ua haujlwm | 1300x2500mm / 1500x3000mm |
| Warranty | 1 xyoo |
| Qhov hnyav (KG) | 1500 KG |
| Txias hom | Cua |
| Hom Laser | Fiber Laser |
| Graphic Format txaus siab | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Lifespan ntawm laser ntaus ntawv | 100000 teev |
Laser Xim Tshem Tawm vs. Cov Txheej Txheem Txheej Txheem
Siv lub laser tshem tawm cov xim muaj ntau qhov zoo dua li lwm txoj hauv kev. Tab sis nws puas yog qhov zoo tshaj plaws rau koj cov kev xav tau? Ntawm no yog ib tug ceev txheej txheem cej luam ntawm laser xim tshem tawm vs.
Laser ntxuav vs. Sandblasting
Sandblasting siv cov ntaub ntawv abrasive, zoo li cov xuab zeb lossis iav hlaws, txav ntawm kev kub ceev kom tshem tawm cov xim ntawm lub cev. Nyob rau hauv sib piv, laser ntxuav yog ib tug tsis sib cuag txoj kev uas siv tsom laser beams kom vaporize cov xim yam tsis tau kov cov khoom hauv qab.
|
Laser Xim Tshem Tawm |
Sandblasting |
|
Maj mam thiab tsis ua puas rau qhov chaw |
Yuav ua rau qhov chaw puas tsuaj |
|
Tsuas yog ib qho me me ntawm cov xim vaporized |
Tsim cov plua plav thiab khib nyiab |
|
Eco-phooj ywg xaiv |
Tsis zoo rau ib puag ncig |
|
Tsis muaj teeb meem rau kev noj qab haus huv |
Yuav ua rau muaj kev phom sij rau kev noj qab haus huv |
|
Ceev tshaj sandblasting |
Yuav siv sij hawm ntev |
Daim ntawv thov:
Laser xim tshem tawm tshuab tuaj yeem siv tau rau hauv ntau qhov chaw, uas yog coj yooj yim rau koj thiab koj tsev neeg!

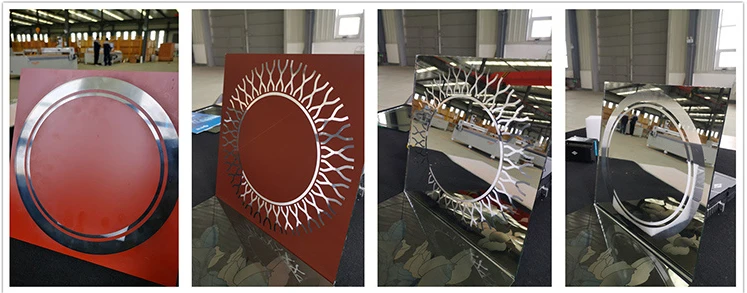

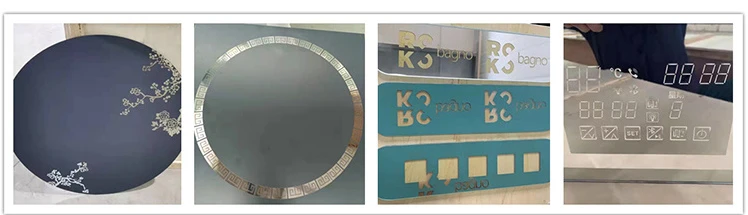

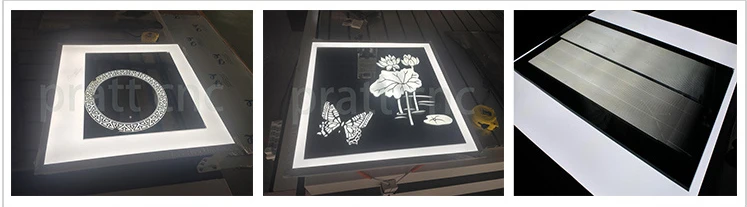

Cov qauv
Lub tswv yim los xav txog thaum yuav lub Laser
Tswv yim 1: Teem Ib Cov Nyiaj Txiag Zoo
Thaum koj xav yuav lub tshuab laser, raws li koj qhov peev txheej tiag tiag.Cov no suav nrog cov nqi kho, lub zog ua haujlwm ntawm lub cuab yeej thiab cov nqi kho txhua yam. Kev suav nyiaj txiag kom zoo yuav pab kom tsis txhob muaj cov nuj nqis uas tsis tau npaj tseg thiab xyuas kom meej tias qhov project tseem siv tau nyiaj txiag.
Tswv yim 2: Txhais thaj tsam ntawm daim ntawv thov
Xyuas kom tseeb tias koj yuav siv lub tshuab ua dab tsi, yog li ntawd nws yog ib qho tseem ceeb kom paub meej tias lub laser yuav tsum ua li cas ua ntej kev yuav khoom. Qhov kev pom tseeb no ua rau nws yooj yim dua los xaiv tus qauv zoo.
Tswv yim 3: Txhais kev ua tau zoo thiab ua haujlwm ntau yam
Lub laser muaj zog yog qhov tseem ceeb rau kev txiav ceev ceev thiab meej. Qhov chaw ua haujlwm yuav tsum loj txaus kom yooj yim ua cov ntaub ntawv xav tau thiab cov haujlwm. Nws raug nquahu kom paub txog cov cai tshwj xeeb thiab cov kev qhia tshwj xeeb ua ntej txiav txim siab.
Tswv yim 4: Xaiv Hom Laser
Muaj ntau hom lasers, txhua qhov tsim nyog rau qee yam ntaub ntawv thiab kev siv. Xaiv qhov zoo ntawm laser yog qhov tseem ceeb rau kev ua tau zoo thiab kev ua tau zoo ntawm kev nqis peev.
Tswv yim 5: Kev Kho, Kev Pabcuam Thiab Kev Pabcuam Ntxiv
Kev pabcuam cov neeg siv khoom ntseeg tau yog qhov tseem ceeb thaum muaj kev ua haujlwm tsis zoo. Ua ntej ua kev yuav khoom, koj yuav tsum qhia meej cov kev pabcuam uas cov chaw tsim khoom muaj. Qhov no suav nrog qhov muaj cov khoom seem, kev tu ncua thiab lub sijhawm teb ntawm cov neeg siv khoom.
Shipping & Packing
FAQ
Q: Puas yog laser xim tshem tawm muaj kev nyab xeeb?
Q: Ua li cas Laser Xim Tshem Tawm Ua Haujlwm?
Q: Puas yog laser marking ruaj khov?
Q: Koj ua li cas ntxuav lub tshuab laser?
