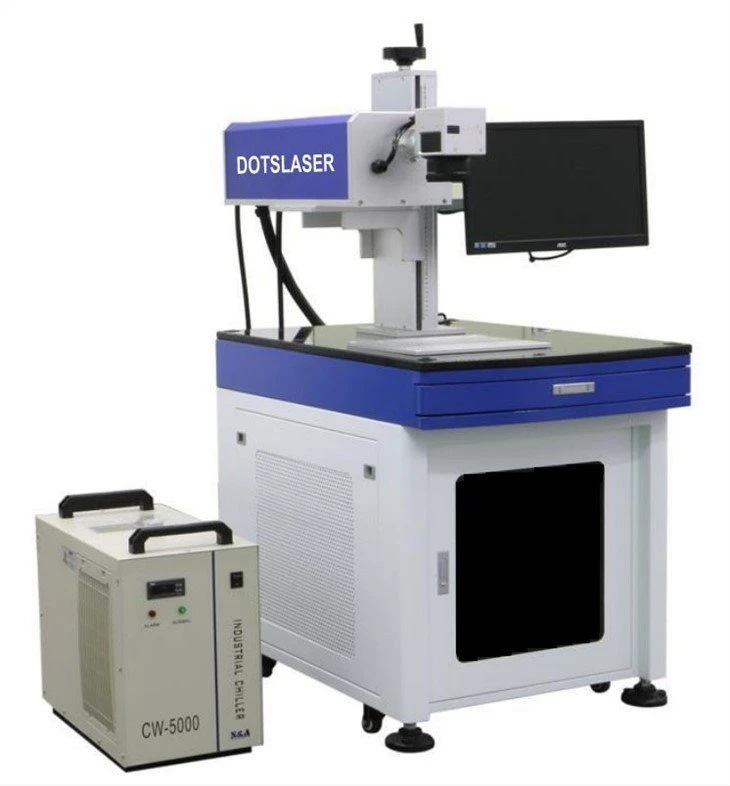

2D UV Laser Marking Tshuab

2D UV laser npav tshuab yog tsim los ntawm kev siv 355nm UV laser qhov chaw thiab txhawb cov khoom siv kho qhov muag. Lub tshuab txais qhov kev txiav txim thib peb intracavity zaus ob npaug tshuab.

Xa kev nug

Khoom Taw qhia

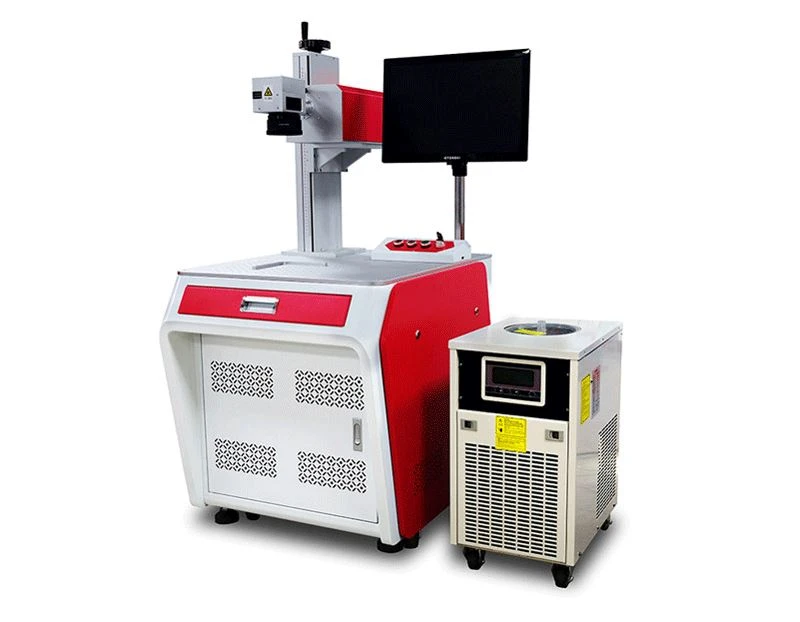

2D UV Laser Marking Tshuab

Khoom Description

2D UV laser npav tshuab yog ib hom khoom siv laser npav uas siv ultraviolet (UV) lub teeb los tsim cov cim ntawm ntau yam ntaub ntawv. Cov cav tov no yog tsim los muab cov high-precision, high-speed marking yam tsis muaj hluav taws xob ntau dhau, ua rau lawv zoo tagnrho rau cov ntaub ntawv rhiab heev uas yuav raug puas los ntawm lwm hom laser.

Cov yam ntxwv tseem ceeb ntawm 2D UV laser npav tshuab

Lub wavelength:UV laser npav tshuab siv lub wavelength luv dua (feem ntau nyob ib ncig ntawm 355 nm) piv rau lwm cov lasers, xws li infrared lasers (xws li, 1064 nm rau fiber ntau lasers thiab 10,600 nm rau CO₂lasers). Qhov luv luv wavelength no tso cai rau cov cim zoo kawg thiab meej.

Tsis tiv tauj cim:Zoo li lwm lub tshuab laser npav, UV laser markers ua haujlwm yam tsis muaj kev sib cuag ncaj qha nrog cov khoom, uas txo cov kev ntxhov siab ntawm cov khoom thiab tshem tawm qhov xav tau ntawm cov khoom siv xws li inks, solvents, lossis qhov ncauj qhov ntswg.

Kev ua haujlwm txias:UV lasers ua kom muaj cua sov tsawg thaum lub sij hawm kos npe. Cov yam ntxwv no ua rau lawv zoo tagnrho rau cov ntaub ntawv uas muaj kev kub nyhiab, xws li polymers, plastics, thiab nyias zaj duab xis, los yog cov ntawv thov uas muaj kev tswj hwm ntawm qhov tob ntawm qhov tseem ceeb.

High-resolution marking:2D UV laser npav tshuab tuaj yeem tsim cov cim kev daws teeb meem ntawm cov qauv nyuaj, suav nrog cov ntawv me me, QR cov lej, cov lej cim, barcodes, logos, thiab cov duab, sai thiab raug.

Khoom siv compatibility:Lawv haum rau ntau yam ntaub ntawv, xws li yas, iav, ceramics, hlau, thiab lwm yam. UV lasers tshwj xeeb tshaj yog muaj txiaj ntsig zoo rau kev kos cov ntaub ntawv uas ib txwm nyuaj lossis tsis tuaj yeem kos nrog lwm hom laser.

Clean thiab environmentally friendly:UV laser marking yog txheej txheem huv, ua tsis muaj pa phem lossis tshuaj lom neeg uas tuaj yeem ua rau muaj kev phom sij rau ib puag ncig lossis tib neeg.

Cov ntaub ntawv siv:

iav, ABS, Nylon, PES, PVC, Makrolon, tawv, roj hmab, ntoo, xyoob, ceramics, zaj duab xis, ntawv board.

Thaum xav txog 2D UV laser npav tshuab, nws yog ib qho tseem ceeb rau kev soj ntsuam cov yam ntxwv xws li cov phiaj xwm kev siv, cov khoom siv sib xws, cim kev daws teeb meem, xav tau kev cim ceev, thiab nyiaj txiag. UV laser npav tshuab tej zaum yuav kim dua lwm hom laser, tab sis lawv cov precision thiab muaj peev xwm los kos cov ntaub ntawv rhiab tuaj yeem ua rau lawv muaj txiaj ntsig zoo rau qee qhov kev lag luam.

Qhov zoo

1) Compact qauv, yooj yim mus ncig.
2)Ntev lifespan ntawm laser qhov chaw: 20 000 teev.
3)Lub taub hau scanning ceev, ceev tuaj yeem yog 8000mm / s.
4)zoo tswj.
5) High Precision:mus txog 0.012mm, kom paub tseeb tias cov txiaj ntsig zoo.
6) Superior Laser Beam:Lub ntsiab lus yog 1 micron, 10 npaug ntawm cov khoom siv.
7) Tsis muaj khoom siv:UV LASER marker tuaj yeem ua haujlwm ntau dua 5 xyoos yam tsis muaj khoom siv.
8) High efficiency:80 tus qauv cim ib ob, nws yog 3 mus rau 5 npaug tshaj li cov cuab yeej siv.
9) Lub laser beam tsis tas yuav kho.
10) Kev siv tsawg: <600W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
11) Muaj zog Compatibility:JPG, BMP, DXF, AI, PLT thiab lwm yam ntaub ntawv tawm los ntawm CorelDraw, PS, AutoCAD, thiab lwm yam.
12) Integrated Cua Txias System:Cov nyhuv txias yog qhov zoo tshaj qhov dej txias hauv YAG laser, tsis muaj kev saib xyuas.
13) Deeper Marking:Max. 1.2mm stainless hlau, haum rau cov kev lag luam uas xav tau kev ua haujlwm siab thiab qhov tob tob.

Technical parameter

Qauv	DS-UV 3	DS-UV 5	DS-UV 10
Laser fais fab tso zis	>3W	>5W	>10W
Laser wavelength	355nm ua
Xaiv txoj kev	2D / 3D / ya cim
Kos thaj tsam	100x100mm / 150x150mm / 200x200mm
Pulse zog	＞200µJ
Tus nqi rov ua dua	20 ~ 150KHz
Max marking ceev	10, 000mm/s
Beam zoo	＜1.2 ㎡
Min. kab dav	0.01 hli
Rov ua qhov tseeb	± 0.003mm
Txias	Cua / Dej txias
Ua haujlwm temp	15-35 ° C
Qhov hnyav tag nrho	190 KG
Qhov loj ntawm lub tshuab	1000x735x1630mm
Fais fab mov	AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz

Cov lus qhia ntau lawm

* 2D UV laser npav tshuab yog nruab nrog cov lag luam loj lasers, lub sijhawm ua haujlwm ntev thiab cov khoom lag luam zoo, ruaj khov UV laser qhov chaw.
