UV Laser Marking Tshuab
UV Laser Marking Tshuab
Khoom Description

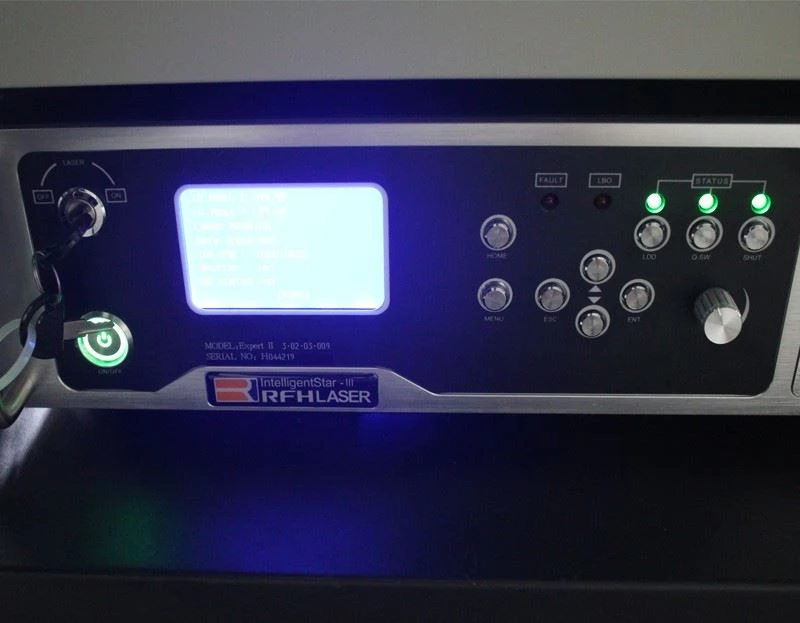

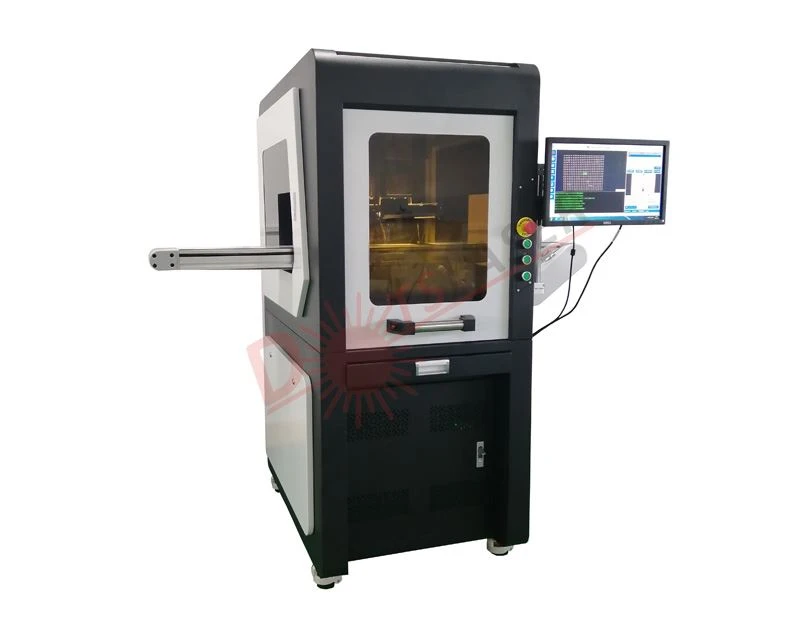

UV Laser Marking Engraving Tshuab muaj qhov ruaj khov thiab ua haujlwm zoo ntawm tag nrho lub tshuab. Nws txais kev ua haujlwm siab UV laser thiab digital high-speed scanning oscillator, nrog rau thaj tsam me me ntawm tshav kub, uas tuaj yeem paub cov cim zoo thiab tsim nyog rau laser npav ntawm cov hlau thiab cov khoom tsis yog hlau, tshwj xeeb tshaj yog cov ntaub ntawv tshwj xeeb. UV laser yog ib qho cuab yeej sib txawv ntawm CO2thiab fiber ntau laser technology. UV laser tseem hu ua xiav laser beam thiab cov cuab yeej no muaj peev xwm kos duab nrog cov cua sov tsawg.
UV Laser Marking Engraving Tshuab tuaj yeem ua kom pom tseeb tag nrho cov yas thiab lwm yam ntaub ntawv uas cuam tshuam tsis zoo rau cov cua sov, thiab tshwj xeeb tshaj yog tsim rau cov ntawv thov xws li kev kos cov khoom noj thiab cov khoom ntim tshuaj, micro-perforation, high-speed faib ntawm cov ntaub ntawv iav thiab cov duab txiav. ntawm silicon wafers.
Cov ntaub ntawv hlau uas tuaj yeem kos los ntawm UV laser tshuab suav nrog txhuas, kub, platinum, nyiaj, titanium, tooj dag, stainless hlau, thiab lwm yam.
Technical parameter
|
Qauv |
DS-UV 3 |
DS-UV 5 |
DS-UV 10 |
|
Laser fais fab tso zis |
>3W |
>5W |
>10W |
|
Laser wavelength |
355nm ua |
||
|
Xaiv txoj kev |
2D |
||
|
Kos thaj tsam |
100x100mm / 150x150mm / 200x200mm |
||
|
Pulse zog |
＞200µJ |
||
|
Tus nqi rov ua dua |
20 ~ 150KHz |
||
|
Max marking ceev |
10, 000mm/s |
||
|
Beam zoo |
＜1.2 ㎡ |
||
|
Min. kab dav |
0.01 hli |
||
|
Rov ua qhov tseeb |
± 0.003mm |
||
|
Txias |
Cua / Dej txias |
||
|
Ua haujlwm temp |
15-35 ° C |
||
|
Qhov hnyav tag nrho |
190 KG |
||
|
Qhov loj ntawm lub tshuab |
1000x735x1630mm |
||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
||
Qhov zoo

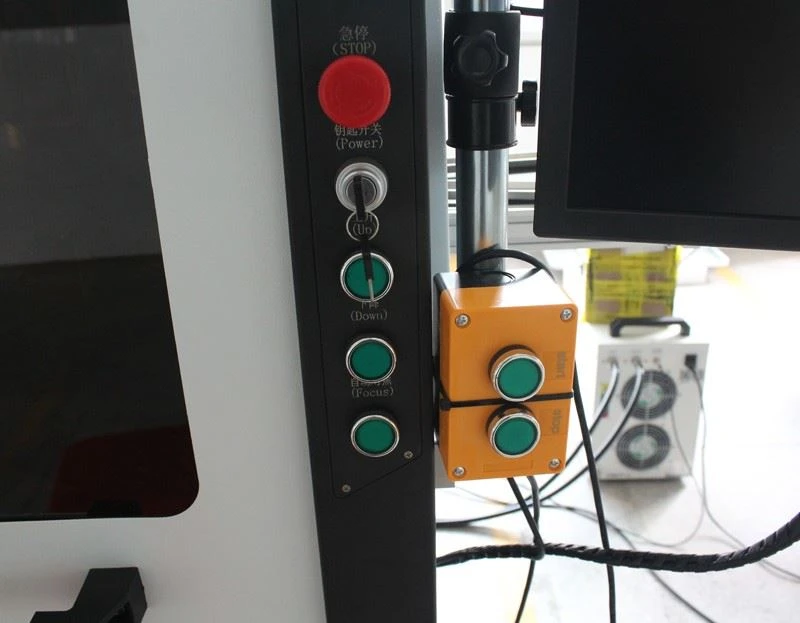

UV laser npav engraving tshuab yog siv multifunctional humanized tsim khawm, EU tus qauv, tsis tshua muaj hluav taws xob tswj kev nyab xeeb thiab txhim khu kev qha.

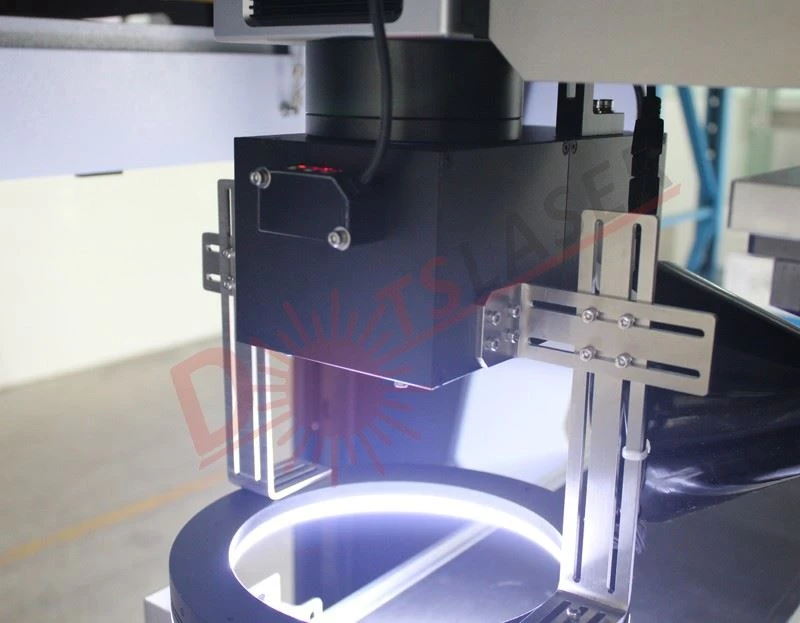

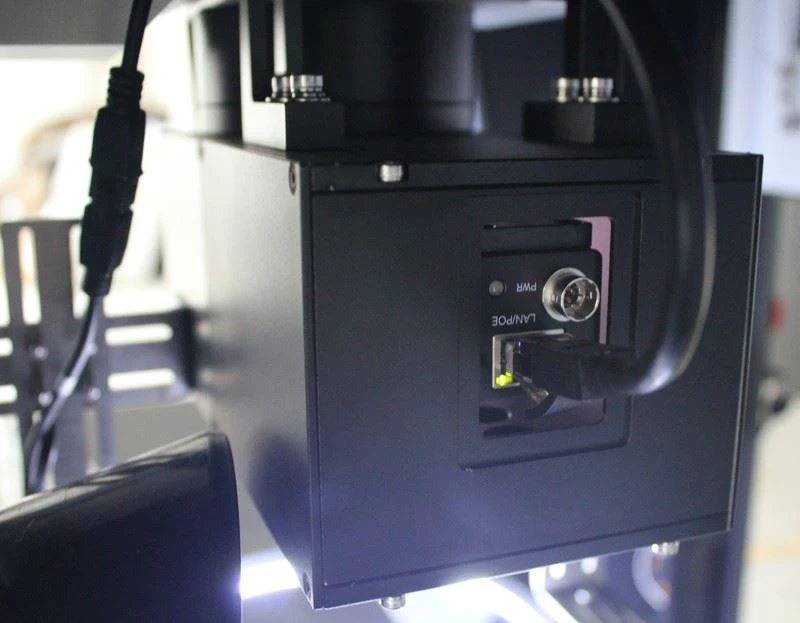

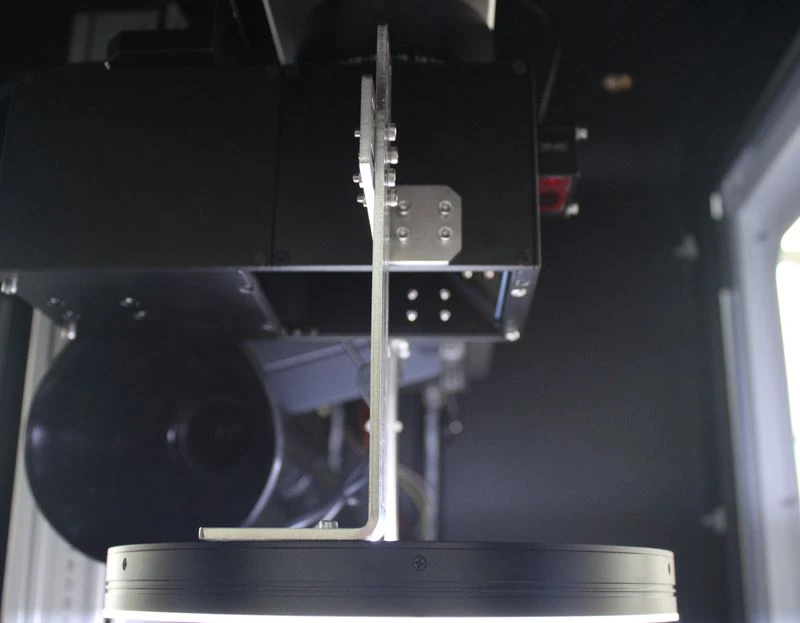

20 lab lub koob yees duab ceev ceev, qhov tseeb thiab txhim khu kev qha scanning thiab yees duab nrawm, nrog lub teeb pom kev loj, ua haujlwm kom pom tseeb.

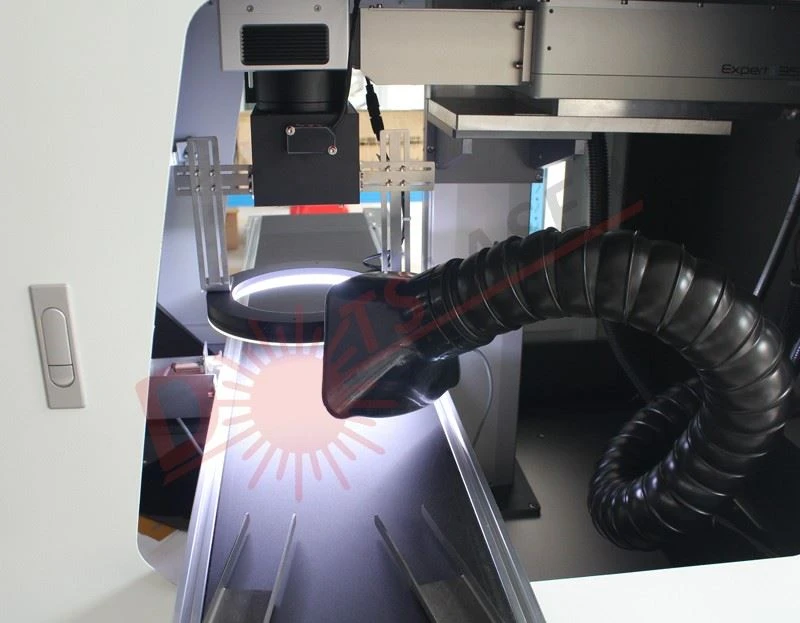

Cov kav dej thoob ntiaj teb tuaj yeem txav mus los ntawm txhua lub kaum sab xis kom nqus cov plua plav ua haujlwm thiab ua kom lub tshuab ua kom huv thiab huv.

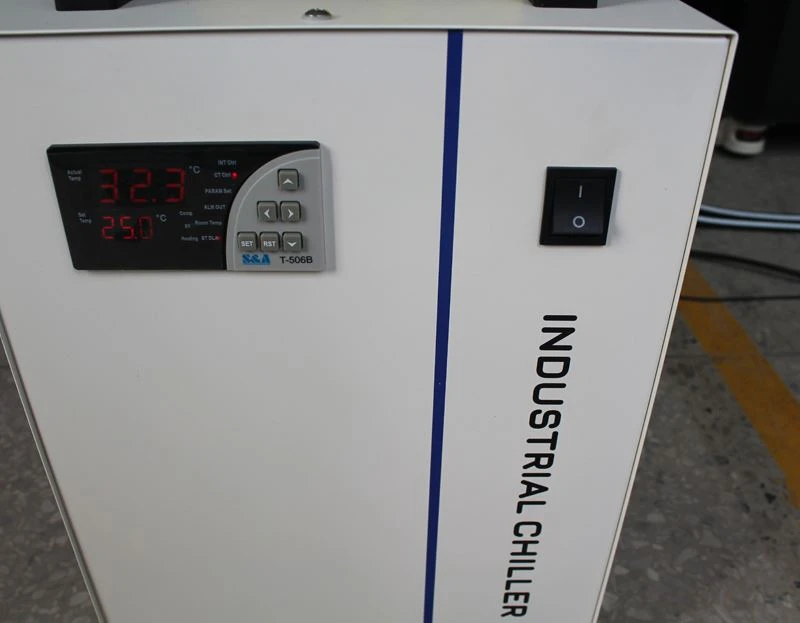

High-precision dej chiller, nrog rau kev tswj kom txias zoo, saib xyuas lub sijhawm ua haujlwm ntawm lub laser kom paub meej qhov kub thiab txias, ua rau lub tshuab ua haujlwm ruaj ntseg.

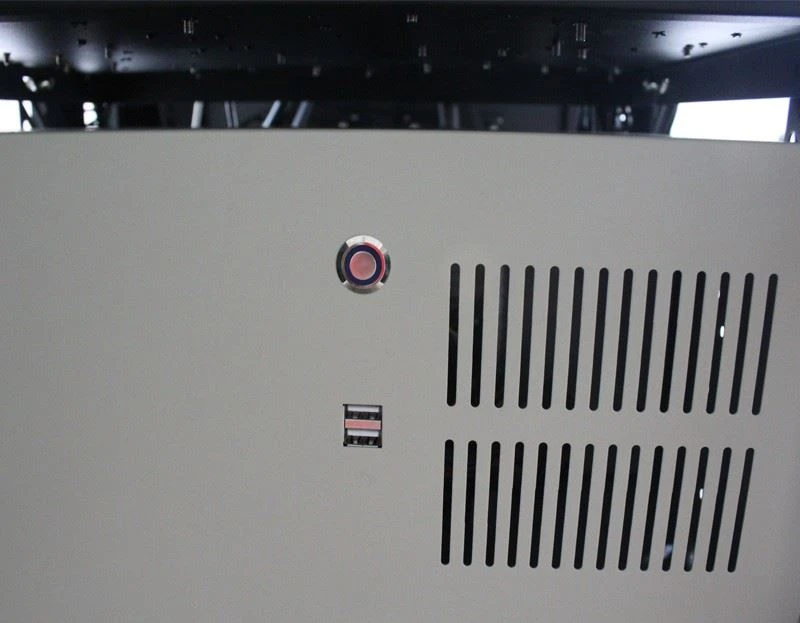

High configuration desktop computer, ceev ceev ceev, ceev teb ceev, yooj yim system ua hauj lwm.

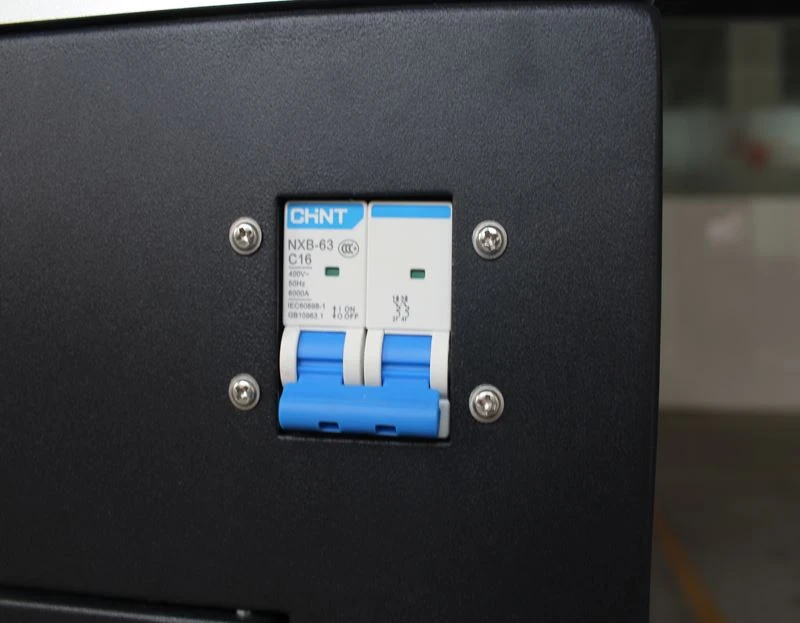

Kev nyab xeeb tswj huab cua hloov, kev tiv thaiv to, nyab xeeb thiab txhim khu kev qha.

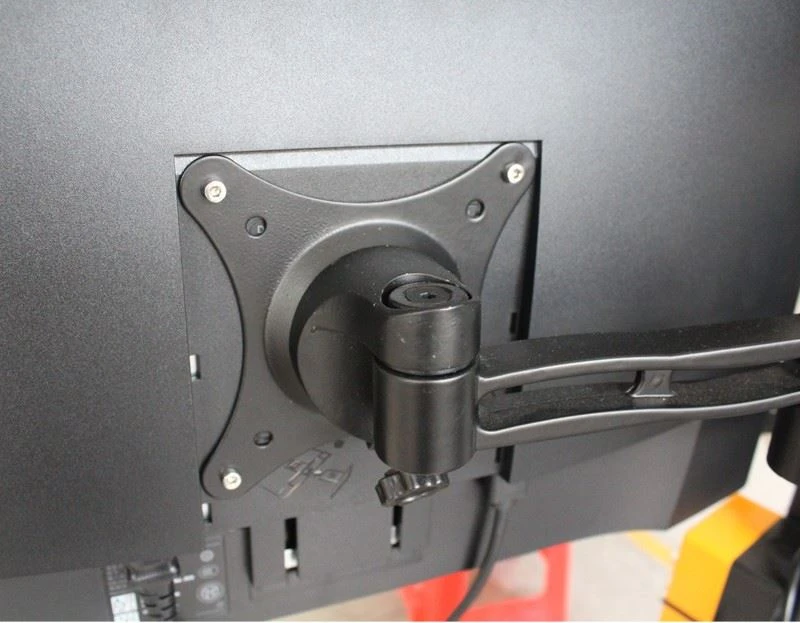

Multi-function universal zaub kov yog yooj yim rau tus neeg teb xov tooj saib xyuas thiab siv lub tshuab.

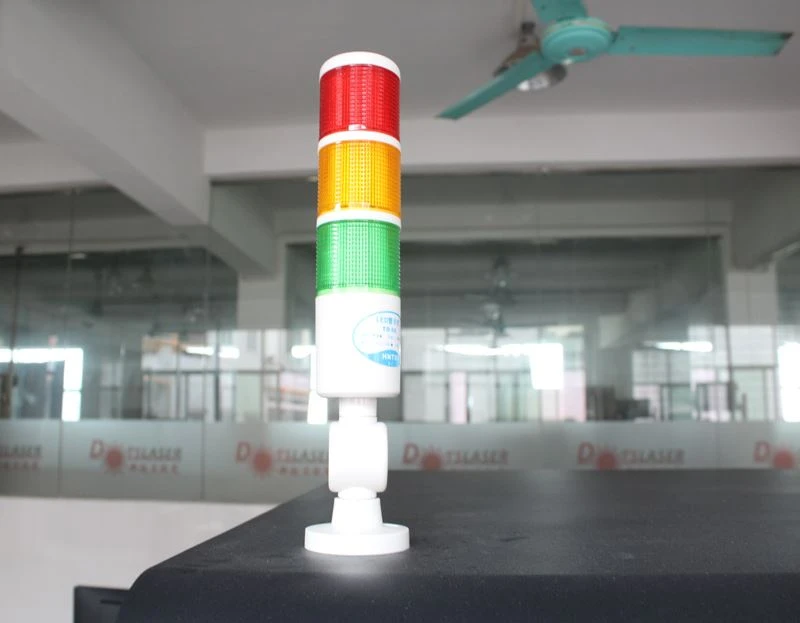

Peb lub xeev thiab peb-xim lub teeb, cov khoom siv saib xyuas lub sijhawm ua haujlwm.

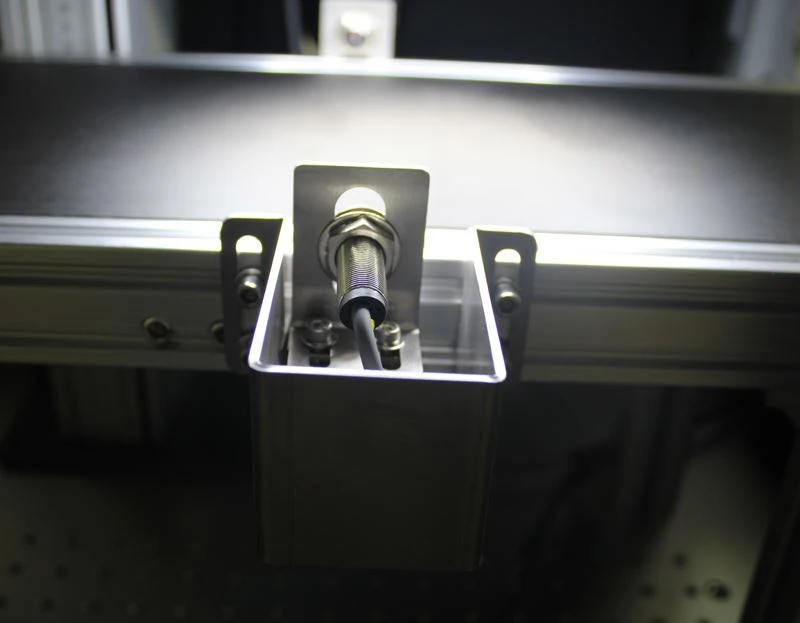

High-speed thiab high-precision induction trigger
