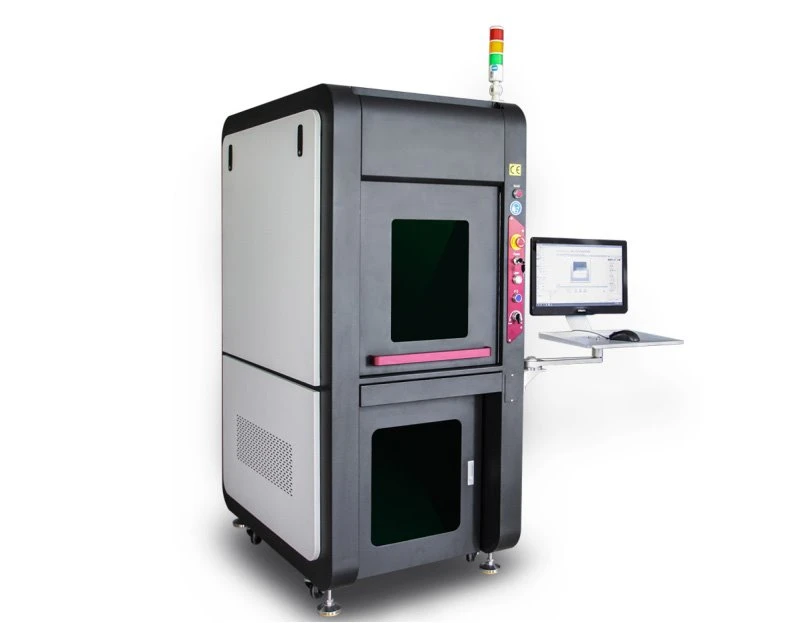

3D UV Laser Npav Tshuab
3D UV Marker
Cov khoom lag luam

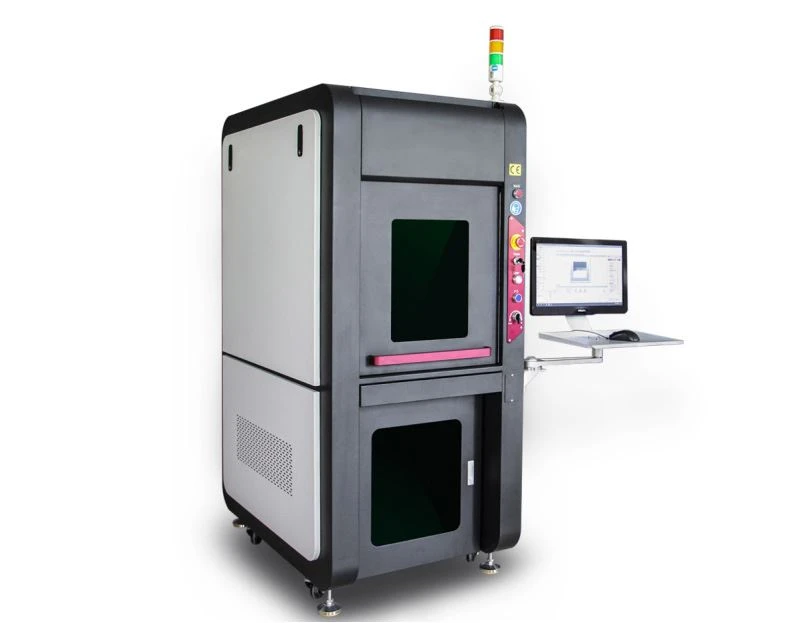

3D UV Marker yog tsim los ntawm kev siv 355nm ultraviolet laser. Cov cuab yeej no siv ib qho kev txiav txim siab thib peb ntawm kev sim ua ntu zus ob npaug. Piv nrog infrared lasers, 355 ultraviolet lub teeb muaj qhov tsom heev me me. Nws heev txo cov tshuab deformation ntawm cov khoom siv thiab ua kom muaj kev sib tw ua kom zoo rau cov khoom siv iav thiab cov khoom siv ntim khoom siv. Wafers tau siv rau cov qauv sib txiav hnyav thiab lwm yam kev siv.
Vim li cas thiaj xaiv peb
Vim li cas thiaj xaiv peb cov khoom
Nta
Vim tias cov chaw tsom iav heev thiab cov chaw ua haujlwm kub ua haujlwm, tus lej 3D UV tuaj yeem ua cov ntaub ntawv tshwj xeeb thiab khij cov khoom tshwj xeeb. Nws yog thawj qhov kev xaiv rau cov neeg muas zaub uas muaj cov kev xav tau ntau dua rau cov teebmeem kev cim.
UV cov cuab yeej siv cov nqaj zoo heev thiab Samll tsom chaw.Cov ntawv thov dav dav ntau, thaj chaw kub me me-cuam tshuam nrog tsis muaj cua sov cuam tshuam thiab cov khoom siv hluav taws xob tau tshwm sim.Cov cim nrawm nrawm nrawm thiab ua tau zoo heev.Qhov kev ua tau zoo heev muaj qhov zoo ntawm kev ua tau zoo, me me thiab siv hluav taws xob me me.
Kev Lag Luam Kev Lag Luam
|
Tus qauv |
DS-UV3 |
DS-UV5 |
DS-UV10 |
|
Laser Zog Tawm |
>3W |
>5W |
>10W |
|
laser wavelength |
355nm |
||
|
Kev xaiv txoj kev |
3D/ |
||
|
Npav cheeb tsam |
100 x 100 hli / 150x150mm |
||
|
Mem tes zog |
＞200µJ |
||
|
Kev rov ua dua tus nqi |
20 ~ 150kHz |
||
|
Max kos duab ceev |
10, {000 hli / s |
||
|
Beam Zoo |
＜1.2 ㎡ |
||
|
Minoline dav |
0. 01 hli |
||
|
Rov ua dua qhov tseeb |
0. 003mm |
||
|
Cua txias |
Huab Cua / Dej Txias |
||
|
Ua hauj lwm samp |
15 ~ 35 degree |
||
| Npav Lub Taub Hau Hom | Me nyuam | ||

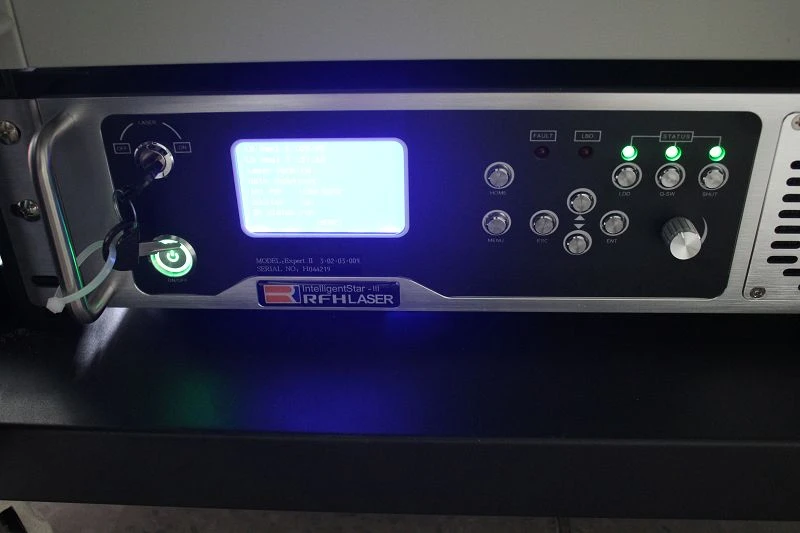

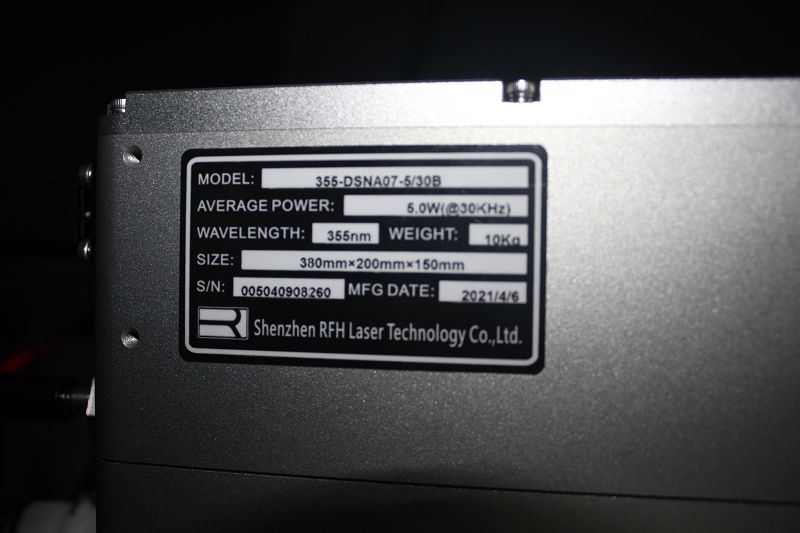

| Cov Cheebtsam Tseem Ceeb | Cav, Laser Tau | ||
| Kev pab tom qab muag tau muab | Txhawb Nqa Online | ||
| Yam zoo | 3D | ||
|
Tag nrho qhov hnyav |
190Kg |
||
|
Qhov loj me ntawm cov khoom siv |
1000x735x1630mm |
||
|
Kev pab fais fab |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60HZ |
||
Tshuab Daim Ntawv Thov:
(1) Cov Hluav Taws Xob Hluav Taws Xob: Cov Hlau Hluav Taws Xob, Hlau Hlau, Cov Khoom Siv Hluav Taws Xob, Cov Khoom Siv Hluav Taws Xob, Xov Tooj Txiaj, Cov Khoom Sib Txuas Lus) thiab kev sib txuas lus.
(2) tsheb thiab lub maus taus spare xeem, teeb duab iav, ntaus ntawv siv, cov cuab yeej ua tub rog, ntsuas cov cuab yeej, khoom noj kom huv.
(3) kws tshuaj, khoom noj, dej haus thiab kev lag luam tshuaj pleev ib ce.
(4) Kev Lag Luam Tsim Nyog: Cov Khoom Siv Crystal, Kev Ua Yeeb Yam ntawm Sab Nraud thiab Sab Nraud Ntawm Cov Zaj Duab Xis Etching, Ceramic Txiav lossis Watches thiab tsom iav.

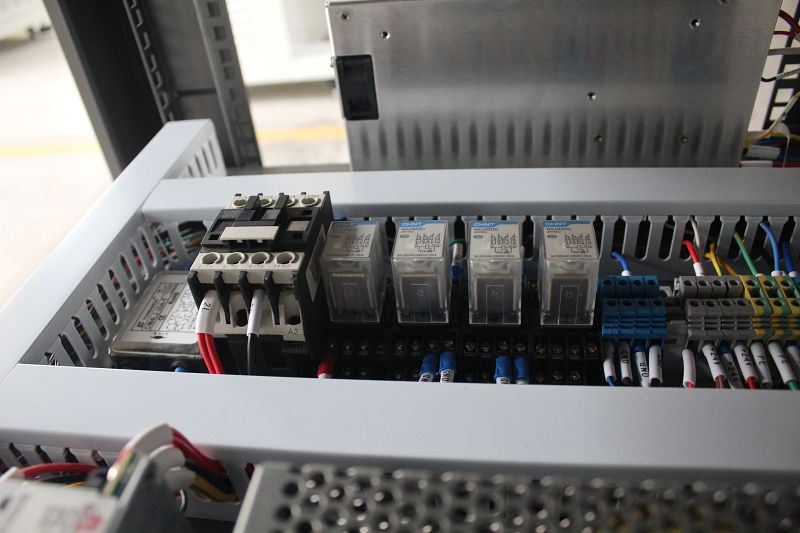

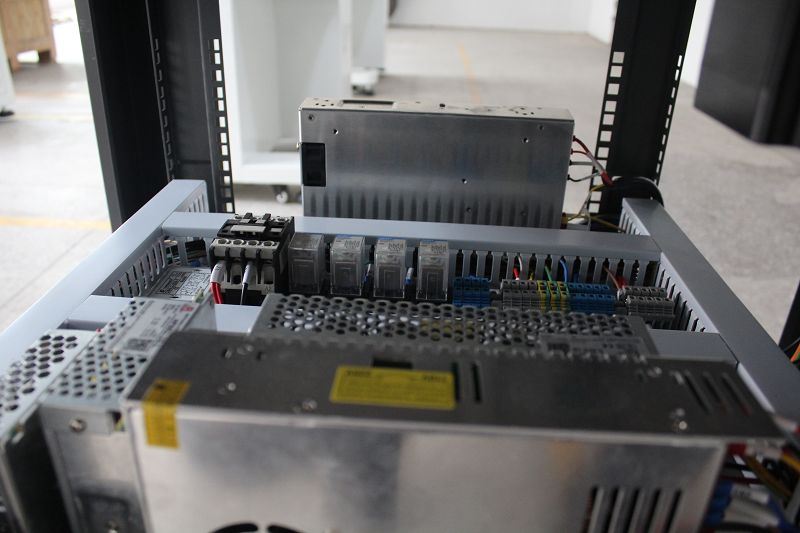

Khoom Paub meej:

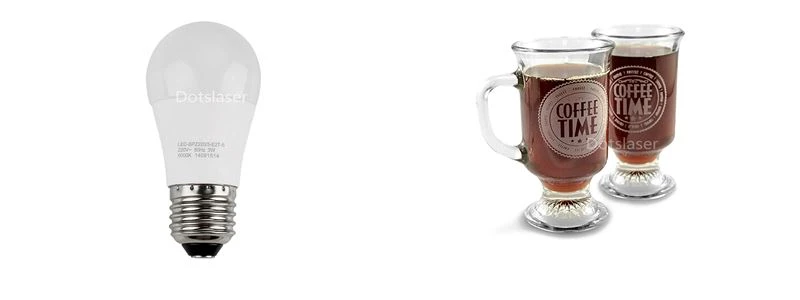

Kuaj
Shipping thiab Packing
Tom qab-muag cov kev pab
Haib software (yeem):
1. Siv tus kheej-tsim Macmark 3D tau sib haum nrog MES system. Txhawb txoj kev txhim kho theem ob thiab tuaj yeem kho tau rau cov kev xav tau tshwj xeeb.
2.Support Ezcad3 thiab Win7 / 8/10 system.
Peb txoj kev pabcuam tshaj lij:
Ib-rau-ib qhov kev pab, kev teb sai, muab cov yeeb yaj kiab ua haujlwm, phau ntawv qhia lus Askiv, txheej txheem tsis sib xws thiab lwm cov ntaub ntawv qhia. Ob-xyoo lav.
Cov kev pabcuam nthuav qhia (yeem):
Shipping los ntawm DHL / TNT / FEDEX txog 7 txog 15 hnub. Koj tuaj yeem tiv tauj peb kom tau cov ntsiab lus xa khoom.
