3D UV Laser Marker
3D UV Laser Marker
Khoom Description
3D UV laser marker yog hom laser npav tshuab uas siv UV laser tshuab los kos, kos, lossis kos ntau qhov chaw hauv peb qhov ntev. Qhov kev kos npe zoo tshaj plaws no tso cai rau kev tsim cov qauv thiab kev tsim ntawm ntau yam khoom, suav nrog plastics, hlau, iav, thiab ceramics. UV lasers muab 'cov cim txias' nrog cov cheeb tsam uas muaj cua sov tsawg, ua rau lawv tsim nyog rau kev kos cov khoom siv hluav taws xob tsis muaj kev puas tsuaj.
Cov yam ntxwv tseem ceeb ntawm 3D UV laser marker suav nrog:
High precision thiab nthuav dav: Lub peev xwm los tsim cov kev sib txawv, kev daws teeb meem siab thiab cov qauv nrog qhov raug zoo ua rau 3D UV laser markers haum rau cov ntawv thov uas xav tau cov cim zoo.
Ntau yam: 3D UV laser markers tuaj yeem siv rau ntawm ntau yam khoom, xws li yas, hlau, iav, thiab ceramics. Lawv lub peev xwm los hloov mus rau qhov chaw contours thiab irregularities tso cai rau kev kos cim rau ntawm cov duab sib txawv heev thiab nyuaj.
Cov qhab nia zoo: Cov cim uas tsim los ntawm UV lasers yog qhov sib txawv siab, ruaj khov, thiab tiv taus hnav, ua kom lawv lub neej ntev txawm tias nyob rau hauv ib puag ncig hnyav.
'Cov cim txias': Lub wavelength luv luv ntawm UV lasers ua rau 'cov cim txias,' txo qis qhov kub thiab txias thiab ua 3D UV laser markers haum rau cov ntaub ntawv kub-rhiab.
Lub sijhawm ua haujlwm ceev: Qhov ceev thiab raug ntawm 3D UV laser markers ua kom muaj txiaj ntsig zoo, tshwj xeeb tshaj yog rau kev ua haujlwm loj lossis kev ua haujlwm kom ntxaws uas yuav tsum tau muaj kev nkag siab ntau dua.
Qee cov ntawv thov rau 3D UV laser npav suav nrog:
Microelectronics:Labeling thiab kos npe ntawm cov khoom siv hluav taws xob, PCBs, thiab semiconductor wafers.
Automotive kev lag luam:Kev kos npe thiab kos duab ntawm ntau yam khoom siv tsheb, xws li cov khoom siv cav, cov khoom siv hluav taws xob, thiab cov hlau me me.
Cov cuab yeej kho mob:Kev kos npe meej ntawm cov cuab yeej phais, cov khoom cog, thiab lwm yam khoom siv kho mob.
Aerospace:Cov cim cim, traceability, thiab kev txheeb xyuas ntawm cov khoom siv dav hlau, suav nrog cov khoom ua los ntawm cov khoom siv cua sov.
Cov khoom siv thiab ntim khoom:Tsim cov khoom lag luam zoo, zoo sib xws ntawm cov khoom thiab cov khoom ntim.
Thaum xaiv 3D UV laser marker, xav txog tej yam xws li kev muaj peev xwm, cov khoom siv sib xws, precision, ceev, software compatibility, thiab yooj yim ntawm kev koom ua ke rau hauv koj cov txheej txheem ntau lawm. Kev nqis peev hauv 3D UV laser marker txhim khu kev qha tuaj yeem ua rau muaj txiaj ntsig zoo thiab txuag nqi hauv ntau qhov kev lag luam uas yuav tsum tau txheeb xyuas, taug qab, thiab kos cim zoo nkauj.
Kev sib piv ntawm Technical parameters
| Qauv | DS-UV3W/DS-UV5W/DS-UV10/DS-UV15 |
| Wave length ntawm laser | 355nm ua |
| Laser tso zis zog | 3W,5W,10W,15W |
| Marking ceev | 400 cim ib ob |
| Beam zoo | <1.1 |
| Rov ua qhov tseeb | ± 0.001 hli |
| Chaw ua haujlwm | 70 * 70mm, 110 * 110mm 150 * 150mm 175 * 175mm 200 * 200mm yeem |
| Tshuab fais fab | 800W |
| Yam tsawg kawg nkaus | 0.1 hli |
| Txoj kev txias | Force-cua txias |
| Fais fab mov | 220V / 50Hz / 2kVA Lub cev muaj zog |
| Yam tsawg kawg kab dav | 0.015 hli |
| Txhawb hom ntawv | PLT, BMP, DXF, JPG, TIF, AI thiab lwm yam |
| Cov khoom siv txheej txheem | Iav Plastic Crystal Non-metal Materials thiab lwm yam. |
| Txias qhov system | Cua txias los yog dej txias xaiv |
| Pob Loj | 132 CM X 76 CM W X 158 CM H |
| 70 Qhov hnyav tag nrho | 240 KG |

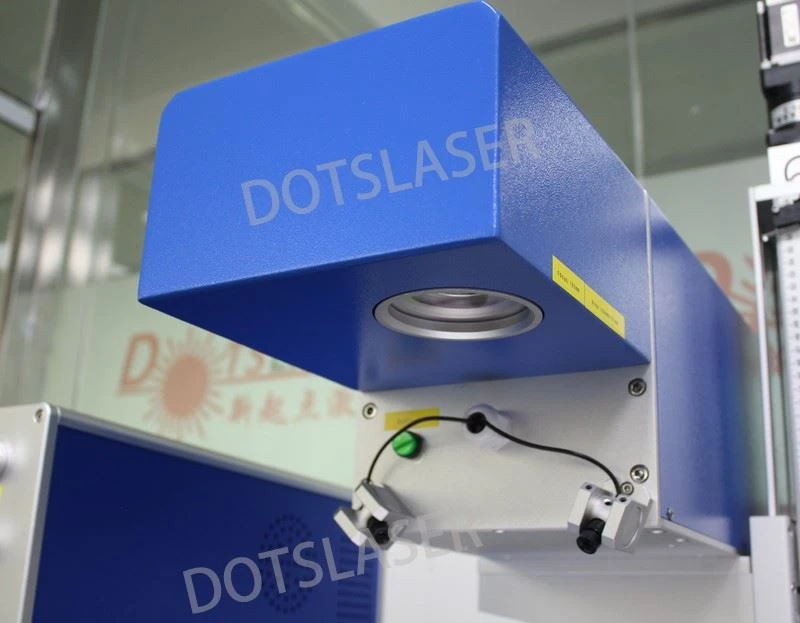

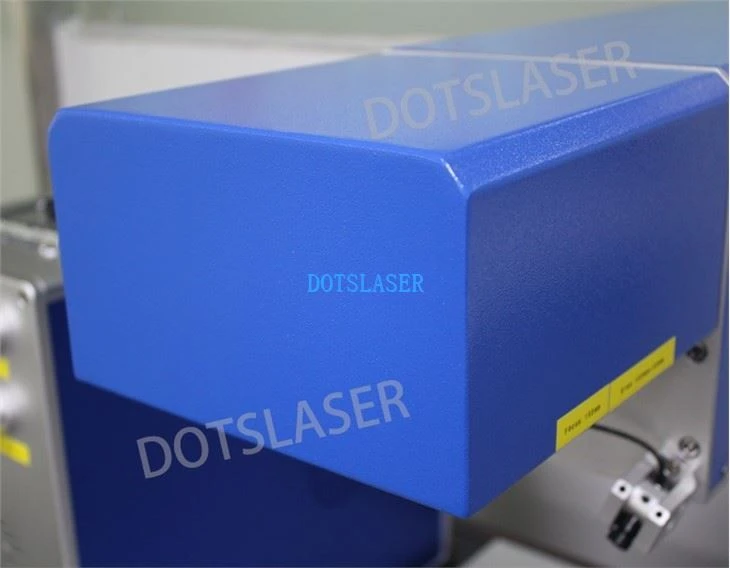

Kev piav qhia ntxaws

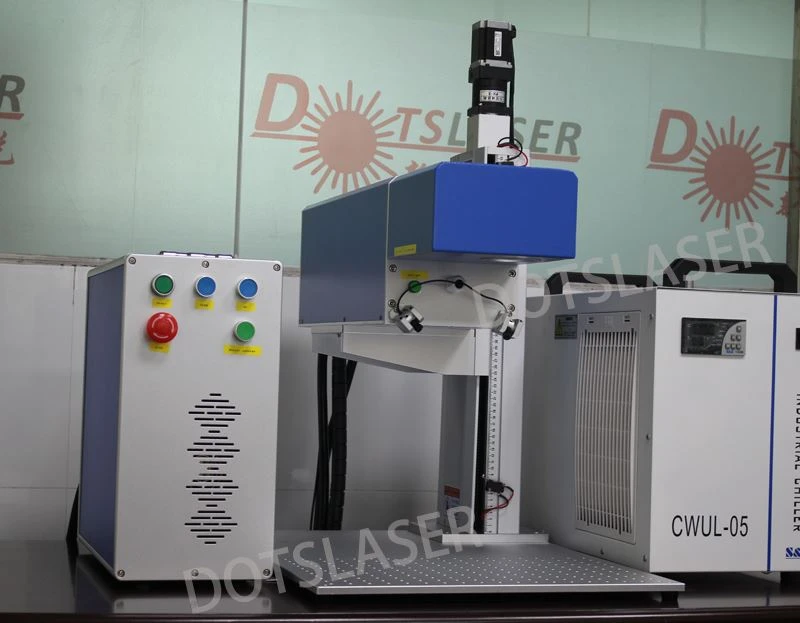

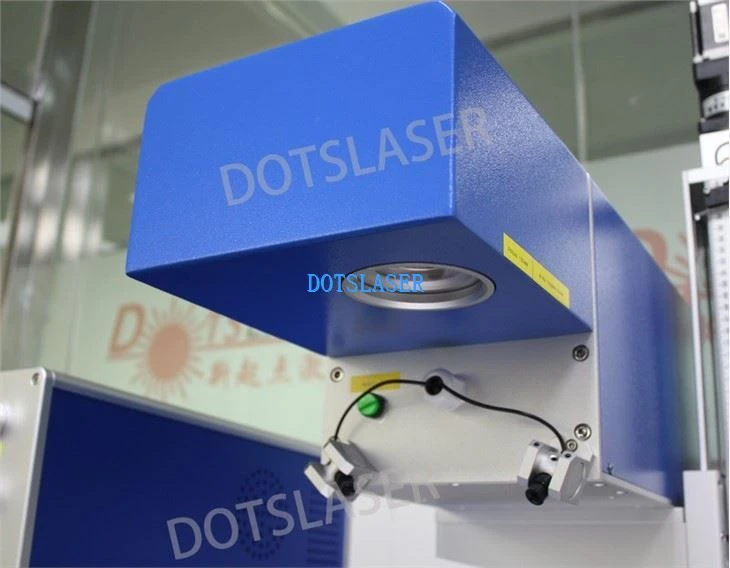

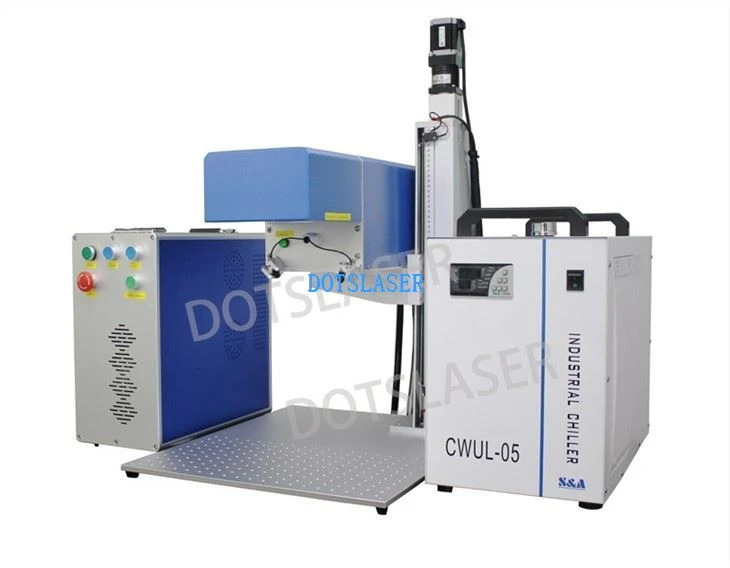

3D UV Laser Marker ib qho tshiab thiab cov thev naus laus zis siv rau kev kos npe ntawm cov khoom nrog nkhaus nto, xws li lub raj mis puag ncig, khob, tumblers, qhov siab sib txawv, concave, convex.
Vim hais tias ntawm 355nm luv wavelength, yog li nws mob cov ntaub ntawv tsawg dua piv nrog cov tsoos fiber ntau los yog CO2laser nqaj. tshwj xeeb tshaj yog zoo rau kev kos rau ntawm cov khoom rhiab, piv txwv li, kos rau ntawm cov ntaub ntawv yas thiab cov khoom siv iav, nws cov khoom ua tau zoo heev, tsis muaj kev xav tsis zoo thaum koj kov nws ntawm ntiv tes. yog li nws yog dav siv nyob rau hauv ntim kev lag luam, khoom plig thiab kos npe industries, iav khoom industries.
3D UV laser marker haum rau cov khoom siv nrog cov thermal tawg loj heev. Nws tuaj yeem koom tes nrog cov kab ntau lawm, tsis siv neeg thauj khoom thiab tshem tawm, pub noj tsis siv neeg thiab tso tawm. Nws yog tsuas yog siv rau ultra-fine marking thiab engraving.
Nws yog qhov tshwj xeeb tshaj yog tsim rau kev sib faib ceev ceev thiab kev ua kom zoo ntawm cov khoom noj, tshuaj ntim khoom, thiab cov khoom siv iav. Silicon wafers rau complex qauv txiav thiab lwm yam kev siv

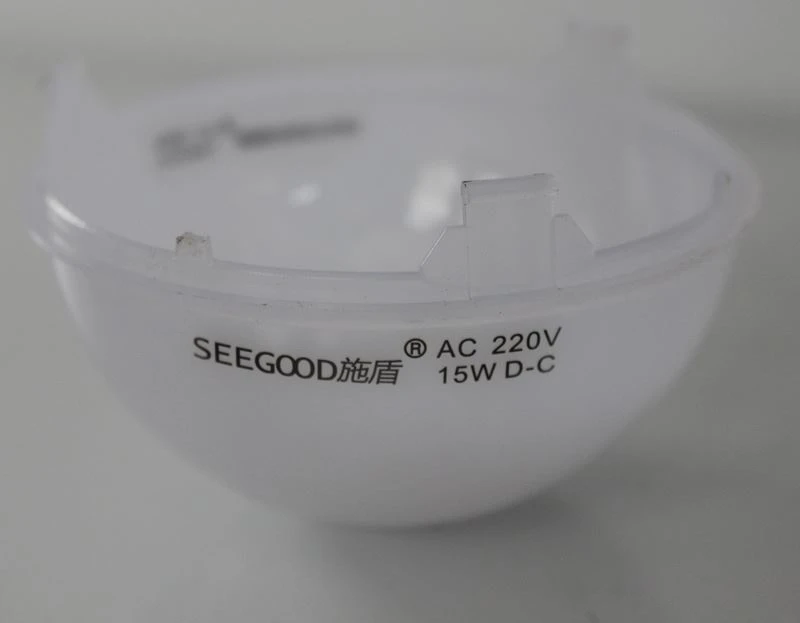

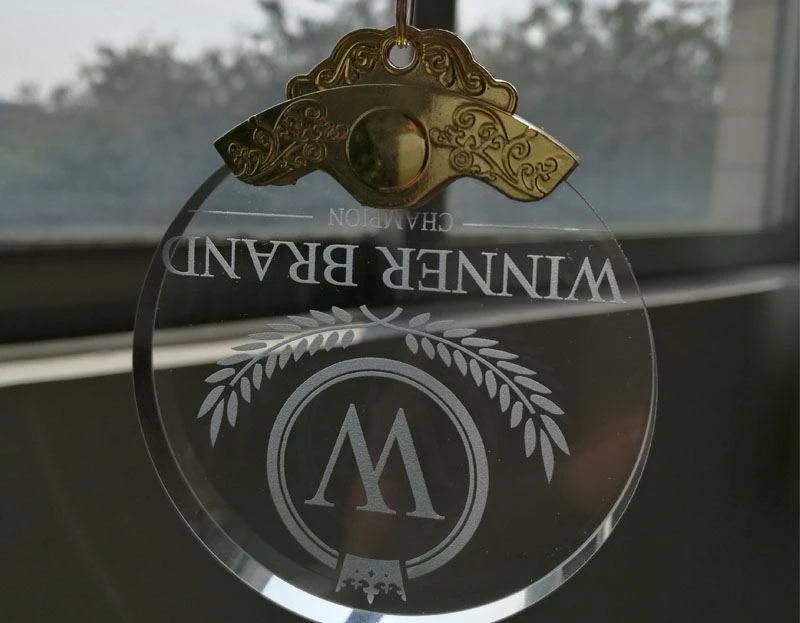

Cov qauv qhia

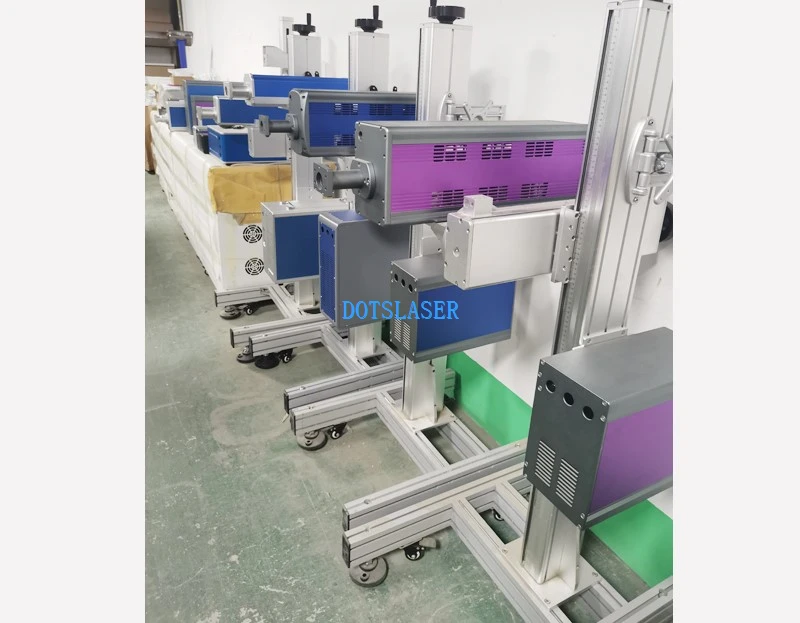

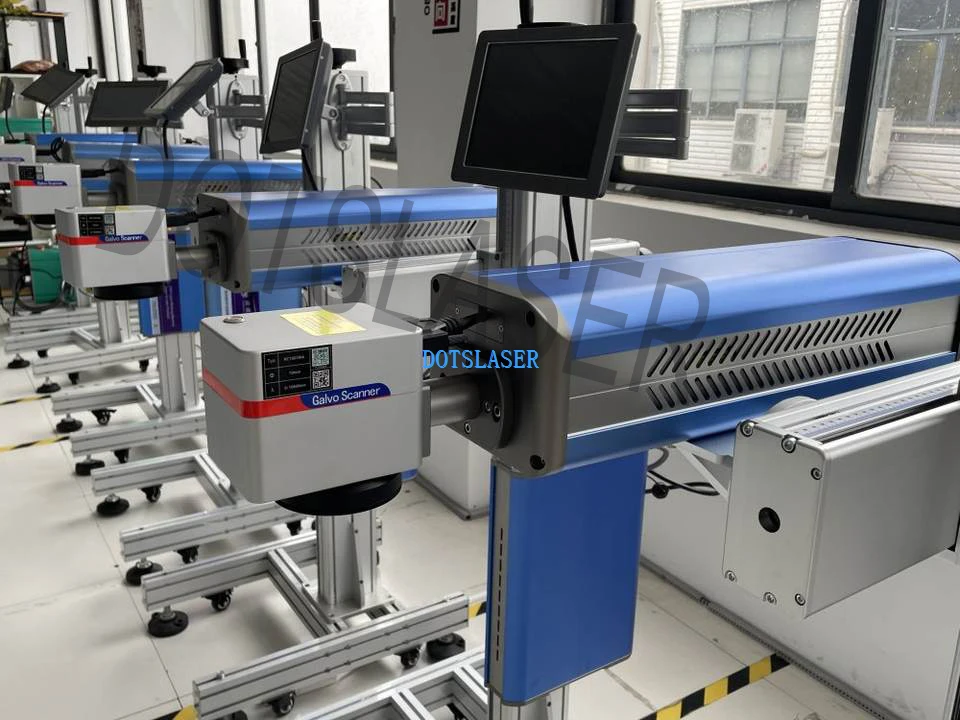

Rhiav ntawm ib lub ces kaum
Packing & shipping
Daim ntawv pov thawj
Unpacking Ceev faj
Txhua lub tshuab cim tau raug kuaj nruj heev ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib tw nrog lub npe (Operating voltage thiab KVA tooj).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
