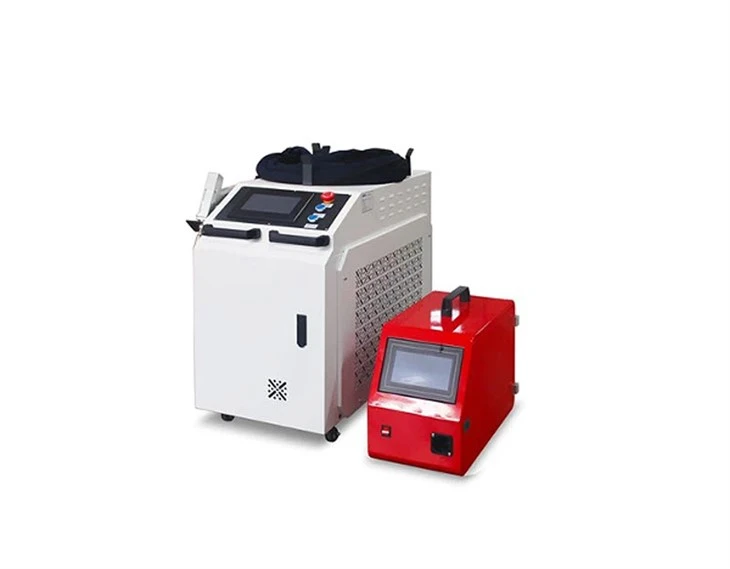

Copper Laser Welder Tshuab
Copper Laser Welder Tshuab
Khoom Description
Copper welding tuaj yeem ua tau zoo los ntawm fiber ntau laser welder vim tooj liab yog cov khoom siv hluav taws xob thiab thermally conductive hlau. Lub fiber laser beam yog tsom rau ntawm qhov chaw vuam uas melts thiab fuses cov tooj liab ua ke. Lub laser beam tsim lub zog siab uas ua rau nqaim thiab sib sib zog nqus weld seam.
peb qhov zoo
zoo welds
Lub tshuab no siv lub teeb laser los txuas tooj liab thiab lwm yam khoom siv hlau ua ke, uas ua rau muaj qhov tseeb thiab huv welds.
versatility
Kev siv ntau yam, los ntawm kev tsim khoom lag luam mus rau cov phiaj xwm DIY me me. Haum rau vuam ntau hom tooj liab, nrog rau cov tooj liab ntshiab, tooj dag, tooj liab, thiab lwm yam.
raug nqi heev
Vim tias cov txheej txheem vuam tau zoo txo qis cov khoom seem, txo cov nqi tsim khoom. Kev saib xyuas tsawg, tsawg downtime thiab txo tus nqi kho.
Khoom Parameters
|
Qauv |
DS-LW 3000 |
DS-LW 4000 |
DS-LW 6000 |
DS-LW 12000 |
|
Laser fais fab tso zis |
3000W |
4000W |
6000W |
12000W |
|
Laser wavelength |
1070 ± 5nm |
|||
|
Laser hom |
Fiber ntau |
|||
|
Kos thaj tsam |
800mmx300mmx300mm |
|||
|
Pulse zaus |
1 ~ 100KHZ |
|||
|
Beam zoo |
1.1 hli |
|||
|
Kho lub zog ntau yam |
5-95% |
|||
|
Cov zis fiber ntau ntev |
5/10/15m (yeem) |
|||
|
Qhov hnyav |
500 KG |
|||
|
Txias |
Dej txias |
|||
|
Ua haujlwm temp |
10 ~ 35 degree |
|||
|
Humidity ntau |
< 70% No condensation |
|||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC380V ± 10%, 60Hz |
|||

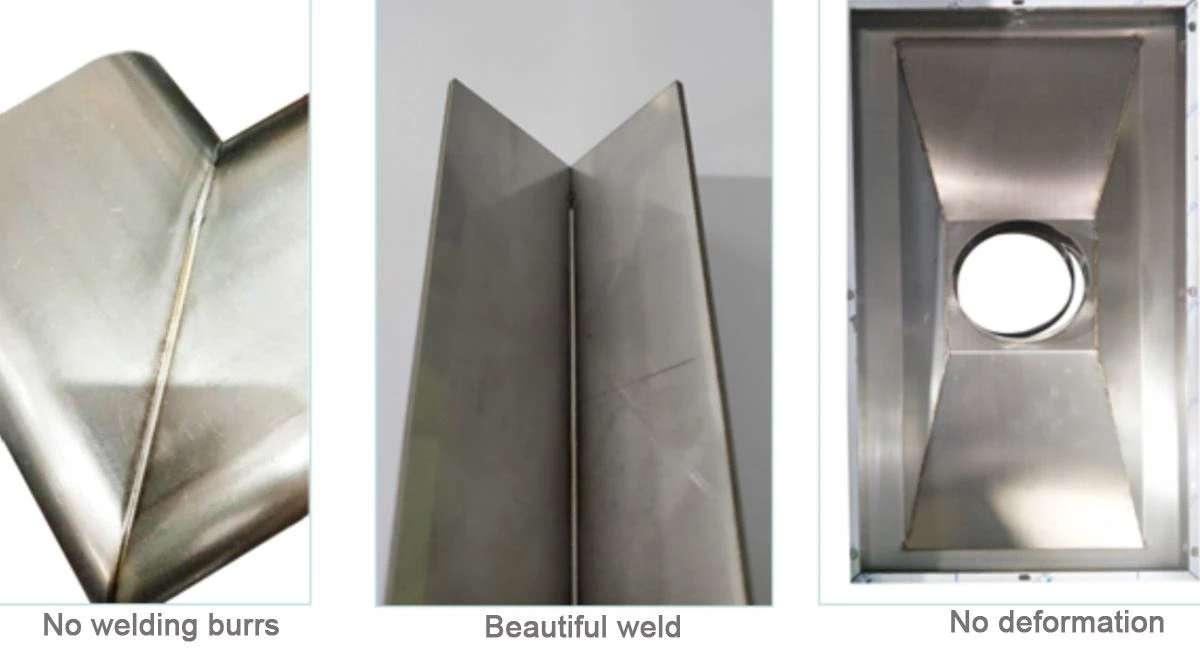

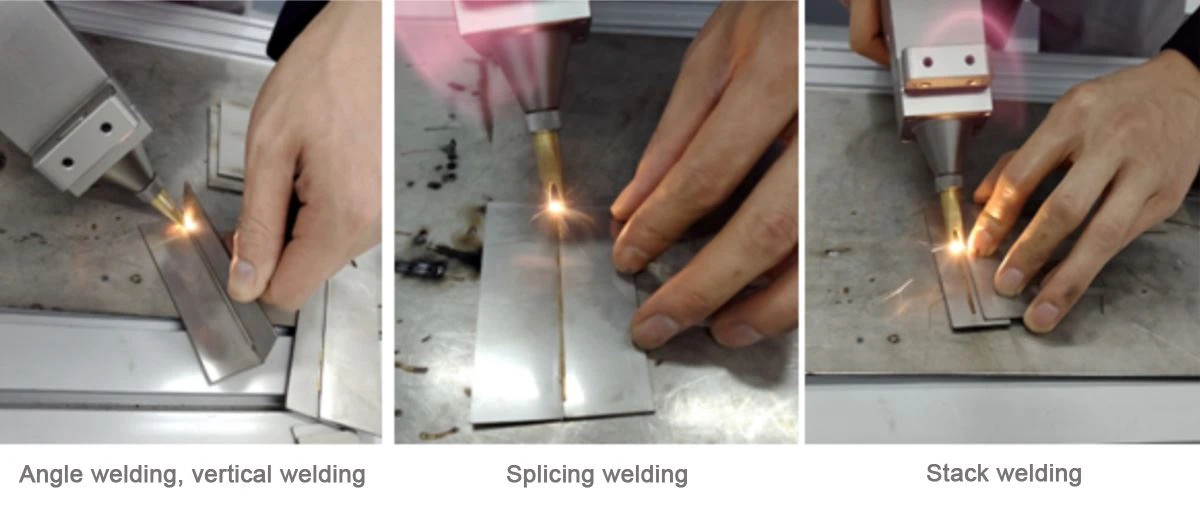

Vuam Display

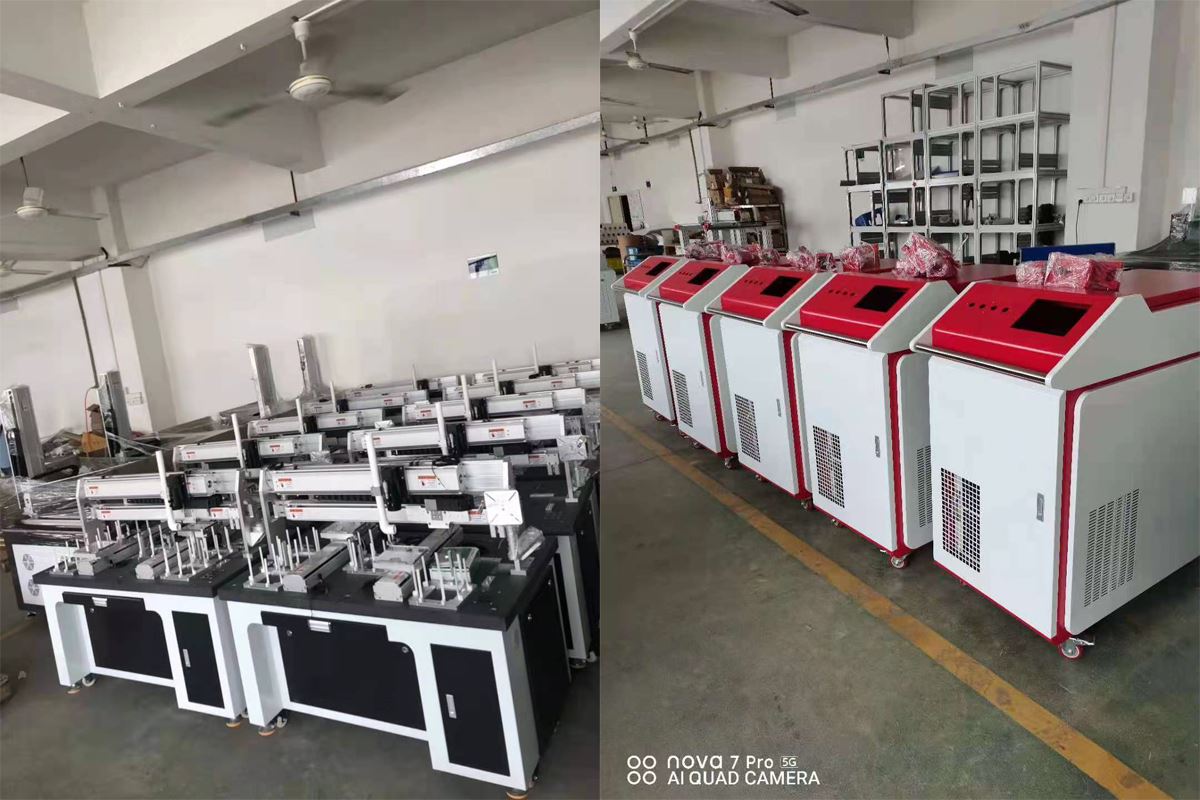

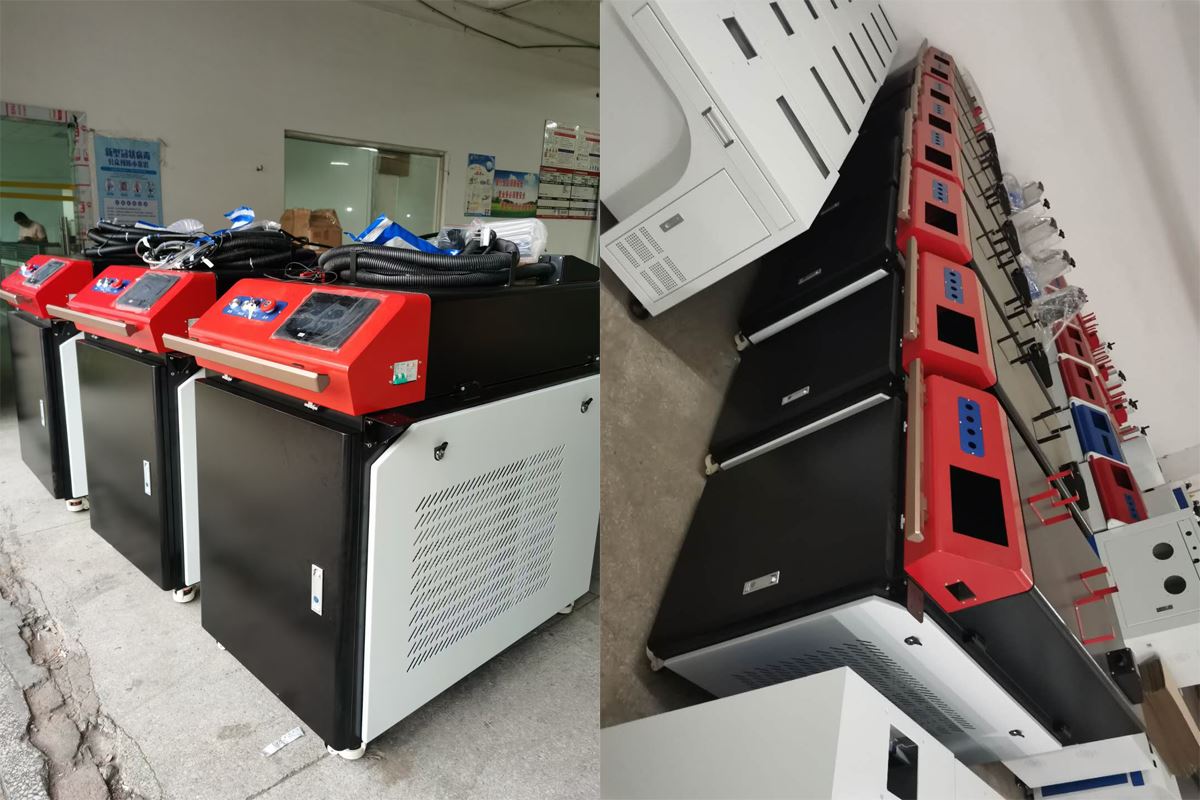

Rhiav ntawm Dotslaser
Unpacking Ceev faj
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
