Khoom Description

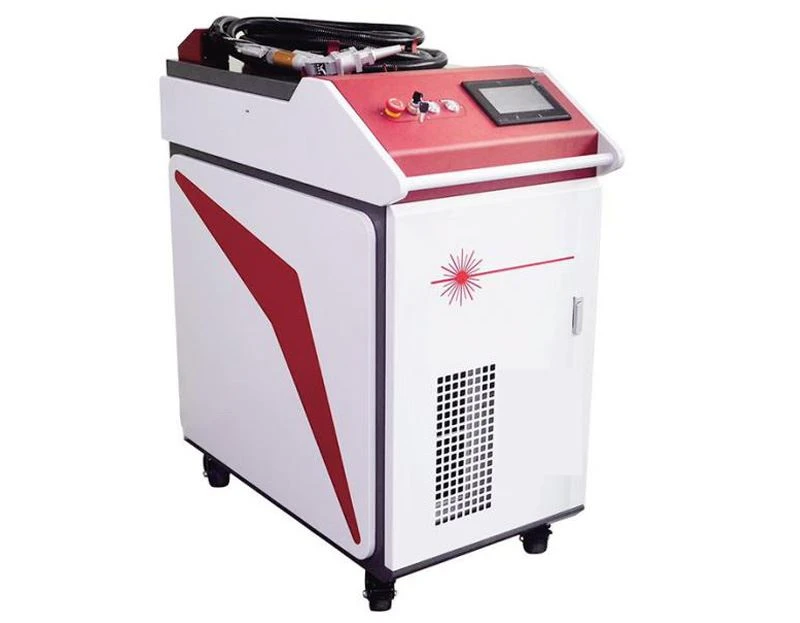

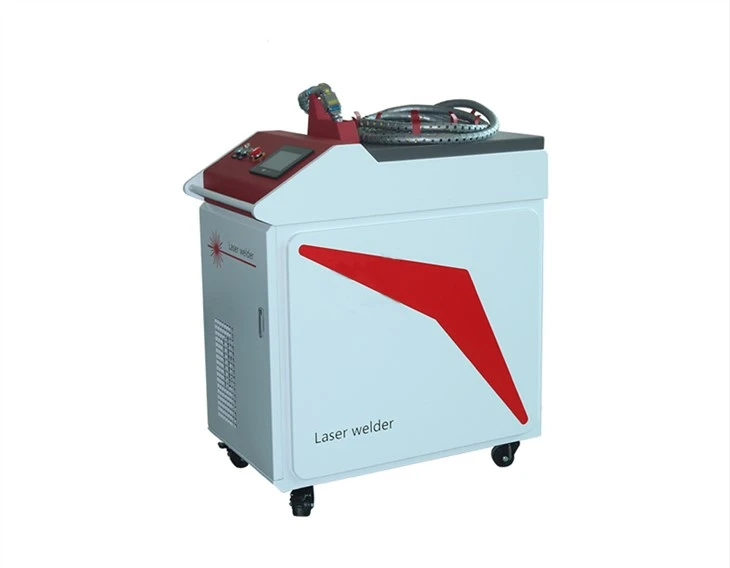

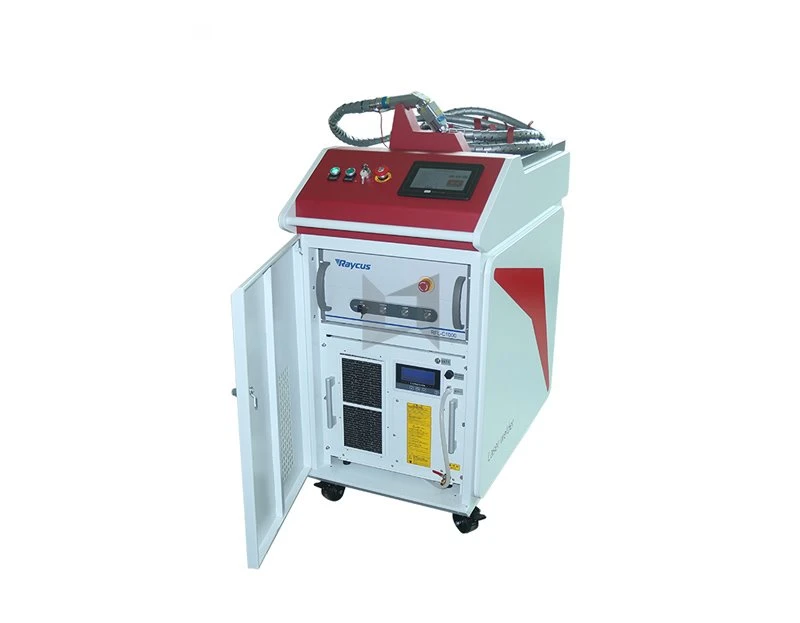

Handheld Fiber Laser Vuam Tshuab yog lub cim tshiab ntawm cov khoom siv laser vuam, uas yog cov khoom siv tsis sib cuag. Cov txheej txheem kev ua haujlwm tsis tas yuav tsum muaj lub siab. Nws txoj hauv kev ua haujlwm yog ncaj qha irradiate lub zog siv hluav taws xob laser nyob rau saum npoo ntawm cov khoom los ntawm kev sib cuam tshuam ntawm laser thiab cov khoom. , Cov khoom yog melted sab hauv, thiab ces txias thiab crystallized los ua ib tug weld. Nws overturns hom kev ua hauj lwm ntawm cov tsoos laser vuam tshuab, hloov txoj kev kho qhov muag yav dhau los nrog ib tug handheld hom, hloov tau thiab yooj yim, thiab muaj ib tug ntev welding nrug. Nws kuj tseem ua rau nws ua tau rau laser vuam ua haujlwm sab nraum zoov.
Tshuab Nta
1. Tsis muaj consumables (tsis muaj teeb), tsis muaj txij nkawm.
2.Qhov nruab nrab siv hluav taws xob tsawg tsawg (kwv yees li 5.6 kWh ib teev ntawm lub zog tag nrho).
3. Qhov ntau ntawm cov hlau melting yog dav dua (zoo hlau melting: stainless hlau 0.1-1.2mm), lub laser yog ruaj khov dua thiab tsis khiav tawm ntawm lub teeb.
4. Nruab nrog lub tshuab dej tshwj xeeb uas muaj qhov kub thiab txias dual tswj, uas tuaj yeem ua tau raws li kev ua haujlwm ntev, thiab qhov vuam ruaj khov ntawm high-power yog zoo dua.
5.Lub hom phiaj lens yog nruab nrog cov dej txias, uas tuaj yeem tiv thaiv lub hom phiaj lens zoo dua thaum ua haujlwm nrog lub zog siab ntev.
6. Qhov vuam qhov tob yog qhov loj, qhov vuam yog qhov ruaj khov, qhov vuam tuaj yeem ua tiav tag nrho, tsis muaj qhov pores thiab trachoma, thiab kho cov cim zoo nkauj dua.
7. Lub taub hau laser tuaj yeem tig tau yooj yim 90 degrees thiab tuaj yeem xaub rov qab los pab txhim kho vuam ntawm txhua sab.
8.Qhov loj me me, me me hneev taw, yooj yim rau kev lag luam vuam qhov rooj.
Tsis muaj
|
Qauv |
DSW |
|
Laser zog |
500W/1000W/1500W/2000W |
|
Laser yoj |
1070 ± 5nm |
|
Hom Laser |
Fiber ntau (Max lossis Raycus) |
|
Tso zis zog stability |
Tsawg dua lossis sib npaug li 2% |
|
Ntau zaus |
50HZ-5KHZ |
|
Beam zoo |
1.1 |
|
adjustable zog |
5%-95% |
|
Kev ua haujlwm zoo |
Kub 10-35 degree C, av noo 20% -80% |
|
Txias hom |
Dej Txias |
|
Cov zis fiber ntau ntev |
5/10/15m (yeem) |
|
Thov zog |
220v 50Hz 5 ph |
|
Qhov ntev |
93 * 60 * 88cm |
|
Ua haujlwm kub |
0-38 degree |
|
Qhov hnyav |
200 kg |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 5000W |
Daim ntawv thov
Lub tshuab no haum rau vuam kub, nyiaj, titanium, npib tsib xee, tin, tooj liab, txhuas thiab lwm yam hlau thiab nws cov khoom siv alloy, tuaj yeem ua tiav tib qhov kev sib tw ntawm cov hlau thiab cov hlau sib txawv, tau siv dav hauv cov cuab yeej siv dav hlau, nkoj tsim, instrumentation, mechanical and electronic products, automotive thiab lwm yam lag luam.
Kev tu cov cuab yeej yuav tsum tau nres ua ntej, txiav tawm lub hwj chim, thiab ua hauj lwm tom qab 3 feeb, txwv tsis pub yuav muaj kev phom sij ntawm hluav taws xob poob siab. Thaum lub ambient kub qis dua 2 degree, cov dej sab hauv yuav tsum tau ntws tawm thaum lub tshuab kaw rau lub sijhawm ntev.

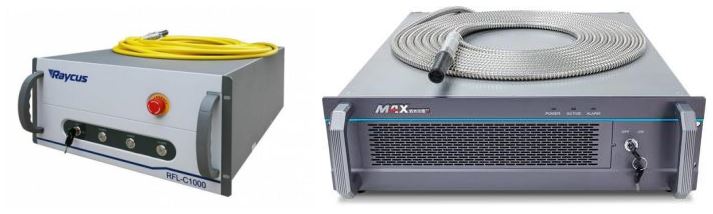

Ib qho module CW Fiber Laser qhov chaw

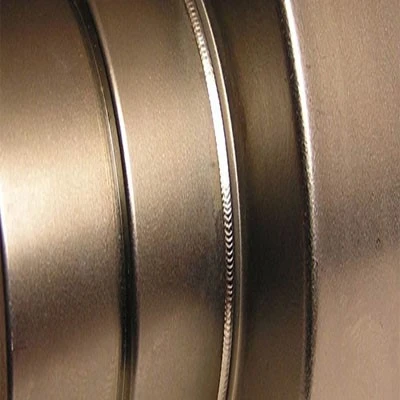

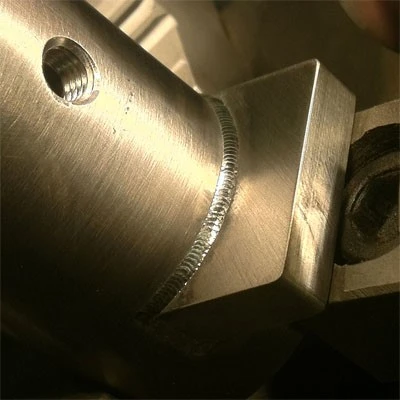

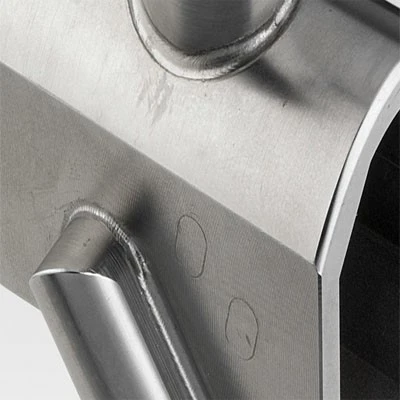

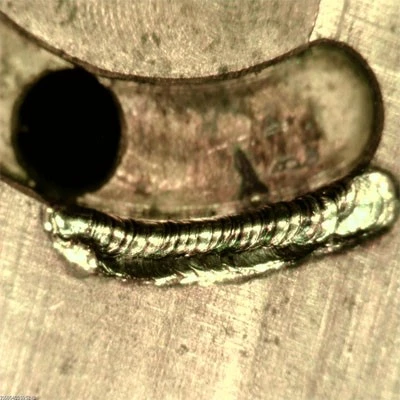

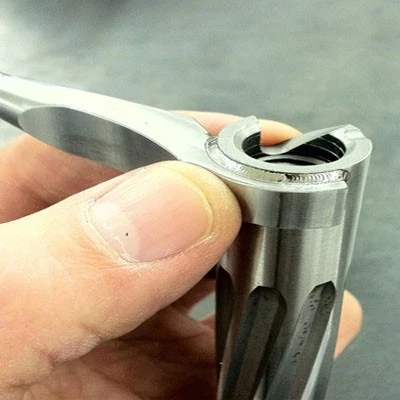

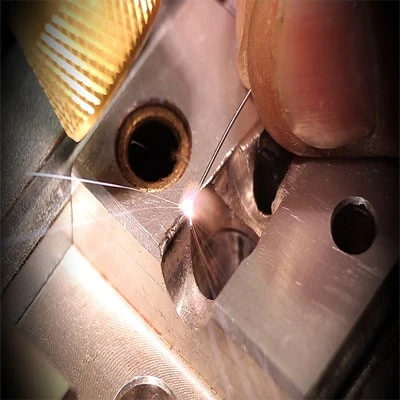

Cov qauv
Kev pabcuam
DOTSLASER tau tshwj xeeb teeb tsa lub chaw tswj hwm kev lag luam, nrog ntau dua 100 lub chaw ua haujlwm thoob plaws lub tebchaws, muab cov neeg siv khoom nrog kev muag khoom ua ntej, muag thiab muag tom qab muag thiab kev pabcuam. Qhov twg muaj cov khoom pib tshiab laser, muaj cov kev pabcuam zoo ntawm lub tuam txhab pib taw tes tshiab!
1. Kev sib tham pub dawb, kev hloov kho software thiab lwm yam kev pabcuam;
2. Lub sij hawm teb ntawm cov neeg siv khoom yog nyob rau hauv 24 teev;
3. Muab kev pab tu lub neej.
