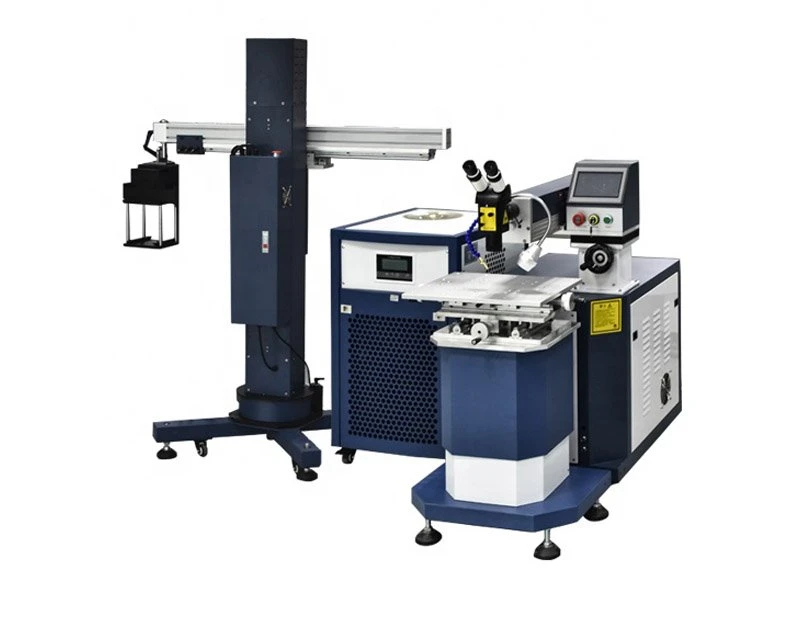

Pwm Kho Laser Vuam Tshuab
Pwm Kho Laser Vuam Tshuab
Khoom Description
Pwm kho laser vuam tshuab yog cov cuab yeej tshwj xeeb tsim los kho thiab tswj cov pwm uas siv ntau yam kev tsim khoom xws li txhaj tshuaj molding, tuag casting, thiab stamping. Cov tshuab no siv cov cuab yeej siv laser vuam zoo los kho cov pwm puas lossis hnav tsis zoo, txuas ntxiv lawv lub neej kev pab cuam thiab txo qis kev tsim khoom.
tshuab nta
Precision
Lub tsom vuam laser tso cai rau kev tswj xyuas meej ntawm cov txheej txheem vuam, ua kom muaj kev sib tw thiab kev kho kom ntxaws.
Tsawg kub hloov pauv
Thaum lub sij hawm vuam txheej txheem, lub laser tshav kub yog concentrated nyob rau hauv ib tug me me cheeb tsam, txo qhov kev pheej hmoo ntawm thermal puas los yog distortion rau cov khoom nyob ib ncig ntawm pwm.
Txo downtime thiab nqi
Los ntawm kev kho cov pwm puas lawm, koj tuaj yeem txuag tau tus nqi ntawm kev yuav khoom tshiab thiab txo qis qis vim yog pwm kho lossis hloov pauv.
Muaj zog welds
Laser vuam tshuab tuaj yeem ua tiav cov welds muaj zog dua piv rau lwm txoj kev vuam, ua kom muaj kev kho pwm ruaj khov.
Dav dav
Pwm kho laser vuam tshuab tuaj yeem ua haujlwm nrog ntau yam hlau, suav nrog hlau, txhuas, tooj liab, thiab lwm yam.
Yuav ua li cas xaiv pwm kho laser vuam tshuab?
Thaum xaiv cov pwm kho laser vuam tshuab, nws yog ib qho tseem ceeb rau kev ntsuam xyuas yam xws li lub tshuab laser lub zog, mem tes zaus, qhov chaw ua hauj lwm loj, precision thiab repeatability, yooj yim ntawm kev siv, thiab compatibility nrog ntau yam hlau.
Tsis tas li ntawd, xav txog seb lub tshuab puas tau nruab nrog cov yam ntxwv tshwj xeeb, xws li lub koob yees duab built-in lossis cov tshuab cua txias siab heev, thiab seb koj xav tau phau ntawv qhia lossis kev siv tshuab ua haujlwm nyob ntawm koj qib kev txawj ntse thiab qhov nyuaj ntawm koj cov kev kho.

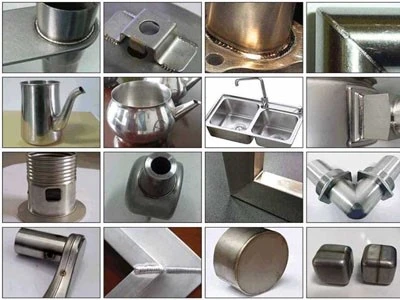

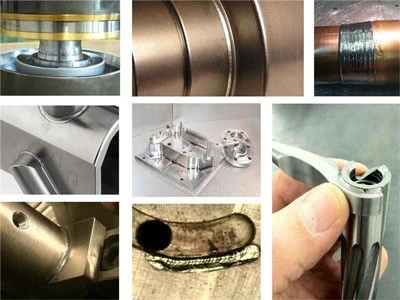

Daim ntawv thov:
Pwm Kho Laser Vuam Tshuab yog dav siv nyob rau hauv kev kho cov ntaub ntawv nyuaj xws li pwm, precision txhaj molding, tuag-casting thiab xuas nrig ntaus pwm, stainless hlau cov khoom, thiab lwm yam. Nws muaj peev xwm ntawm tawg, sib tsoo thiab hnav seal kho thiab tsim nyog rau vuam, xov tooj ntawm tes, hniav nyiaj hniav kub, electronics, sensors, precision machinery, kev sib txuas lus, crafts thiab lwm yam lag luam. Nws muaj qhov tob vuam loj, ruaj khov thiab zoo nkauj zoo nkauj, txaus melting, tsis muaj cov cim, me me tshav kub-tshem tawm tsam tsis muaj pob los yog dents, thiab yuav tsis ua pwm deformation.
Tsis muaj
|
Qauv |
DS -200 |
DS -400 |
DS -600 |
|
Lub wavelength |
1064nm ua |
||
|
Laser zog |
200W |
400W |
600W |
|
mem tes dav |
0 1-20ms |
||
|
Laser vuam zaus |
1-100Hz |
||
|
Max ib leeg mem tes zog |
90J |
110J |
130J |
|
Focal spot size Adjustable range |
0 2-2mm |
||
|
Tswj qhov system |
Micro-lub computer |
||
|
Txias qhov system |
1p Cov dej txias |
||
|
Rated zog noj |
8 kWm |
12 kWm |
16 kWm |
|
Positioning raug |
±0.05mm ua |
||
|
Laser qauv Nd |
YAGmem tes |
Lasercua txiasdej chiller |
|
|
Fais fab mov |
380v ± 10% / 50Hz / 20A |
380v ± 10%/ 50Hz / 40A |
380v ± 10% / 50Hz /50A |
|
Dimension Main lub cev |
1500x650x1200mmChiller: 540x650x780mm |
||

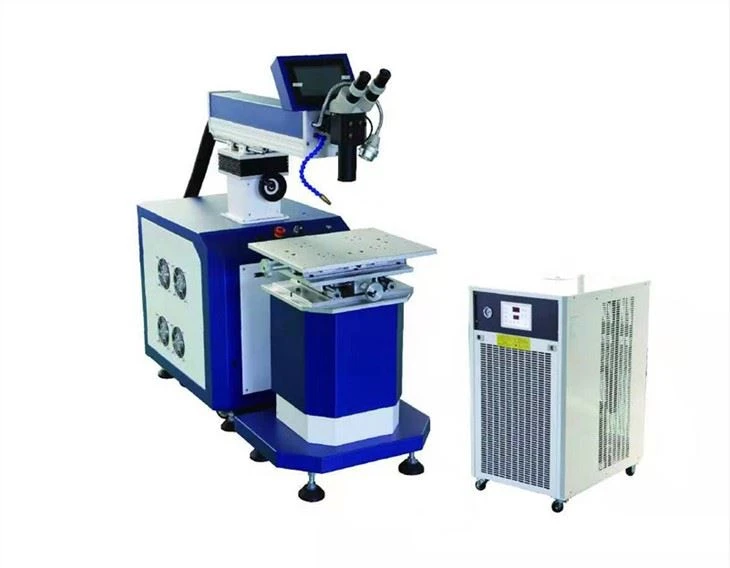

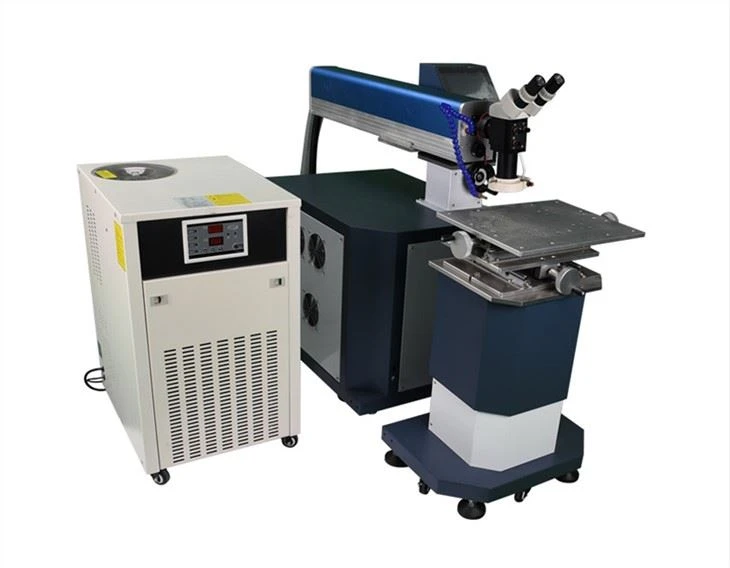

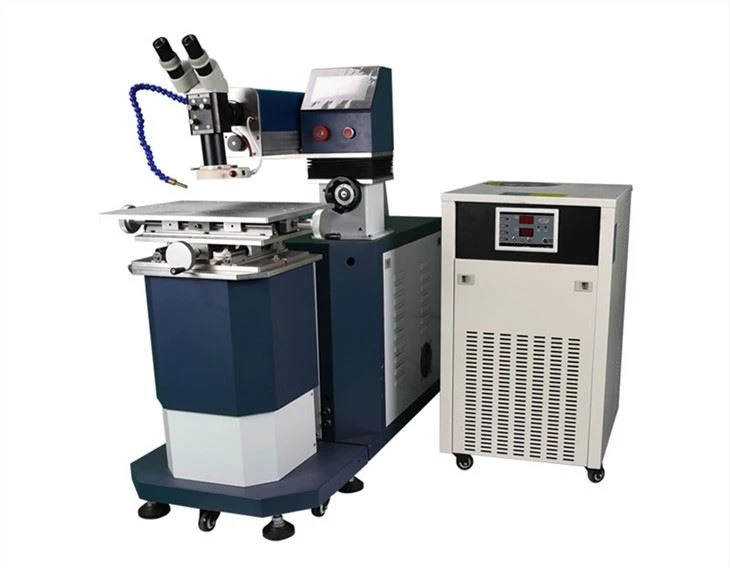

Product details
Cov qauv

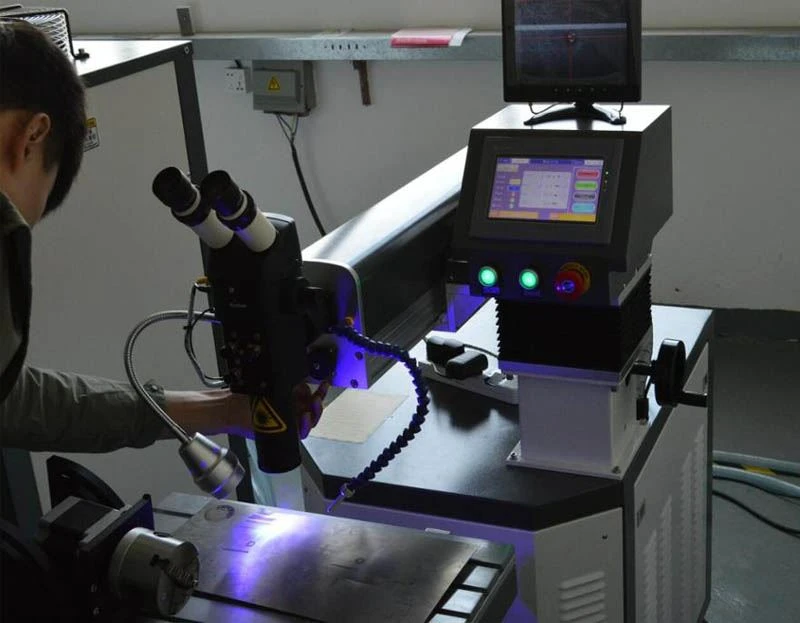

Rhiav
Shipping & Pob
Unpacking ceev faj
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib tw nrog lub npe (Operating voltage thiab KVA tooj).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
Cov ntsiab lus thiab tej yam kev mob:
1. Kev cob qhia VCD, Ib qho yooj yim installation
2. Lub sijhawm ua haujlwm: 7-10 hnub ua haujlwm
3. hiav txwv shipping thiab tsheb thauj khoom
4. TT / western union / paypal / Ali kev lees paub kev them nyiaj
5. 24 teev teb
6. 1 xyoo lav, pub dawb kev sib tham ua ntej muag, kev kuaj dawb
