COO LASER SCAN LUB TAUB HAU
COO LASER SCAN LUB TAUB HAU
Cov khoom lag luam

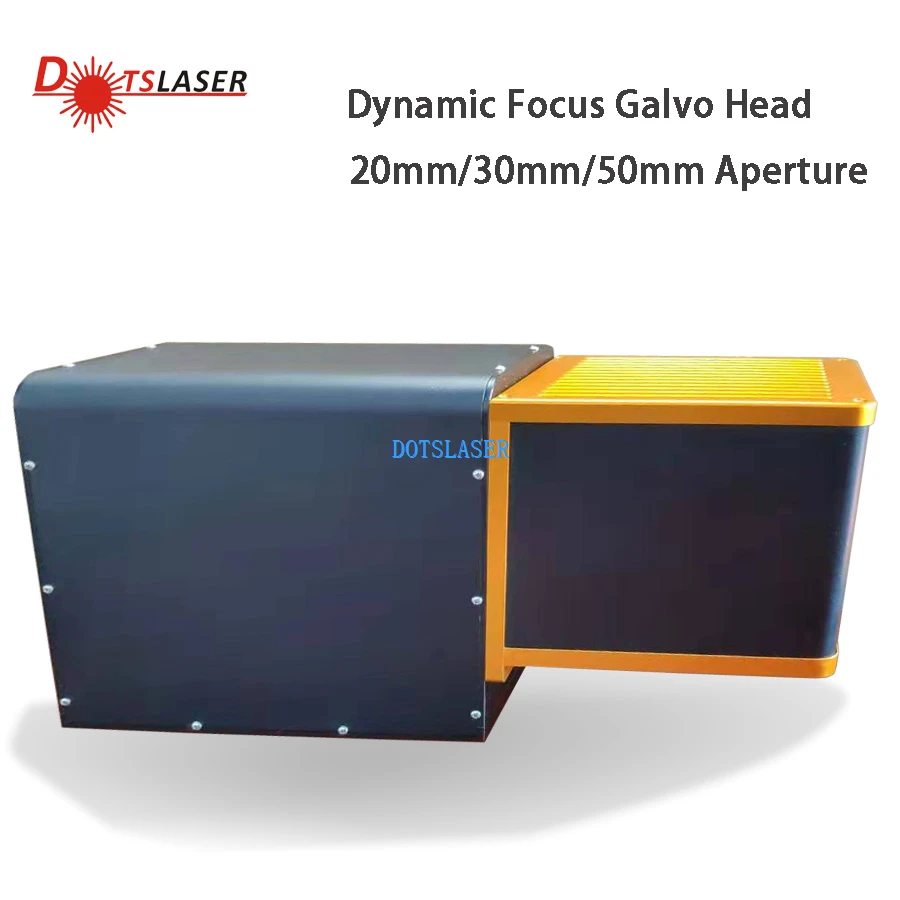

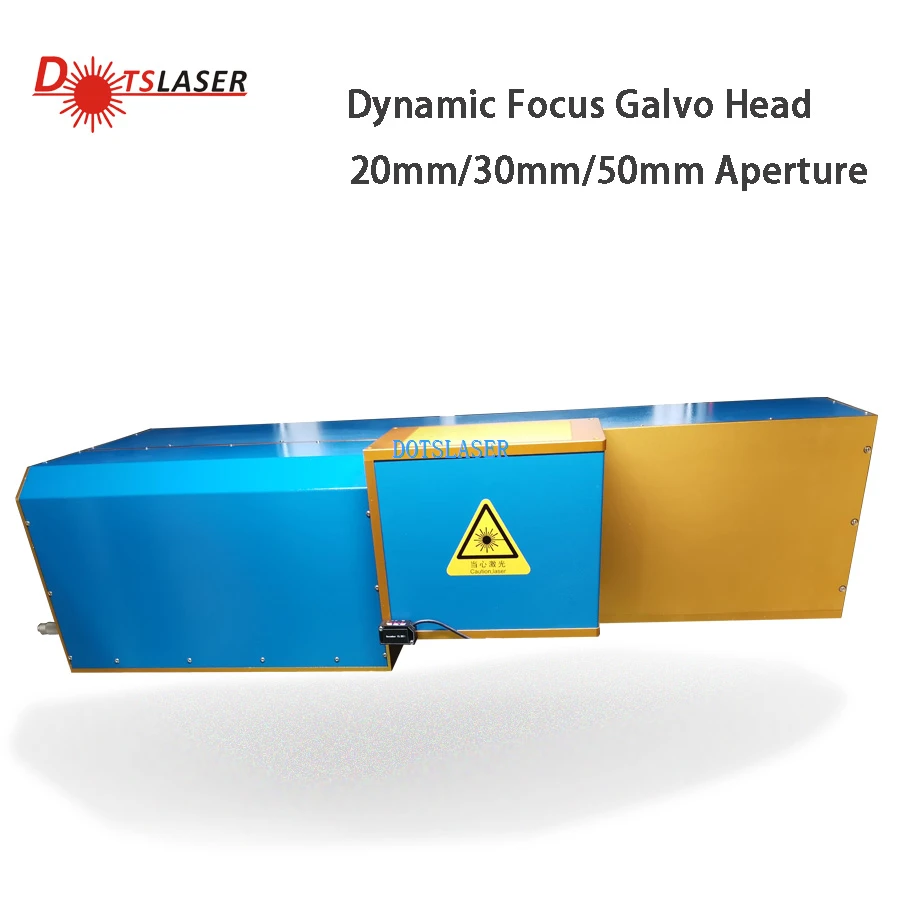

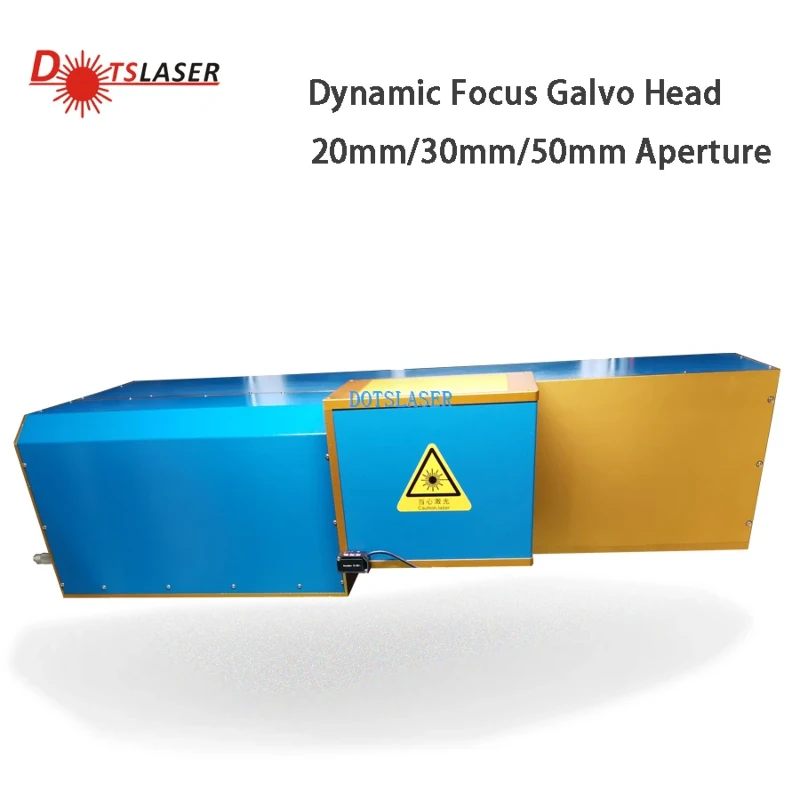

Coone Laser Scan Lub Taub Hau, tseem hu ua Galvo Scanner lossis Galvanometer Scanner, yog qhov tseem ceeb tivthaiv hauv kev laser cim lossis kos kab kos. Nws yog lub luag haujlwm rau qhov yog redirectatinging laser nqaj mus rau cov khoom raug engraved los ntawm sai thiab meej kev txav tsom iav. Cov scanners no tau tsim tshwj xeeb los ua haujlwm nrog co₂ lasers, uas yog cov khoom siv zoo li ntoo, acrylic, daim ntawv, tawv, tawv, tawv, tawv, tawv, tawv.
CO₂ Laser Scan Hau Muaj cov khoom sib xyaw tseem ceeb hauv qab no:
Galvanometer Motors
Cov motors tswj txoj hauj lwm ntawm daim iav los ntawm hloov hluav taws xob cov cim rau hauv cov khoom siv tshuab. Cov teeb meem zoo tshaj plaws Galvanometer muaj peev xwm nrawm thiab meej txav, ua rau nrawm engraving nrawm thiab txhim kho raug.
Tsom iav
Daim iav hauv lub taub hau scan yog lub luag haujlwm rau kev xav txog thiab coj cov nqaj laser rau cov khoom. Lawv yuav tsum tau ua los ntawm cov khoom siv uas muaj kev cuam tshuam ntau rau Co₂ laser yoj, txhawm rau khaws cov qib hluav taws xob cuam tshuam nrog co cov lasers.
Daim iab
Lub lens sab hauv lub taub hau scan yog lub luag haujlwm rau kev tsom mus rau cov txheej txheem laser mus rau cov khoom siv, ua rau cov cim kom huv thiab raug kos. Cov cuab yeej thev naus laus zis no ua rau peb tsim kom muaj kev zoo nkauj thiab intricate tsim nyob rau ntau yam khoom siv nrog yooj yim thiab precision.
Tswj cov khoom siv hluav taws xob
Txoj kev tswj hluav taws xob tswj tau zoo pab txhawb kev sib txuas lus ntawm kev sib txuas lus ntawm lub laser npav, laser qhov chaw thiab tswj software.
Lub taub hau laser Scan nta qis, siab tau ua haujlwm raug, thiab txhim khu kev qha thiab kev ua haujlwm ruaj khov, nrog kev ua tau zoo heev. Nws tuaj yeem haum lo ntsiab muag ntawm ntau lub wavelengths thiab cov hwj chim qib, thiab tuaj yeem ntsib feem ntau ntawm cov ntawv thov kev thov, ua kom muaj txiaj ntsig ruaj khov.
Lub Koom Haum Ua Laser Scan lub taub hau undergoes ruaj cov ntaub ntawv tshuaj xyuas thiab siv cov txheej txheem kev tsim khoom paub tab. Lub iav oscillating system yog qhov ntsuas siab thiab qib siab ntawm kev tsav tsheb thiab qib siab sab hauv kev tswj hwm, ntsuas roj teeb pom kev zoo, thiab ntau dua. Nws khav tau cov cim kaw, cov lus teb sai, kev ntaus nqi nrawm nrawm, thiab kev sib tw zoo ntawm txoj kev kho kho. Kab lus yuav tsum muaj lub suab zoo thiab tsis txhob muaj cov ntsiab lus tsis zoo.
Cov khoom tsis muaj
| Laser hom | 10600nm RF CO2Laser Tau |
| Ua Haujlwm Teb | 300 × 300 hli ~ 1200 × 1200mm |
| Inputs Cov nqaj loj | 2.5 ~ 10mm |
| X & y axes tsom iav aperture loj | 20mm / 30mm / 50mm |
| Kab Npav ceev | Tsawg dua los yog sib npaug rau 8, {1}} hli / s |
| Muab kev ceev | 1 {00, 00mm / s |
| Kev Sau Ntawv Ceev | 125ceps |
| Kauj ruam teb lub sijhawm (1% ntawm tag nrho cov nplai) | 940Us |
| Kauj ruam teb lub sijhawm (10% ntawm tag nrho cov nplai) | 1500Us |
| Taug qab lub sijhawm yuam kev | Tsawg dua los yog sib npaug rau 440us |
| Yuam Kev & Precision | Linearity 99.9% |
| Rov Ua Dua (RMS) | <8μRad |
| Tau Txais Yuam Kev | <5mrad |
| Xoom Offset | <5mrad |
| Lub sijhawm ntev ziab dua 8 teev | <0. 5mrad |
| NPLAIL TAWM | <40ppm / degree |
| Xoom drift | <15μrad / degree |
| Xov Xwm Ntim | Export ntoo rooj plaub lossis raws li koj cov kev xav tau |
| Kev lav | 1 xyoo |
| Kev pab tom qab muag tau muab | Txhawb Nqa Online |
|
Lub Zog thiab Teeb Liab
|
|
| Kev tawm tswv yim voltage | ± 24VDC |
| Rated tam sim no | 4A |
| Interface teeb liab | |
| Digital | Xyy 2-100 |
| Machinery scan kaum ntse ntse | 12.5 Degree |
Thaum xaiv ib lub taub hau laser lub taub hau, xav txog yam xws li kev ntsuas nrawm dua, qhov tseeb, thiab aperture loj raws li cov kev xav tau ntawm koj qhov project. Ib qho ntxiv, sib xyaw nrog koj laser kaw thiab tswj software yog qhov tseem ceeb rau kev ua haujlwm du. Thaum kawg, xaiv lub npe nrov nrov tuaj yeem ua kom tau zoo, muaj kev ntseeg tau, thiab kev ua haujlwm ntev rau koj txoj kev sib tw ua ke.
Co₂ laser scan lub taub hau Nws yog qhov tseem ceeb ntawm cov qauv ntawm cov teeb meem, uas muaj cov qauv zoo nkauj, uas muaj qhov ua kom zoo dua qub thiab nrawm ntawm laser npav. Nws ua tiav qib tshiab ntawm kev ntsuas nrawm thiab rov ua qhov tseeb qhov tseeb. Peb precisely zoo thiab commission tag nrho kho qhov muag kom lav tau zoo tshaj plaws ua kom pom zoo thiab cov txheej txheem ruaj khov.
1. Cov txiaj ntsig zoo thiab tom qab kev pab cuam
Lub sij hawm lav siv yuav tsum yog 12 lub hlis txij li cov khoom siv, kev teeb tsa thiab kev debugging ua tiav thiab cov cuab yeej tau txais los ntawm tus IoTER. Dotslaser txuas ntxiv qhov tseem ceeb rau kev pabcuam tom qab muag ua haujlwm ntawm cov khoom lag luam, lub tuam txhab tau muab cov ntaub ntawv pabcuam tam sim ntawd, thiab tsis tu ncua cov neeg siv khoom siv, daws thiab teb tag nrho cov Cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem teb cov lus teb sai dhau 2 teev. Yog tias cov kev qhia xov tooj yog qhov nyuaj rau kev daws teeb meem, peb cov tuam txhab cov neeg ua haujlwm ua haujlwm tuaj yeem tuaj txog ntawm cov neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Txhim kho thiab debugging
Ua ntej siv lub tshuab tshuab, peb lub Hoobkas yuav muab koj cov qauv teeb tsa cov qauv teeb tsa rau koj nyob ntawd, cov kws tshaj lij lub lis piam ntawm DotionsLaser yuav tuaj txog ntawm koj lub xaib dua. Ua raws li cov kev teeb tsa ua kom tau raws li cov teeb meem thiab commissioning cov kev xav tau ntawm cov cuab yeej siv, cov khoom yuav thauj nyob rau lub sijhawm. Lub teeb tsa lub teeb tsa thiab commisioning ntawm cov cuab yeej siv tau hais txog tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv cov kab ke, thiab cov txheej txheem ua haujlwm tom qab txoj haujlwm pabcuam. Tus kws ua haujlwm yuav qhia cov neeg ua haujlwm tsim nyog rau cov txheej txheem txij nkawm thiab cov yam ntxwv dav dav ntawm cov cuab yeej hauv ob hnub tom ntej
3. Pab Txhawb Nqa
Yog tias muaj teeb meem dab tsi uas muaj ib feem ntawm cov txheej txheem thaum lub sijhawm muaj kev tiv thaiv, yog tias lub tshuab muaj teeb meem, thov hu rau peb ncaj qha !
