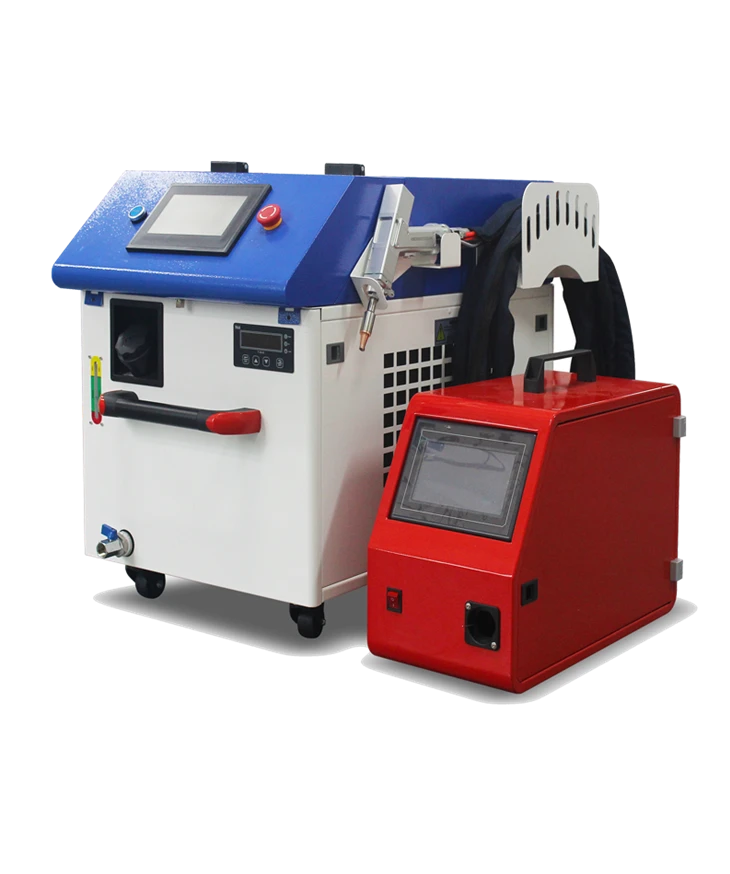

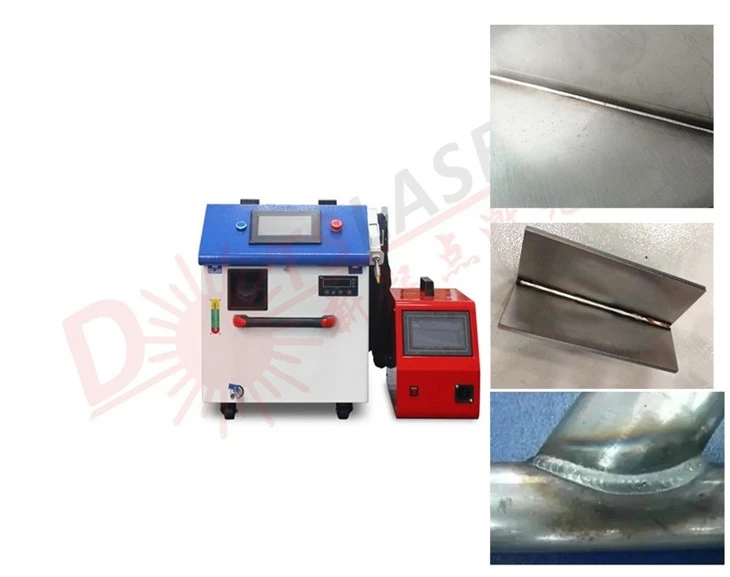

Laser Vuam Tshuab Vuam Carbon Steel
Laser Vuam Tshuab Vuam Carbon Steel
Khoom Description

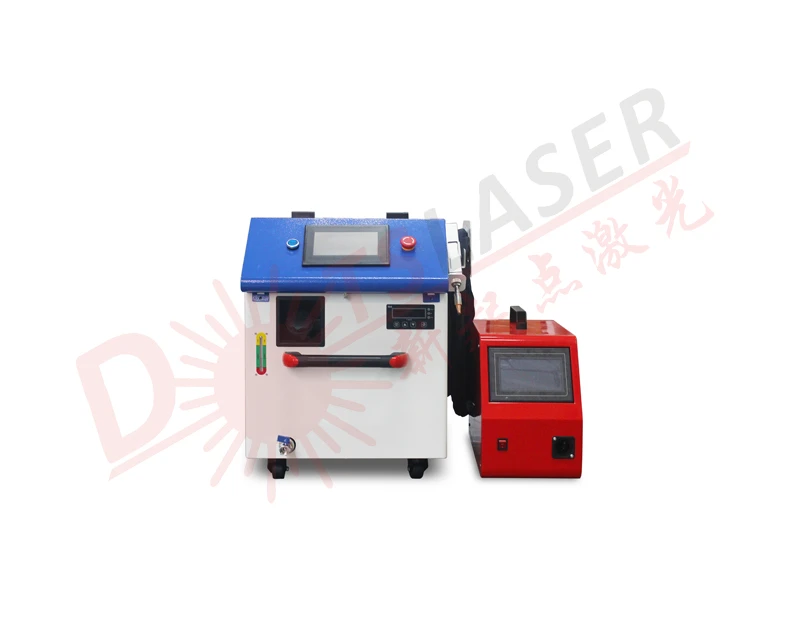

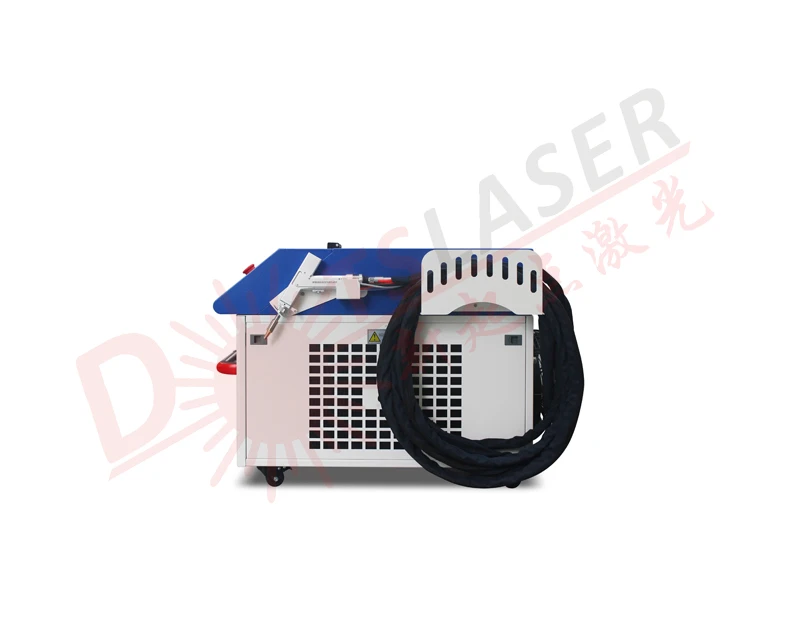

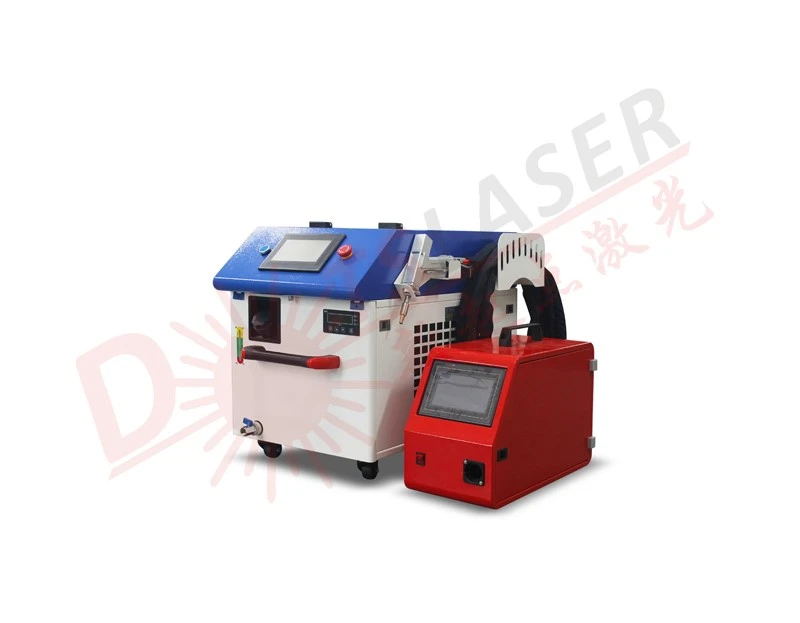

DOTSLASER yog lub chaw tsim khoom ntawm cov khoom siv laser uas muab cov kev daws teeb meem laser vuam. DS-LW series handheld laser vuam tshuab yog ib tiam tshiab ntawm laser vuam khoom uas tau tsim tshwj xeeb rau carbon hlau vuam. Lub tshuab no siv Raycus zoo laser qhov chaw, uas muab kev vuam zoo dua.
High precision thiab raug thaum vuam. Lub tshuab no tuaj yeem txuas cov hlau nyias nyias thiab qhov me me yam tsis muaj deformation lossis warping ntawm cov khoom. Lub laser beam yog cov concentrated heev, uas txhais tau hais tias nws tuaj yeem raug coj mus rau ib qho chaw tshwj xeeb, ua rau thaj tsam me me heev.

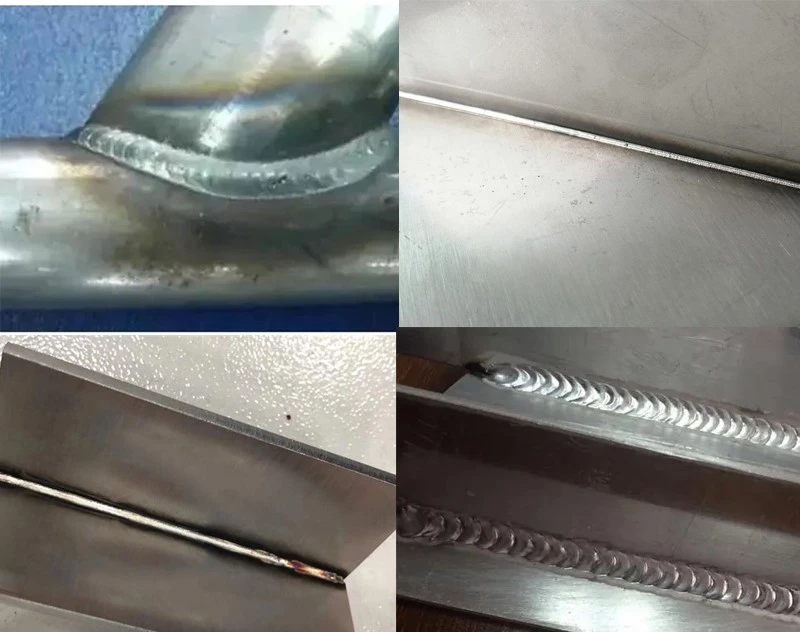

Zoo sib xws thiab zoo weld. Lub teeb laser tuaj yeem nkag mus tob rau hauv cov khoom siv, ua rau muaj kev sib koom ua ke muaj zog thiab txhim khu kev qha. Lub tshuab kuj tseem tuaj yeem vuam ntawm kev kub ceev, uas txhais tau hais tias nws tuaj yeem siv los ua tiav cov haujlwm vuam loj sai thiab ua tau zoo.
DOTSLASER Laser welding tshuab rau carbon steel kuj zoo heev siv. Lub tshuab tau nruab nrog ntau yam kev nyab xeeb, nrog rau cov ntaub thaiv npog thiab cov lus ceeb toom uas ceeb toom tus neeg teb xov tooj yog tias lub tshuab ua haujlwm tsis raug.
Khoom Parameter
| Qauv series | DS-LW series (RAYCUs laser qhov chaw) | ||
| Qauv | DS-LW 1000 | DS-LW 1500 | DS-LW 2000 |

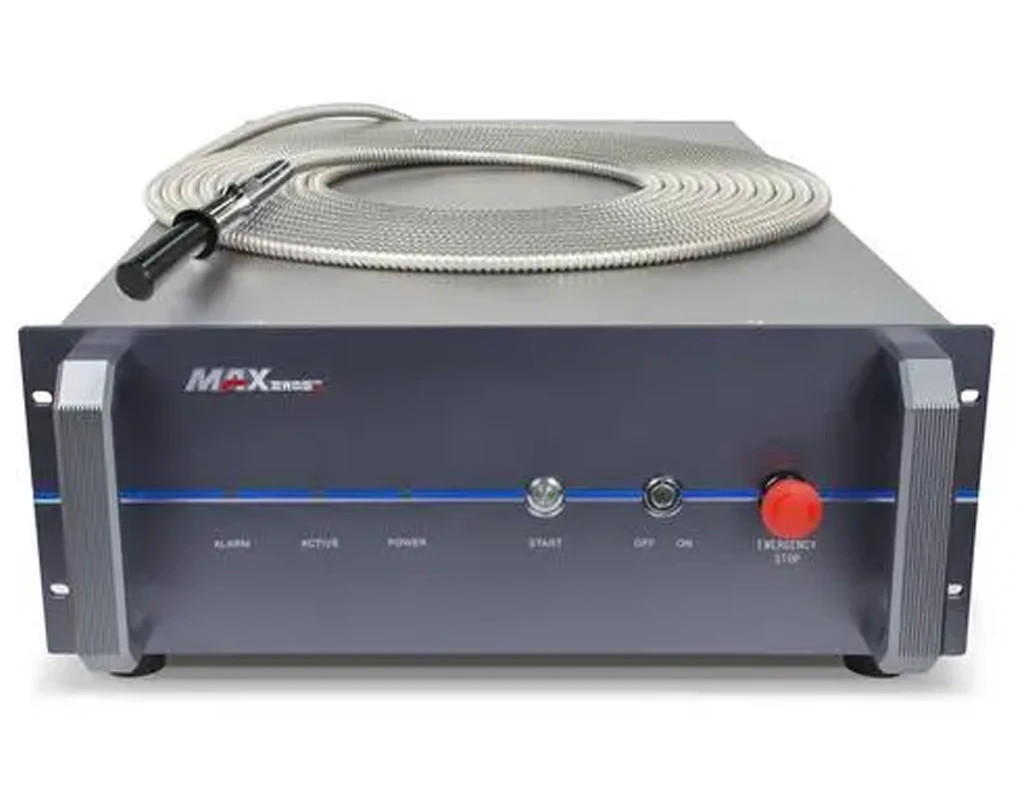

| Laser qhov chaw qauv | RRL-QCW 1000 | RRL-QCW 1500 | RRL-QCW 2000 |
| Tso zis zog | 1000W | 1500W | 2000W |
| Laser wavelength | 1080 ± 5 nm | ||
| Kev ua haujlwm hom | Nruam / Modulation | ||
| Kev hloov kho lub zog | 10-100% | ||
| Fiber tub ntxhais txoj kab uas hla | 50 (25,100,200 yeem) | ||
| Aiming thiab positioning | Lub teeb liab | ||
| Fiber ntev | 10 m | ||
| Vuam ceev | 0-120mmks | ||
| Daim ntawv thickness | < 3.5mm (depending on he material) | ||

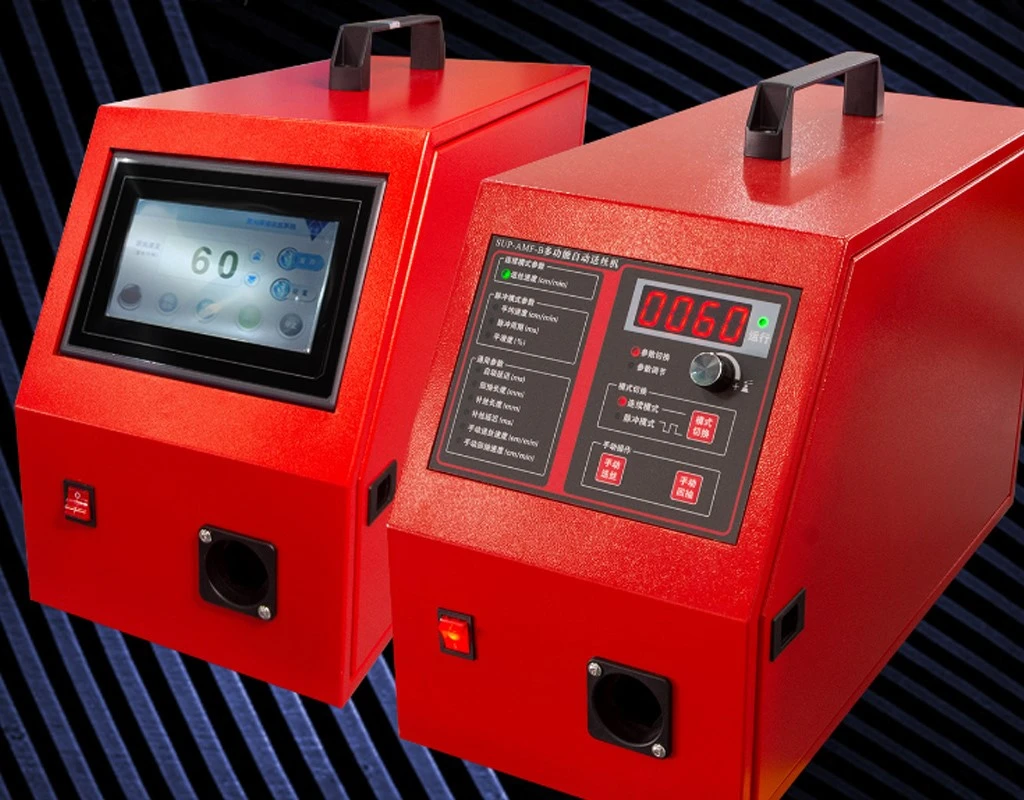

| Hlau feeder | Txheem xaim pub ceev 38-600mm / min | ||
| Hlau feed diameter | {{0}}.8/1.0/1.2/1.6/mm | ||
| Txoj kev txias | Cov dej sib tov | ||
| Kev ua haujlwm emvironment | 10-40'c, av noo 10-85%, tsis muaj condensation | ||
| Rated zog | 4KW/6KW/8KW TSI | ||
| Kev khiav hauj lwm voltage | 380+10%VAC, 50/60Hz | ||
| Qhov ntev | 1150 x 630 x 1080 mm | ||
| Tag nrho qhov hnyav | Txog 2 50kg | ||
vim li cas xaiv peb
vim li cas xaiv peb cov khoom
Lub laser vuam tshuab rau carbon steel yog dav siv nyob rau hauv ntau industries, xws li stainless hlau rooj tog, hlau ntawv hlau, advertising, hom, khoom plig khoom plig, pib kho, pib tsim, rail transit, thiab aerospace. Kev tsim khoom siv tes ntawm lub tshuab no ua rau nws yooj yim rau siv thiab ua haujlwm, txawm tias nyob rau hauv qhov chaw nyuaj. Lub compact loj ntawm lub tshuab no kuj ua rau nws yooj yim rau kev thauj mus los ntawm cov chaw ua haujlwm.

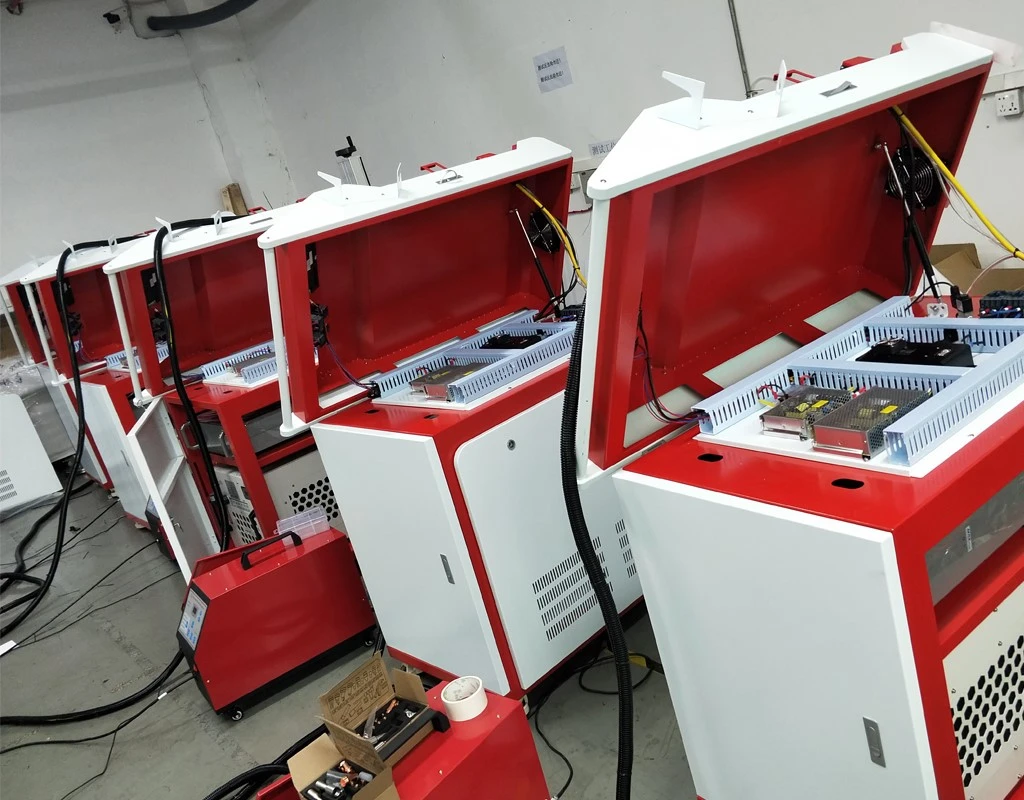

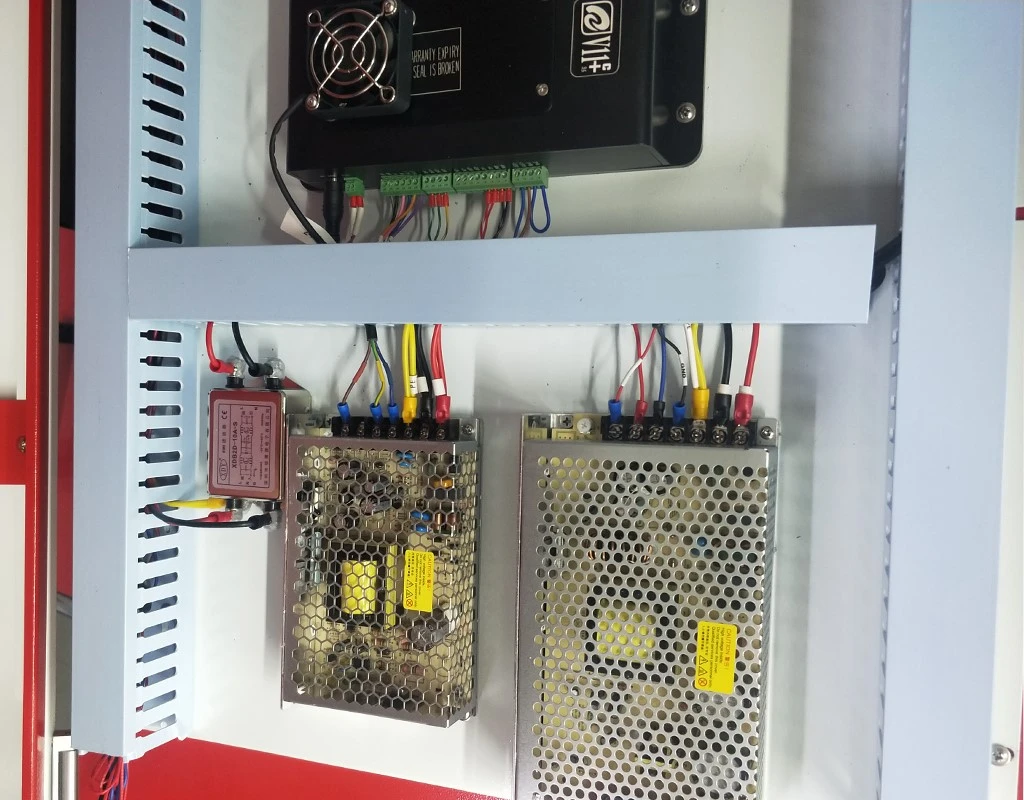

Quailty tswj ntawm Laser Vuam Tshuab Rau Hlau Carbon Steel
uas yog peb cov kev pabcuam
Kev Pabcuam
Cov kev pabcuam uas muaj los ntawm Laser vuam tshuab rau hlau carbon steel rau hlau carbon steel manufacturers suav nrog kev teeb tsa, kev cob qhia, thiab kev pabcuam kho. Kev pabcuam kev teeb tsa suav nrog kev teeb tsa cov khoom siv hauv cov kab ntau lawm, thaum qhov kev pabcuam kev cob qhia muab cov kev paub thiab kev txawj ntse tsim nyog rau cov neeg ua haujlwm siv lub tshuab kom zoo. Cov kev pabcuam kho mob suav nrog kev daws teeb meem thiab kho cov teeb meem uas yuav tshwm sim thaum lub sijhawm ua haujlwm ntawm cov khoom siv.
Cov kev pabcuam yog qhov tseem ceeb rau kev ua kom ntseeg tau tias Laser vuam tshuab rau hlau carbon steel rau hlau carbon steel ua haujlwm zoo. Piv txwv li, kev teeb tsa tsis raug lossis kev cob qhia tsis txaus tuaj yeem ua rau cov vuam tsis zoo, ua rau cov khoom tsis lees paub thiab poob lub sijhawm ntau lawm. Ib yam li ntawd, lub tshuab ua haujlwm tsis zoo tuaj yeem ua rau cov khoom lag luam poob qis, poob nyiaj tau los, thiab muaj peev xwm ua rau muaj kev phom sij. Cov kev pab cuam muab kev txhawb nqa tsim nyog los ua kom ntseeg tau cov khoom siv txhim khu kev qha, txo qis qis qis, thiab ua kom muaj txiaj ntsig zoo.
Kev tu
Kev saib xyuas yog lwm qhov tseem ceeb ntawm kev ua kom pom kev ua haujlwm zoo ntawm fiber ntau Laser vuam tshuab rau cov hlau carbon steel. Kev saib xyuas tsis tu ncua tuaj yeem tiv thaiv cov khoom tawg, ua kom lub neej ntev ntawm cov khoom siv, thiab ua kom cov khoom siv vuam zoo.

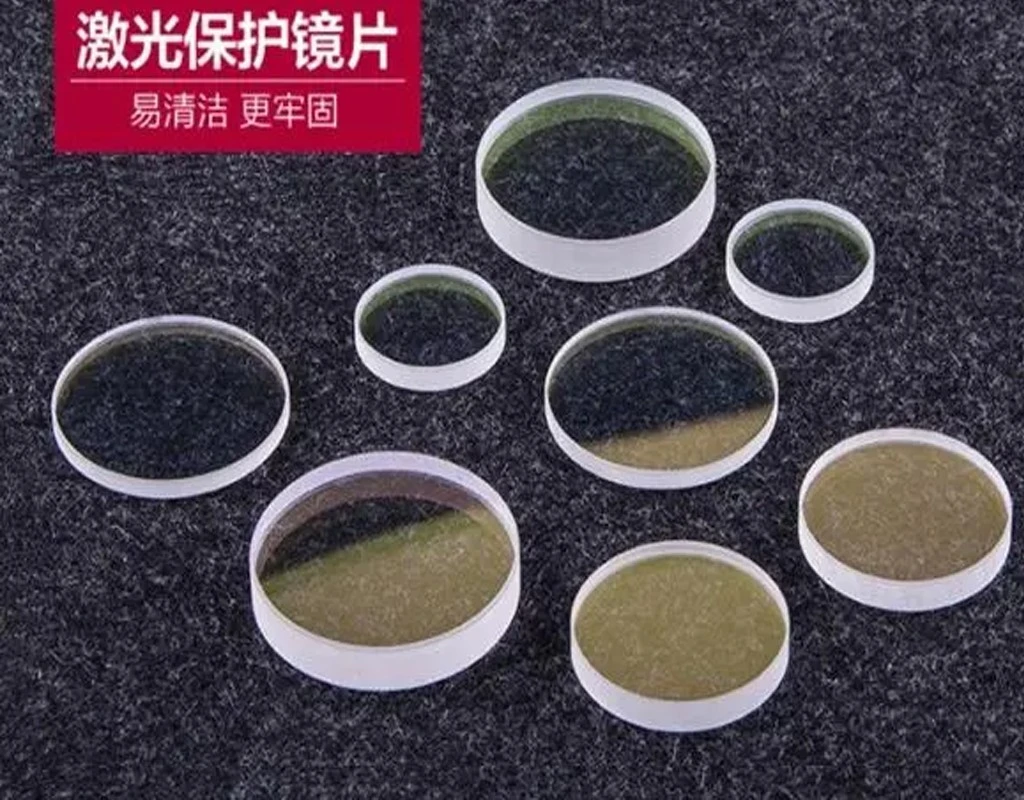

Cov haujlwm saib xyuas kev koom tes hauv Laser vuam tshuab rau hlau carbon hlau rau hlau carbon steel muaj xws li ntxuav, tshuaj xyuas, thiab hloov cov khoom siv xws li laser nozzles, npog slides, tiv thaiv qhov rais, thiab iav. Kev tu lub tshuab tsis tu ncua ntawm cov khoom siv sab hauv, xws li optics, cua txias, thiab cov lim cua, kuj tseem ceeb rau kev tiv thaiv cov plua plav thiab cov khib nyiab uas tuaj yeem cuam tshuam rau lub tshuab ua haujlwm.
Ntxiv nrog rau kev saib xyuas niaj hnub, kev tshuaj xyuas tsis tu ncua yog tsim nyog los kuaj xyuas cov teeb meem ua ntej lawv nce mus rau cov teeb meem tseem ceeb. Piv txwv li, kev saib xyuas lub tshuab lub tshuab ua kom txias rau cov dej xau thiab saib xyuas qhov xwm txheej ntawm lub laser beam optics tuaj yeem tiv thaiv kev kho cov nqi qis thiab kev tsim khoom poob qis.
Laser vuam tshuab rau hlau carbon steel ua lub luag haujlwm tseem ceeb hauv kev tsim khoom lag luam, thiab lawv txoj haujlwm txhim khu kev qha yog qhov tseem ceeb rau kev tswj hwm kev tsim khoom thiab zoo. Cov kev pabcuam thiab kev saib xyuas yog qhov tseem ceeb rau kev ua kom pom kev ua haujlwm zoo ntawm cov khoom siv, tiv thaiv kev tawg, thiab ua kom ntseeg tau cov txiaj ntsig zoo vuam. Kev nqis peev hauv laser vuam tshuab rau hlau carbon steel rau hlau carbon steel kev pabcuam thiab kev saib xyuas yog qhov kev txiav txim siab ntse uas tuaj yeem ua rau muaj txiaj ntsig zoo, muaj txiaj ntsig, thiab kev nyab xeeb hauv chaw ua haujlwm.

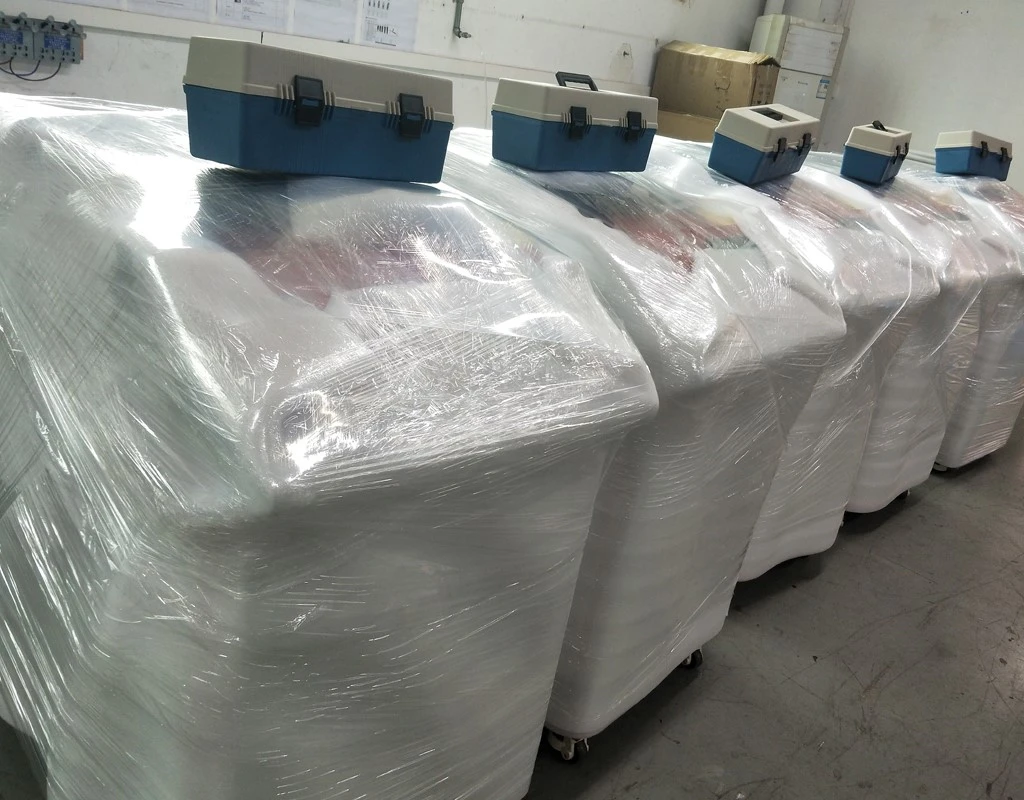

Ntim
FAQ
Q: Kuv tuaj yeem xaiv lub zog rau Laser Vuam Tshuab Rau Hlau Carbon Steel li cas?
Q: Kuv tuaj yeem xaiv tus qauv rau Laser Vuam Tshuab Rau Hlau Carbon Steel li cas?

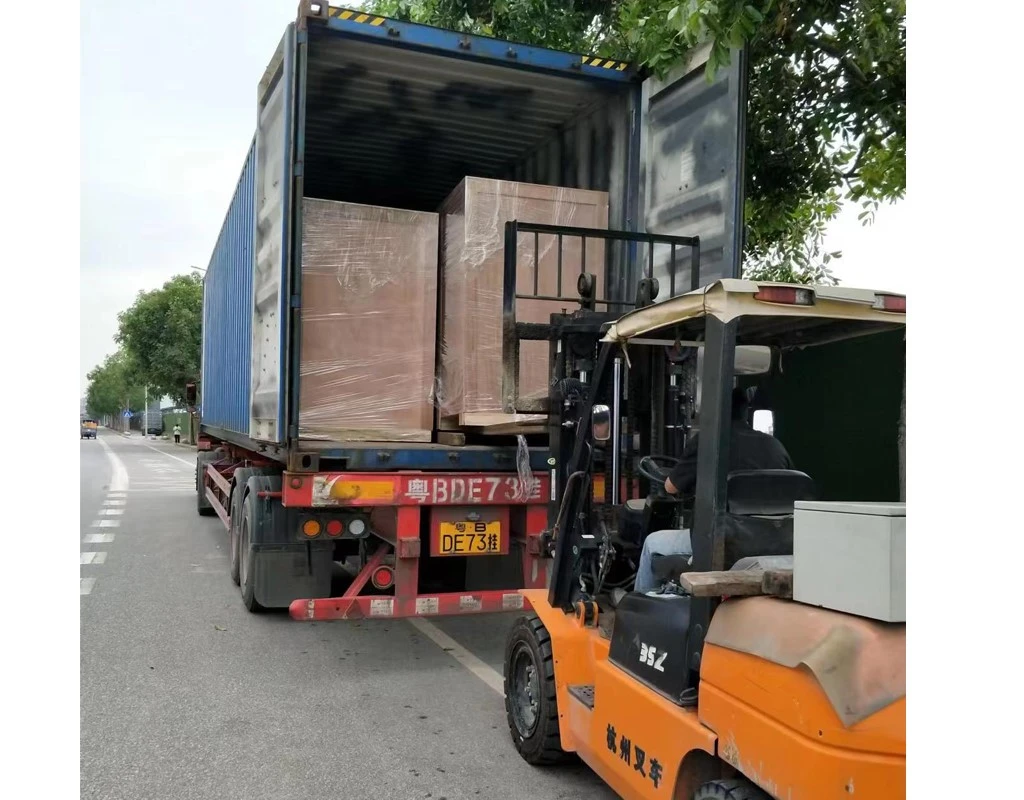

Q: Koj yuav xa lub tshuab laser li cas?
