Laser Vuam Tshuab Rau Hlau Sheet
Laser Vuam Tshuab Rau Hlau Sheet
Khoom Description

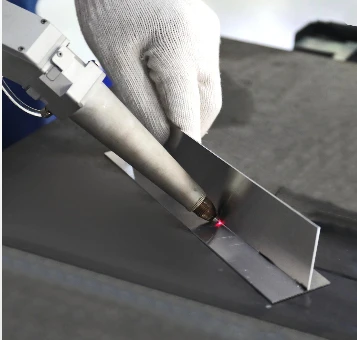

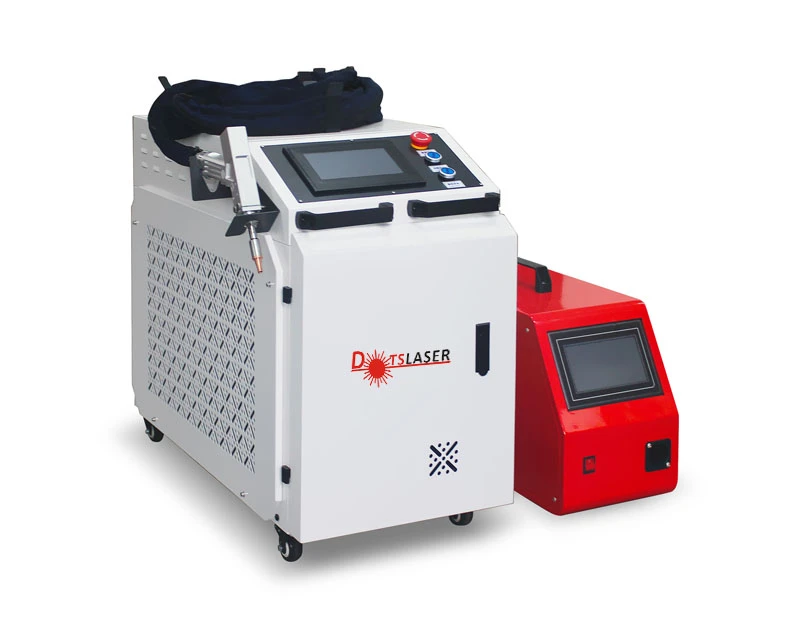

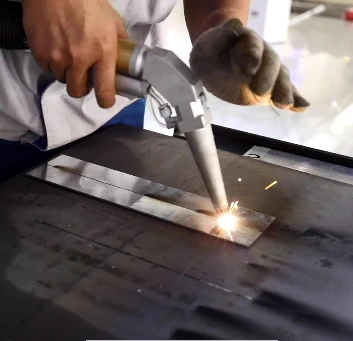

DOTSLASER tes tuav laser vuam tshuab txais lub cim tshiab ntawm fiber ntau laser, uas tuaj yeem paub txog cov khoom siv tib lub sijhawm ntawm ntau cov fibers optical. Piv nrog rau cov tsoos hard optical tso zis system, nws muaj peev xwm nce qib ntawm txoj kev ywj pheej ntawm kev ua, thiab tuaj yeem ua tiav ib txhij ntawm ntau cov kab teeb thiab ntau qhov chaw ua haujlwm muab cov xwm txheej rau kev vuam ntau dua. Nws muaj qhov zoo ntawm kev ua haujlwm yooj yim, zoo nkauj vuam seam, vuam ceev ceev, thiab tsis muaj consumables. Vuam ntawm nyias stainless hlau daim hlau, hlau daim hlau, galvanized daim hlau thiab lwm yam ntaub ntawv hlau tuaj yeem hloov cov tsoos argon Arc vuam, hluav taws xob vuam thiab lwm yam txheej txheem.
Ntsiab nta
High-Quality Welds
Laser vuam ua kom zoo ib yam, huv si, thiab muaj zog welds nrog tsawg distortion, kom ntseeg tau tias kev sib koom ua ke thiab ntev ntev.
Vuam ceev ceev
Lub tsom teeb laser tso cai rau kev sib txuas ceev ceev, ua rau muaj kev ua haujlwm ntau ntxiv thiab txo cov sij hawm txhuas.
Ntau yam khoom siv
Lub Laser Vuam Tshuab rau Hlau Sheets yog sib xws nrog ntau yam hlau thiab alloys, xws li stainless hlau, txhuas, tooj liab, titanium, thiab lwm yam, muab versatility rau ntau yam kev siv.
Yam tsawg kawg nkaus Heat-Affected Zone (HAZ)
Laser welding tsim ib cheeb tsam me me uas cuam tshuam rau qhov kub thiab txias piv rau cov txheej txheem vuam ib txwm, ua rau txo qis ntawm cov khoom deformation thiab txhim kho cov qauv kev ntseeg siab.
Precision thiab Flexibility
Ua tsaug rau nws cov kev tswj xyuas meej, lub tshuab laser vuam tuaj yeem tsim cov qauv vuam thiab cov duab, ua kom haum cov qauv tsim, thiab ua raws li kev lag luam tshwj xeeb.
Tus neeg siv-phooj ywg interface
Kev tswj hwm software ua kom yooj yim rau cov txheej txheem vuam los ntawm kev tso cai rau cov neeg siv kom yooj yim rau kev ua haujlwm ntawm lub laser txoj kev, theem fais fab, vuam ceev, thiab lwm yam tsis.
Kev lag luam kev siv

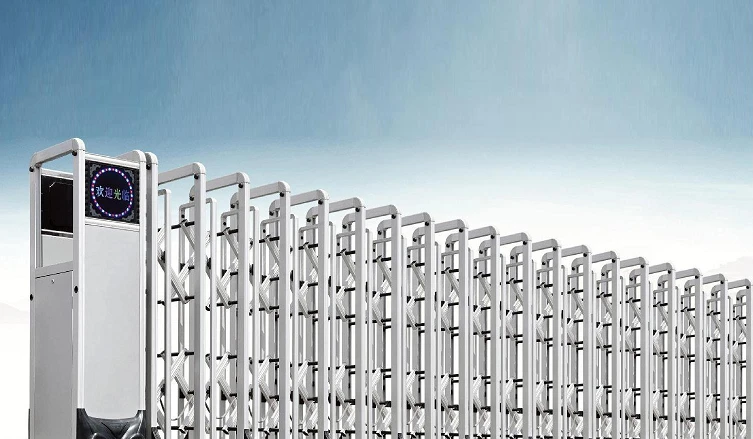

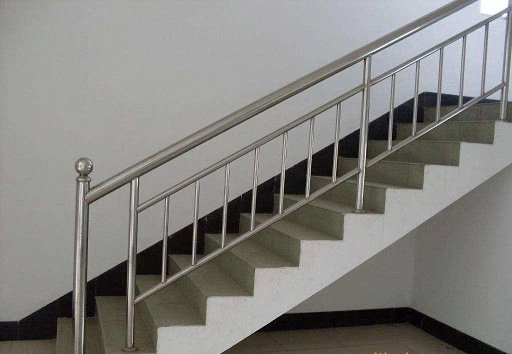

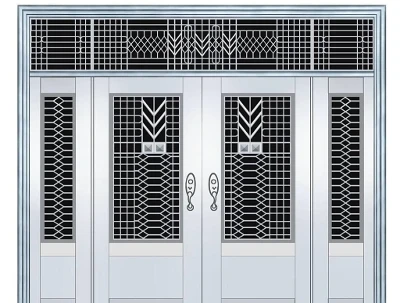

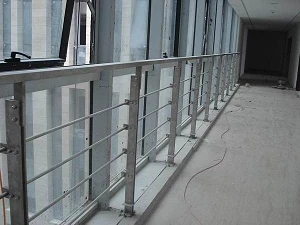

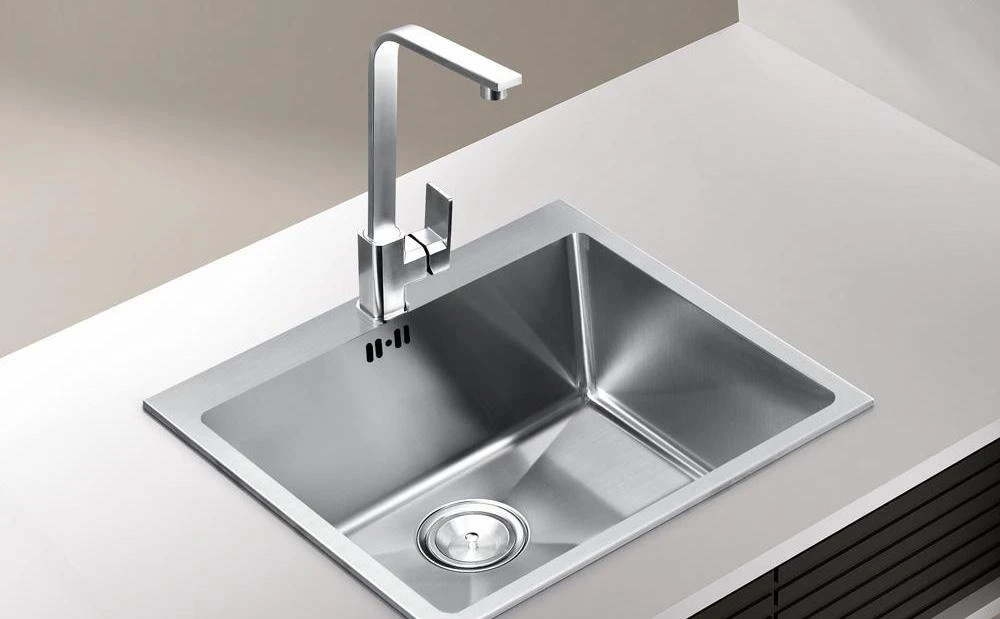

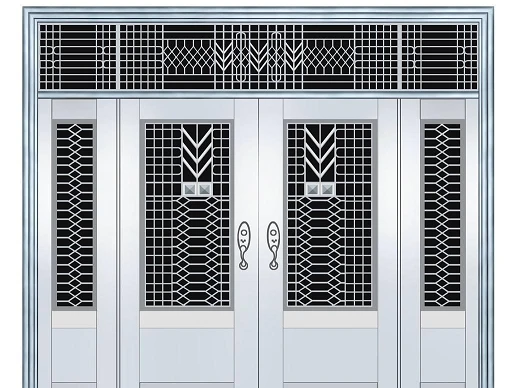

Txee chav ua noj, staircase elevator, txee, qhov cub, stainless hlau qhov rooj thiab qhov rais guardrail, faib lub thawv, stainless hlau rooj tog thiab lwm yam lag luam.
Lub Laser Vuam Tshuab rau Hlau Sheets muaj ntau yam zoo rau cov lag luam uas xav tau kev ruaj khov, zoo, thiab meej welds ntawm cov ntawv hlau. Kev nqis peev hauv cov thev naus laus zis no tuaj yeem txhawb nqa kev ua haujlwm zoo, txhim kho cov khoom lag luam zoo, thiab muab kev yooj yim dua rau ntau yam kev siv, teeb tsa koj sib nrug hauv thaj chaw sib tw.
Tsis muaj
|
TSIS MUAJ. |
Lub npe |
Parameter |
|
1 |
Tshuab qauv |
Tes tuav fiber ntau laser vuam tshuab |
|
2 |
laserzog |
1000W,1500W,2000W,3000W |
|
3 |
laser wave length |
1070 NIM |
|
4 |
Fiber ntauntev |
standard 10 M/ Ntau tshaj 15M |
|
5 |
ua haujlwm hom |
continuation/modulate |
|
6 |
Vuamceevntau |
0~ 120 hli / s |
|
7 |
Cua txias chiller |
Industrial dej chiller |
|
8 |
Ua haujlwmib puag ncigqhov kub thiab txias |
15~ 35 degree |
|
9 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
< 70% No condensation |
|
10 |
Vuam thicknesscov lus pom zoo |
0 5-3mm |
|
11 |
Vuam qhov sib txawv yuav tsum |
Tsawg dua los yog sib npaug rau 0.5mm |
|
12 |
ua haujlwmhluav taws xob |
220 V |
Sheet hlau yog cov txheej txheem ua haujlwm txias rau cov ntawv hlau (feem ntau hauv qab 6 hli), suav nrog shearing, xuas nrig ntaus / txiav / sib xyaw, folding, vuam, riveting, splicing, sib sau (xws li lub cev pib), thiab lwm yam. thickness ntawm tib seem yog tib yam. Cov khoom ua tiav los ntawm cov txheej txheem hlau yog hu ua sheet hlau qhov chaw. Sheet hlau qhov chaw muaj cov yam ntxwv ntawm lub teeb yuag, siab zog, hluav taws xob conductivity (tuaj yeem siv rau electromagnetic shielding), tus nqi qis, thiab kev ua haujlwm zoo.
Sheet matel tau dav siv hauv cov khoom siv hluav taws xob, kev sib txuas lus, kev lag luam tsheb, khoom siv kho mob thiab lwm yam. Hauv cov rooj plaub hauv computer, xov tooj ntawm tes, thiab MP3s, cov ntawv hlau yog qhov tseem ceeb. Raws li daim ntawv thov ntawm cov ntawv hlau ua ntau thiab ntau dua, kev tsim cov ntawv hlau tau dhau los ua ib feem tseem ceeb ntawm cov txheej txheem tsim khoom.

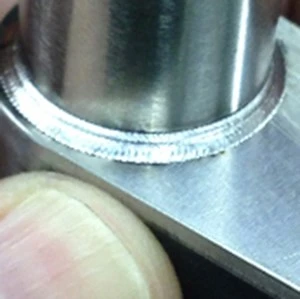

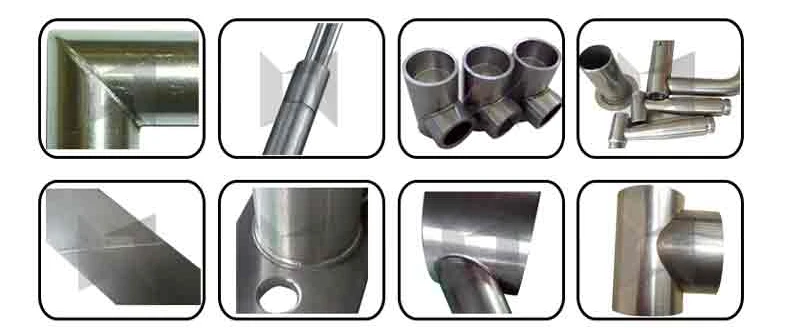

360 degree tsis muaj lub kaum sab xis micro soldering
Tom qab lub laser beam tsom, ib qho chaw me me tuaj yeem tau txais, uas tuaj yeem raug muab tso rau thiab siv nyob rau hauv pab pawg vuam ntawm micro thiab me me workpieces rau ntau lawm. Feem ntau yog rau vuam ntawm nyias-walled cov ntaub ntawv thiab precision qhov chaw, nws muaj peev xwm paub qhov chaw vuam, taub qab vuam, pawg welding, sealing vuam, thiab lwm yam., siab nam piv, s [[ [[[tau weld width, me me tshav kub cuam tshuam cheeb tsam, me me deformation , vuam ceev ceev, tsis tas yuav tsum tau ua tiav tom qab vuam lossis tsuas yog ua tiav.

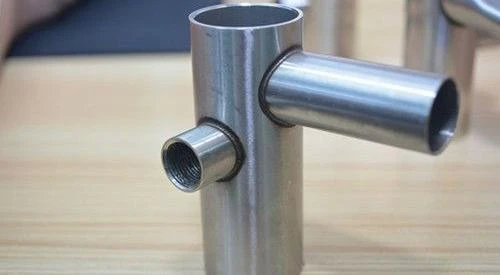

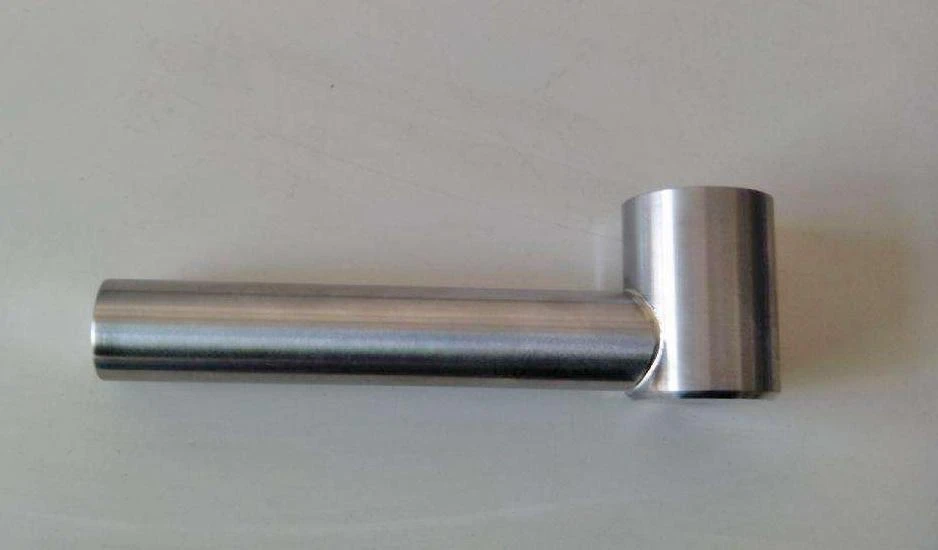

Vuam zoo
Weld seam yog du thiab zoo nkauj, lub vuam workpiece tsis muaj deformation, vuam yog ruaj, thiab tsis muaj kev sib tsoo tom ntej, uas yuav txuag tau sijhawm thiab nqi.
Dotslaser vuam Strengths:
1. Ceev ceev, yooj yim rau kev khiav lag luam, txuag zog
2. Ceev vuam ceev, 2-10 lub sij hawm sai dua li ib txwm welding, ib lub tshuab tuaj yeem hloov tau yam tsawg kawg 2 welders ib xyoos.
3. Lub neej ua haujlwm ntev, muaj kev nyab xeeb dua thiab zoo ib puag ncig
4. Laser vuam yog nrog tsawg consumables rau micro soldering

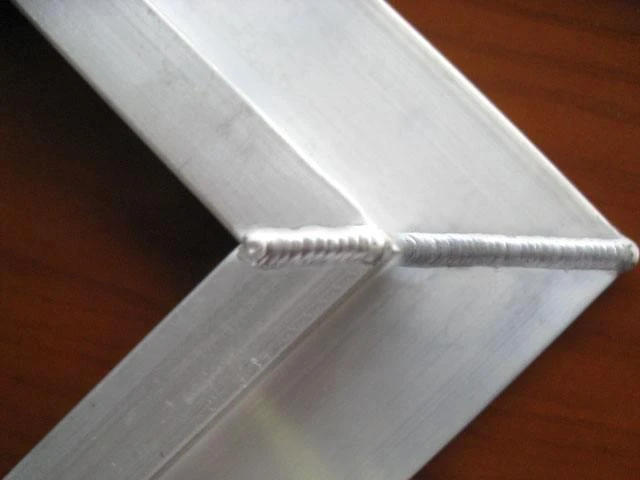

Dotslaser welding VS Traditional vuam

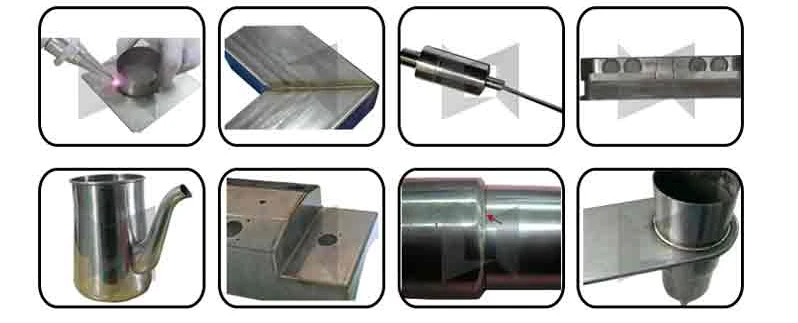

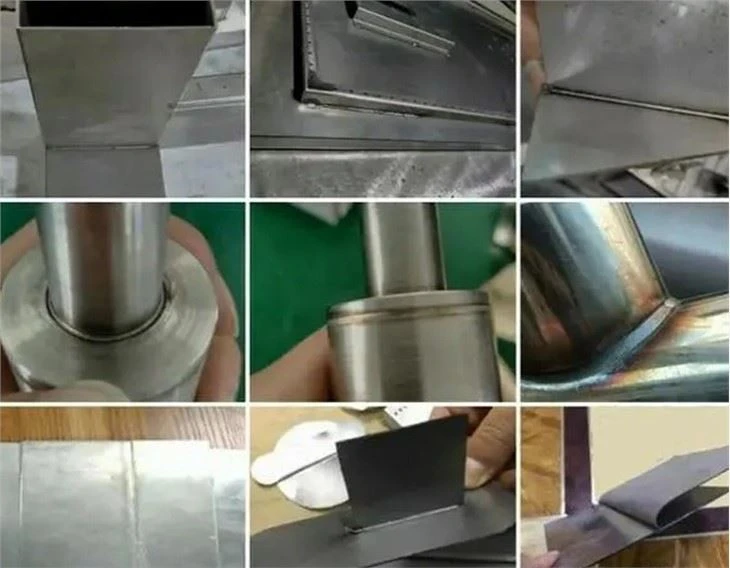

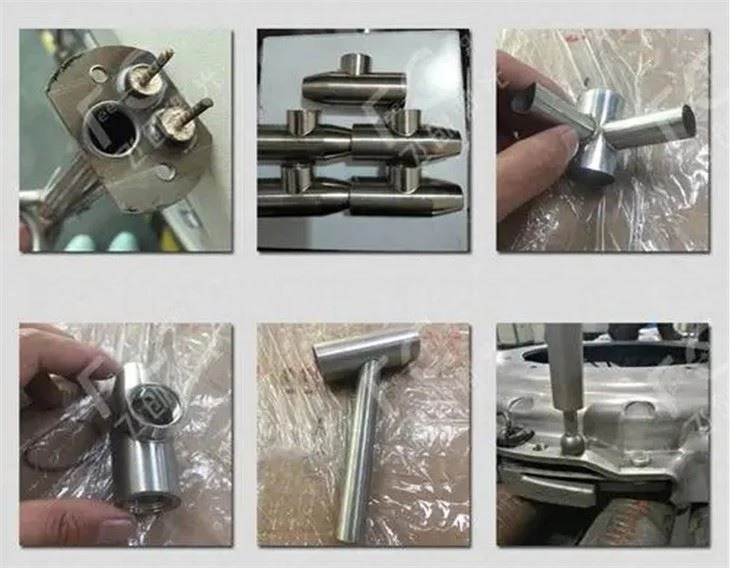

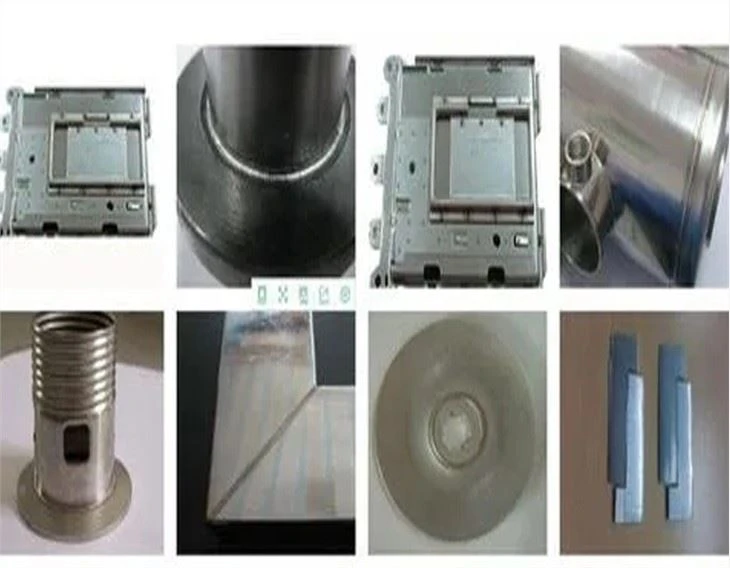

Qauv
Shipping thiab pob
Cov nqe lus thiab tej yam kev mob:
1. Yooj yim installation, yooj yim txav
2. Lub sijhawm ua haujlwm: 7-10 hnub ua haujlwm
3. hiav txwv shipping thiab tsheb thauj khoom
4. TT / western union / paypal / Ali kev lees paub kev them nyiaj
5. 24 teev teb
6.1 xyoo lav
FAQ
Q: Cov ntaub ntawv dab tsi tuaj yeem welded siv laser vuam?
Q: Puas yog laser vuam haum rau cov khoom ntim ntau lawm?
Q: Puas tuaj yeem laser vuam hloov cov txheej txheem ib txwm muaj xws li qhov chaw lossis TIG vuam?
Q: Puas yog laser vuam ua kom huv si?
