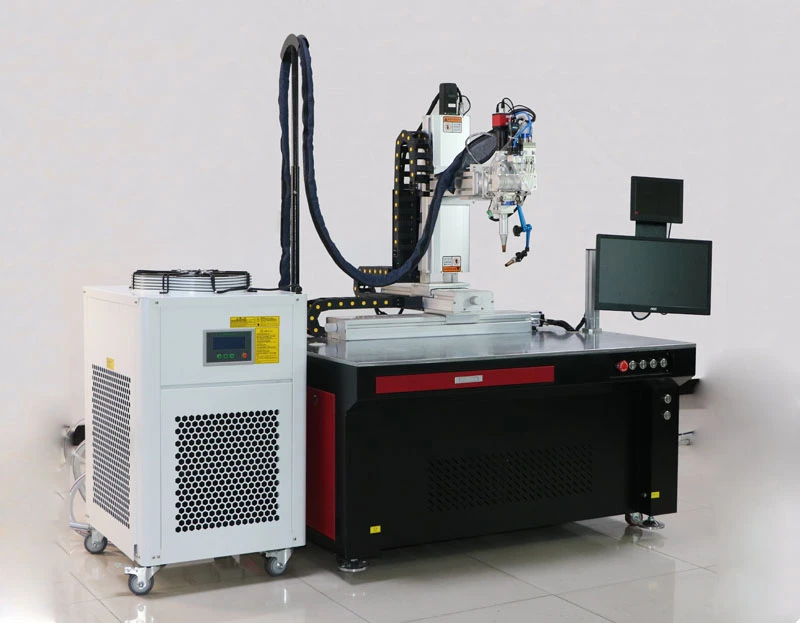

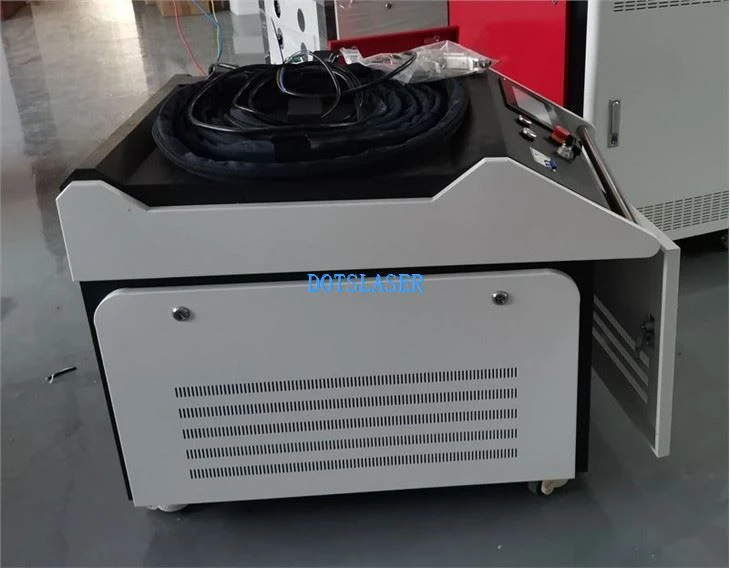

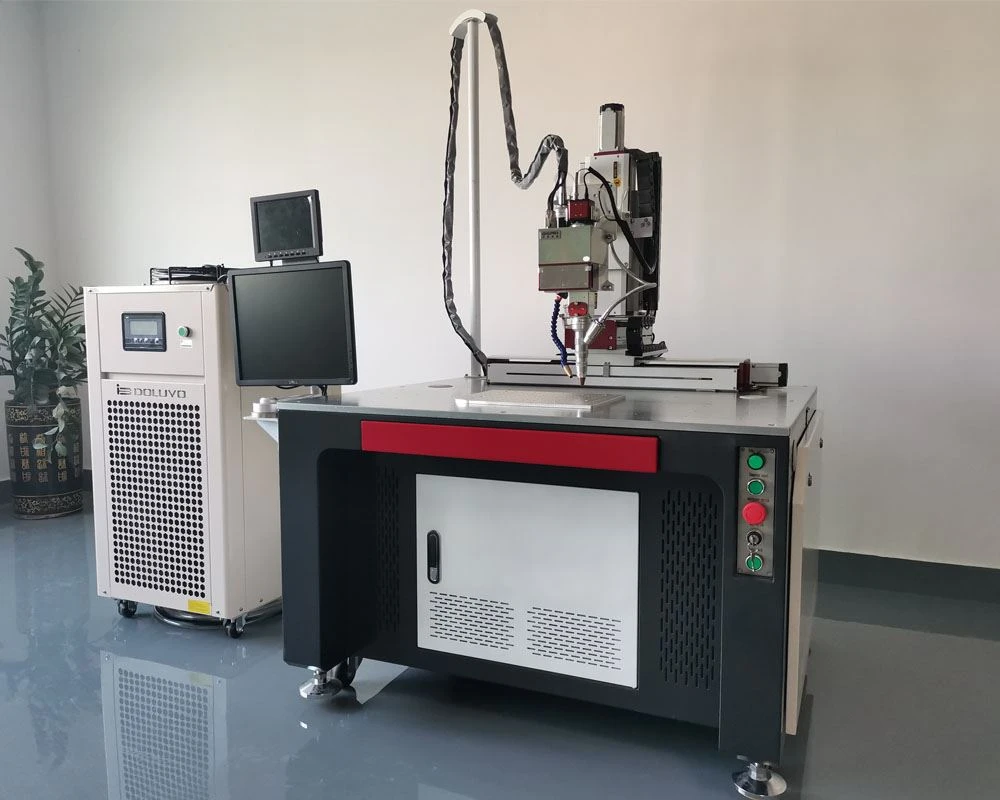

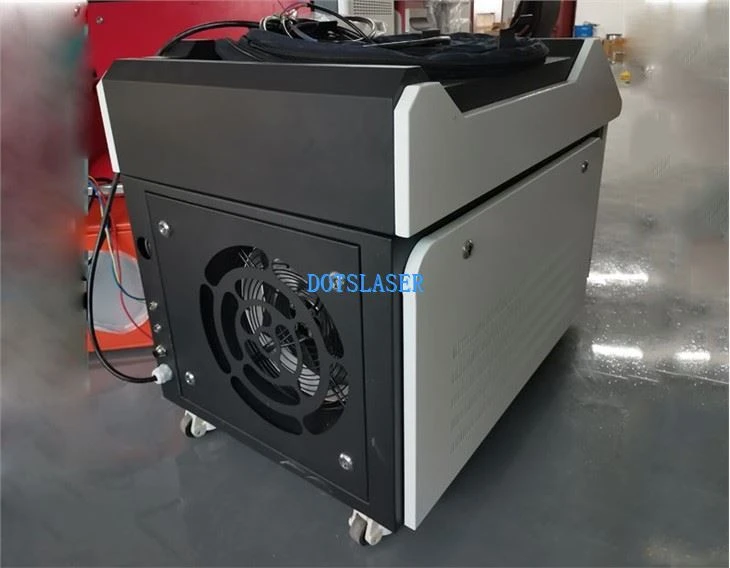

Stainless hlau Laser Vuam
Stainless hlau Laser Vuam
Khoom Description
Lub tshuab stainless hlau laser vuam tshuab yog ib yam khoom siv tshwj xeeb tsim los vuam stainless hlau cov ntaub ntawv siv tshuab laser. Cov tshuab no tau siv ntau yam kev lag luam, xws li tsheb, aerospace, kev kho mob, thiab kev tsim khoom, qhov twg cov khoom siv hlau tsis muaj steel muaj ntau.
Qhov zoo
Peb tab tom nrhiav kev sib koom tes los nthuav peb txoj kev lag luam
Precision
Laser welding tso cai rau cov welds meej thiab huv si, nrog rau kev tswj kom raug ntawm thaj chaw tshav kub. Qhov no muaj txiaj ntsig zoo rau cov khoom me me los yog tsis sib xws stainless hlau Cheebtsam
Tsawg heev distortion
Cov khoom siv hluav taws xob tsawg tsawg thiab cov xwm txheej hauv cheeb tsam ntawm lub laser beam xyuas kom meej tias cov khoom nyob ib puag ncig tsis yog warped los yog deformed thaum lub sij hawm vuam txheej txheem.
High vuam ceev
Laser vuam yog nrawm dua li lwm txoj hauv kev vuam, tso cai rau kev nce ntxiv thiab ua haujlwm tau zoo.
Cov txheej txheem tsis sib cuag
Laser vuam tshuab tsis xav tau kev sib cuag ntawm lub cev ntawm cov cuab yeej vuam thiab cov khoom siv, qhov kev pheej hmoo ntawm kev sib kis yog txo. Qhov no yog qhov tseem ceeb tshwj xeeb rau kev kho mob lossis zaub mov-qib stainless hlau daim ntawv thov.
Automation
Laser vuam tshuab tuaj yeem yooj yim ua ke rau hauv cov tshuab siv hluav taws xob, ntxiv kev ua haujlwm ntxiv thiab rov ua dua.
Ntsiab nta
Hwj chim
Lub zog ntawm lub laser yuav txiav txim siab qhov tuab ntawm cov khoom koj tuaj yeem ua tau zoo weld.Customize koj cov cai raws li cov khoom tuab thiab cov qauv kev lag luam.
Ceev
Xyuas kom meej tias lub tshuab tuaj yeem ua tiav koj cov kev xav tau ceev yam tsis muaj kev cuam tshuam cov vuam zoo
Beam Quality
Qhov zoo ntawm laser beam yuav muab ntxuav, zoo dua welds.
Kev sib haum xeeb
Qee lub tshuab tau tsim tshwj xeeb rau cov khoom siv tshwj xeeb lossis kev lag luam kev lag luam, yog li xyuas kom meej tias lub tshuab xaiv tau sib xws nrog koj cov kev cai tshwj xeeb stainless hlau.
Nyiaj txiag
Qhov tseem ceeb ntawm tus nqi pib ntawm lub tshuab, kev saib xyuas tsis tu ncua, thiab cov khoom siv kom ntseeg tau tias kev nqis peev ua tau rau koj txoj haujlwm.
Tus neeg muag khoom lub koob npe nrov
Xaiv tus neeg muag khoom muaj npe nrov nrog kev txhawb nqa zoo rau cov neeg siv khoom kom ntseeg tau cov kev pabcuam txhim khu kev qha, kev saib xyuas, thiab kev pab daws teebmeem thaum xav tau
Superiority
(1) Qhov xav tau ntawm cov khoom siv hluav taws xob tuaj yeem txo qis rau qhov tsawg kawg nkaus, qhov kev hloov pauv metallographic ntawm thaj chaw muaj kev kub ntxhov yog me me, thiab qhov deformation tshwm sim los ntawm kev siv hluav taws xob kuj yog qhov qis tshaj.
(2) Cov txheej txheem vuam tsis sib xws ntawm 32 hli phaj tuab ib leeg dhau vuam tau raug txheeb xyuas thiab tsim nyog, uas tuaj yeem txo lub sijhawm xav tau rau cov phaj tuab tuab thiab txawm tias txuag kev siv cov hlau muab tub lim.
(3) Tsis tas yuav siv cov electrodes, thiab tsis muaj kev txhawj xeeb txog kev sib kis ntawm electrode los yog kev puas tsuaj. Thiab vim tias nws tsis yog txoj kev sib cuag welding, hnav thiab deformation ntawm cov cuab yeej tuaj yeem txo qis.
(4) Lub teeb laser yog ib qho yooj yim rau kev tsom, ua kom zoo thiab coj los ntawm cov cuab yeej kho qhov muag. Nws tuaj yeem muab tso rau ntawm qhov chaw tsim nyog los ntawm qhov chaw ua haujlwm, thiab Lwm cov kev cai welding yog raug rau cov kev txwv qhov chaw saum toj no.
(5) Lub workpiece tuaj yeem muab tso rau hauv qhov chaw kaw (tom qab lub tshuab nqus tsev lossis ib puag ncig hauv cov pa hauv kev tswj hwm).
(6) Lub teeb laser tuaj yeem tsom rau ntawm thaj chaw me me, thiab qhov chaw me me thiab ze ze tuaj yeem raug welded.
(7) Muaj ntau yam khoom siv weldable, thiab ntau yam ntaub ntawv heterogeneous kuj tuaj yeem koom ua ke.
(8) Nws yog ib qho yooj yim rau automate high-speed welding, thiab nws tseem tuaj yeem tswj tau los ntawm digital lossis computer.
(9) Thaum vuam cov ntaub ntawv nyias lossis nyias cov xov hlau, nws yuav tsis yooj yim rau kev ntxhov siab li arc vuam.
(10) Nws tsis cuam tshuam los ntawm cov hlau nplaum (arc vuam thiab electron beam vuam yog ib qho yooj yim), thiab tuaj yeem ua kom raug qhov vuam.
(11) Ob lub hlau uas muaj cov khoom sib txawv ntawm lub cev (xws li kev sib txawv) tuaj yeem welded
(12) Tsis tas yuav tsum muaj lub tshuab nqus tsev lossis X-ray tiv thaiv.
(13) Yog siv vuam perforated, qhov tob-rau-dav piv ntawm cov hlaws vuam tuaj yeem ncav cuag 10: 1
(14) Cov cuab yeej tuaj yeem hloov pauv kom xa cov nqaj laser mus rau ntau qhov chaw ua haujlwm.
Technical parameters
|
Fiber ntau interface
|
QBH
|
|
Laser wavelength
|
1070 ± 20nm
|
|
Laser zog
|
Tsawg dua lossis sib npaug li 3000W
|
|
Kev tiv thaiv ntse muaj nuj nqi
|
Yog lawm
|
|
Collimated focal ntev
|
50 hli
|
|
Ua kom pom tseeb focal ntev
|
150 hli
|
|
Spot adjustable ntau yam
|
0-5 hli
|
|
Ua kom pom tseeb aperture
|
16 hli
|
|
Vuam taub hau hnyav
|
0.71kg
|
|
Hlau feeder qauv
|
FWS-01A
|
|
Hlau hnyav
|
max 25 kg
|
|
Hlau tub ntxhais txoj kab uas hla
|
MAX Ø3 0mm
|
|
Qhov siab tshaj plaws hlau pub ceev
|
80mm / s
|
|
Lub cev muaj zog
|
Servo Tsav
|
|
Kev txo qis
|
1:5
|
|
Qhov hnyav tag nrho
|
16.2 KWG
|
|
Ua haujlwm voltage
|
220V (xaiv)
|
|
Qhov ntev
|
800 * 700 * 1200mm (L * W * H)
|
Laser vuam ntawm stainless hlau tso cai rau cov cua sov nkag mus rau qhov tsawg kawg nkaus uas yuav tsum tau, uas ua rau muaj kev hloov me me nyob rau hauv lub tshav kub-cuam tshuam cheeb tsam thiab tsawg distortion vim tshav kub conduction. Tsis tas yuav siv cov electrodes, thiab tsis tas yuav txhawj xeeb txog kev sib kis ntawm electrode lossis puas. Laser beams tau yooj yim tsom, ua raws thiab coj los ntawm optics. Nws tuaj yeem muab tso rau ntawm qhov chaw tsim nyog ntawm qhov chaw ua haujlwm thiab tuaj yeem coj los ntawm cov cuab yeej lossis cov teeb meem nyob ib puag ncig ntawm lub workpiece.
Cov qauv qhia

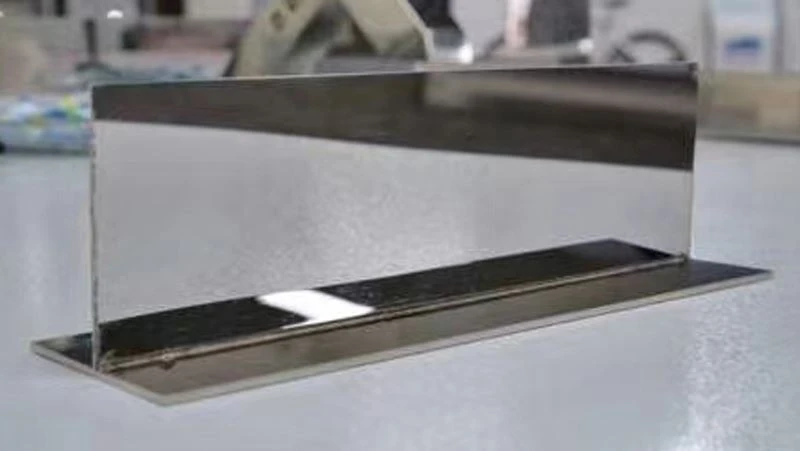

stainless hlau puab lub kaum laser vuam

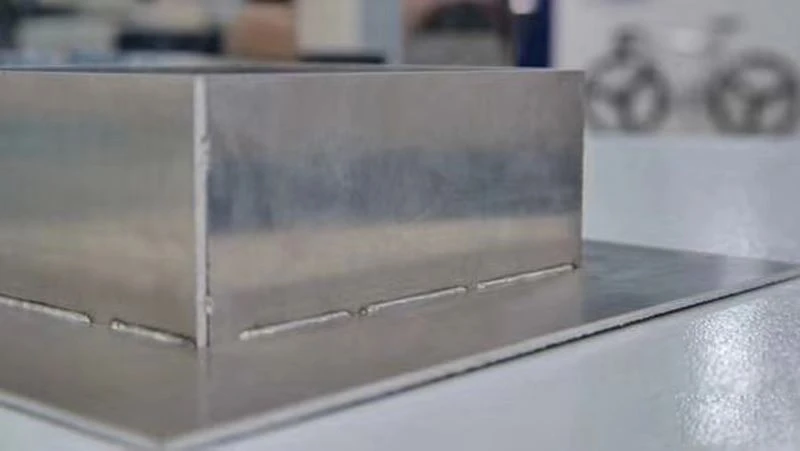

Stainless hlau txheej lub kaum sab xis laser vuam

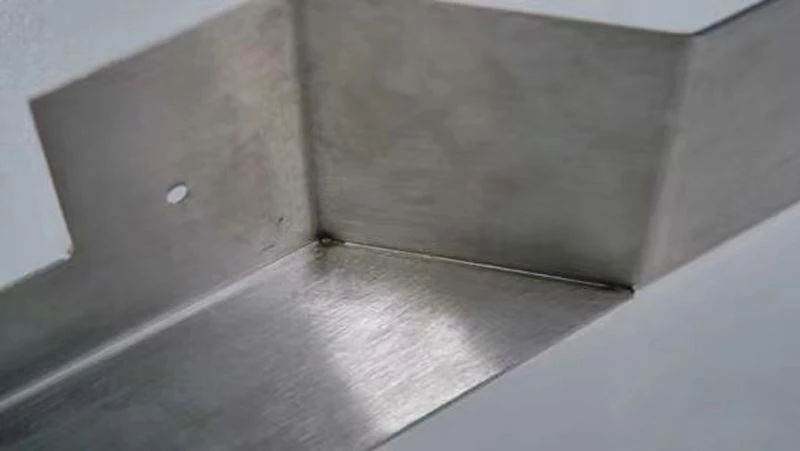

Tsis muaj vuam burrs thiab deformation

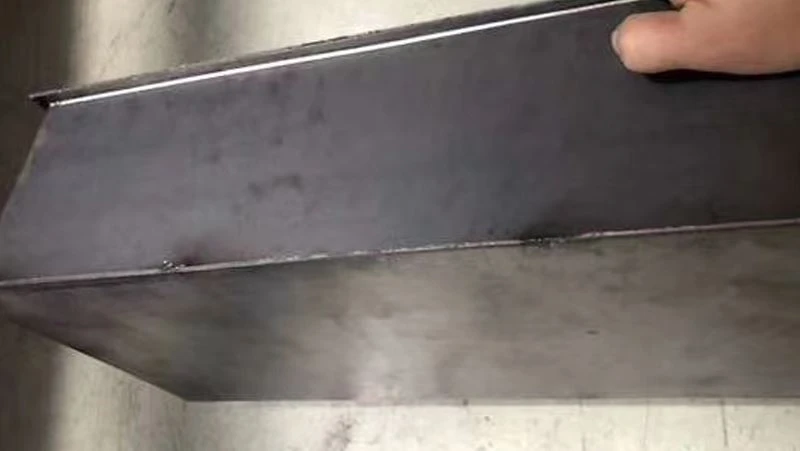

Muaj zog vuam
FAQ
Q1: Koj lub tuam txhab tsim khoom dab tsi?
Q2: Koj lub tuam txhab yog cov chaw tsim khoom lossis tuam txhab lag luam?
Q3: Cov ntaub ntawv dab tsi kuv yuav tsum muab thaum kuv xav tau cov lus tsocai?
Q4: Cov kev qhia tshwj xeeb ntawm cov cuab yeej xav tau tuaj yeem kho tau?
Q5: Yog tias kuv xav tau cov cuab yeej laser tam sim no, nws yuav siv sijhawm ntev npaum li cas?
Kev xa khoom thiab ntim khoom
Unpacking Ceev faj:
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
