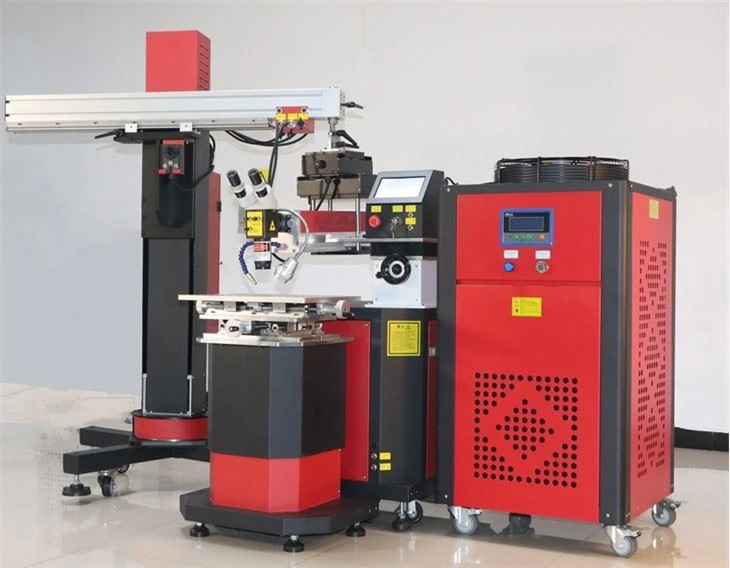

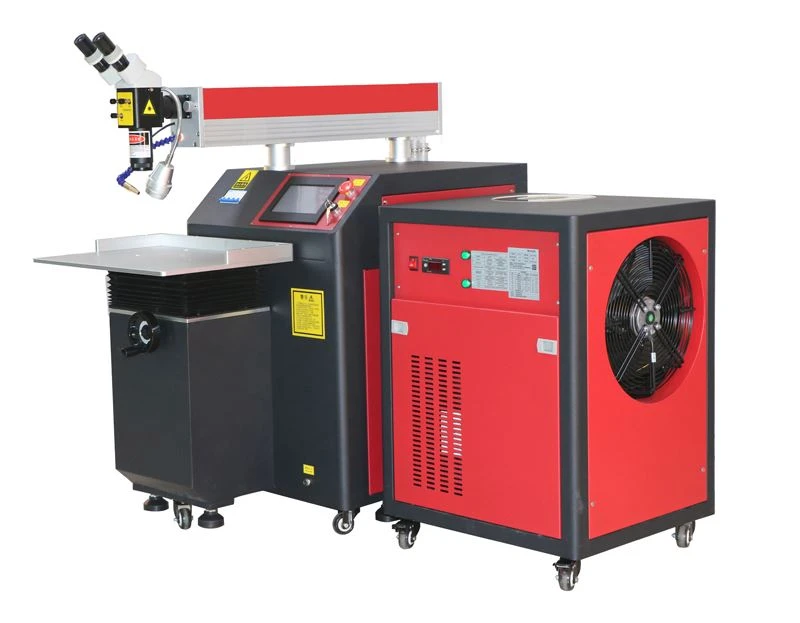

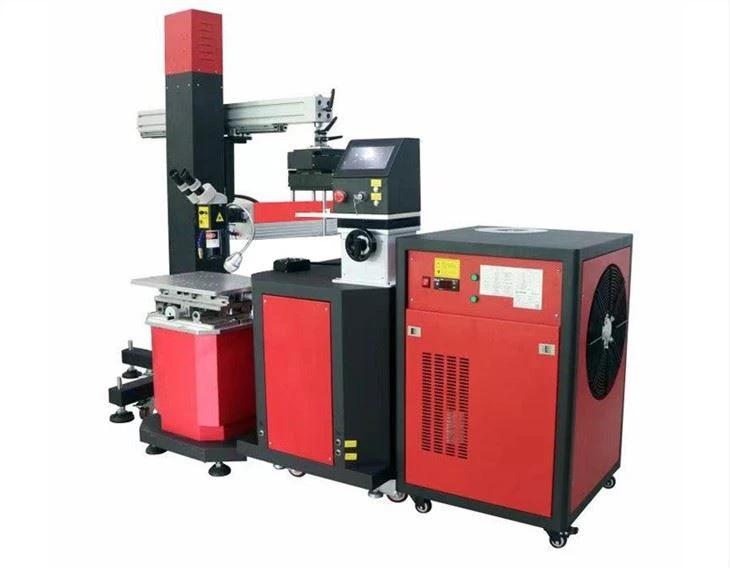

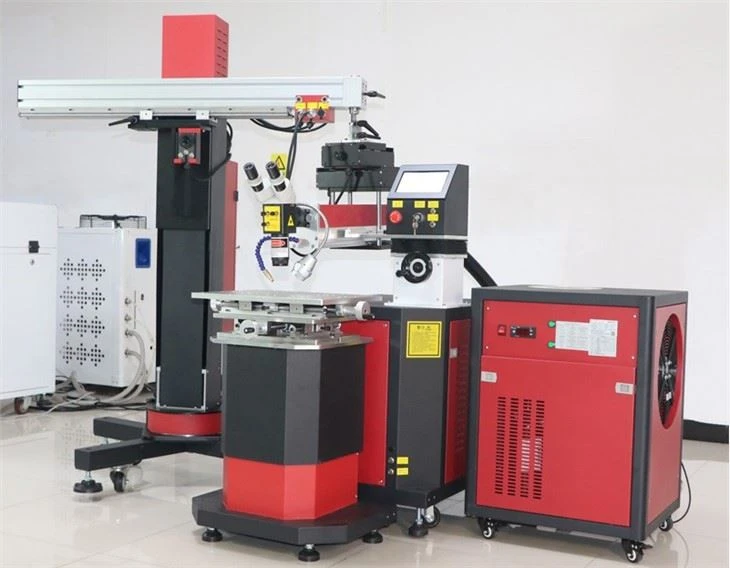

Pwm Laser Vuam Tshuab
Pwm Laser Vuam Tshuab
Khoom Description
Pwm Laser Vuam Tshuab yog ib qho cuab yeej siv cov txheej txheem laser vuam kom paub txog laser vuam tshuab, laser chaw vuam, thiab lwm yam, kom ua tiav cov fusion thiab kev sib xyaw ntawm cov ntaub ntawv. Peb cov khoom siv loj-screen LCD Suav interface zaub, kev ua haujlwm thiab cov ntaub ntawv yog txhua yam meej ntawm ib nrais muag, thiab kev ua haujlwm yooj yim thiab siv tau yooj yim. Pwm Laser Vuam Tshuab muaj ntau yam kev siv, thiab tuaj yeem siv los kho cov kab nrib pleb, cov ces kaum, npoo, thiab depleted sealing npoo ntawm cov ntaub ntawv nyuaj xws li pwm, precision txhaj molding, tuag-casting, stamping, stainless hlau, thiab lwm yam.
Qhov zoo thiab nta
| Lub zog vuam siab, piv nrog lub tshuab vuam dav dav, nws tuaj yeem yaj tuab vuam hlau ruaj khov vuam kev ua tau zoo. |
| Siv lub ntiaj teb no siab tshaj plaws tsis siv neeg shading system kom tshem tawm qhov muag khaus thaum ua hauj lwm; |
| Kov npo interface, intuitive thiab yooj yim ua haujlwm. |
| Kev hloov pauv hloov tau txais kev tswj xyuas cov chaw taws teeb ntse, kev ua haujlwm yooj yim thiab ceev. |
| Ib leeg laser pulse, adjustable waveform, kom tau raws li cov txheej txheem vuam yuav tsum tau complex thiab tshwj xeeb cov ntaub ntawv. |
| Imported ceramic condenser kab noj hniav, corrosion kuj, kub tsis kam, kab noj hniav lub neej yog 810 xyoo, thiab xenon teeb lub neej yog ntau tshaj 8 lab lub sij hawm. |
| Lub taub hau laser tuaj yeem tig 360 degree, lub rooj ua haujlwm loj loj yog tsim rau kev tso pwm, thiab lub rooj ua haujlwm hluav taws xob tuaj yeem tsa thiab txo qis; |
Paramter ntawm pwm laser vuam tshuab
| Qauv | DS-LW 200 | DS-LW 400 |
| Max.laser zog | 200W | 400W |
| Laser wavelength | 1064nm ua | |
| Condenser kab noj hniav reflector | Imported ceramic condenser kab noj hniav | Ob chav teeb tsom teeb kab noj hniav |
| Laser zaus | 1 ~ 20Hz | |
| mem tes dav | 0.1 ~ 10Ms | |
| Adjustable ntau yam ntawm lub teeb qhov chaw | 0.3 ~ 2 hli | |
| Qhov chaw | Microscope (optional koob yees duab system) | |
| Lub zog ntawm dej chiller | 1.5P | 3P |
| Rated zog | 8 kWm | 12 kWm |
| Fais fab mov | 380V ± 5V 50Hz / 40A / 220V ± 5V 50Hz / 60A | |
| Workbench stroke | 125mm * 100mm * 300mm | |
| Workbench bearing | 150 kg | |
|
Dimension / hnyav |
Lub tshuab host: 1000mm * 550mm * 1150mm | 103kg ua |
| 1.5P dej chiller: 550mm * 550mm * 850mm | 80kg ua | |
| 3P dej chiller: 800mm * 640mm * 1200mm | 127kg ua | |
| Lub rooj zaum ua haujlwm: 550mm * 400mm * 700mm | 57kg ua | |
Daim ntawv thov teb
Cov pwm laser vuam tshuab yog tsim rau kev kho ntau yam pwm xws li kev cia siab rau kev tuag-casting, kho cov xuab zeb qhov thiab hla kev ua xws li welded castings, thiab welding ua ntawm ntau yam hlau structural qhov chaw, kub thiab nyiaj hniav nyiaj hniav kub. Nws kuj tuaj yeem ua los ntawm cov khoom sib txawv. Vuam ntawm cov hlau.
Shipping thiab pob
Unpacking Ceev faj
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
