Lub rooj hom hniav nyiaj hniav kub Laser Welder

Lub rooj hom hniav nyiaj hniav kub Laser Welder

Lub Rooj Hom Jewelry Laser Welder yog ib qho kev tsim kho tshiab hauv kev tsim cov hniav nyiaj hniav kub. Nws muaj qhov tseeb dua rau vuam rau ntau hom hlau, suav nrog kub, nyiaj, thiab platinum. Peb cov khoom muab jewelers nrog txoj kev ceev thiab zoo ntawm kev kho lossis hloov cov hniav nyiaj hniav kub. Lub tshuab laser siv nyob rau hauv no welder xyuas kom meej tias cov hniav nyiaj hniav kub tej daim tsis cuam tshuam los ntawm ntau dhau tshav kub los yog siab uas yog ib txwm nyob rau hauv ib txwm welding txoj kev.

Cov khoom muaj zog

 Tshwj xeeb hauv precision vuam

Lub rooj hom hniav nyiaj hniav kub Laser Welder ntawm cov hniav nyiaj hniav kub, watches, thiab lwm yam me me metalwork. Peb lub tshuab yog tsim los xa cov khoom tshwj xeeb, kev ua tau zoo, thiab kev ntseeg tau, kom ntseeg tau tias koj cov txheej txheem ua cov hniav nyiaj hniav kub yog streamline thiab tsim tau.

 Qhov zoo tshaj plaws rau me me thiab intricate vuam daim ntaub ntawv

Lub rooj hom hniav nyiaj hniav kub Laser Welder yog zoo meej rau kev kho cov watches, zoo hniav nyiaj hniav kub, thiab lwm yam precision metalwork. Lub tshuab cov yam ntxwv siab heev kuj ua rau nws zoo tagnrho rau vuam cov khoom me me thiab cov khoom tawg yooj yim yam tsis muaj kev puas tsuaj lossis deformation.

 Ntau dua precision thiab qis cua sov input

Nws cov yam ntxwv siab heev thiab kev tswj hwm kev nkag siab ua rau nws yooj yim rau siv, txawm tias cov neeg ua haujlwm tshiab. Lub tshuab yog nruab nrog lub teeb laser muaj zog uas muab cov qib siab ntawm precision, ceev, thiab tswj

 Cim thiab nyab xeeb

Ntau yam ntawm kev hloov kho lub zog thiab mem tes, cov neeg ua haujlwm tuaj yeem hloov kho lawv cov txheej txheem vuam kom tau raws li lawv cov kev xav tau tshwj xeeb. High-frequency vibration hom, Lub Rooj Hom Jewelry Laser Welder xyuas kom meej tias cov hlau ua haujlwm ruaj khov thiab ruaj ntseg thaum lub sijhawm vuam, txawm tias qhov me me thiab qhov sib txawv.

Nta thiab qhov zoo



 1. Imported ceramic concentrator kab noj hniav, siab reflectivity, muaj zog lub zog, kub tsis kam, corrosion kuj, ntev kev pab cuam lub neej.



 2. Ergonomic tsim.Cov khoom yog zoo, zoo nkauj, thiab ruaj khov nyob rau hauv kev ua tau zoo, haum rau kev ua hauj lwm mus sij hawm ntev.



 3. Qhov chaw loj sab hauv, uas yog yooj yim rau kev tso kawm ntawm laser chaw vuam cov cuab yeej thiab fixtures; ib lub welding plua plav rov qab lub thawv yog ntsia, uas yog yooj yim rau tu thiab kub vuam slag rov qab.



 4. High magnification beam expander system kom tau qhov zoo tshaj plaws thiab ua tau raws li qhov xav tau ntawm qhov zoo laser qhov chaw vuam.

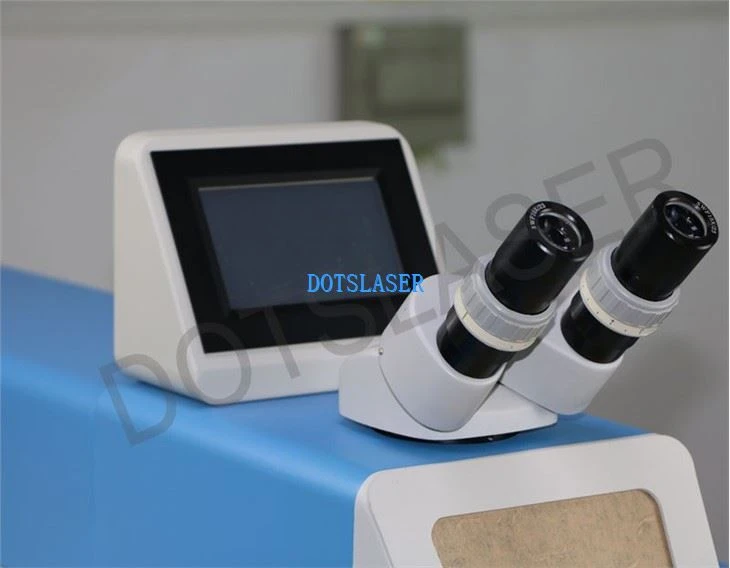

 5. LED nplhaib shadowless teeb, soj ntsuam lub workpiece tsis muaj duab ntxoov ntxoo, nrog high-txhais lub tso suab thaum uas tig mus lub teeb txoj kev microscope, lub laser vuam txoj hauj lwm yuav pom tau meej meej.



Cov ntaub ntawv siv tau



• Kub, Nyiaj, Platinum, Copper, Brass, Stainless hlau, Alloy, hlau, Carbon, Aluminium



Muaj kev lag luam

• Nplhaib
• Pob ntseg
• Bracelets
• Lub caj dab
• Khi clips
• Cuffs



Parameters ntawm rooj hom hniav nyiaj hniav kub laser welder



Qauv	DS-LW 150
Max laser zog	150W
Lub wavelength	1064nm ua
Laser zaus	1-20Hz
mem tes dav	0.1-10 Ms
Kev hloov kho qhov chaw	0 2-2mm
Qhov chaw	Microscopethiab teeb liab (optional camera system)
Hom cua txias	Cua txias
Hwj chimnoj	5 kWm
Fais fab mov	380V ± 5V 50Hz / 60A / 220V ± 5V 50Hz / 40A
Dimension	94*61* 70 cm
Qhov hnyav	95kg ua

Paub Txog Laser vuam

 Laser welding yog ib qho tshiab thiab ua thev naus laus zis los ua ntau yam khoom siv. Cov hniav nyiaj hniav kub laser vuam yog tsuas yog siv rau vuam nyias-walled cov ntaub ntawv thiab precision qhov chaw.

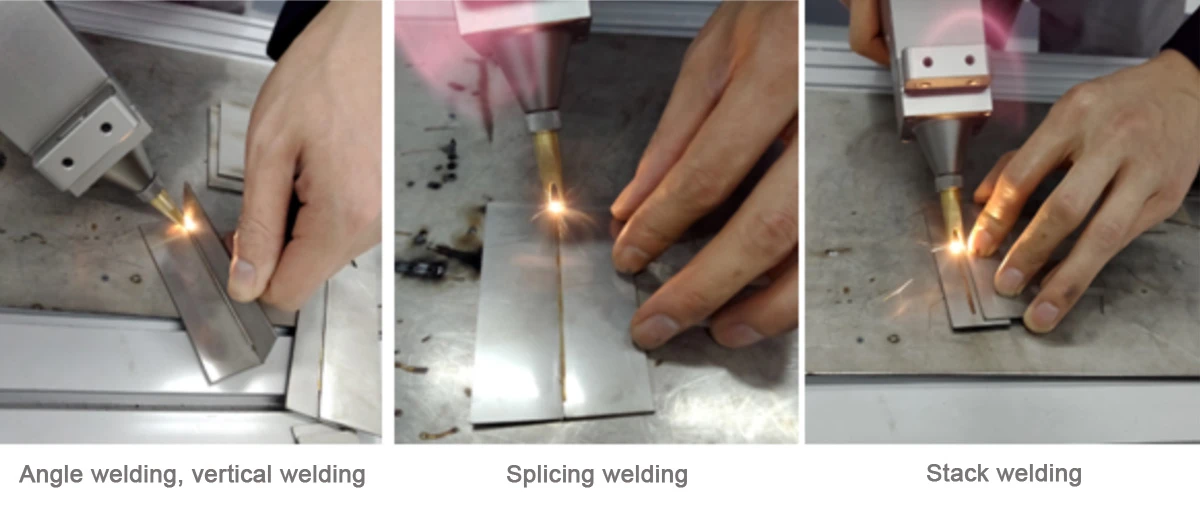

 Cov hluav taws xob hluav taws xob ua hluav taws xob ua hluav taws xob thiab hluav taws kub mus rau saum npoo ntawm cov khoom ua haujlwm, ua rau lub ntsej muag ntawm lub workpiece melted, los ntawm kev teeb tsa tsim nyog, xws li kho mem tes dav, zaus, lub zog. Nws tuaj yeem ua cov khoom ua haujlwm nrog ntau txoj kev vuam, xws li qhov chaw vuam, plooj vuam, sealing vuam, taub qab vuam. yog li kom tau txais qhov txiaj ntsig zoo tshaj plaws welding--- zoo nkauj thiab du vuam seam, vim tias nws muaj cov cua sov tsawg heev. thiab me me deformation ntawm workpieces.



Kev xav tau ntawm kev ua haujlwm ib puag ncig

1) Kub: 5 ° ~ 35 ° C;

2) Cov av noo: 40% ~ 80%, tsis muaj hws;

3) Kev hloov pauv hluav taws xob hluav taws xob: <5%, hauv thaj chaw uas lub zog hluav taws xob hluav taws xob hloov pauv ntau dua 5%, tsis siv neeg voltage stabilization thiab tam sim no stabilization cov cuab yeej yuav tsum tau nruab.

4) Foundation amplitude:<50um, vibration acceleration: <0.05g. Avoid large presses and other machine tools nearby;

5) Cua siab xav tau:86kpa ~ 106kpa;

6) Yuav tsum tsis muaj lub zog hluav taws xob hluav taws xob cuam tshuam ze ntawm cov cuab yeej teeb tsa, thiab yuav tsum tsis muaj xov tooj cua xa xov tooj cua (lossis chaw nres tsheb relay) nyob ib puag ncig.

7) Qhov chaw ua haujlwm ntawm cov khoom siv yuav tsum tsis muaj pa luam yeeb thiab tsis muaj plua plav, thiab tsis txhob muab tso rau hauv qhov chaw muaj plua plav xws li hlau polishing thiab sib tsoo.;

8) Hauv qee qhov chaw, kev ntsuas hluav taws xob tiv thaiv hluav taws xob xws li txhim kho cov plag tsev tiv thaiv zoo li qub thiab cov khoom siv hauv av yuav tsum tau ua;

9) Thaum qhov kub thiab txias poob qis dua 0 degree, cov dej txias hauv cov khoom siv yuav khov, thiab cov khoom siv yuav puas; Thaum cov cuab yeej siv tsis tau, cov dej txias sab hauv yuav tsum tau ntws tawm, thiab cov khoom siv sab hauv yuav tsum tsis muaj dej khov thaum siv.

10) Thaum qhov kub thiab txias hloov sai, condensation yuav tsim rau ntawm lub ntsej muag kawg ntawm YAG siv lead ua thiab lub lens optical, uas ua rau muaj smudges thiab pos huab. Nco ntsoov tiv thaiv kev hloov pauv tam sim ntawm qhov kub thiab txias. Yog tias tsis tuaj yeem zam tau, siv lub cuab yeej tsuas yog tom qab kom ntseeg tau tias tsis muaj qhov sib xyaw ua ke.
