Laser Vuam Copper
Tooj liab yog ib yam khoom uas muaj kev cuam tshuam, thiab tooj liab vuam ib txwm yog ib qho teeb meem nyuaj heev los kov yeej. Txawm li cas los xij, thaum welding tooj liab qhov chaw hauv kev lag luam kev lag luam muaj feem xyuam nrog cov khoom siv tooj liab, nws tsis yog tsuas yog tsim nyog los xyuas kom meej qhov ruaj khov ntawm cov vuam, tab sis kuj tseem ua kom cov vuam. Cov tsos ntawm cov seam yog du thiab tiaj tus yam tsis muaj kev cuam tshuam cov tsos. Qhov no yog vim muaj kev paub txog cov khoom siv vuam ua ntej vuam. Tam sim no, lub compound laser vuam tshuab tuaj yeem ua tau raws li qhov yuav tsum tau ua hauv Suav teb. Lub laser qhov chaw ntawm lub compound laser vuam tshuab yog ib tug ua ke ntawm ib tug fiber ntau nruam laser thiab ib tug semiconductor nruam laser qhov chaw. Tom qab ntawd xaiv cov ntaub ntawv sib raug raws li cov khoom siv tooj liab sib txawv, kho qhov vuam kub, lub kaum sab xis, thiab lub teeb yoj, thiab lwm yam.,
Laser Welding tooj liab
Khoom Description

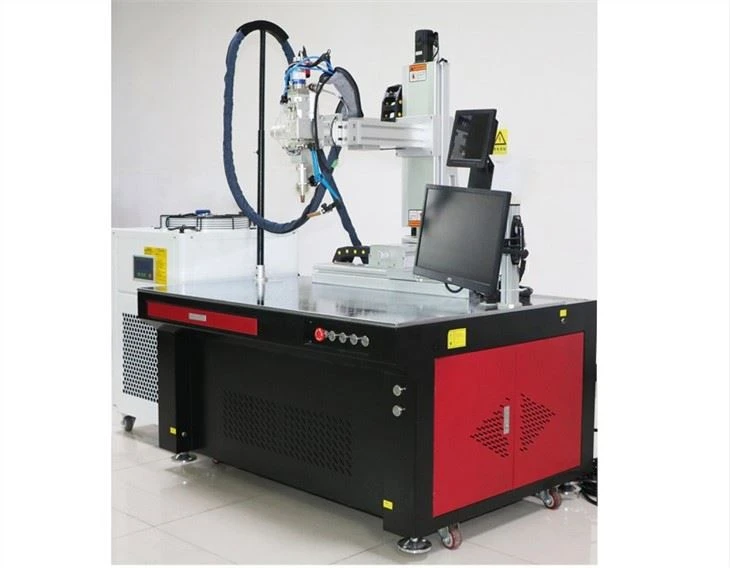

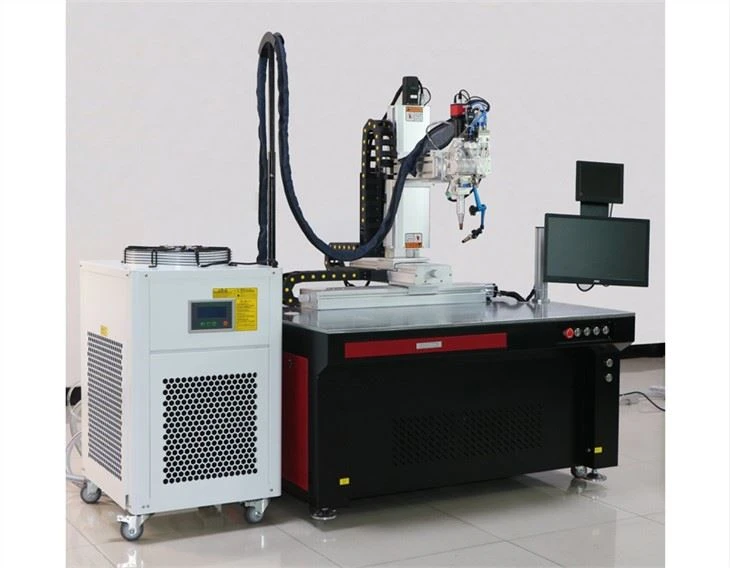

Lub Tshuab Laser Welding Copper Tshuab yog ib qho khoom siv zoo thiab siv tau zoo tsim tshwj xeeb rau kev sib koom ua ke ntawm tooj liab thiab tooj liab alloys. Lub tshuab no ua tau zoo hauv kev lag luam xws li hluav taws xob, hluav taws xob, tsheb, aerospace, thiab kev sib txuas lus, qhov zoo tshaj plaws tooj liab welds yog qhov tseem ceeb rau kev ua haujlwm zoo.
Ntsiab nta
Precision Vuam
Muab kev tswj xyuas lub zog thiab qhov tseeb ntawm qhov tseeb, Laser Vuam Copper Tshuab ua kom cov pob qij txha muaj zog thiab txo kev pheej hmoo ntawm qhov tsis xws luag, tseem ceeb hauv cov ntawv thov uas yuav tsum muaj kev sib raug zoo, kev sib raug zoo tooj liab.
Ua haujlwm siab
Lub tshuab boasts tus txheej txheem vuam ceev, shortening ntau lawm voj voog, thiab ua kom tag nrho productivity nyob rau hauv koj qhov chaw.
Tsis Sib cuag Vuam
Qhov tsis sib cuag ntawm laser welding tiv thaiv kev qhia cov kab mob mus rau hauv qhov chaw vuam, ua rau muaj kev huv thiab zoo welds.
Compatibility nrog ntau yam tooj liab Alloys
Lub tshuab no muaj ntau yam, tsim los ua haujlwm nrog ntau yam ntawm tooj liab alloys feem ntau siv hauv electronics, aerospace, thiab lwm yam lag luam.
Tus neeg siv-phooj ywg interface
Lub Laser Vuam Copper Tshuab ua si ib qho kev nkag siab zoo, ua rau nws yooj yim rau cov neeg ua haujlwm kho cov chaw, saib xyuas cov txheej txheem, thiab ua kom lub vuam ua haujlwm zoo.
Txhim khu kev ruaj ntseg nta
Nruab nrog kev ruaj ntseg zoo tshaj plaws thiab kev tiv thaiv, lub tshuab muab qhov chaw ruaj ntseg rau cov neeg ua haujlwm thaum lub sijhawm vuam.
Daim ntawv thov:
Electronics Kev Lag Luam:Koom nrog cov khoom siv tooj liab ntawm cov ntawv luam tawm hauv Circuit Board (PCBs) lossis tsim kom muaj kev sib txuas ntawm cov khoom siv hluav taws xob.
Kev Lag Luam Zog:Kev tsim cov kev sib txuas thiab kev sib hloov cua sov hauv cov hnub ci vaj huam sib luag, thiab hluav taws xob tsheb roj teeb vuam.
Automotive:Welding cua txias Cheebtsam, radiators, thiab internal electronics nyob rau hauv niaj hnub tsheb.
Aerospace:Koom nrog cov khoom tseem ceeb tooj liab lossis cov khoom sib txuas hauv cov tshuab tswj dav hlau, radars, thiab satellites.
Kev Sib Txuas Lus:Vuam connectors thiab Cheebtsam rau high-ceev cov ntaub ntawv kis tau tus mob thiab teeb liab ua infrastructure.
Kev nqis peev hauv Laser Welding Copper Tshuab los txhim kho qhov zoo, kev ua tau zoo, thiab qhov tseeb ntawm koj cov txheej txheem tooj liab. Cov cuab yeej tshiab no yuav tsis tsuas yog txhim kho koj cov kev ua haujlwm vuam, tab sis kuj xa cov vuam zoo tshaj plaws uas ua kom muaj kev ua tau zoo thiab kev ntseeg siab ntawm koj cov khoom kawg.
Parameters:
|
TSIS MUAJ. |
Lub npe |
Multi-axis fiber ntau laser vuam tshuab |
|
1 |
Tshuab qauv |
DS-LW1500/DS-LW2000/DS-LW3000 |
|
2 |
laserzog |
1500W/2000W/3000W |
|
3 |
Laser qhov chaw |
Raycus/MAX |
|
4 |
Vuam taub hau |
SUP/WSXvuam taub hau |
|
5 |
laser wave length |
1070 ± 5 NM |
|
6 |
Yam tsawg kawg nkausqhov chaw loj |
0.1 hli |
|
7 |
Lub zog adjustable ntau yam |
5~100% |
|
8 |
Fiber ntauntev |
standard 10M / siab tshaj15M |
|
9 |
ua haujlwm hom |
continuation/modulate |
|
10 |
Vuamceevntau |
0~ 120 hli / s |
|
11 |
Cua txias chiller |
1.5P Industrial dej chiller |
|
12 |
Ua haujlwm ib puag ncigkubntau |
15~35degree |
|
13 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
< 70% No condensation |
|
14 |
Vuam thicknesscov lus pom zoo |
0.5-3mm ib |
|
15 |
Vuam qhov sib txawv yuav tsum |
Tsawg dua los yog sib npaug rau 0.5mm |
|
16 |
Hwj chimmuab |
220V ± 10% / 50HZ30A380V ± 10% / 50HZ / 30A |
|
17 |
Qhov hnyav tag nrho |
380 KG |

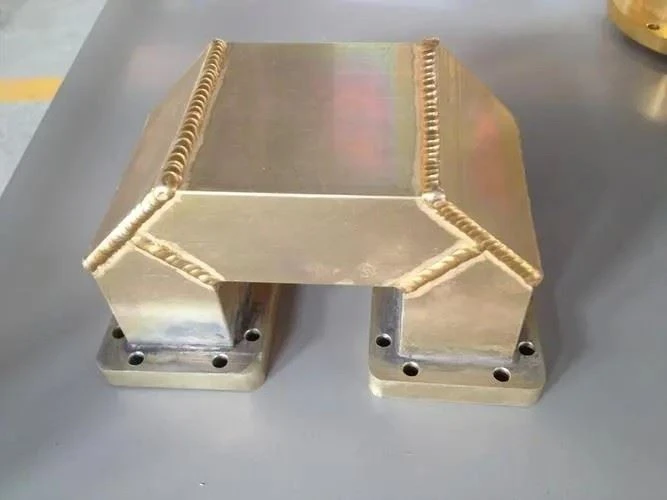

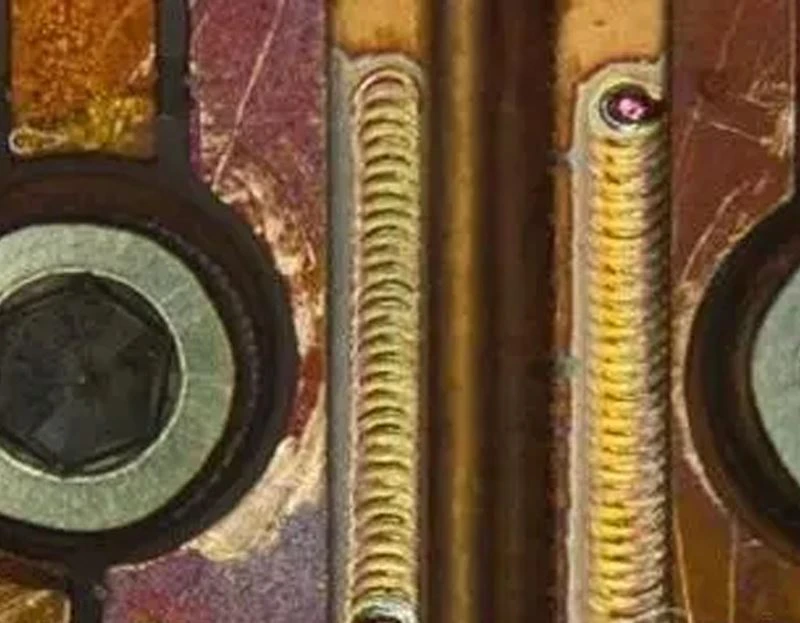

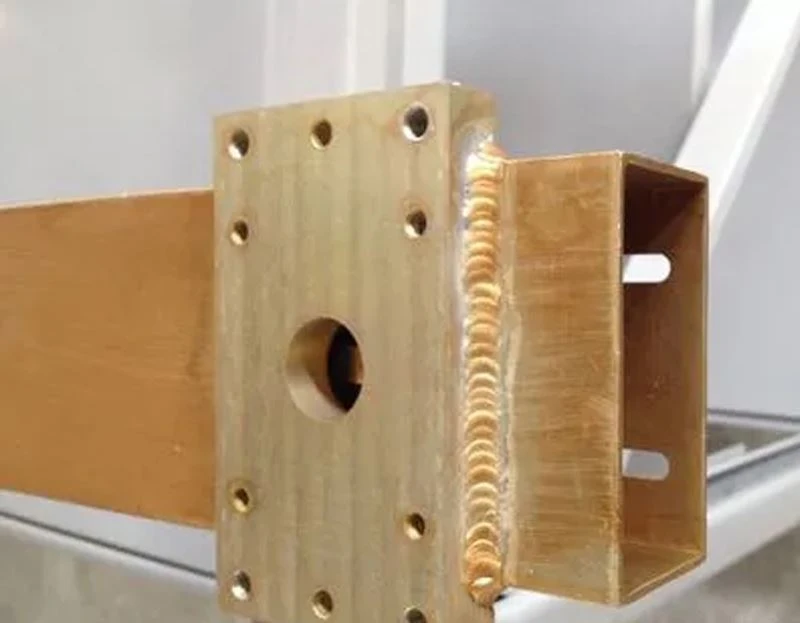

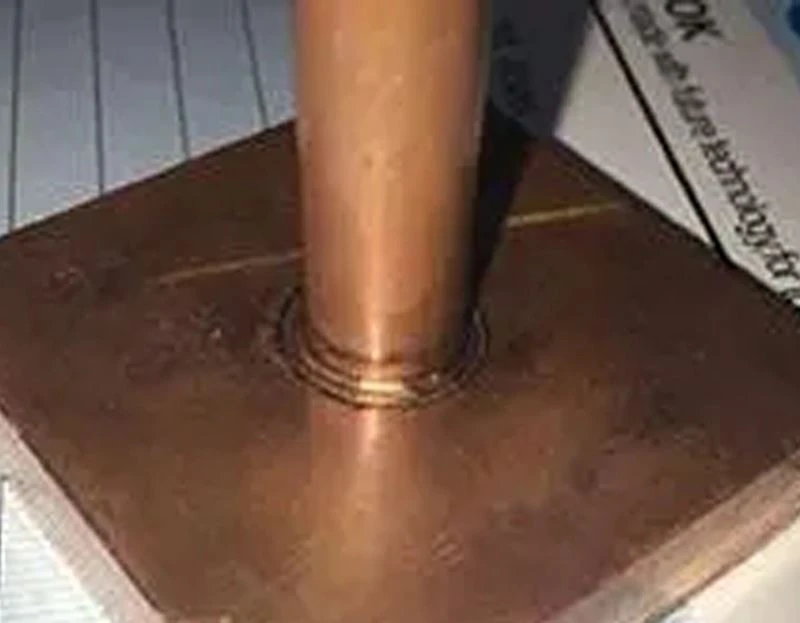

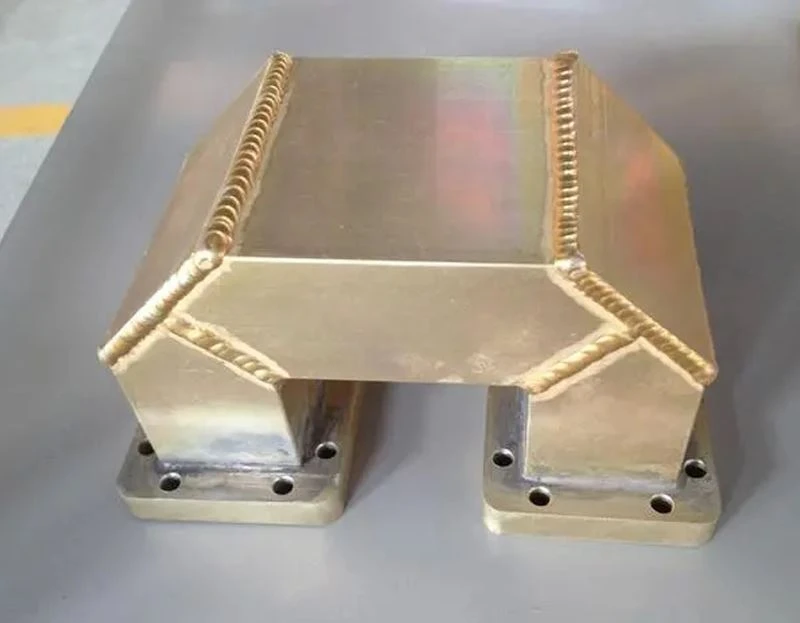

Kev siv laser welding ntawm tooj liab
Tooj liab yog ib yam khoom uas muaj kev cuam tshuam, thiab tooj liab vuam ib txwm yog ib qho teeb meem nyuaj heev los kov yeej.
Tam sim no, lub domestic compound laser vuam tshuab tuaj yeem ua tau raws li qhov yuav tsum tau ua.Lub laser qhov chaw ntawm cov khoom siv laser vuam tshuab yog kev sib txuas ntawm fiber ntau txuas ntxiv laser thiab semiconductor nruam laser qhov chaw. Tom qab ntawd xaiv cov ntaub ntawv sib raug raws li cov khoom siv tooj liab sib txawv, kho qhov vuam kub, lub kaum sab xis, thiab lub teeb yoj, thiab lwm yam, kom cov ntaub ntawv ncav cuag tus nqi ruaj khov, txhawm rau xyuas kom meej tias yuav tsis muaj teeb meem thaum lub sij hawm vuam thiab xyuas kom cov vuam zoo.
Kev vuam ntawm cov khoom siv tooj liab yog ib txoj kev nyuaj heev. Laser welding yog ib qho cuab yeej siv tau los paub txog cov txheej txheem sib txuas ntawm cov khoom siv tooj liab. Nws siv txoj kev ua tsis sib cuag thiab muaj qhov vuam precision siab, uas yog qhov tsim nyog rau kev ua haujlwm tsis siv neeg. Vim yog lub thermal conductivity ntawm tooj liab, nws nyuaj heev rau solder, yog li koj yuav tsum tau them sai sai rau hauv cov txheej txheem ntawm kev siv.
Laser vuam tshuab yog ib hom tshiab ntawm vuam txoj kev, nrog me me vuam seam dav, me me tshav kub cuam tshuam cheeb tsam, me me deformation, ceev vuam ceev, du vuam seam, zoo nkauj tsos, tsis xav tau los yog yooj yim kho tom qab vuam, siab vuam seam zoo, tsis muaj Lub qhov cua tuaj yeem tswj tau kom raug, qhov chaw tsom me me, qhov tseeb ntawm qhov chaw yog siab, thiab nws yooj yim rau kev paub automation. Txawm hais tias vuam ntawm tooj liab yog qhov nyuaj, nws tsis yog insurmountable, thiab vuam ntawm tooj liab tau maj mam tsim.
Kev siv lub tshuab laser vuam rau vuam cov ntaub ntawv tooj liab feem ntau yog siv los txuas lub ntsej muag ntawm lub cev los ntawm kev kub siab ntawm lub laser beam, tsis tas yuav tsum tau kev sib cuag ntawm cov khoom siv, uas tuaj yeem txo qhov hnav thiab tsim kua muag ntawm qhov chaw, yog li txo kev nqis peev. , thiab tsis muaj hluav taws xob tsim tawm. tooj liab laser vuam tshuab kuj tuaj yeem ua haujlwm los ntawm lub computer, kom nws yog qhov tseeb dua thiab cov nyhuv vuam zoo dua; Nyob rau tib lub sijhawm, nws tuaj yeem zam qhov cuam tshuam ntawm kev sib nqus, lub tshuab laser vuam tsis zoo li arc vuam thiab lwm cov tshuab vuam tsoos, lub zog ntawm cov hlau nplaum tsis zoo heev ua tiav cov haujlwm vuam; Txawm tias vuam ntawm cov hlau sib txawv tuaj yeem ua tau los ntawm kev siv lub tshuab laser vuam.
