Laser vuam rau tooj liab
Laser vuam rau tooj liab
Khoom Description
Laser vuam rau tooj liab yog ib qho kev siv tshuab uas siv lub tshuab hluav taws xob laser siab los koom ob lossis ntau cov khoom siv tooj liab ua ke. Nws yog ib txoj hauv kev zoo thiab muaj txiaj ntsig uas muaj ntau yam txiaj ntsig, suav nrog kev sib txawv me me, kev vuam ceev ceev, thiab muaj peev xwm vuam cov duab thiab ntau thiab tsawg.
Taw qhia ntawm Laser Vuam Rau Coppers
Copper belongs rau cov ntaub ntawv zoo heev, nyob rau hauv cov khoom siv tooj liab muaj feem xyuam rau kev lag luam kev lag luam, tooj liab qhov chaw rau kev ua haujlwm vuam, peb lub tshuab vuam tuaj yeem ua kom lub zog ntawm cov vuam, thiab xyuas kom meej tias cov tsos ntawm cov vuam du thiab tiaj tus yuav tsis cuam tshuam rau cov khoom siv. zoo nkauj.
Tooj liab tuaj yeem muab faib ua tooj liab tsis muaj oxygen thiab cov tooj liab ntshiab uas muaj cov pa me me. Cov tooj liab ntshiab muaj cov khoom siv hluav taws xob zoo thiab feem ntau yog siv los ua cov khoom siv hluav taws xob.Oxygen-dawb tooj liab feem ntau yog siv rau vuam cov qauv vim nws zoo solderability.
Qhov laj thawj tseem ceeb ntawm kev nkag mus rau hauv qhov ze ntawm seam cheeb tsam ntawm tooj liab thiab tooj liab alloys thaum tooj liab thiab tooj liab alloys overlayed ntawm steel nto yog qhov sib xyaw ua ke ntawm kev nkag mus ntawm cov kua tooj liab rau hauv cov hlau thiab tensile stresses.
Tooj tooj liab yog cov khoom siv hluav taws xob zoo heev, tuaj yeem siv tau ntau yam kev siv, xws li motors, keyboards, luam ntawv Circuit Court boards, capacitors, hluav taws xob fais fab, cables, kev sib txuas lus, telecommunication base stations, thiab lwm yam. heat exchangers, khoom siv tub yees, khoom siv hauv tsev, kav dej, thiab lwm yam.
tooj liab muaj ntau daim ntawv thov nyob rau hauv kev lag luam roj teeb, tshwj xeeb tshaj yog nyob rau hauv xyoo tas los no, roj teeb ntim, lub hwj chim roj teeb hlwb maj mam txais laser vuam tshuab. Tooj liab yog siv dav hauv kev lag luam hluav taws xob thiab hluav taws xob, qhov loj tshaj plaws, suav nrog ntau tshaj li ib nrab ntawm tag nrho cov khoom siv.
Nta thiab qhov zoo
1. Ceev vuam ceev, 2 ~ 10 npaug sai dua li cov vuam tsoos
2.Kev khiav hauj lwm yooj yim, kev cob qhia thiab kev saib xyuas
3.Welding seam du thiab zoo nkauj, tsis xav tau polishing, txuag koj lub sijhawm
4.No deformation los yog vuam caws pliav, ruaj welding ntawm workpiece
5.Laser vuam muaj tsawg consumables thiab ntev kev pab cuam lub neej
6.Safer, ntau tus phooj ywg ib puag ncig
7.Nws tuaj yeem welding cylindrical, square, daim duab peb sab, kheej kheej thiab lwm yam khoom tsis zoo.
8.High ntau lawm efficiency, ceev vuam ceev thiab tsis siv neeg ntau lawm
9.Multi-axis nrog nws pib ua kom pom tseeb thiab kev sib hloov muaj nuj nqi, nws yog ntse rau vuam cov khoom ntawm txhua yam duab hauv 3D qhov chaw
10.CNC tsis siv neeg tswj kom paub tseeb tias vuam cheeb tsam uniformly
11.Qhov X, Y, Z, thiab D axis ntawm lub workpiece yuav tsum tau welded yog kauj ruam-tsav kom tau raws li cov kev xav tau ntawm kev mus los loj.
12.CCD duab saib xyuas kom ruaj ntseg ntawm vuam zoo
13.Lub taub hau laser tsis nyob rau hauv kev sib cuag nrog lub workpiece, thiab tsis muaj teeb meem ntawm hnav ntawm cov cuab yeej ua
14.Lub workpiece tsis muaj kev ntxhov siab thiab tsis yooj yim rau kev ua qias tuaj
15.Nws tuaj yeem ua cov haujlwm txav mus los lossis cov khoom ntim hauv lub khob iav
16.Rate laser lub zog tso zis tas li tuaj yeem ncav cuag 1kW txog 10KW, lub laser yog tsim rau ob qho tib si precision microfabrication thiab cov khoom siv loj.
17.Lub laser beam yog ib qho yooj yim los tswj, thiab nws yog ib qho yooj yim mus ua ke nrog precision machinery, precision ntsuas tshuab thiab hluav taws xob lub computer kom paub siab automation ntawm kev ua.Thiab ua tau siab precision.
18. Cov neeg hlau tuaj yeem siv rau kev ua laser hauv qhov chaw hnyav lossis qhov chaw uas nyuaj rau cov neeg ua haujlwm nkag.
- Parameters
|
Qauv |
DS-LW 1000 |
DS-LW 1500 |
DS-LW 2000 |
DS-LW 3000 |
|
Laser fais fab tso zis |
1000W |
1500W |
2000W |
3000W |
|
Laser wavelength |
1070 ± 5nm |
|||
|
Laser hom |
Fiber ntau |
|||
|
Kos thaj tsam |
400mmx600mmx300mm |
|||
|
Pulse zaus |
1 ~ 2 KHZ |
|||
|
Beam zoo |
1.1 hli |
|||
|
Kho lub zog ntau yam |
5-95% |
|||
|
Cov zis fiber ntau ntev |
5/10/15m (yeem) |
|||
|
Qhov hnyav |
200 KG |
|||
|
Txias |
Cua txias |
|||
|
Ua haujlwm temp |
10 ~ 35 degree |
|||
|
Humidity ntau |
< 70% No condensation |
|||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|||

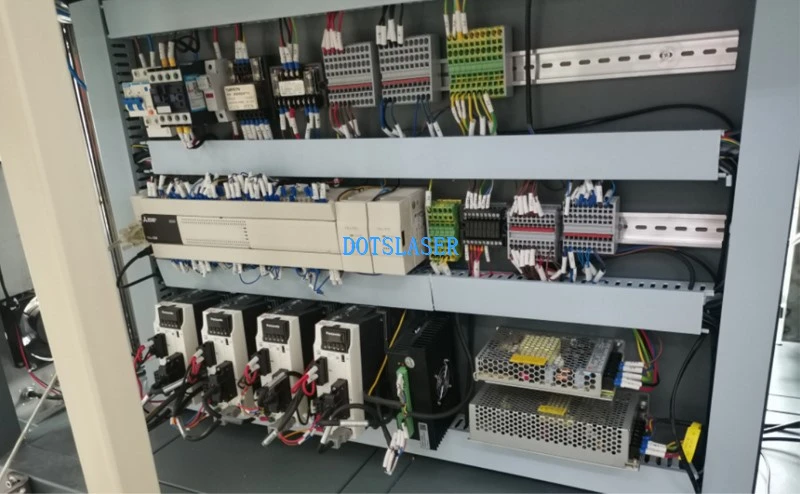

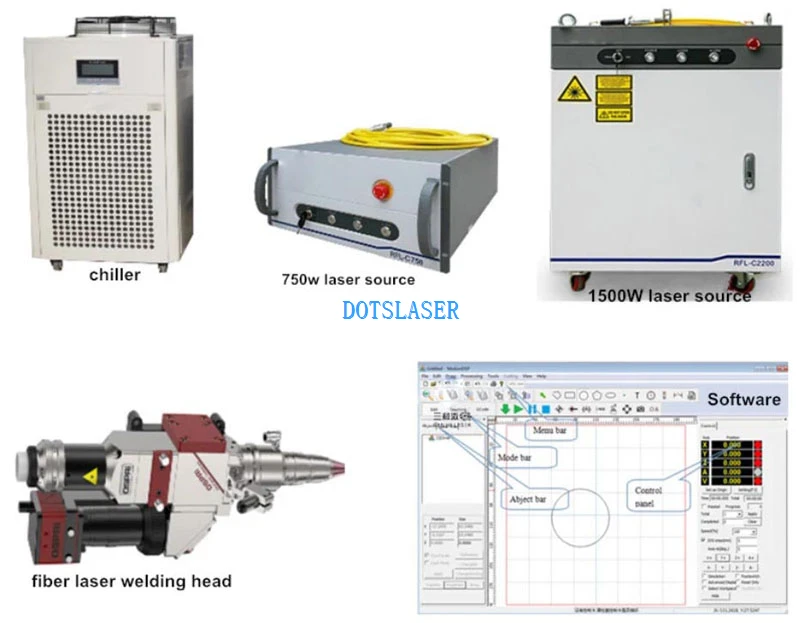

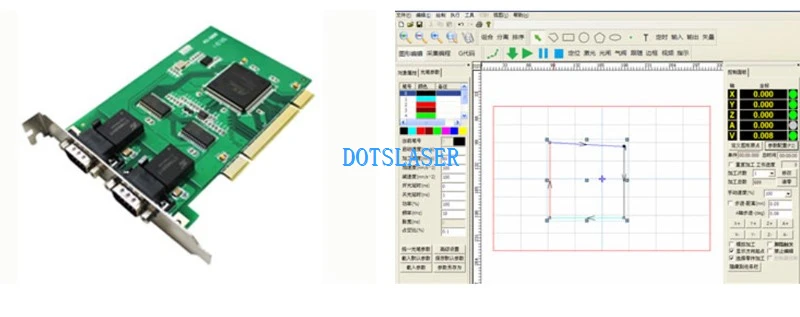

Main configurations qhia
