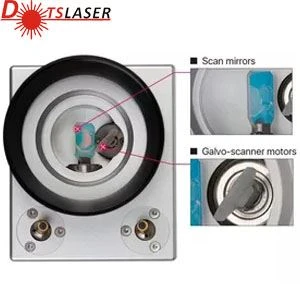

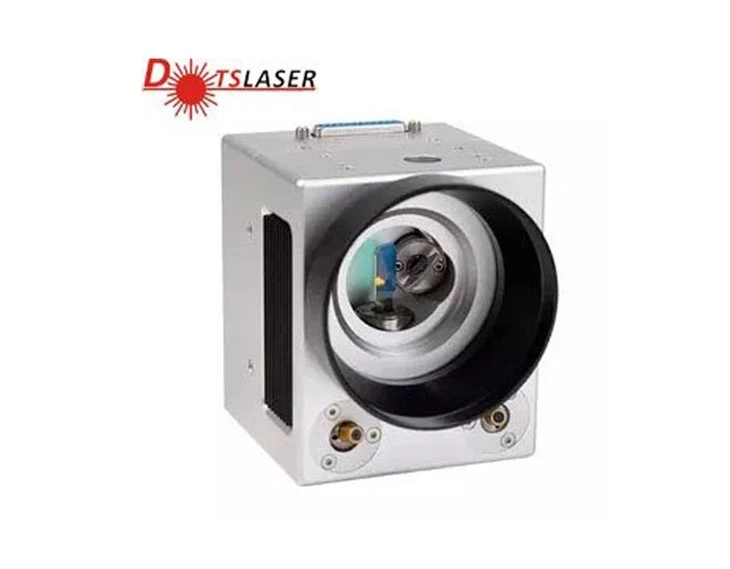

10MM Aperture scan lub taub hau yog cov tivthaiv hais txog cov khoom siv laser engraving uas muaj 10 hli aperture loj rau lub scanning tsom iav. Daim iav scan, tseem hu ua Galvanometer scanners lossis ncaj qha rau cov khoom lag luam laser los tsim kom muaj cov iav uas xav tau los ntawm cov tsom iav kom sai.
Nyob rau hauv cov ntsiab lus ntawm lub taub hau scan nrog 10 hli aperture, ib qho me me aperture, uas yog qhov tsim nyog rau cov ntaub ntawv uas xav tau cov ntsiab lus uas xav tau cov lus qhia meej. Hom aperture no feem ntau yog feem ntau tsis yog kom haum kom haum cov high-hwj chim xav tau cov apertures), ua rau nws zoo dua rau cov kev siv hluav taws xob qis dua.
Thaum xaiv lub kaw lus laser kos duab, xav txog qhov loj ntawm aperture raws li qhov xav tau engraving precision, thaj chaw, thaj chaw ua haujlwm, thiab lub zog laser. Lub taub hau 10 hli aperture scan lub taub hau yuav ua tau zoo rau cov lus qhia ua haujlwm me me, tab sis cov uas xav tau cov high-zog loj dua.
10MM Aperture scan lub taub hau yog qhov kho kom deb ntawm qhov muag. Nws muaj CDD pib ua haujlwm ua haujlwm, pib-kho kev ua haujlwm thiab nce thiab shrinkage nyiaj them. Lub tshuab txiav laser yog lub nqaj laser embed tawm ntawm laser, uas tau tsom mus rau hauv lub zog loj ntom nter leaser kab ke. Lub nqaj Laser yog irradiated rau saum npoo ntawm workpiece ua kom lub workpiece ncav cuag lub suab quaj lossis npau npau lossis npau npau.
10 hli aperture scan lub taub hau muaj cov yam ntxwv ntawm kev ntsuas nrawm nrawm, qhov tob ntev ntawm thaj teb thiab lub kaum sab xis loj scanning. Nws yog qhov zoo heev, muaj zog thiab yooj yim rau kev khiav lag luam. Qhov scan lub taub hau no muaj qhov nrawm dua, cov suab nrov qis, muaj qhov zoo, thiab ua tau zoo tshaj plaws kub. Nws daim iav xa tawm lub teeb ci yog ua los ntawm cov khoom siv tempered tshwj xeeb nrog cov teeb du kis, kub tsis kam thiab corrosion tsis kam.
1. Tawm aperture: 10 hli
2. Cov qib zoo ntawm linearity, siab daws teeb meem me me me me, ua kom haum
3. Kev kub ceev scanning, kev ua tau ruaj khov, me me drift, muaj zog tiv thaiv kev cuam tshuam
4.Txhua daim ntawv thov: Laser defection thiab ob-seem hauv zos, thiab lwm yam.
5. Muaj peb hom wavelengths tuaj yeem xaiv: 10.6um, 1064nm thiab 355nm.
Kev tsis muaj
|
Tsev hauj lwm kub |
0-45 degree |
|
|
Txoj kev |
99.9% |
|
|
Chaw uaSij hawm |
Tsawg dua los yog sib npaug0.5ms |
|
|
NPLAIL TAWM |
<40PPM/℃ |
|
|
XumNtxeev |
<15μrad. / Qib |
|
|
Lub sijhawm ntev ziab dua 8 teev |
<0.5mRad |
|
|
RmsNiaj hnub |
2.0A |
|
|
Ncov tam sim no |
15a (max) |
|
|
Siab tshaj plaws scanCeg kaum |
±15tiv kis |
|
|
Cia kub |
{{0 {}} rau +60 degree |
|
|
Teeb meem |
12μrad |
|
|
Kev rov ua dua |
8μRad |
|
|
Ntxiv rauLub tsev txwv |
10Cov. {0 hli |
|
|
Beam Chaw Pov Tseg |
13.4mm |
|
|
Lub cavQho hnyav |
120g |
|
|
Hov ntau |
Tsawg dua los yog sib npaug ntawm 700Hz |
|
|
Lub pajYam ua xoob |
355,532,840,1064,1550,10600, |
|
|
Servo Tsav Board Cov Lus Qhia Tshwj Xeeb |
||
|
Kev tawm tswv yim voltage |
± 15VDC |
|
|
Interface Kos Npe |
Digital |
Xyy 2-100 |
|
Tus phab ntsa |
±5V, ±10V |
|
|
Analog teeb liab cov tswv yim tsis kam |
200KΩ±1% |
|
|
Txoj Haujlwm Kev Tawm Tsam Cov Lus Qhia Tseem Ceeb |
1KΩ±1% |
|
|
Txoj hauj lwm teeb liab cov lus qhia txog kev sib tw |
{{0 {}}. 33v / degree |
|
|
Txoj hauj lwm teeb liab Outpand Scale |
{{0 {}}. 33v / degree |
|
|
Tsev hauj lwm kub |
0-45 degree |
|
|
DIMENSION (L × w × h) |
75 × 50 × 28m |
|

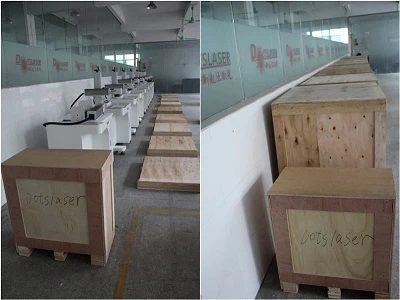

Packing txhua hnub
