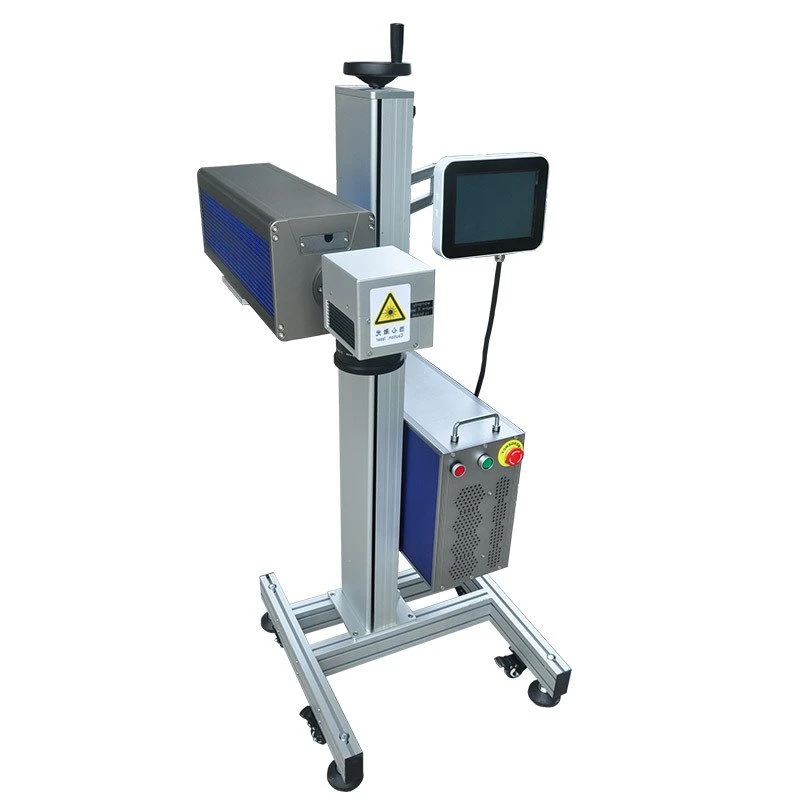

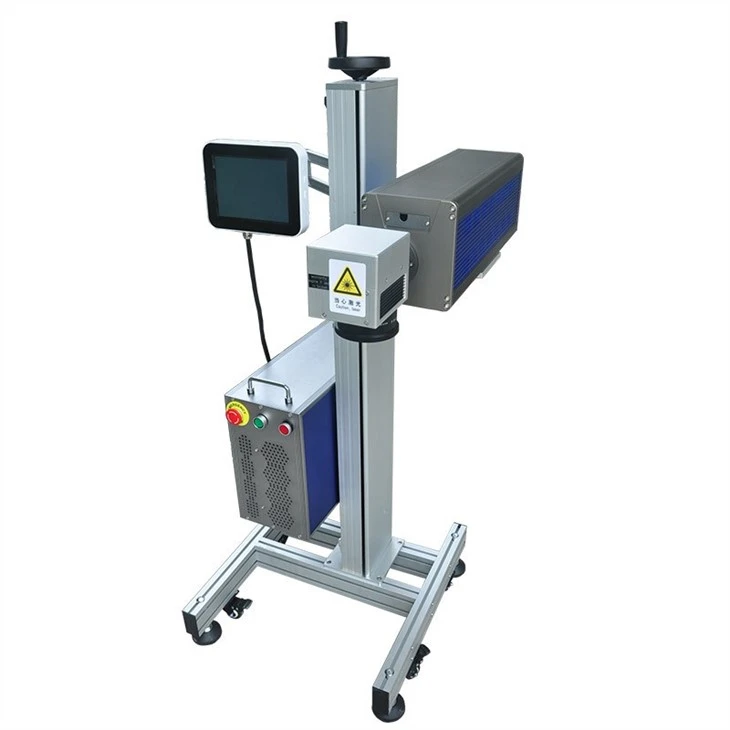

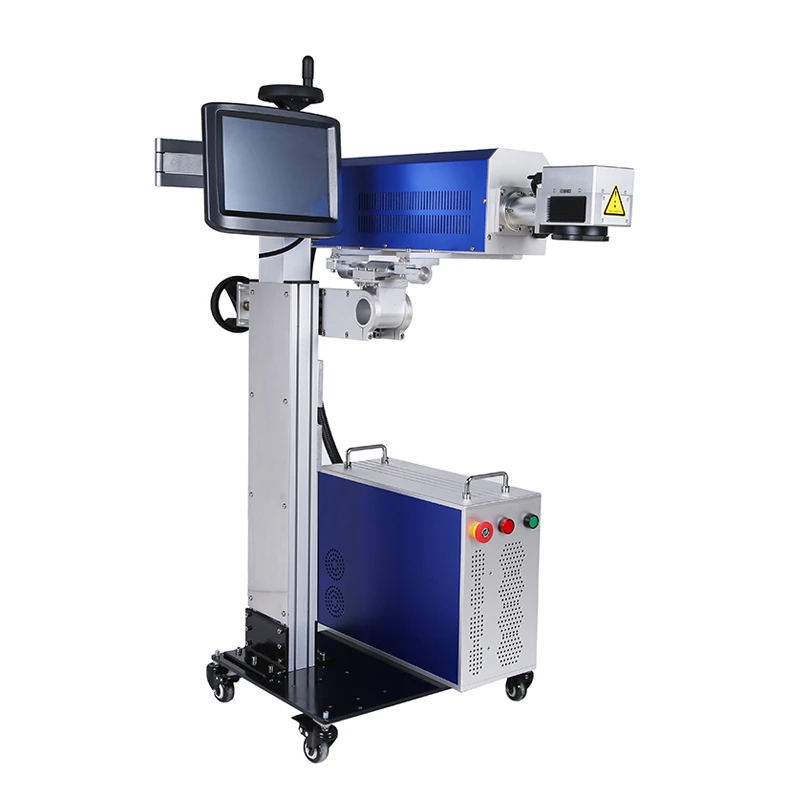

Ntawm Fly CO₂ Laser Marking Tshuab
Ntawm Fly CO₂ Laser Marking Tshuab
Khoom Description
Lub On The Fly CO₂ Laser Marking Tshuab siv qhov zoo tshaj plaws nyob rau hauv cov pa roj carbon dioxide laser qhov chaw. Lub raj laser muaj lub neej ntawm ntau tshaj 20,000 teev, nruab nrog lub tshuab ua haujlwm siab-speed galvanometer scanning system, nrog rau cov qhab nia siab thiab ua haujlwm ceev ceev. Nws tuaj yeem siv ua ke nrog kev siv cov khoom siv los ua kom pom qhov chaw ntawm cov khoom ya thiab txhim kho kev tsim khoom. Nws txhawb nqa ntev encoding muaj nuj nqi, encoding cov ntsiab lus npog cov lej, cov cim tshwj xeeb, cov ntawv, cov cim Suav thiab lwm cov cim thiab LOGO. Nws tuaj yeem paub qhov txuas ntxiv thiab ntau cov lej array tag nrho thiab tuaj yeem hloov kho ntawm qhov xav tau. Nruab nrog tus encoder mob siab rau kom paub cov lus qhia ceev hauv online. Raws li qhov sib txawv, nruab nrog ntau yam fiber ntau optical sensors rau kev tshawb nrhiav. Nws yog heev haum rau laser npav, engraving thiab txiav.
Fly CO₂ Laser Marking TshuabNta
On The Fly CO₂ Laser Marking Tshuab yog kev ua haujlwm tsis sib cuag, uas tuaj yeem kos cov cim zoo ntawm txhua qhov chaw lossis tsis xwm yeem. Ntawv, yas, ceramics, iav, tawv thiab lwm yam ntaub ntawv ntawm ntau hom los yog txawv hardness tag nrho cov cim nrog cov duab thiab cov ntawv, uas muaj ntau yam kev siv.
Lub cim ceev yog ceev, vim tias nws yog ib qho kev kos npe ib zaug, tsis siv khoom tsawg, thiab cov nqi khiav haujlwm tsawg. Nws tuaj yeem ua ke nrog lwm cov khoom siv ntawm cov kab ntau lawm los txhim kho cov automation ntawm cov kab ntau lawm. Cov cim uas nws tuav yog qhov tseeb, ruaj khov, tsis pom kev, zoo nkauj, thiab ua haujlwm zoo hauv kev tiv thaiv cuav. Nrog txhim khu kev qha zoo, nws muaj lub neej ntev kev pab cuam thiab tsis muaj kuab paug.
Tsis muaj
|
Qauv |
DS-LWM 30 |
DS-LMC 60 |
|
Laser fais fab tso zis |
>30W |
>60W |
|
Laser wavelength |
9.3μm/10.6μm |
|
|
Kos thaj tsam |
100x100mm (tus qauv) |
|
|
Pulse zaus |
1 ~ 100KHZ |
|
|
Max marking ceev |
12, 000mm/s |
|
|
Font hom ntawv |
Dot, ib kab, Muaj tseeb hom |
|
|
Code hom ntawv |
Feem ntau 1D & 2D codes muaj |
|
|
Txhawb interface |
USB, TCP / IP, RS219 rau encoder thiab sensor |
|
|
Rov ua qhov tseeb |
± 0.001 hli |
|
|
Min. kab dav |
0.1 hli |
|
|
Qhov loj me me |
0.2 hli |
|
|
Txias |
Cua txias |
|
|
Ua haujlwm temp |
5 ~ 35 degree |
|
|
Qhov hnyav tag nrho |
90 KG |
|
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|
|
Daim ntawv thov: Ntawm Fly CO₂ Laser Marking Tshuab yog siv rau ntau yam khoom siv tsis yog hlau thiab cov khoom siv, xws li iav, ceramics, yas, khoom siv hluavtaws, ntoo, roj hmab, tawv, thiab cov khoom siv ntawv. Nws tuaj yeem ua tiav ntau yam khoom, suav nrog cov khoom siv hluav taws xob hluav taws xob, cov khoom siv hluav taws xob sib txuas, hluav taws xob plug-in phaib, ntau yam twj paj nruag, laser markings ntawm cov tswj vaj huam sib luag, kos cov nyees khawm, ntim tshuaj pleev ib ce, ntim khoom noj, haus luam yeeb thiab cawv, ntawv sau, handicrafts, thiab lwm yam. . |
Cov qauv
Pob
Cov neeg siv khoom tawm tswv yim
FAQ
1.Yuav ua li cas kom phim qhov ceev nrog lub laser?
A: Qhov ceev ya ib txwm yog siab dua 80m-100m, 10 tus cim ib kab.
2.Yog tias peb muaj peb tus kheej kab, tuaj yeem laser sib tw?
A: Yog, nws muaj peev xwm, peb muaj tus encoder thiab lub sensor uas tuaj yeem nyeem cov kab ceev thiab iav tus nqi rau kab.
3.Yuav ua li cas lub laser ya ua haujlwm?
A: Lub tshuab laser yog tswj los ntawm lub vijtsam kov, thiab koj tsuas yog ntaus lub logo, cov ntaub ntawv lossis tus lej xov tooj thiab phim cov yoov nrawm ces nws yuav ua haujlwm zoo.
