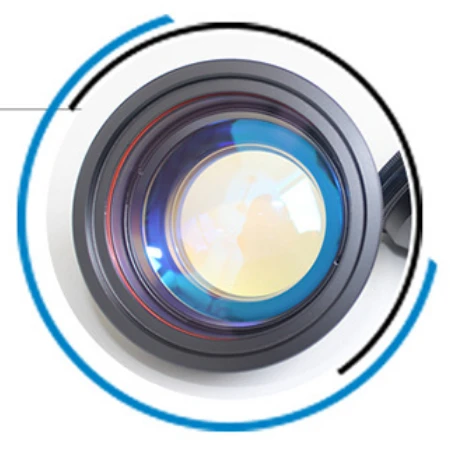

CO₂ Optical Field Lens
CO₂ Optical Field Lens
Khoom Description
CO₂ optical field lens, qee zaum hu ua F-theta lo ntsiab muag lossis lub ntsej muag tiaj tus, yog ib qho tseem ceeb hauv CO₂ laser npav lossis engraving systems. Cov lo ntsiab muag no tau tsim tshwj xeeb rau CO₂ lasers nrog lub wavelength ntawm ib ncig ntawm 10.6 micrometers thiab ua los ntawm cov khoom zoo li ZnSe, uas yog pob tshab rau infrared tawg.
Lub luag haujlwm tseem ceeb ntawm CO₂ optical teb lo ntsiab muag yog tsom lub teeb ci laser kom meej rau ntawm qhov chaw ua haujlwm lossis substrate tau kos lossis cim. Lub lens zoo linearizes radial scanning tsab ntawv tsa suab ntawm galvanometer scanner, tsim ib qho chaw tiaj tiaj thoob plaws hauv cheeb tsam scan. Qhov no ua kom lub ntsej muag zoo ib yam thiab qhov chaw me me thoob plaws qhov chaw cim, txhim kho qhov zoo thiab sib xws ntawm qhov kawg tshwm sim.
Focal Length:Lenses nrog qhov sib txawv focal lengths tsim sib txawv ua hauj lwm nyob deb thiab cim chaw. Raws li koj daim ntawv thov, xaiv lub lens nrog qhov ntev focal ntev uas ua tau raws li koj qhov kev cim lossis kos duab.
Khoom siv:Lub lens yuav tsum tau ua los ntawm cov khoom sib xws nrog CO₂ lasers, zoo li ZnSe, uas muaj cov khoom sib kis tau zoo hauv 10.6 μm wavelength ntau yam.
Txheej:Xyuas kom tseeb tias lub lens yog coated nrog ib tug anti-reflective txheej kom txo qhov kev xav thiab ua kom muaj zog xa mus.
Txoj kab uas hla:Txoj kab uas hla ntawm lub lens yuav tsum loj txaus kom haum rau qhov siab tshaj plaws laser beam loj hauv koj daim ntawv thov. Cov lo ntsiab muag loj dua muaj qhov kev puas tsuaj ntau dua thiab muab qhov pom loj dua.
Zoo:Xyuas kom lub lens zoo los ntawm kev xav txog yam xws li qhov tseeb ntawm qhov chaw, qhov sib xws, thiab qhov cuam tshuam me me ntawm lub ntsej muag rau qhov tseeb, kev kos duab zoo lossis kos duab.
Los ntawm kev ua tib zoo xaiv txoj cai CO₂ optical teb lo ntsiab muag rau koj daim ntawv thov, koj tuaj yeem ua tiav qhov kev pom zoo laser npav lossis kos duab ua haujlwm, precision, thiab sib xws.
CO₂ Optical Field Lens yooj yim rau kev khiav lag luam, txuag hluav taws xob, kho tau thiab muaj lub neej ntev. Nws muaj lub ntsej muag zoo precision, nrog siab precision mounting thiab calibration, thiab tuaj yeem teb tau sai. Nws tuaj yeem siv tau rau txhua yam CO₂ raj, thiab qhov chaw ua haujlwm yog nyob ntawm qhov ntev focal. Monolithic flat field scan lens yog tsim los rau CO₂ laser scanning system, dav siv nyob rau hauv drilling thiab marking teb.
Nta
CO₂ Optical Field Lens feem ntau yog siv rau hauv laser engraving, txiav, cim tshuab, thiab lwm yam. Rau cov plua plav me me, ua kom huv si nrog ib rab koob tshwj xeeb thiab siv lub tshuab cua tshuab kom tshuab tawm cov khoom paug tawm ntawm qhov chaw ntawm qhov muag. Nws tseem hu ua tiaj tiaj tsom iav tsom iav, tsom iav lens, feem ntau yog siv los tsom lub teeb tawm ntawm oscillator ntawm lub dav hlau.
Parameter
|
Hom |
Focal ntev (mm) |
Scan Field (mm) |
|
CO₂ |
100 |
70x70 |
|
150 |
100x100 |
|
|
250 |
175x175 |
|
|
300 |
200x200 |
|
|
420 |
300x300 |
Q1: Lub pob zoo li cas?
A: Dotslaser muab 3 txheej pob. Rau sab nraud, peb txais yuav rooj plaub ntoo. Nyob rau hauv nruab nrab.lub tshuab yog npog los ntawm ua npuas ncauj, tiv thaiv lub tshuab los ntawm co. Rau lub insidelaver, lub tshuab yog them los ntawm thickening hnab yas rau waterproof.
Q2: Lub pob puas puas thaum lub sijhawm thauj mus los?
A: Peb lub pob yog xav txog txhua yam kev puas tsuaj thiab ua kom muaj kev nyab xeeb, thiab peb tus neeg sawv cev muaj kev paub txog kev thauj mus los nyab xeeb. Peb tau xa tawm mus rau 100 lub teb chaws thoob ntiaj teb. Yog li thov tsis txhob txhawj, koj yuav tau txais parcel zoo.
Q3: Yuav ua li cas rau nruab thiab khiav lub tshuab?
A: Peb tus neeg ua haujlwm yuav nruab tag nrho lub tshuab ua ntej xa khoom. Rau qee qhov me me installation, peb yuav xa cov ntaub ntawv qhia ntxaws ntxaws, cov neeg siv phau ntawv nrog rau lub tshuab 95% cov neeg siv khoom tuaj yeem kawm los ntawm lawv tus kheej.
Q4: Kuv tuaj yeem ua li cas yog tias lub tshuab ua yuam kev?
A: lf ntsib teeb meem zoo li no, thov hu rau peb kom sai thiab tsis txhob sim kho lub tshuab los ntawm koj tus kheej lossis lwm tus. Peb yuav teb tsis pub dhau 24 teev sai npaum li peb tuaj yeem daws tau rau koj.
Q5: Puas yog koj tab tom nrhiav lasers lossis qhov chaw?
A: Peb yog cov chaw tsim khoom laser, peb tuaj yeem muab cov kev daws teeb meem tag nrho rau daim ntawv thov sib txawv, yog tias koj xav tau cov khoom peb kuj tuaj yeem muab, thov qhia rau peb paub cov kev thov.
Q6: Yuav ua li cas xa lub tshuab laser?
A: Peb yuav muab DHL, Fedex lossis lwm yam nthuav qhia raws li koj qhov kev thov.
