CO2 3D dynamic focusing laser marking tshuab yog ib tug tshiab qauv tshwj xeeb tshaj yog launched rau loj cheeb tsam cim, lub community launch txog cov qauv no tiav lawm yav dhau los keeb kwm ntawm loj cheeb tsam marking yuav tsum tau splicing, zoo heev txhim kho efficiency thiab cov khoom zoo.

Xa kev nug

Khoom Taw qhia

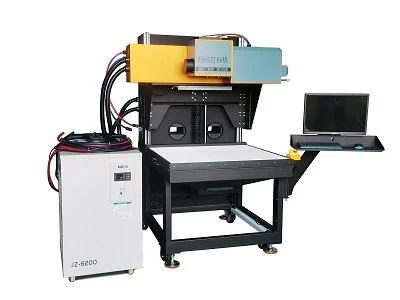

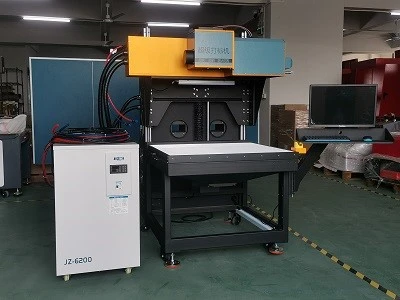

150 W CO₂laser engraver

Khoom Description

CO₂3D dynamic focusing laser npav tshuab yog ib tug tshiab qauv tshwj xeeb tshaj yog launched rau loj cheeb tsam, lub community launch txog cov qauv no tau ua tiav tiav cov keeb kwm yav dhau los ntawm cheeb tsam loj kos npe yuav tsum tau splicing, zoo heev txhim kho efficiency thiab cov khoom zoo.

Tshuab nta

1. Txais siv lub zog loj tuaj txawv teb chaws RF laser, nrog rau: lub zog loj, qhov chaw me me, siab zaus, qis poob, siab precision, lub neej ntev yam ntxwv.

2. Txoj kev kho qhov muag tau kaw tag nrho tsim, tiv thaiv cov plua plav ntawm lub laser.

3. Imported dynamic lens system los xyuas kom meej high-speed scanning thiab engraving ceev.

4. Lub dynamic focusing system adopts dej voj voog tsim, uas zoo daws cov teeb meem kub dissipation ntawm lub galvanometer, lub cev muaj zog thiab tsav, thiab xyuas kom meej qhov tseeb thiab stability ntawm cov khoom nyob rau hauv lub sij hawm ntev ua hauj lwm lub xeev.

5. Optical diffusion beam txais kev ywj pheej ntawm cov dej-txias tsim, nrog cov lo ntsiab muag txawv teb chaws, ua kom muaj kev ruaj ntseg ntawm cov txheej txheem ua haujlwm thiab txuas ntxiv lub neej kev pab cuam ntawm lub cuab yeej.

6. Hluav taws xob nqa laser taub hau, yooj yim ua kom pom tseeb.

Parameter

Laser raj tsis muaj	Max tso zis muaj peev xwm	250W
	Nominal Peak Pov	Ntau tshaj lossis sib npaug rau 450W
	Hom Zoo	M²Tsawg dua los yog sib npaug rau 1.2
	Duty Cycle Limit	Tsawg dua los yog sib npaug li 70%
	Hom Laser	CO₂
	Laser wavelength	10.6μm
Kos npe kev ua tau zoo	Hom ntawv cim	Qauv, Lo lus, Barcode, QRcode, Hnub tim, Serial Number
	Kos cim hom	Qauv thiab cov lus ntawm vectordiagram & bitmap
	Kos thaj tsam	400X400-700X700(mmXmm) Kho tau
	Kev Ntsuas Qhov tob	0-5mm (Raws li cov ntaub ntawv)
	Marking Ceev	<7000mm/s
	Min Kab Dav	0.3mm (Raws li cov ntaub ntawv)
	Min Cim	0.4 hli
	Rov ua qhov tseeb qhov tseeb	0.01 hli
Tshuab ntaub ntawv	Tag Nrho Lub Zog	6 KW
	Fais fab mov	AC220V / 50Hz / 30A
	Txoj kev txias	Qhov ntsuas kub tsis tu ncua dej txias chav tsev
	Ua haujlwm kub	15-30 degree
	Ua haujlwm av noo	<75 No condensation
	Ua haujlwm ib puag ncig	Tsis muaj plua plav, tsis muaj kev vibration
	Tshuab Packing Size	1010 * 1340 * 1740 hli
	Tswj txee packing loj	1060 * 660 * 1100 hli
	Chiller packing loj	660 * 760 * 1080 hli

Siv tau kev lag luam:

Peb Axis Dynamic CO₂Laser Marking Tshuab yog dav haum rau cov kev lag luam, xws li Thaum tshav kub kub hloov zaj duab xis (paillette, TPU cov ntaub ntawv, Reflective hloov zaj duab xis, thiab lwm yam), tawv, ntoo thawv, ntawv card, khaub ncaws denim, illuminator, txawb kev sib txuas lus, pwm, precision machinery, IT Digital plhaub, Tub rog aviation Cheebtsam, handicrafts, Advertisement kho kom zoo nkauj, thiab lwm yam.

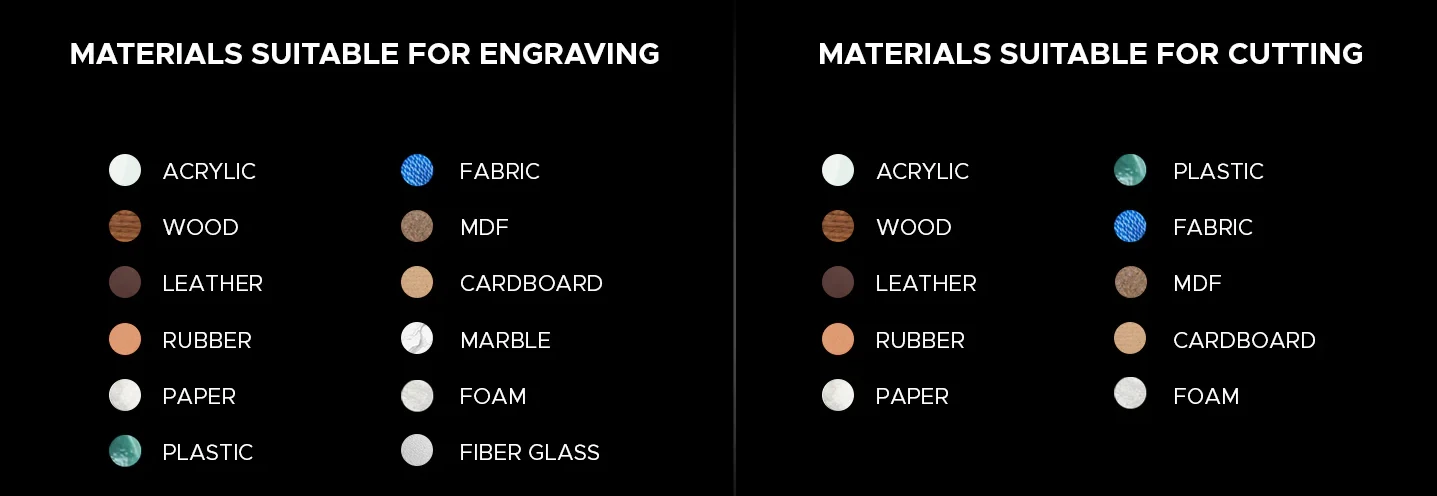

Cov ntaub ntawv siv tau:

Cov lus qhia ntxaws:

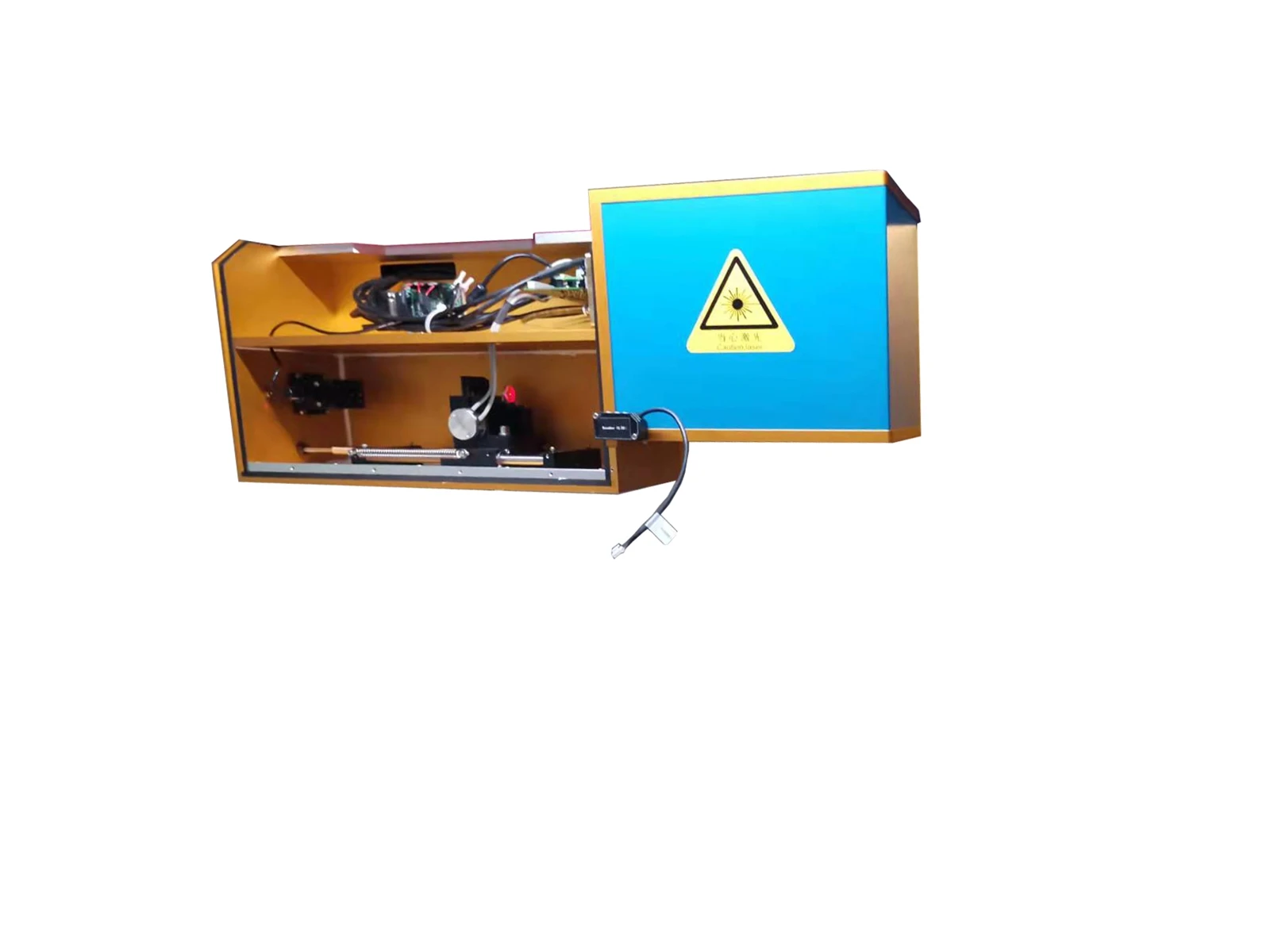

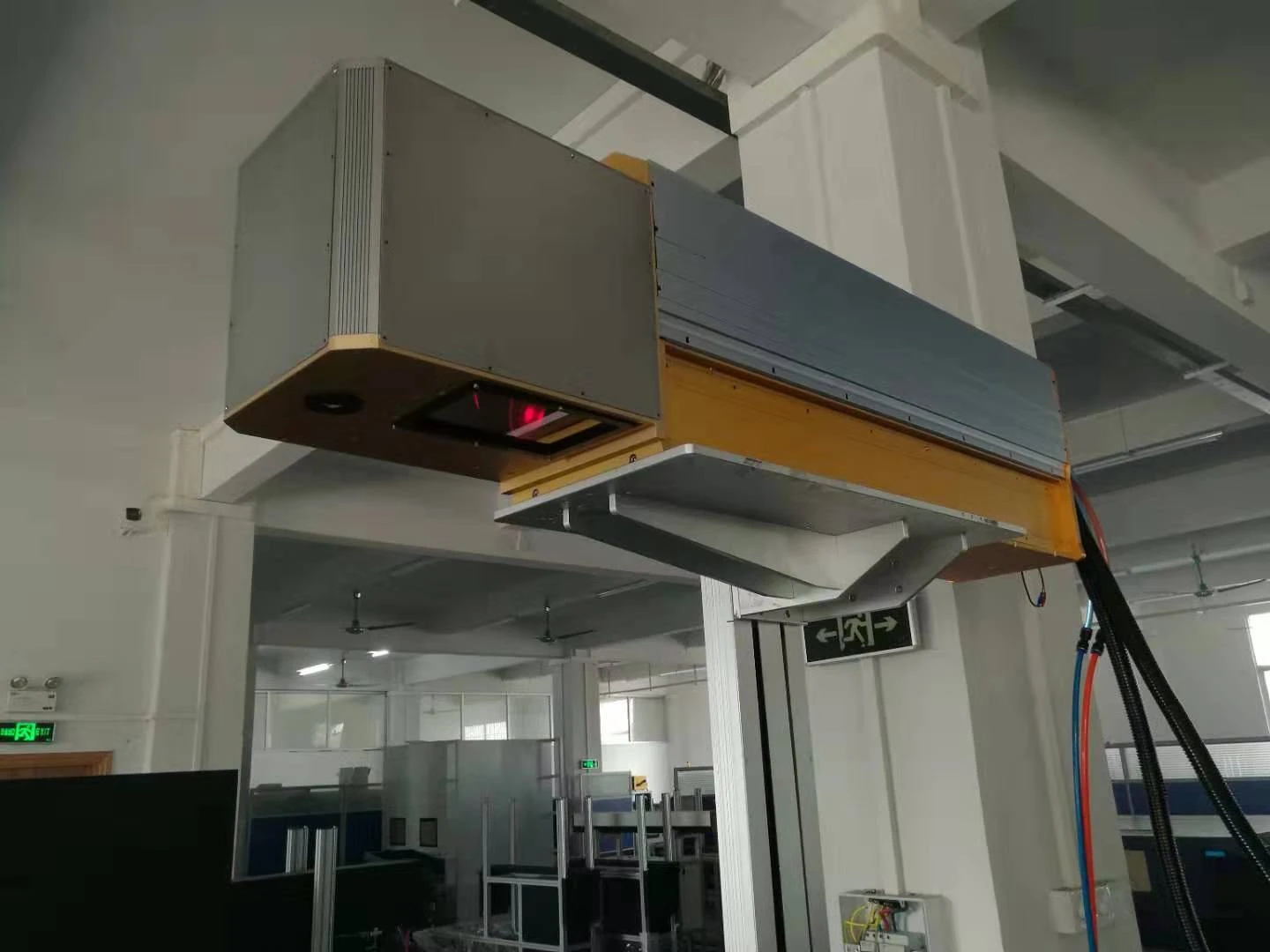

Qhov chaw ua haujlwm loj

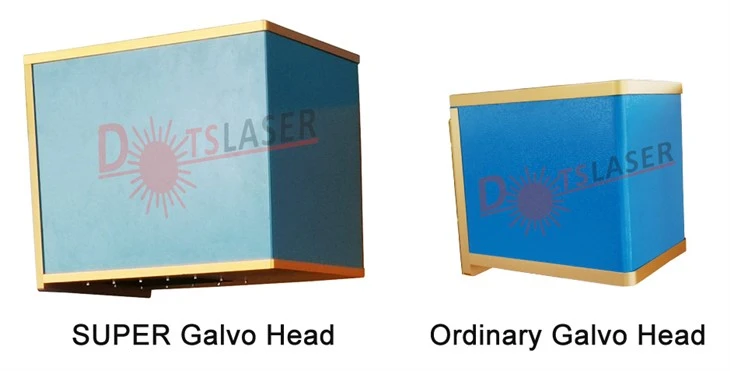

Kev ntsuas galvanometer

Kev ua haujlwm siab digital vibroscopehigh-speed, ruaj khov thiab txhim khu kev qha.

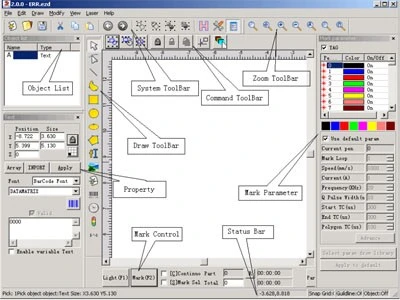

Computer tswj

Yooj yim rau kev khiav lag luam, tus phooj ywg interface

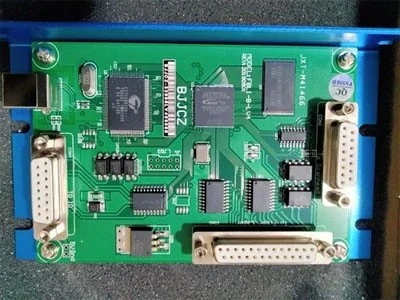

Tswj daim npav

Professional tswj system

Txoj kev kaj

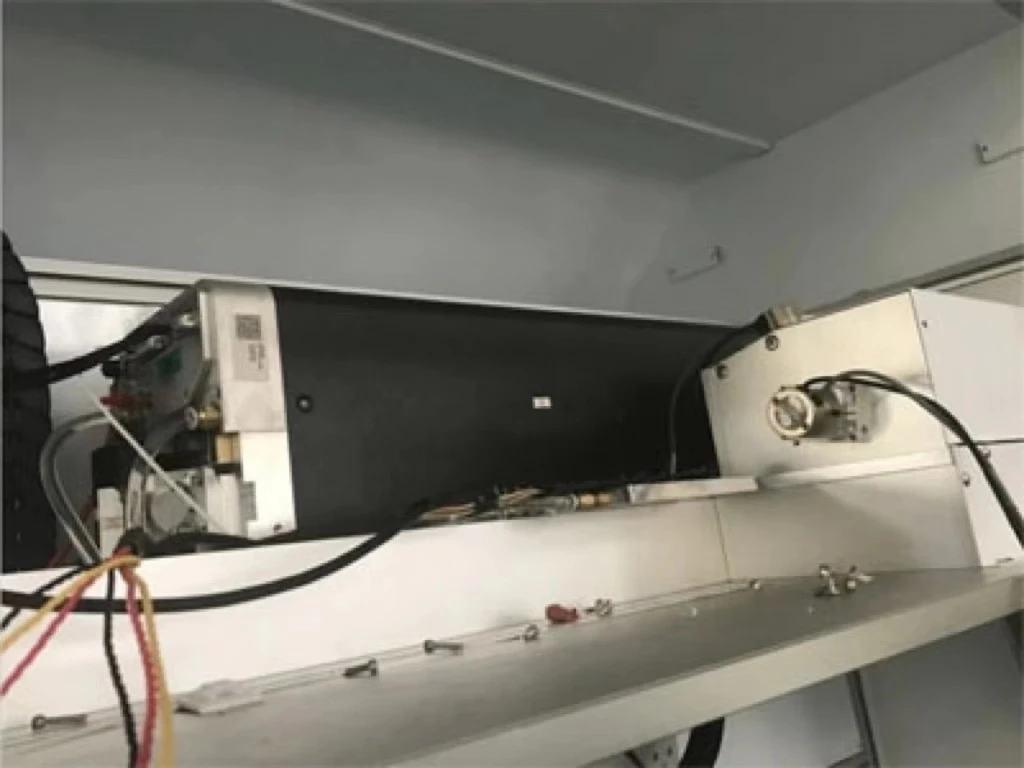

RF cev

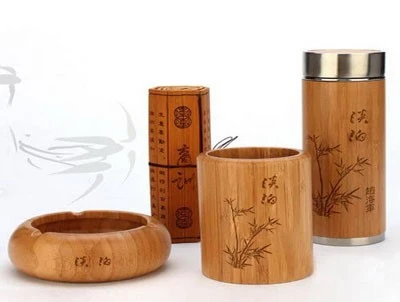

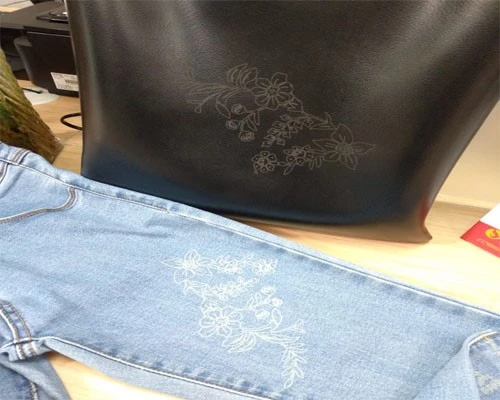

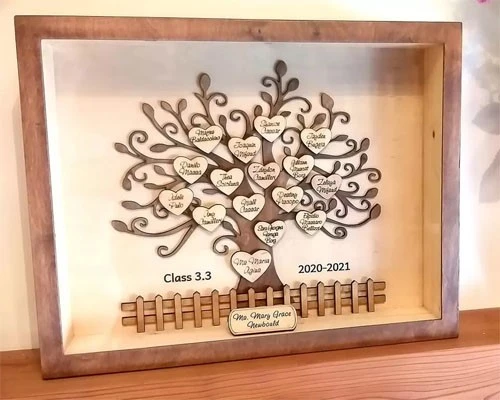

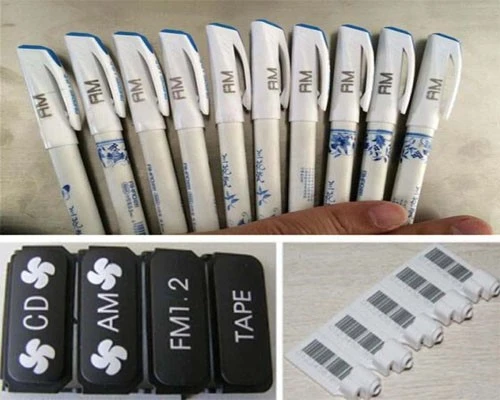

Cov qauvNtawm Laser Marking Tshuab

3-Axis Dynamic Focus CO₂ Laser Marking Machine_CO2 Laser Marking Machine-Dotslaser

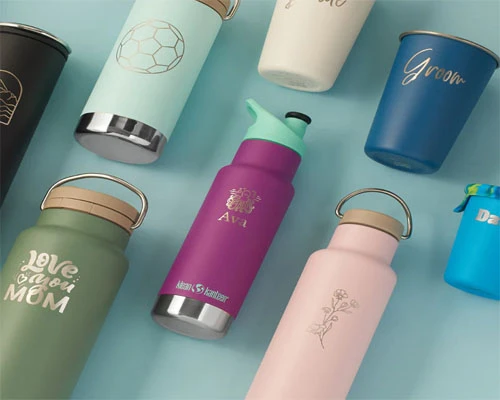

Laser marking on stainless steel cup and bottles

Shipping thiab pob

FAQ

Q1. Ua ntej xa kuv cov lus nug ntawm peb CNC laser, nws yog qhov zoo dua rau koj muab cov ntaub ntawv hauv qab no rau kuv

A:1) Koj cov khoom siv hlau lossis cov khoom tsis yog hlau loj. Vim tias hauv peb lub Hoobkas, peb muaj cov qauv sib txawv raws li qhov chaw ua haujlwm.

2) Koj cov ntaub ntawv. Hlau / Acrylic / plywood / MDF?

3) Koj puas xav kos lossis txiav? Yog txiav, koj puas tuaj yeem qhia kuv koj qhov txiav thickness? Vim hais tias txawv tej thicknesses xav tau txawv laser raj zog thiab laser fais fab mov.

Q2. Yog tias peb tsis paub siv lub tshuab, koj puas tuaj yeem qhia peb?

A: Yog lawm, Peb yuav xa koj phau ntawv qhia thiab cov yeeb yaj kiab qhia ua lus Askiv, nws tuaj yeem qhia koj txog kev siv lub tshuab. Yog tias koj tseem tsis tuaj yeem kawm paub siv nws, peb tuaj yeem pab koj los ntawm "Dotslaser" online pab software. Los yog peb tuaj yeem tham hauv xov tooj, email lossis skype

Q3.Lub sijhawm khoom xa tuaj ntev npaum li cas?

A: Rau cov tshuab txheem, nws yuav yog 3-5 hnub; Rau cov tshuab tsis yog tus qauv thiab cov tshuab customized raws li tus neeg siv khoom xav tau, nws yuav yog 7 mus rau 10 hnub.

Q4. Koj qhov kev tswj xyuas zoo yog dab tsi?

A: Tag nrho cov txheej txheem tsim khoom yuav nyob rau hauv kev tshuaj xyuas tsis tu ncua thiab kev tswj xyuas nruj. Lub tshuab ua tiav yuav raug kuaj kom paub tseeb tias lawv tuaj yeem ua haujlwm tau zoo ua ntej tawm ntawm lub hoobkas. Peb lub tshuab dhau CE Daim Ntawv Pov Thawj, ua tau raws li European thiab Asmeskas tus qauv, raug xa tawm mus rau ntau tshaj 100 Lub Tebchaws.
