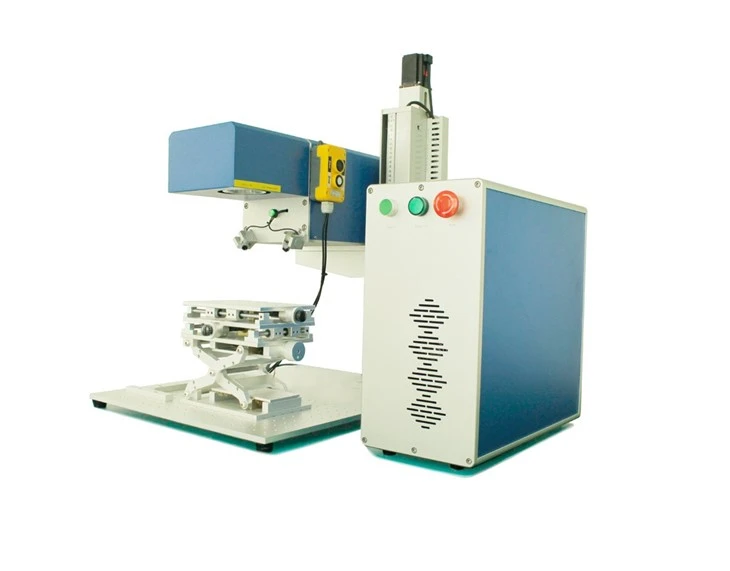

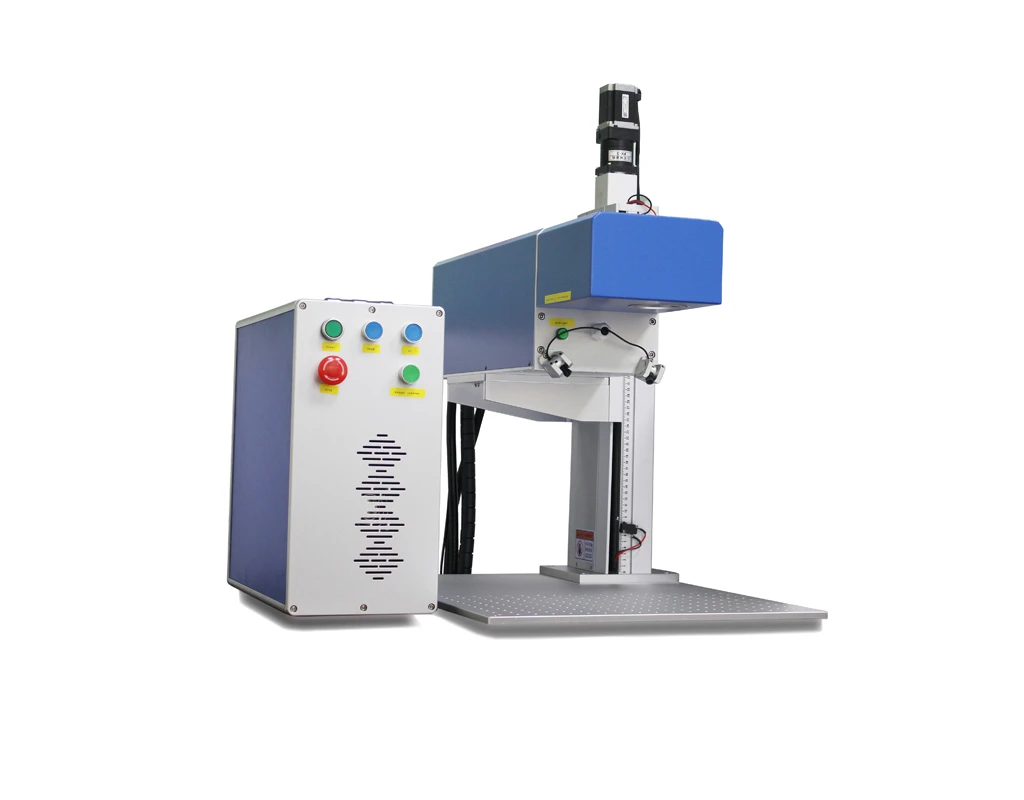

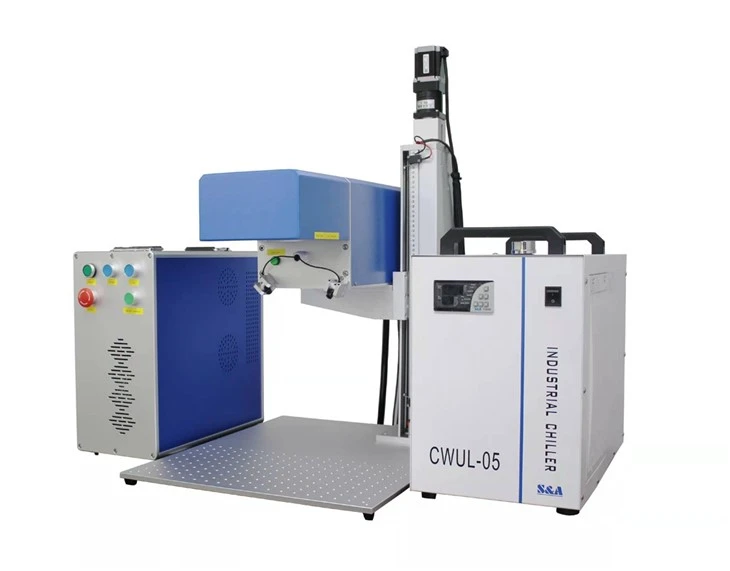

3D UV Laser Marking Tshuab
3D UV Laser Marking Tshuab
3D UV laser npav tshuab yog revolutionizing teb ntawm engraving thiab cim nrog lawv zoo kawg precision, ceev, thiab versatility. Cov tshuab no siv ultraviolet (UV) lasers los tsim cov khoom zoo, cov cim zoo sib xws ntawm txhua yam khoom siv, ua rau lawv yog ib qho khoom siv tseem ceeb rau kev lag luam xws li kev tsim khoom, ntim khoom, khoom siv hluav taws xob, thiab lwm yam. Kab lus no muab qhov tob tob ntawm 3D UV laser npav tshuab, tshawb xyuas lawv cov thev naus laus zis, qhov zoo, muaj peev xwm, thiab cov ntawv thov muaj peev xwm.
tshuab zoo
Precision thiab raug
UV lasers muaj qhov me me laser me me thiab txo qhov cuam tshuam ntawm tshav kub (HAZ). Qhov no tso cai rau ultra-fine cim ntawm feeb cov ntsiab lus thiab cov qauv nyuaj yam tsis muaj kev puas tsuaj rau lub substrate.
Ntau yam
3D UV laser npav tshuab tuaj yeem kos, kos, thiab kos ntau yam ntaub ntawv, suav nrog hlau, yas, ceramics, iav, silicon wafers, thiab txawm tias cov ntaub ntawv rhiab zoo li OLED films.
Tsis Sib cuag Marking
Cov tshuab no siv txoj kev tsis sib cuag ntawm kev kos npe, tshem tawm cov kev ntxhov siab ntawm cov tshuab, hnav-thiab-tua, thiab txo cov kev tu ncua.
Kev ua haujlwm nrawm
Nrog lawv cov high-speed galvanometer scanners thiab muaj zog laser qhov chaw, 3D UV laser npav tshuab khav theeb ceev engraving thiab marking speeds, txhim kho efficiency thiab productivity.
3D UV laser npav tshuab 'tsis
|
Qauv |
DS-3DUV3 |
DS-3DUV5 |
DS-3DUV10 |
DS-3DUV15 |
|
Laser fais fab tso zis |
>3W |
>5W |
>10W |
>15W |
|
laser wavelength |
355nm ua |
|||
|
Xaiv txoj kev |
Disk teb, teb muaj nuj nqi, nyem muaj nuj nqi |
|||
|
Kos thaj tsam |
100x100mm / 150x150mm / 180mmx180mm / 200mmx200mm |
|||
|
Pulse zog |
＞200µJ |
＞300µJ | ||
|
Tus nqi rov ua dua |
20 ~ 150KHz |
|||
|
Max marking ceev |
10, 000mm/s |
|||
|
Beam zoo |
＜1.2 ㎡ |
|||
|
Min. kab dav |
0.01 hli |
|||
|
Rov ua qhov tseeb |
± 0.003mm |
|||
|
Txias |
Cua / Dej txias |
|||
|
Ua haujlwm temp |
15-35 ° C |
|||
|
Qhov hnyav tag nrho |
110 KG |
|||
|
Qhov loj ntawm lub tshuab |
670 x 735 x 780 mm |
|||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|||
Tshuab: Nkag siab UV Lasers hauv 3D Marking Machine
Lub plawv ntawm 3D UV laser npav tshuab nyob hauv nws qhov chaw ultraviolet laser. UV lasers ua haujlwm ntawm wavelengths nyob ib ncig ntawm 355 nm, uas muaj luv luv wavelengths ntau dua li ib txwm infrared lossis ntsuab lasers. Cov cuab yeej tshwj xeeb no tso cai rau lawv los tsim cov cim tshwj xeeb ntawm qhov chaw yam tsis muaj kev puas tsuaj rau thermal lossis deformation.
3D nam ntawm lub tshuab cim npe yog hais txog lawv lub peev xwm los kho kom raug thiab dynamically kho lub laser tsom. Qhov no yog ua tiav los ntawm kev sib xyaw ua ke ntawm cov software algorithms siab heev thiab high-precision scanning systems, ua rau UV laser engraving intricate qauv, textures, thiab dluab ntawm nkhaus los yog uneven nto nrog high precision thiab repeatability.
3D UV laser npav tshuab muaj ntau lub peev xwm xws li:
Micro- thiab Nano-Marking: Nws pom engraving thiab cim ntawm micro thiab nano nplai, yog tsim rau electronics, semiconductors, thiab lwm yam high-precision Cheebtsam.
High-Resolution 3D Marking: Engraving nyhuv yog lifelike, xws li 3D qauv, textures, thiab dluab ntawm qhov chaw nrog qhov sib txawv qhov tob los yog curvature.
Serialization thiab Traceability: Ua kom raug thiab ruaj khov ntawm cov lej cim, barcodes, QR cov lej, thiab cov ntaub ntawv Matrix cov lej rau kev tswj cov khoom muag, kev tswj kom zoo, thiab kev taug qab.
Daim ntawv thov ntawm 3D UV Laser Marking Machine
Electronics: Kos cov khoom, Circuit Court boards, sensors, MEMS li, thiab cov khoom siv hluav taws xob nrog cov lej txhais siab, logos, cim, thiab cov ntawv nyeem.
Cov cuab yeej kho mob: Engraving traceability codes, ib feem zauv, thiab cov ntaub ntawv qhia txog cov cuab yeej phais, implants, thiab lwm yam khoom siv kho mob.
Semiconductors: Kos cov silicon wafers, IC chips, thiab lwm yam rhiab Cheebtsam yam tsis muaj kev puas tsuaj lossis cuam tshuam kev ua haujlwm.
Automotive: Cov lus qhia ntxaws ntxaws ntawm lub cav qhov chaw, cov vaj huam sib luag sab hauv, thiab cov ntaub ntawv txheeb xyuas kom ntseeg tau cov khoom zoo thiab traceability.
Kev ntim khoom thiab cov khoom siv: High-quality, high-speed marking on ntim, tshuaj pleev ib ce, hniav nyiaj hniav kub, thiab lwm yam, ntxiv dag zog rau cov khoom lag luam thiab txhawb kev paub txog cov khoom.
3D UV laser npav tshuab yog cov cuab yeej zoo hauv lub ntiaj teb ntawm kev ua cov khoom, muab kev ua tau zoo, ntau yam, thiab nrawm. Lawv lub peev xwm los cim ntau yam khoom tsis muaj kev puas tsuaj, thaum tswj kev daws teeb meem siab thiab nthuav dav, ua rau lawv yuav tsum muaj cov cuab yeej siv rau ntau qhov kev lag luam. Raws li kev siv thev naus laus zis, cov tshuab no yuav txuas ntxiv tsim kho tshiab thiab kho dua tshiab engraving, cim, thiab etching txheej txheem thoob plaws ntiaj teb.

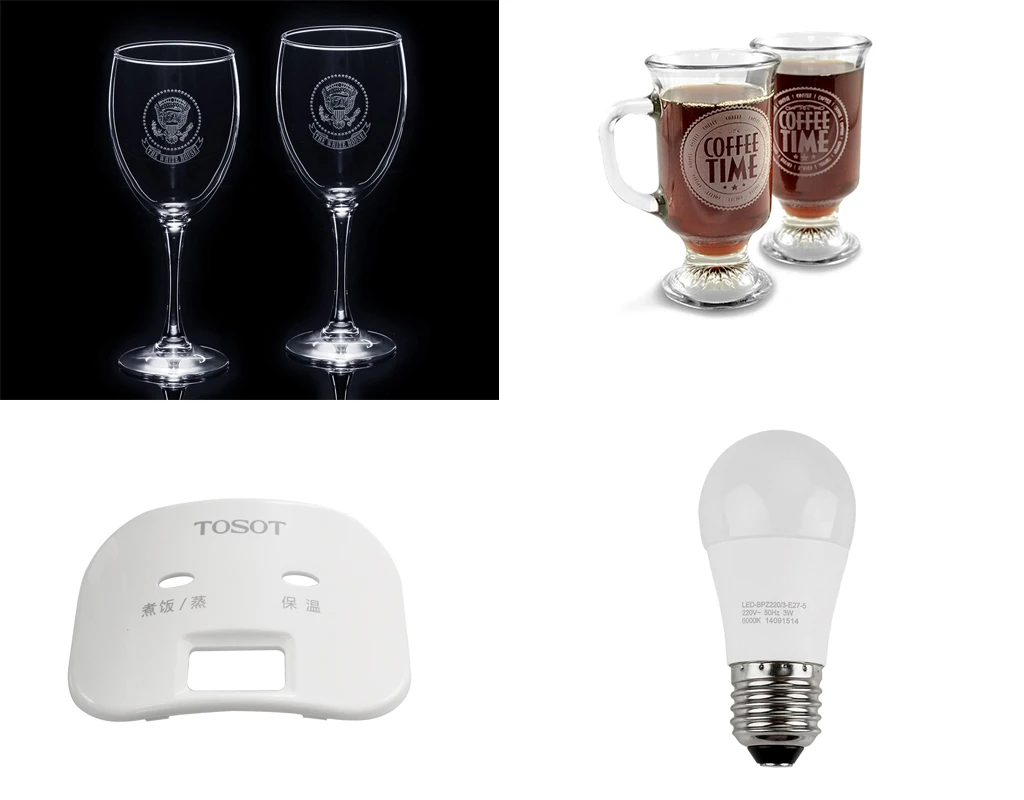

Marking Samples ntawm 3D UV Laser Marking Machine

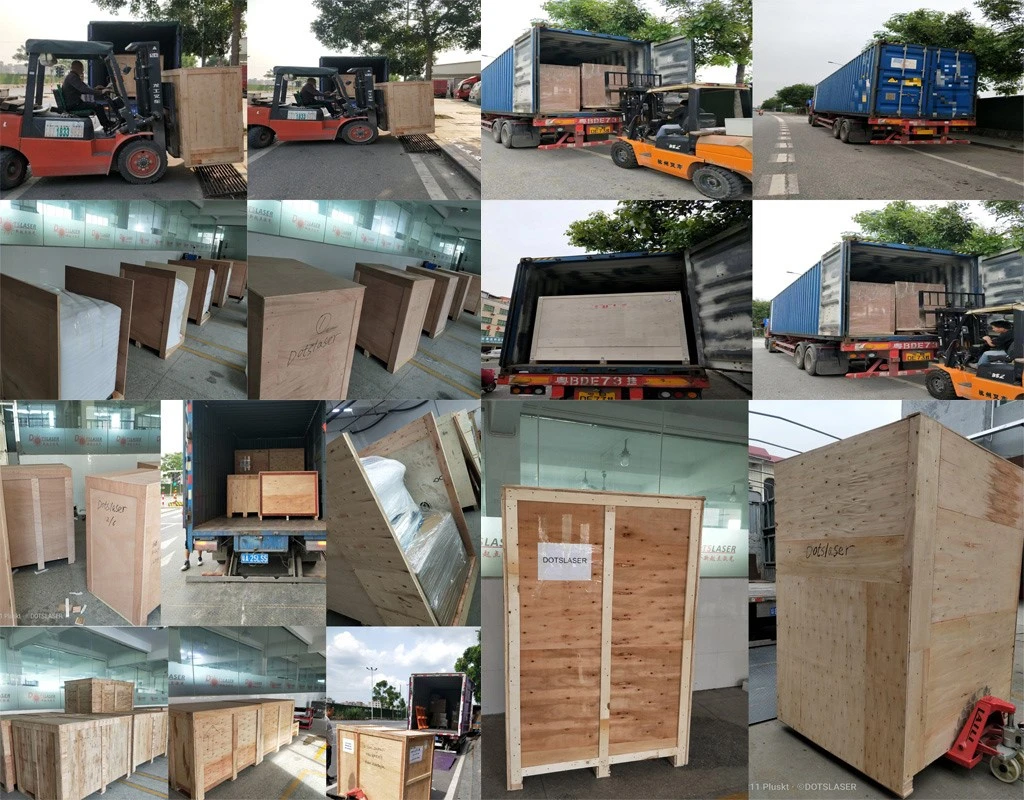

Pob thiab shippment ntawm 3D UV laser npav tshuab
1. Qkev ruaj ntseg uality thiab kev pab cuam tom qab muag
Lub sijhawm lav ntawm cov cuab yeej yuav tsum yog 12 lub hlis txij li cov khoom siv los ntawm cov neeg siv khoom, kev teeb tsa thiab kev debugging tiav thiab cov khoom siv tau txais los ntawm tus neeg thov. Tshiab pib laser txuas qhov tseem ceeb heev rau cov kev pab cuam tom qab muag ntawm cov khoom, thaum cov khoom raug xa mus rau tus neeg siv, lub tuam txhab tam sim ntawd tsim tus neeg siv cov ntaub ntawv kev pab cuam tom qab muag, thiab tsis tu ncua taug qab cov neeg siv khoom siv cov xwm txheej, daws thiab teb. tag nrho cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom siv tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem ua cov lus teb sai hauv 2 teev. Yog tias kev taw qhia hauv xov tooj yog qhov nyuaj rau kev daws teeb meem, peb lub tuam txhab cov neeg ua haujlwm txawj tuaj yeem tuaj txog ntawm cov neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Kev teeb tsa thiab kev debugging
Ua ntej kev teeb tsa lub tshuab, peb lub Hoobkas yuav muab cov ntaub ntawv tsim nyog rau koj, qhov xav tau zoo 2 lub lis piam xa tuaj rau koj nyob ntawd, cov engineers ntawm Dotslaser yuav tuaj txog ntawm koj qhov chaw thiab tshuaj xyuas lub tshuab dua. Xyuas kom meej tag nrho cov xwm txheej ua tau raws li qhov yuav tsum tau ua ntawm installation thiab commissioning, cov cuab yeej yuav thauj mus rau lub sijhawm. Lub sijhawm teeb tsa thiab kev ua haujlwm ntawm cov cuab yeej siv yog li tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv lub tshuab, thiab lub kaw lus ua haujlwm tom qab qhov kev pabcuam. Tus kws tshaj lij yuav cob qhia cov neeg ua haujlwm tsim nyog ntawm cov txheej txheem kev saib xyuas yooj yim thiab cov yam ntxwv ntawm kev ua haujlwm ntawm cov cuab yeej hauv ob hnub tom ntej
3. Kev pab txhawb nqa
Yog tias muaj teeb meem nrog ib feem ntawm lub cev thaum lub sijhawm lav, Dotslaser cov kws tshaj lij pabcuam kev pabcuam tau npaj los muab kev pabcuam hauv xovtooj lossis pib pabcuam ntawm qhov chaw, yog tias lub tshuab muaj teeb meem thaum lub sijhawm lav, thov hu rau peb ncaj qha !
