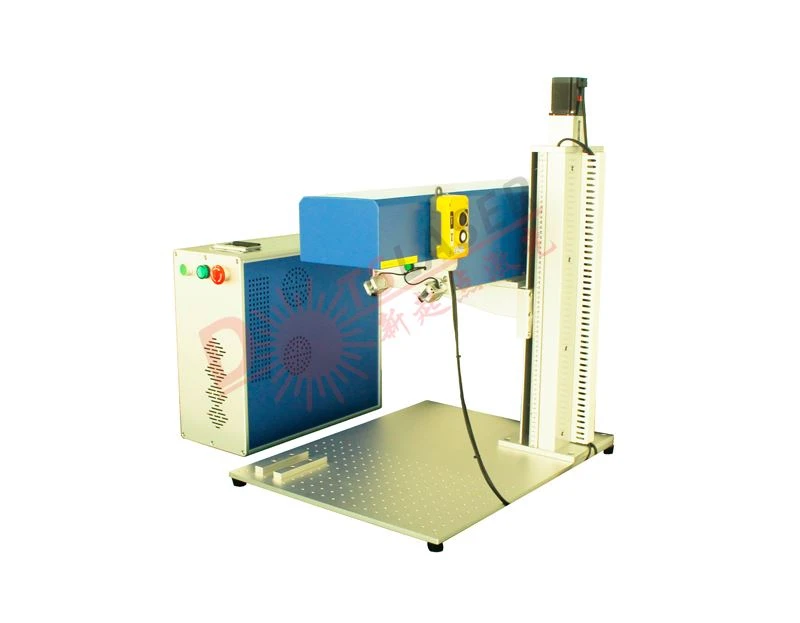

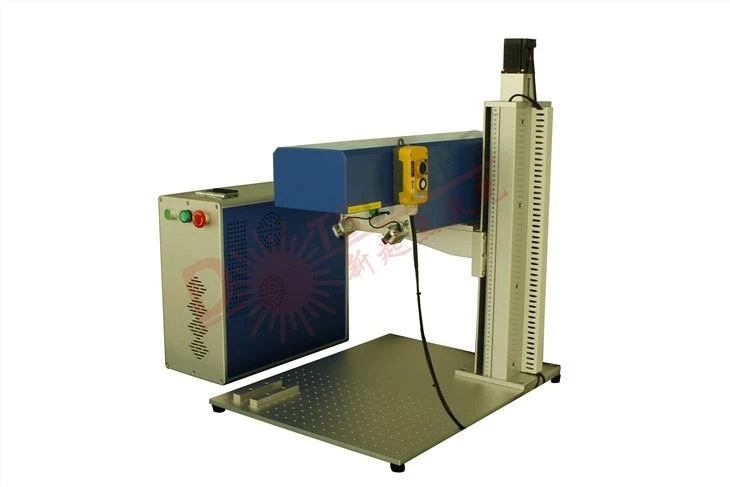

iav khob engraving tshuab
iav khob engraving tshuab
Khoom Description
Lub khob khob engraving tshuab yog siv los tsim cov qauv zoo nkauj, cov qauv, lossis cov duab ntawm lub khob khob lossis lwm yam iav. Cov txheej txheem no suav nrog kev siv cov cuab yeej siv thev naus laus zis thiab thev naus laus zis los kos lub ntsej muag ntawm cov iav yam tsis muaj kev puas tsuaj. Qhov tsis sib cuag ntawm laser engraving tiv thaiv cov iav los ntawm kev tawg lossis chipping, thiab cov txheej txheem tuaj yeem ua haujlwm rau kev tsim khoom ntxiv.
1. Lub tshuab no ua haujlwm nrog ultra-violet laser uas muab kev ua haujlwm siab, siab ceev, thiab raug. Nws yog qhov zoo tagnrho rau kev kos lossis etching cov ntaub ntawv xws li yas, iav, hlau, thiab ceramics.
2. Ntau yam khoom siv nrog cov txiaj ntsig zoo thiab zoo heev. Nws kuj siv lub zog tsawg dua los ua haujlwm, uas txhais tau hais tias kev siv hluav taws xob tsawg dua thiab cov nqi khiav haujlwm tsawg dua.
3. Me me, nqa tau yooj yim, thiab siv tau yooj yim, ua kom yooj yim rau ntau yam kev lag luam thiab kev lag luam. Nws yuav tsum tau saib xyuas tsawg, thiab nws yuav tsum tau teem sijhawm tsawg kawg nkaus, txuag nqi zog. Lub tshuab software yog ib qho yooj yim mus use, txawm rau beginners, thiab tso cai rau customization thiab tshwj xeeb hauv kev tsim thiab cim.
4. Lub tshuab UV laser marker muab cov txiaj ntsig ntev uas tsis ploj lossis hnav yooj yim. Qhov no ua kom cov khoom nyob twj ywm cim thiab yooj yim txheeb xyuas rau lub sijhawm txuas ntxiv.
Tsis muaj
|
Qauv |
DS-UV Series |
|
Hom Laser |
UV Lasers |
|
Peak Laser zog |
3W/5W /10W/15W |
|
Lub wavelength |
355nm ua |
|
Chaw Ua Haujlwm |
110 * 110mm / 175 * 175mm / 200 * 200mm (Yeem) |
|
Ntau zaus |
20-200KHz |
|
Beam Quality |
<1.2㎡ |
|
Marking Ceev |
<8000mm/s |
|
Kev Ntsuas Qhov tob |
Tsawg dua los yog sib npaug rau 0.3mm |
|
Repetition Precision |
0.01 hli |
|
Min. Kab Dav |
0.01 hli |
|
Txias hom |
Cua, Dej Txias |
|
Graphic Formats txaus siab |
PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
|
Hwj chim Source |
AC110V / 220V ± 10%, 50 / 60HZ |
|
Lub zog tag nrho |
<1200W |
|
Warranty |
1 Xyoo |
|
Ua haujlwm kub |
15 degree -30 degree |
|
Cov av noo |
20% txog 85% (Dawb Condensed Dej) |
|
Ua haujlwm ib puag ncig |
Huv si, Tsis muaj plua plav |

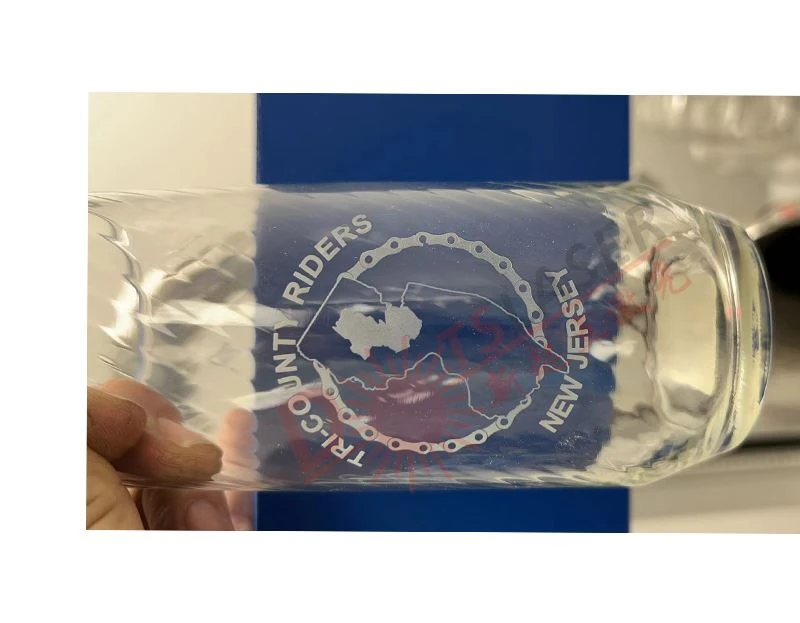

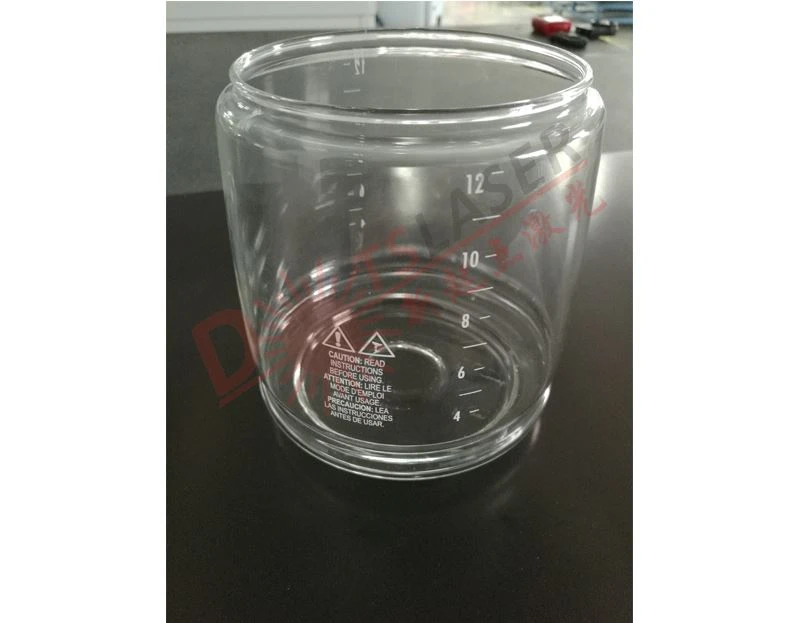

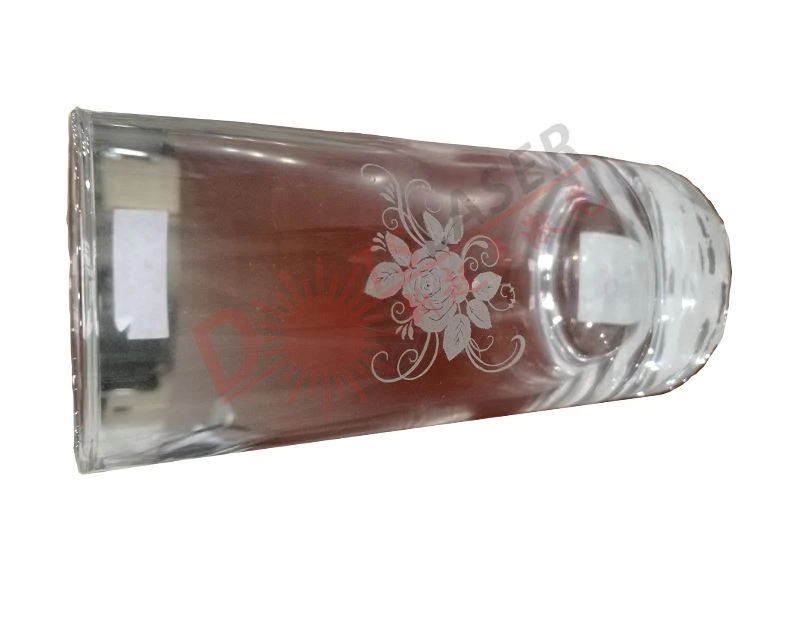

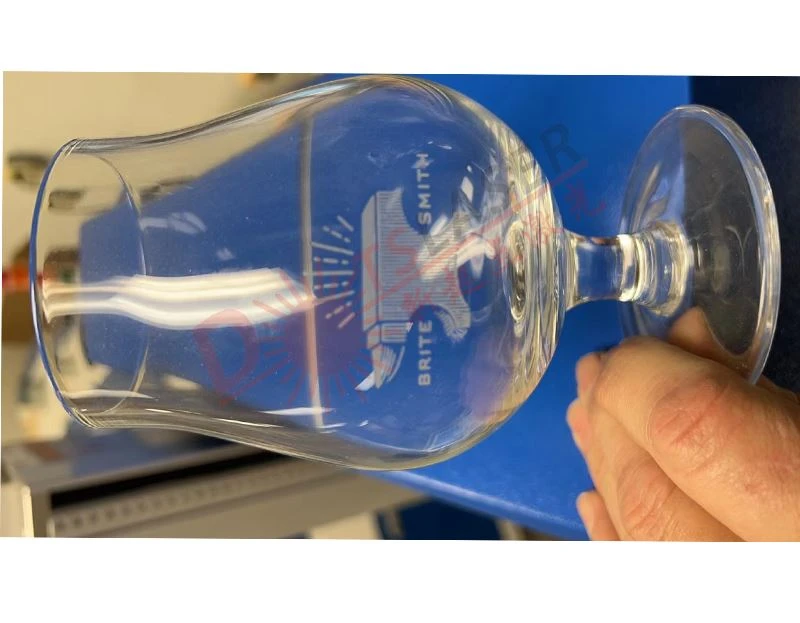

Cov qauv qhia:
Shipping thiab pob
FAQ
Q1: Koj lub tuam txhab tsim khoom dab tsi?
Q2: Koj tuaj yeem lav qhov zoo ntawm koj cov khoom li cas?
Q3: Kuv yuav ua li cas thiaj tau txais lub tshuab zoo tshaj plaws?
Q4: Koj lub tshuab laser muag rau qhov twg?
