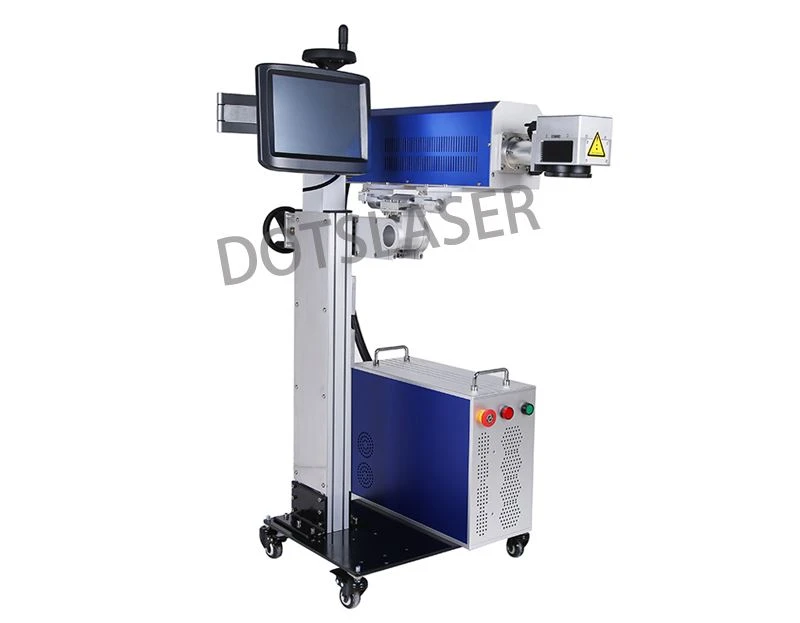

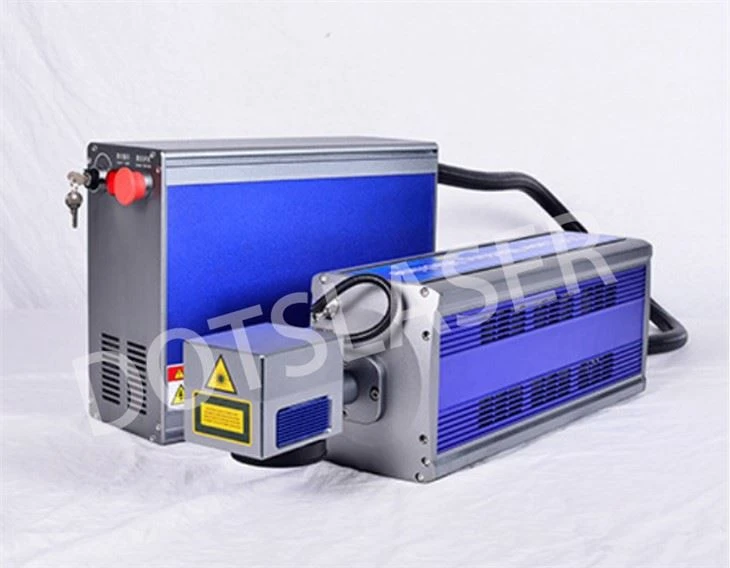

CO2 Laser Fly Marking Tshuab

Kev taw qhia txog kev tsim khoom.

The CO2 laser fly marking machine adopts a gas laser with an infrared light band of 10.64 μm. The CO2 gas is charged into the high-voltage discharge tube to generate a glow discharge, so that the gas molecules emit laser light, and the laser energy is amplified to form a laser beam for material processing. Thus, a clear, permanent, indelible mark is formed on the surface of the processed object.

Co2 laser ya marking tshuab, tseem hu ua CO2 loj ntau lawm kab laser npav tshuab, yog tsuas yog siv rau loj ntau lawm kab laser npav nyob rau saum npoo ntawm ntau yam khoom los yog txheej ntim. Piv nrog rau cov tsoos zoo li qub laser npav tshuab, ya Thaum lub sij hawm engraving txheej txheem ntawm lub laser npav tshuab, cov khoom muaj peev xwm ntws tsis tu ncua ntawm cov kab ntau lawm, uas zoo heev txhim kho cov efficiency ntau lawm thiab ua rau lub laser npav tshuab ua tau raws li qhov yuav tsum tau ntawm industrial sib dhos kab ntau lawm. .

Lub hauv paus ntsiab lus ntawm CO2 laser fly marking tshuab

CO2 laser fly marking machine is a laser marking machine that uses CO2 gas as the working medium. The CO2 laser uses CO2 gas as the medium. CO2 and other auxiliary gases are charged into the discharge tube and high voltage is applied to the electrodes. Glow discharge is generated in the discharge tube, so that the gas emits a laser with a wavelength of 10.64um. After mirror scanning, mirror reflection and field mirror focusing, under the control of computer and laser marking board, images, characters, numbers and lines can be marked on the workpiece according to the user's requirements.

Cov pa roj carbon dioxide laser yog ib hom laser molecular, cov khoom tseem ceeb yog carbon dioxide molecule, nws tuaj yeem qhia ntau lub zog nyob ntawm nws daim ntawv vibration thiab kev sib hloov. Cov roj sib tov (CO2, Helium, Nitrogen) hauv CO2 yog cov roj ntsha uas qis- cov pa roj los ntawm kev tso tawm ntawm electrons. Raws li Maxwell-Boltzmann txoj cai faib khoom hais, hauv cov ntshav, cov molecules nthuav tawm ntau lub xeev zoo siab. Qee qhov yuav nthuav tawm lub xeev siab zog. Nws nthuav tawm lub xeev asymmetrical viav vias. Cov molecule kuj qee zaus poob lub zog thaum sib tsoo nrog lub phab ntsa hollow lossis emanating lawm.

Through natural emission, this high-energy state descends into a symmetrical wiggling configuration and emits photons (a beam with a wavelength of 10.6 μm) that may travel in any direction, one of which travels along the optical path and exits the galvanometer. swing in. Then, after the reflection of the total reflection mirror, the laser in the resonator forms a laser beam.

Nta ntawm CO2 laser fly marking tshuab

1. Tsis yog-kev sib cuag: cov cim zoo tuaj yeem raug cim rau ntawm qhov chaw tsis tu ncua lossis tsis xwm yeem;

2. Kev siv ntau yam: cov duab thiab cov ntawv tuaj yeem raug cim rau ntawm feem ntau tsis yog-cov ntaub ntawv hlau thiab qee cov ntaub ntawv hlau;

3. Cov nqi khiav lag luam qis: Lub cim ceev ceev thiab cov cim tau tsim nyob rau ib zaug, nrog cov khoom siv tsawg heev, yog li cov nqi khiav lag luam tsawg;

4. Kev sib dhos kab cim: Nws tuaj yeem ua ke nrog lwm cov khoom siv ntawm cov kab ntau lawm los txhim kho cov qib automation ntawm cov kab ntau lawm;

5. Cov cim yog qhov tseeb, ruaj khov thiab tsis yog- tshem tau, zoo nkauj, thiab tuaj yeem tiv thaiv tau zoo - cuav, nrog lub neej ua haujlwm ntev thiab tsis muaj kuab paug.

Cov tsis tseem ceeb ntawm CO2 laser fly marking tshuab

Lub Zog: 30W / 60W / 100W

Laser wavelength: 10640nm

Ntau zaus: 20100KHZ

Marking line speed:  Less than or equal to 8000mm/s

Yam tsawg kawg kab dav: 0.1mm(nyob ntawm cov khoom)

Yam tsawg kawg nkaus font: 0.4mm (nyob ntawm cov khoom)

Repetition accuracy:±0.01mm

Kev khiav hauj lwm qhov system: kov npo tswj qhov system

Marking ntau: 100x100mm (tus qauv), 175x175mm 300x300mm (yeem)

Tag nrho qhov hnyav: 120kg

Cua txias: dej-cooled/air-cooled

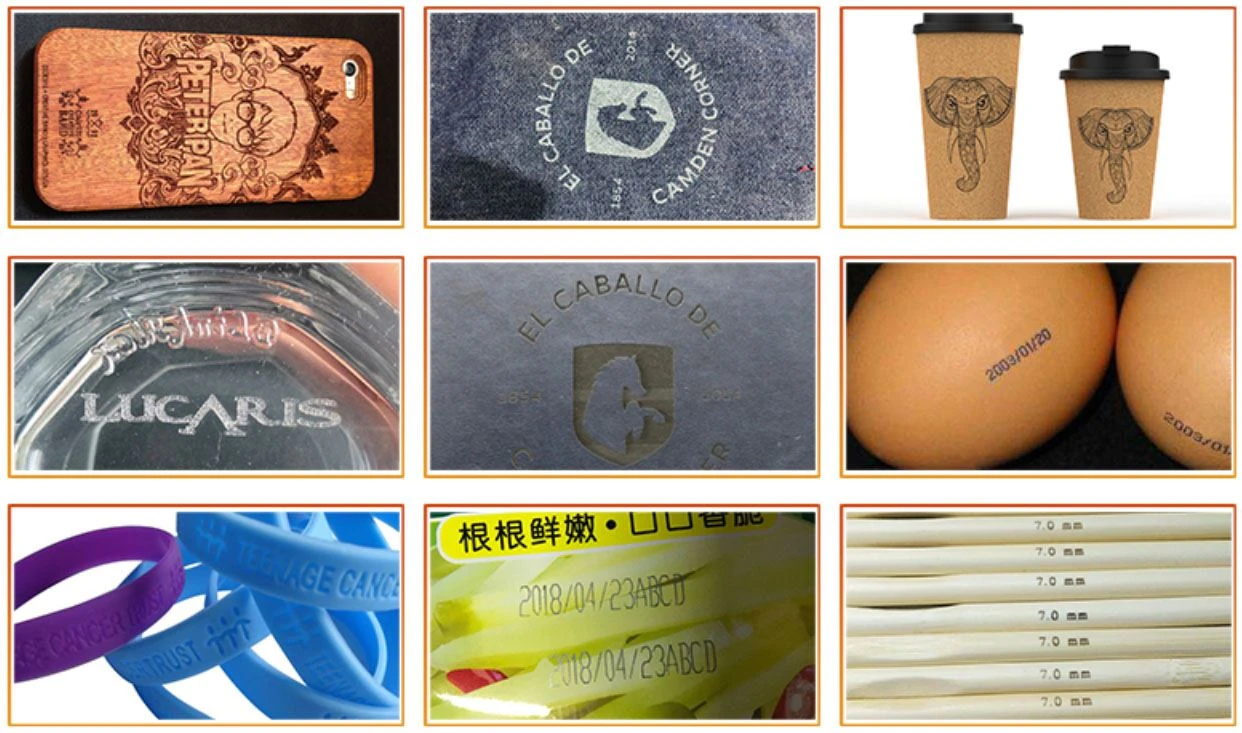

Cov qauv ntawm CO2 laser fly marking tshuab

Video qhia

Shipping
