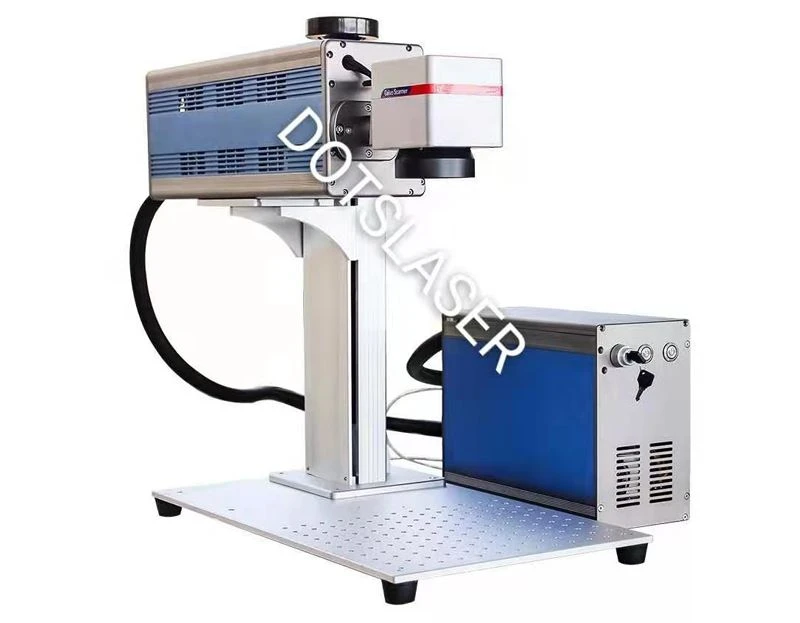

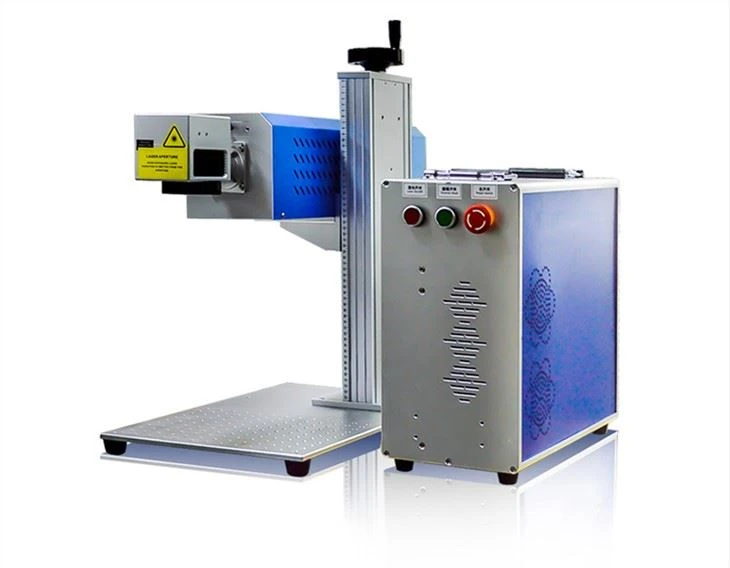

Ntoo Laser Marking Tshuab
Ntoo Laser Marking Tshuab
Khoom Description
Ntoo laser npav tshuab yog lub tshuab laser tshwj xeeb tsim rau kev kos, txiav, lossis kos ntau hom ntoo. Cov tshuab no siv cov kab teeb ci laser los tsim cov qauv zoo thiab sib txawv ntawm cov ntoo uas muaj qhov tseeb, kev daws teeb meem, thiab nrawm.
Ntoo laser npav tshuab feem ntau siv CO2lasers, uas muaj lub wavelength ntawm ib ncig ntawm 10.6 micrometers. Qhov wavelength no zoo tagnrho rau kev ua haujlwm nrog cov khoom siv organic xws li ntoo, vim tias lawv lub zog tau zoo absorbed hauv cov txheej txheem hu ua khoom ablation (tshem tawm cov khoom los ntawm vaporization).
qhov zoo ntawm kev siv ntoo laser npav tshuab
High precision:Laser npav tshuab muab cov kev daws teeb meem siab, cov ncauj lus kom ntxaws engraving thiab kos npe rau ntawm qhov chaw ntoo, ua rau lawv tsim nyog rau kev tsim cov qauv zoo nkauj thiab cov qauv.
Versatility:Cov tshuab no tuaj yeem ua haujlwm nrog ntau hom ntoo, xws li hardwoods, softwoods, veneers, plywood, MDF, thiab lwm yam ntaub ntawv sib xyaw. Tsis tas li ntawd, lawv tuaj yeem siv tau rau cov ntawv thov xws li txiav, ua haujlwm hauv tsev, lossis marquetry.
Kev ua tau zoo:Ntoo laser npav tshuab tuaj yeem tsim cov cim sai, txo lub sijhawm tsim khoom thiab ua kom tag nrho cov khoom tsim tau.
Tsis tiv tauj:Qhov tsis sib cuag ntawm lub tshuab laser npav tshuab tiv thaiv kev ntxhov siab thiab kev puas tsuaj rau cov ntoo, kom ntseeg tau tias cov khoom me me thiab tsis yooj yim nyob twj ywm thaum lub sij hawm kos npe.
Cov qhab nia zoo:Cov txheej txheem laser npav ua kom huv, ntse, thiab cov ncauj lus kom ntxaws heev uas tiv taus fading thiab hnav dhau sijhawm.
Cov khoom siv:
Nws yog tsim rau laser engraving, laser txiav, laser npav, laser drilling thiab lwm yam txheej txheem ntawm ntau yam ntaub ntawv uas tsis yog-hlau, xws li tawv, ntaub, ntawv, PVC, roj hmab, ntoo, yas thiab lwm yam nto.
Tsis muaj
|
Qauv |
DS-LWM 30 |
DS-LMC 60 |
|
Laser fais fab tso zis |
>30W |
>60W |
|
laser wavelength |
10640 ± 10 nm |
|
|
Aperture ntawm lub taub hau scan |
20 hli |
|
|
Kos thaj tsam |
100x100mm (tus qauv) / 175x175mm / 200x200mm / 300x300mm |
|
|
Pulse zaus |
1 ~ 100KHZ |
|
|
Max marking ceev |
8000mm / s |
|
|
Rov ua qhov tseeb |
± 0.001 hli |
|
|
Min. kab dav |
0.1 hli |
|
|
Qhov loj me me |
0.2 hli |
|
|
Txias |
Cua txias |
|
|
Ua haujlwm temp |
5 ~ 35 degree |
|
|
Humidity ntau |
< 70% No condensation |
|
|
Qhov hnyav tag nrho |
65 KG |
|
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|
Thaum xaiv ntoo laser npav tshuab, xav txog cov yam tseem ceeb no:
Lub zog:Xyuas kom meej tias lub zog laser muaj txaus rau koj daim ntawv thov, vim tias cov lasers muaj zog dua tuaj yeem txiav los ntawm cov ntaub ntawv tuab thiab ua haujlwm ntawm qhov nrawm dua.
Chaw ua haujlwm:Xyuas kom tseeb tias qhov luaj li cas ntawm qhov chaw ua hauj lwm raws li koj cov kev xav tau ntau lawm.
Compatibility:Xyuas kom meej tias lub tshuab software yog sib xws nrog koj nyiam tsim daim ntaub ntawv (xws li, CorelDRAW, Illustrator, AutoCAD, thiab lwm yam).
Cov neeg siv-phooj ywg:Txheeb xyuas cov yam ntxwv zoo rau cov neeg siv khoom xws li kev nkag siab yooj yim interfaces, kho tau qhov chaw, thiab cov khoom siv saib xyuas siv tau.
Cua txias system:Xyuas seb lub tshuab muaj qhov ua kom txias txaus los tswj kev ua haujlwm ruaj khov thaum siv sijhawm ntev.
Los ntawm kev xav txog cov xwm txheej no, koj tuaj yeem xaiv qhov zoo tshaj plaws ntoo laser npav tshuab kom haum rau koj cov kev xav tau tshwj xeeb thiab txaus siab rau qhov ua tau zoo thiab cov txiaj ntsig zoo uas cov ntoo laser npav tshuab tau muab.
Cov khoom ua tau zoo thiab cov yam ntxwv
1. Lub kaw lus ruaj khov-dawb laser optical system, tsis tas yuav kho, npaj siv.
2. Thawj RF laser raj, nrog lub zog siab, qhov chaw zoo, lub zog ruaj khov, thiab lub neej ntev ntawm ntau tshaj 20, 000 teev.
3. High-precision, high-speed marking / txiav kev ua tau zoo, kev ua haujlwm zoo yog 20% siab dua li cov qauv zoo sib xws.
4. Tus kws tshaj lij qhov kub thiab txias ntawm cov dej txias ua rau tag nrho lub tshuab ua haujlwm ruaj khov thiab siv zog tsawg.
5. Kev tsim ntau yam kev tiv thaiv kev tiv thaiv, haum rau ntau yam ntawm ambient kub, los xyuas kom meej lub nruam thiab txhim khu kev qha ua hauj lwm ntawm lub laser npav system 24 teev ib hnub twg.
6. Cov ntawv thov hauv qab Windows interface yog sib xws nrog cov ntaub ntawv tawm tswv yim ntawm AutoCAD, CorelDraw, Photoshop thiab lwm yam software, xws li PLT, DXF, BMP, thiab lwm yam.
Ntoo laser engraving tshuab siv 3D dynamic marking tshuab, thiab tuaj yeem ua cov chaw uas tsis nyob hauv tib lub dav hlau los ntawm kev teeb tsa qhov deb ntawm qhov siab sib txawv hauv software. Nws qhov kev ua haujlwm siab tshaj plaws ntawm 8, 000mm / s, nws tsim nyog rau kev tsim khoom loj.
Thiab nws txais yuav tag nrho txoj kev kho qhov muag, ntshuam CO2xov tooj cua zaus laser, thiab nruj ntau yam kev tiv thaiv tsim los xyuas kom meej lub zuag qhia tag nrho stability ntawm cov khoom.

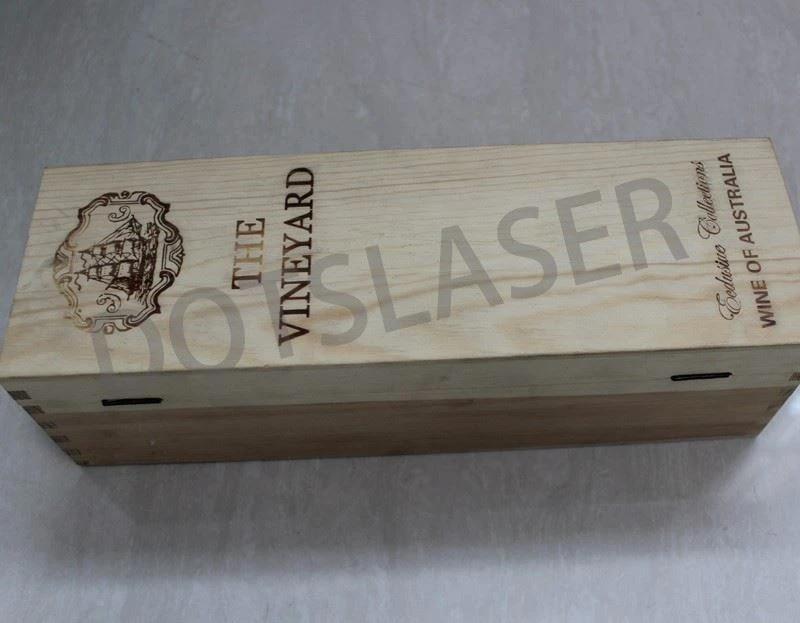

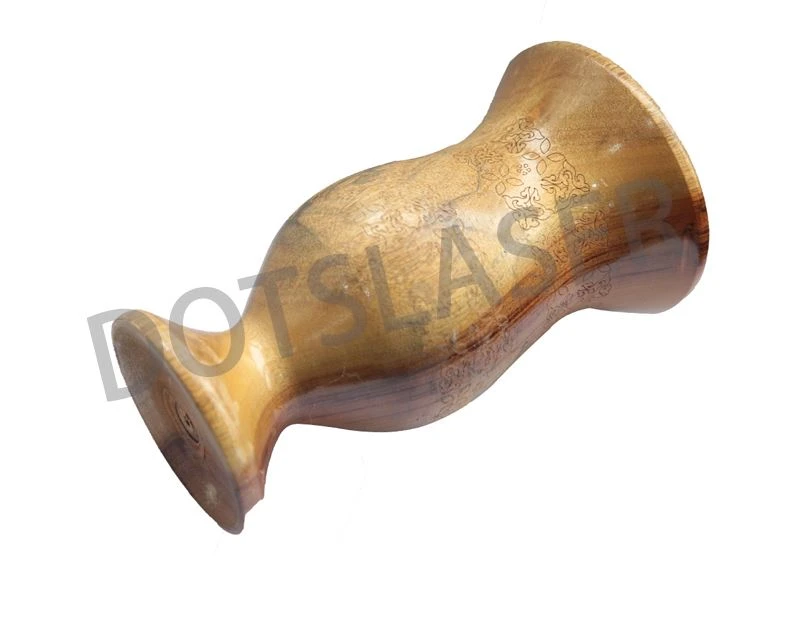

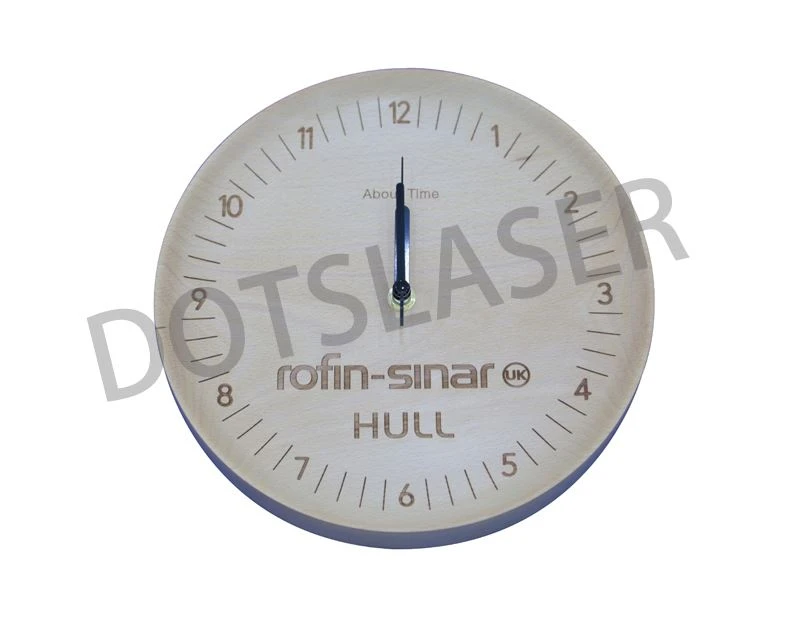

Cov qauv qhia
vim li cas thiaj xaiv peb cov khoom
Ntoo laser npav tshuab tau txais los ntawm Suav teb sab saum toj hom CO2RF hlau raj thiab high-speed galvanometer taub hau yog siv. Tag nrho cov txheej txheem muaj cov cim kev ua haujlwm siab, nrawm nrawm, kev ua haujlwm ruaj khov, tuaj yeem ua haujlwm tsis tu ncua ntev, thiab tuaj yeem siv ncaj qha rau cov kab ua haujlwm loj hauv online. Ntoo laser npav tshuab tau siv dav hauv cov khoom noj, dej haus, ntoo, tawv, iav thiab lwm yam kev lag luam ntim.
Siv los kos lub hnub tsim khoom, batch naj npawb, serial tooj, thiab lwm yam ntawm cov khoom. Nws yog ib qho yooj yim mus use thiab muaj nqi khiav lag luam. Cov khoom lag luam tau nruab rau ntawm txoj kab sib dhos tsis siv neeg thiab txais kev ua haujlwm tsis siv neeg tag nrho thiab kev tswj hwm lub computer. Lub cim ruaj khov tuaj yeem tsim tau, thiab tus lej xov tooj tuaj yeem siv los txheeb xyuas ib qho khoom lag luam uas tsis tuaj yeem hloov pauv, uas tuaj yeem tshem tawm cov khoom cuav thiab tsis zoo tom qab ntxuav nrog cov khib nyiab ntim.

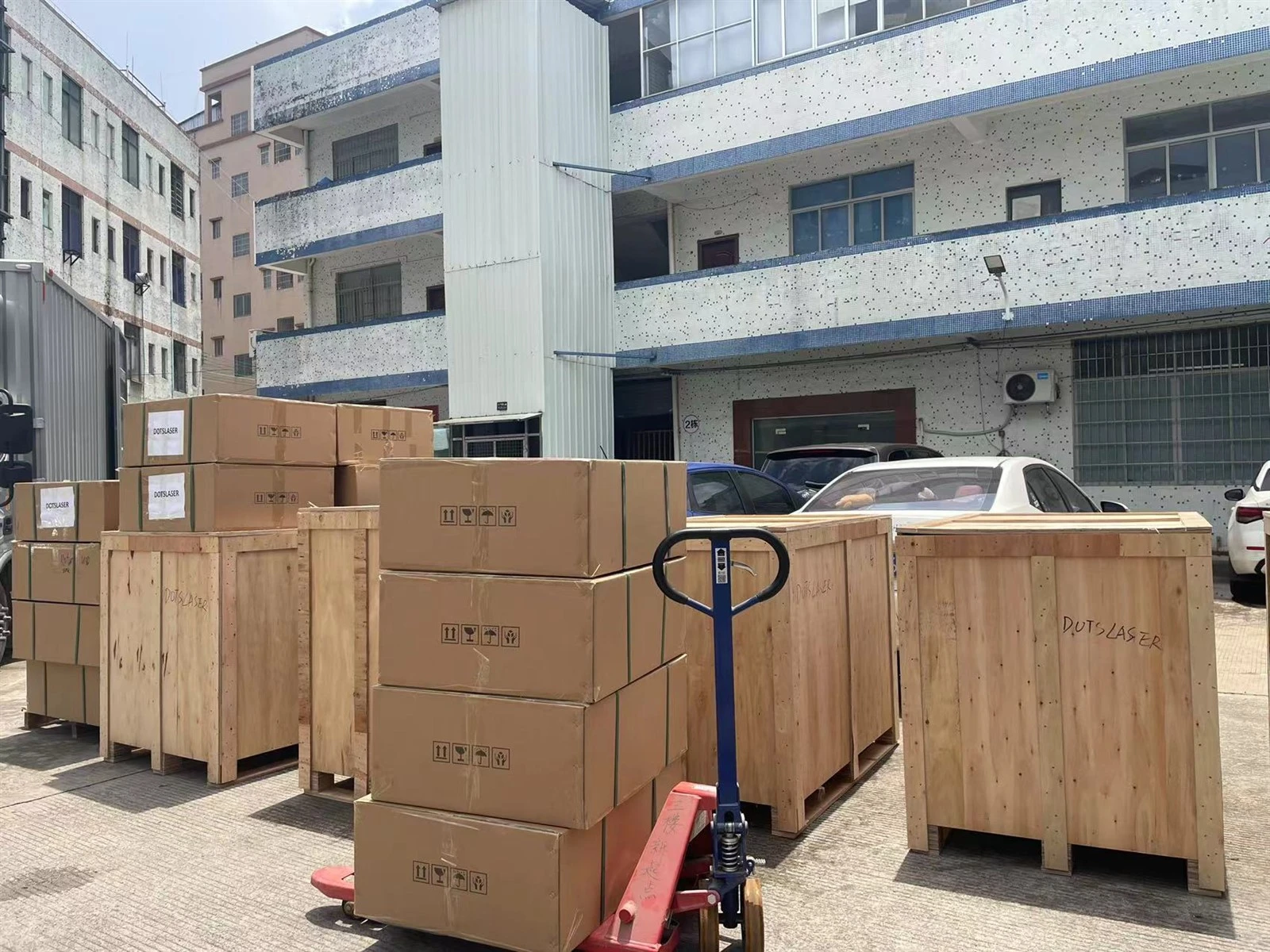

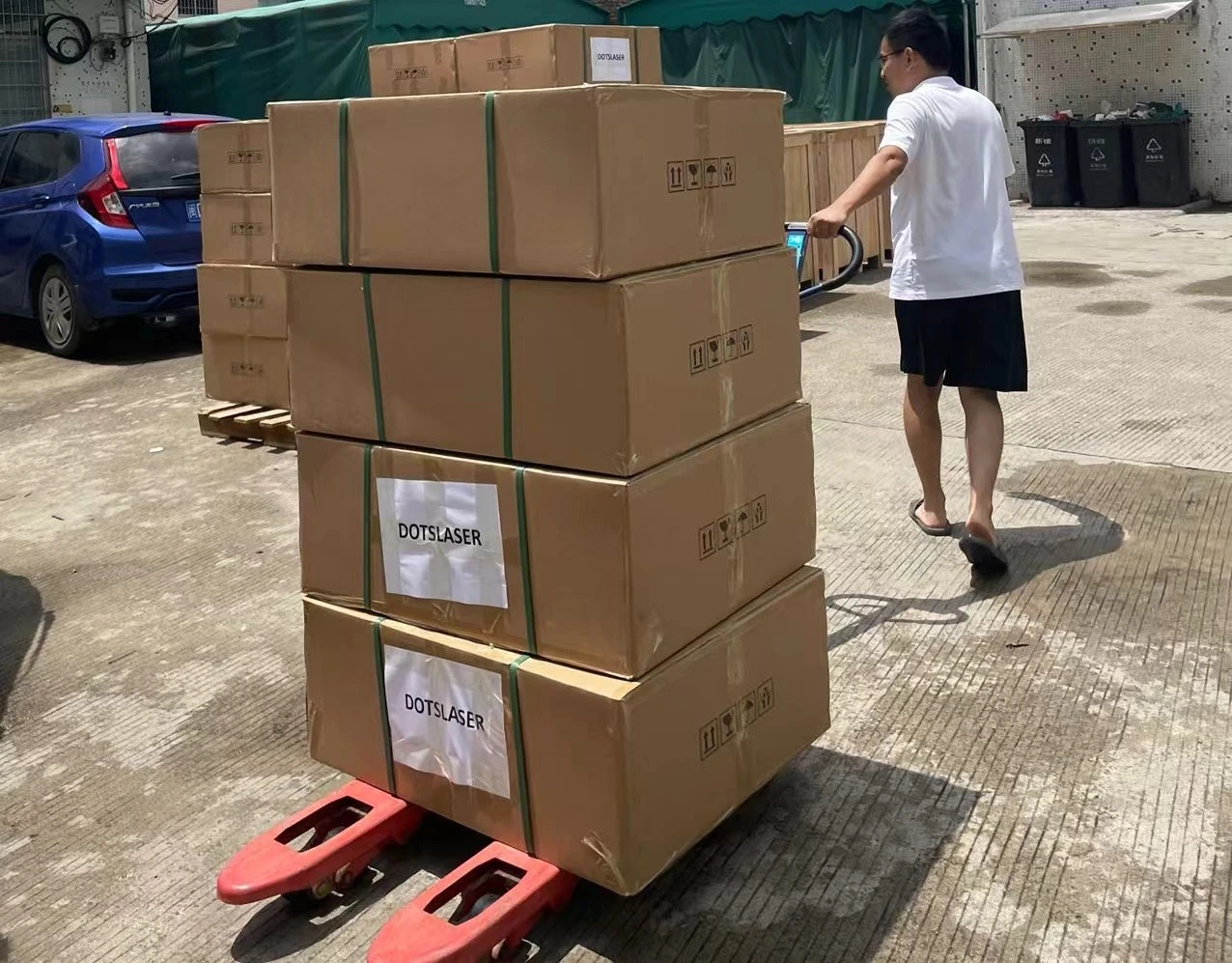

Shipping thiab pob
