Laser Txiav Ntawv

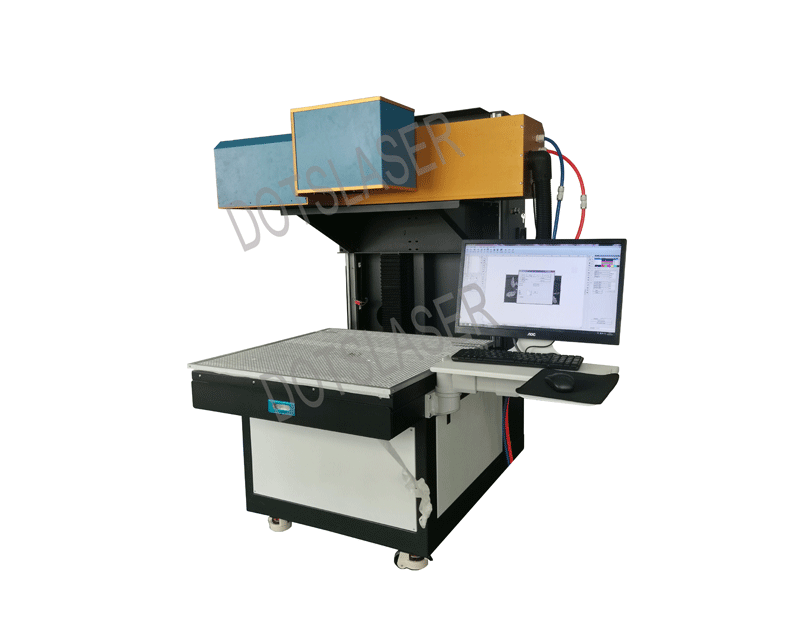

Laser Txiav Ntawv Tshuab
Khoom Description
Lub tshuab thev naus laus zis no siv cov thev naus laus zis thev naus laus zis thev naus laus zis los ua kom huv si txiav cov duab sib txawv thiab cov qauv tsim nrog qhov tsis sib xws thiab qhov nrawm, ua rau nws yuav tsum muaj cov cuab yeej rau txhua tus kws kos duab lossis cov neeg nyiam ua paj ntaub. Nrog nws cov neeg siv-phooj ywg interface thiab yooj yim-rau-ua haujlwm software, peb Laser Txiav Ntawv Tshuab ua rau nws yooj yim los tsim intricate designs uas yav tas los nyuaj los ntawm tes. Lub tshuab tuaj yeem txiav los ntawm ntau cov ntaub ntawv, suav nrog cardstock, vellum, thiab ntau dua, ua kom muaj ntau yam thiab hloov tau rau txhua qhov koj xav tau kev tsim khoom.
Nta thiab kev ua yeeb yam
| 1. Kev tsis sib cuag: tuaj yeem raug cim rau ntawm qhov chaw tsis tu ncua lossis tsis xwm yeem nrog cov cim zoo. |
| 2 .Wide ntau yam ntaub ntawv: tuaj yeem cim rau ntawm daim ntawv, yas, ceramics, iav, tawv thiab lwm yam ntaub ntawv ntawm ntau hom lossis txawv hardness. |
| 3. Tus nqi khiav qis: kos qhov nrawm thiab kos npe ib zaug tsim, khoom siv tsawg heev, yog li tus nqi khiav qis. |
| 4 .Tau ua ke nrog lwm cov khoom siv ntawm cov kab ntau lawm, txhawm rau txhim kho cov automation ntawm cov kab ntau lawm. |
| 5 .Clear, ruaj khov thiab indelible cim, zoo nkauj thiab siv tau los tiv thaiv cov khoom cuav. |
| 6 .Lub neej ua haujlwm ntev, tsis muaj kuab paug. |
| 7 . Ceev cov cim ceev, zoo heev txhim kho efficiency ntau lawm |
Daim ntawv thov

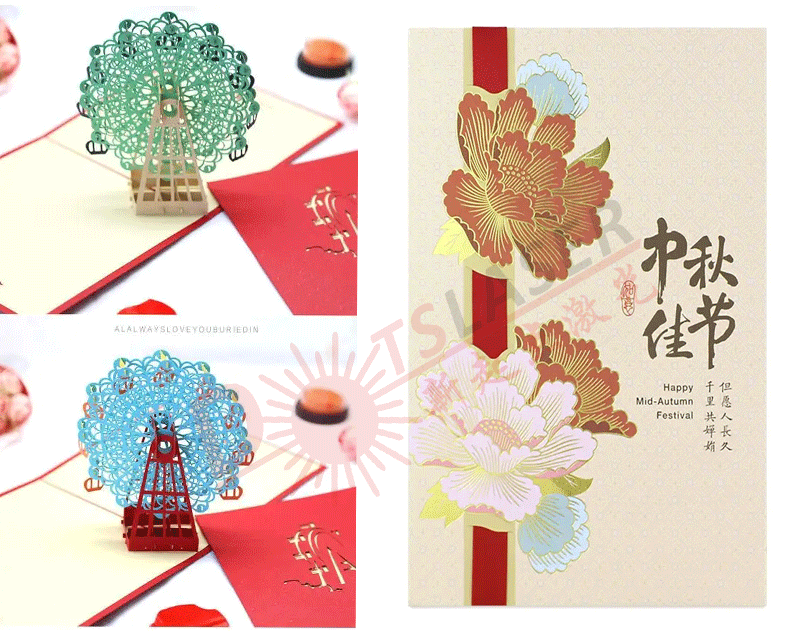

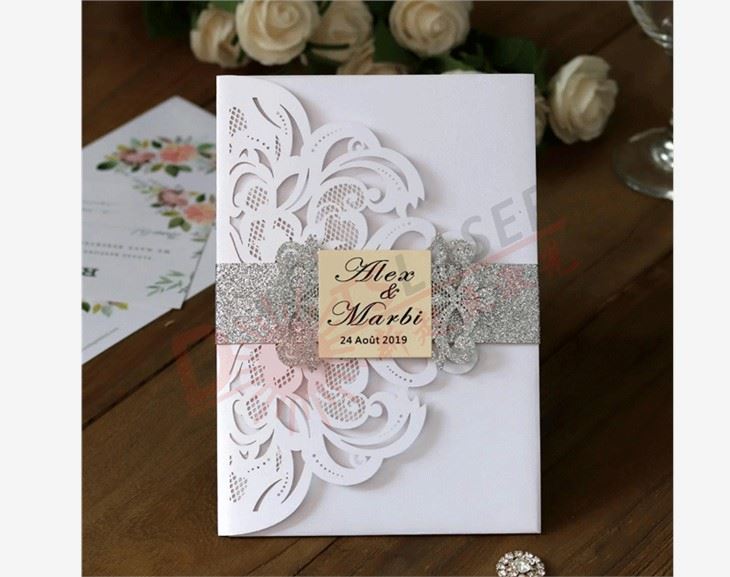

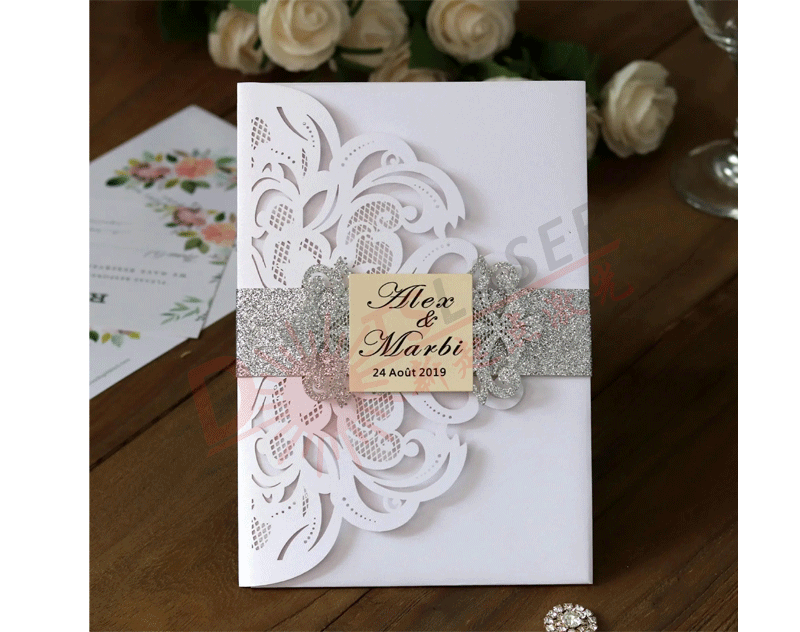

| daim npav tos txais | kab tshoob caw | qab zib thawv | ntawv txiav |
| 3D ntawv carving teeb | painting templates | daim ntawv crafts | xyoob |
Tsis muaj
|
TSIS MUAJ. |
Lub npe |
DS-LMC series Galvo laser system |
|
1 |
Tshuab qauv |
DS-LMC150/DS-LMC250 |
|
2 |
Max laserzog |
150W/250W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beamzoo |
＜1.2㎡ |
|
5 |
Lub luag haujlwm lub voj voog txwv |
Tsawg dua lossis sib npaug li 60% |
|
6 |
Min.kabdav |
0.35mm (nyob ntawm cov khoom siv) |
|
7 |
Qhov loj me me |
2 hli |
|
8 |
Maxcimceev |
Tsawg dua los yog sib npaug8, 000mm/s |
|
9 |
Chaw ua haujlwm |
400x400mm / 600x600mm / 750x750mm |
|
10 |
Txias |
Dejtxias |
|
11 |
Kev ua haujlwm ib puag ncig qhov kub thiab txias |
5 ~ 35 degree |
|
12 |
Humidity ntau yam ntawmua haujlwmib puag ncig |
< 70% Tsis muaj condensation |
|
13 |
Fais fab mov |
220V, 50/60Hz |
|
14 |
Hwj chimnoj |
＜6 kWm |

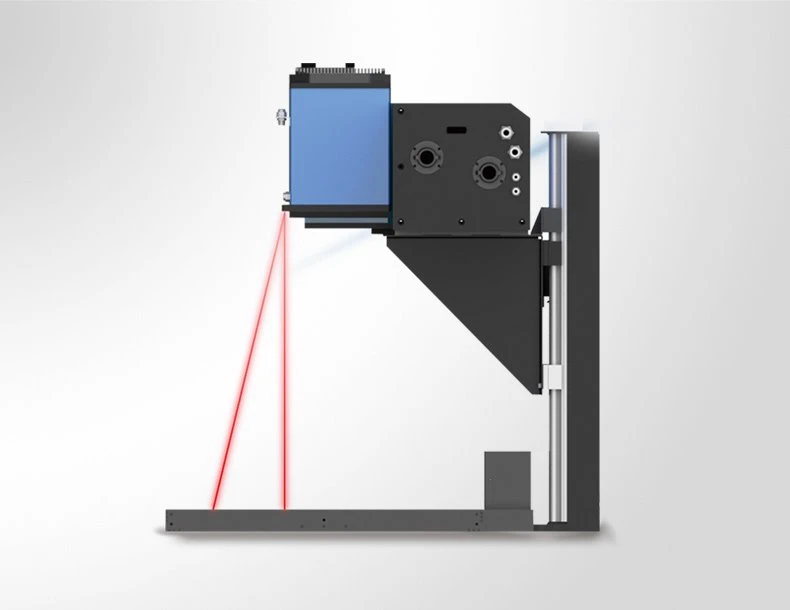

Taw qhia ntawm tshuab
Laser txiav yog cov txheej txheem siab uas tuaj yeem tsim cov qauv tsim thiab cov qauv ntawm daim ntawv.
Cov lus nug feem ntau thaum nws los txog rau laser txiav ntawv yog qhov no- "Yuav ua li cas koj laser txiav daim ntawv tsis hlawv nws?"
Kev tswj cov txheej txheem zoo thiab cov kev pom tsis zoo yog cov lus teb rau laser txiav ntawv uas tsis muaj ntug kub hnyiab.
CO2dynamic marking tshuab txoj cai
CO2laser npav tshuab feem ntau hu ua roj laser npav tshuab, CO2laser yog ib qho infrared zaus band wavelength ntawm 10.64um roj laser, siv CO2Gas them rau hauv lub raj xa tawm raws li qhov nruab nrab rau kev tsim laser, thaum lub electrode ntxiv nrog high voltage, lub tso tawm tube nyob rau hauv lub glow paug, nws muaj peev xwm ua rau cov roj molecules tso laser, lub laser zog amplified los tsim lub laser beam ntawm lub kev ua cov khoom siv.
Los ntawm lub computer lub laser beam yog ces amplified los ua ib tug laser beam rau kev ua cov khoom, thiab lub laser beam yog cia li cim los ntawm computerized tswj ntawm oscillator hloov txoj kev kho qhov muag. Lub laser beam yog siv los irradiate saum npoo ntawm cov khoom thiab lub teeb lub zog yog tam sim ntawd hloov mus rau hauv lub tshav kub zog, ua rau cov nto ntawm cov ntaub ntawv mus yaj los yog txawm vaporise instantly, yog li tsim lub cim.

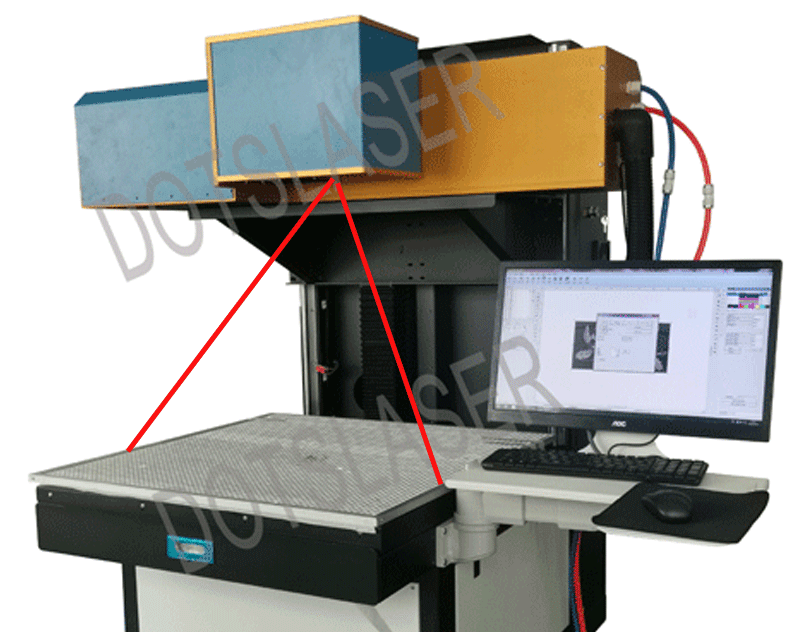

tshuab cov ntsiab lus:
Power parameter xaiv
Lub laser siv lub xov tooj cua zaus ntshuam laser raj nrog lub siab tshaj plaws lub zog ntawm 330W, yog li peb yuav tsum tiv thaiv lub hwj chim los ntawm kev siab dhau heev lawm thaum txiav cov duab los qhia thiab ua rau cov ntawv hlawv dub thiab daj, uas tsis zoo tag nrho.
Ceev
Kev siv hluav taws xob sib txawv yuav phim qhov ceev yuav sib txawv, peb siv lub tshuab ntsuas hluav taws xob nrawm nrawm, yog li qhov ceev peb txiav cov duab los qhia siv ntau yam ntawm 300-1000mm / s, nyob ntawm seb qhov dav ntawm lub zog siv. nyob rau theem ntawm kev faib ua feem thiab sib txawv.
Ntau zaus
Raws li kev siv lub zog laser thiab ceev peb yuav teeb tsa qhov kev xav tau ntawm zaus, feem ntau teem rau ntawm 3KHZ-20HKZ, thaum lub zaus tau teeb tsa ntau dua, lub zog laser yuav tsis muaj zog tib lub sijhawm;

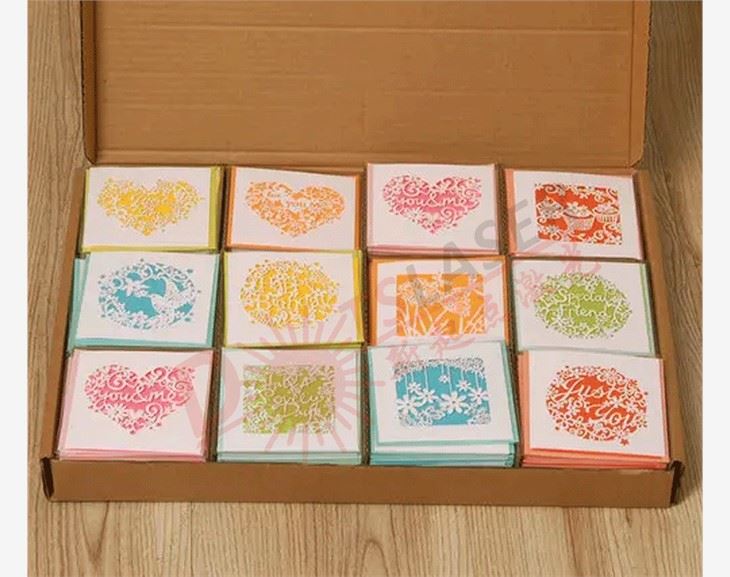

Laser txiav daim ntawv tej yaam num
Nws tau nyob ib ncig ntawm lub sijhawm ntev, tab sis daim ntawv crafting tau revolutionized nrog cov kev taw qhia ntawm laser cutters. Nyob ntawm koj cov peev nyiaj, laser cutter thiab tsim kev txawj ntse, koj tuaj yeem pib ua cov phiaj xwm papercrafting thiab theem nrog txhua qhov project.

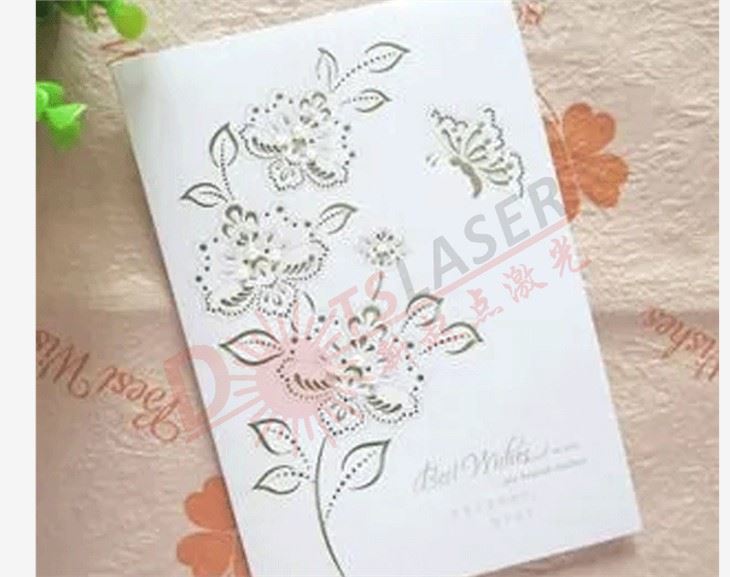

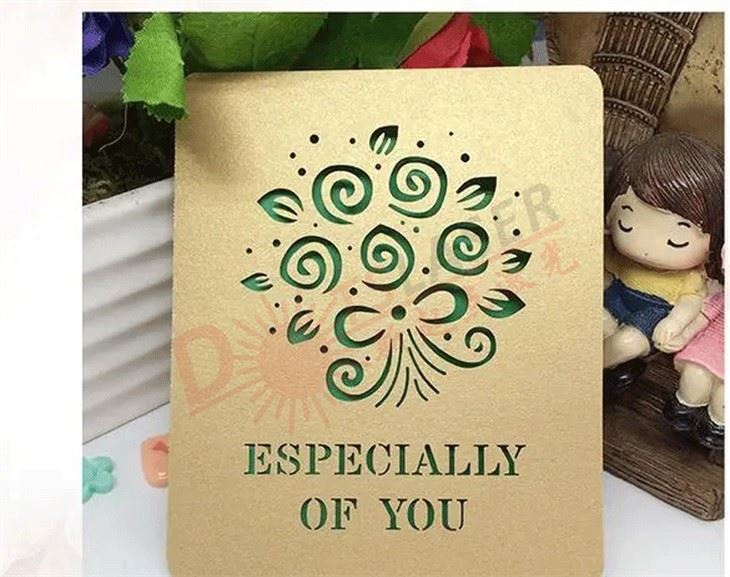

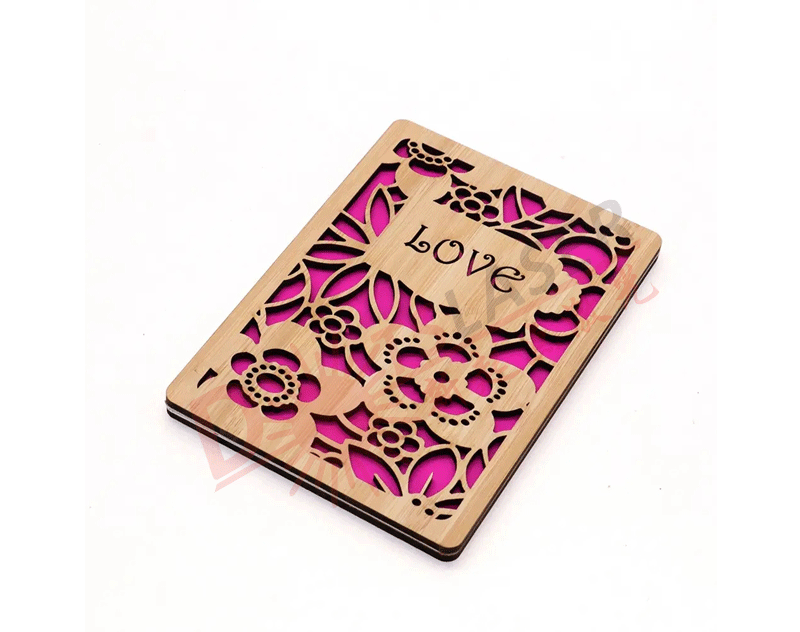

Daim Npav Nyob Zoo
Shipping thiab pob
FAQ
Q: Koj puas tuaj yeem laser kos duab rau ntawm daim ntawv?
Q: Koj puas tuaj yeem ua vector engraving ntawm daim ntawv?
Q: Koj tuaj yeem xa lub laser rau kuv li cas?
