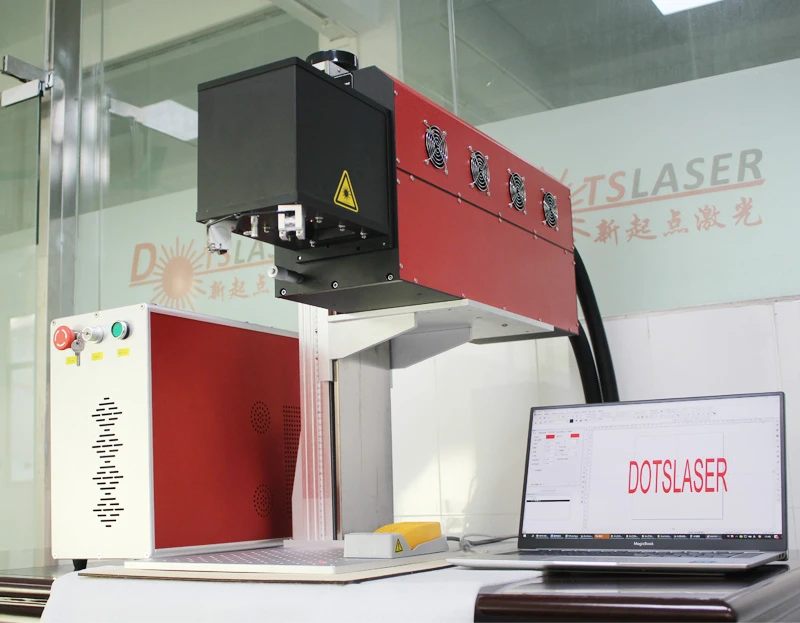

30W CO2 Laser Marking Tshuab
30 W CO2laser marking tshuab
Khoom Description
Peb zoo siab nthuav tawm peb 30W CO2Laser Marking Tshuab, cov cuab yeej siv siab heev tshwj xeeb tsim rau ntau yam ntaub ntawv, suav nrog iav, ntoo, acrylic, tawv, roj hmab, thiab lwm yam. Lub tshuab muaj zog thiab ntau yam no tso cai rau koj los tsim cov cim ruaj khov, meej, thiab cov txiaj ntsig zoo los txhim kho qhov zoo nkauj thiab tus nqi ntawm koj cov khoom.
Cov yam ntxwv tseem ceeb
Versatile Material Compatibility: 30 W CO2Laser Marking Tshuab yog sib xws nrog ntau yam ntaub ntawv tsis yog hlau, ua rau nws zoo tagnrho rau kev lag luam xws li ntim, textile, tawv, thiab lwm yam. Qee cov ntaub ntawv txhawb nqa muaj xws li iav, ntoo, acrylic, tawv, roj hmab, ntawv, thiab yas.
High-Speed Marking:Nruab nrog lub zog CO2laser qhov chaw, peb lub tshuab xa ceev engraving thiab marking speeds tsis sacrificing precision los yog zoo. Qhov kev ua haujlwm siab ceev no ua rau muaj kev tsim khoom tsim tau thiab dhau mus rau cov lag luam uas xav tau lub sijhawm hloov pauv sai.
High-Quality Markings:Peb 30W CO2Laser Marking Tshuab tsim cov cim ntse, meej, thiab ntev ntev tsim nyog rau ob qho tib si kho kom zoo nkauj thiab ua haujlwm. Lub permanency ntawm cov cim ua kom muaj kev tiv thaiv rau hnav thiab tsim kua muag, tswj kev ua haujlwm zoo ntawm koj cov khoom.
Yooj yim rau kev khiav lag luam thiab tus neeg siv-phooj ywg interface:Nrog rau kev tswj hwm qhov kev xav tau thiab cov neeg siv khoom siv software, peb lub tshuab ua kom yooj yim rau kev tsim qauv, teeb tsa cov cim, thiab saib ua ntej cov zis. Qhov kev tsim kho yooj yim no tso cai rau kev teeb tsa thiab ua haujlwm tau zoo, txo qis qis qis thaum lub sijhawm tsim khoom.
Flexible Power Settings: 30 W CO2Laser Marking Tshuab muaj kev hloov kho lub zog rau kev tswj xyuas meej ntawm qhov cim qhov tob thiab qhov zoo, nyob ntawm qhov xav tau daim ntawv thov, hom khoom, thiab cov kev xav tau tshwj xeeb ntawm koj cov haujlwm.
Durable thiab Low-Maintenance Design:Tsim los ntawm cov khoom siv zoo, peb lub tshuab muaj lub neej ua haujlwm ntev nrog kev saib xyuas tsawg kawg nkaus. Cov qauv tsim muaj zog ua kom ntseeg tau tias kev ua haujlwm ruaj khov thiab txo qhov kev pheej hmoo ntawm kev poob qis rau kev kho lossis hloov pauv.
Tsis muaj
|
Qauv |
DS-LWM 30 |
DS-LMC 60 |
|
Laser fais fab tso zis |
>30W |
>60W |
|
laser wavelength |
9.3μm/10.6μm |
|
|
Kos thaj tsam |
100x100mm (tus qauv) |
|
|
Pulse zaus |
1 ~ 100KHZ |
|
|
Max marking ceev |
12, 000mm/s |
|
|
Font hom ntawv |
Dot, ib kab, Muaj tseeb hom |
|
|
Code hom ntawv |
Feem ntau 1D & 2D codes muaj |
|
|
Txhawb interface |
USB, TCP / IP, RS219 rau encoder thiab sensor |
|
|
Rov ua qhov tseeb |
± 0.001 hli |
|
|
Min. kab dav |
0.1 hli |
|
|
Qhov loj me me |
0.2 hli |
|
|
Txias |
Cua txias |
|
|
Ua haujlwm temp |
5 ~ 35 degree |
|
|
Qhov hnyav tag nrho |
90 KG |
|
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|
| Txhawb hom ntawv | PLT, PCX, DXF, BMP, JPG, thiab lwm yam, thiab tuaj yeem siv ncaj qha TTF fonts; | |
Daim ntawv thov:
30 W CO2Laser Marking Tshuab yog qhov tsim nyog rau ntau daim ntawv thov thoob plaws ntau qhov kev lag luam, suav nrog tab sis tsis txwv rau:
Khoom plig thiab khoom plig tus kheej
Kev txheeb xyuas cov khoom thiab barcodes
Branding thiab ntim kev daws teeb meem
Signage thiab tso saib
Cov ntawv sau thiab cov khoom txhawb nqa
Textile thiab tawv khoom tsim
Nrog peb 30W CO2Laser Marking Tshuab, txhim khu koj cov khoom, ua kom haum rau cov kev xav tau tshwj xeeb ntawm koj txoj kev lag luam, thiab nyob ua ntej ntawm koj cov neeg sib tw. Yog tias koj muaj lus nug, xav paub ntxiv, lossis xav teem sijhawm ua qauv qhia, thov hu rau peb. Pib leveraging lub zog ntawm peb 30W CO2Laser Marking Tshuab nqa koj cov khoom mus rau qhov siab tshiab!
30 W CO2laser npav tshuab yog lub tshuab laser roj, nws lub wavelength yog 10.6um, uas belongs rau nruab nrab-infrared zaus band, Co2 laser muaj lub zog loj thiab ntau dua electro-optical conversion efficiency. Nws tau sau nrog Co2 roj ua cov khoom ua haujlwm. Them Co2 roj thiab lwm yam khoom siv roj rau hauv lub raj RF. Thaum muaj hluav taws xob siab siv rau cov electrodes, lub teeb ci tawm hauv lub raj xa tawm, ua rau cov roj molecules tawm lub teeb laser. Tom qab amplifying lub tso tawm laser zog, lub laser beam generated. Tsis siv neeg kos cim yog pom tau los ntawm kev hloov kho qhov muag ntawm lub laser beam los ntawm lub computer tswj galvanometer.

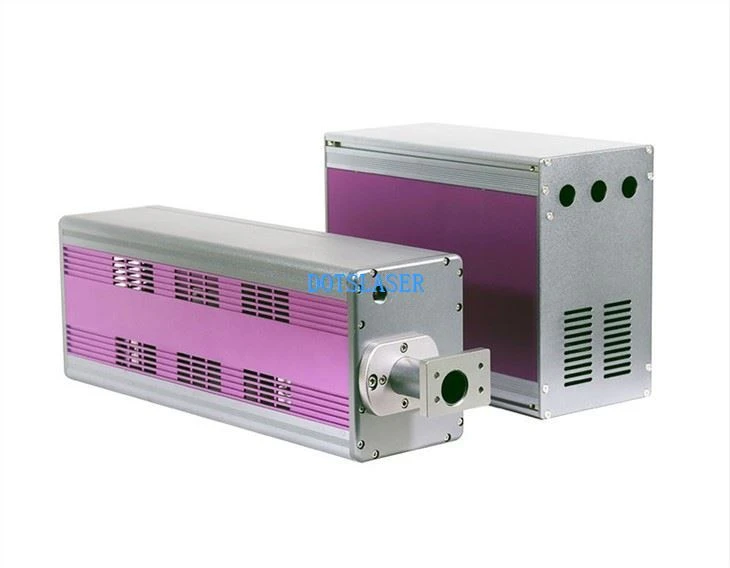

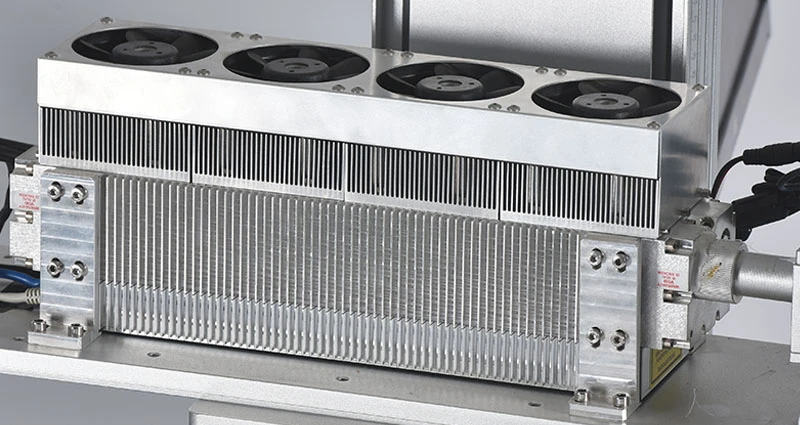

Cov khoom tseem ceeb ntawm cov qauv no yog tag nrho cov tuaj txawv teb chaws, xws li Co2 RF raj, high-speed scanning galvanometers, thiab lwm yam. Guaranteed high marking raug thiab ceev, Nws yog ruaj khov heev thiab tuaj yeem ua haujlwm tsis tu ncua ntev. Nws kuj tseem tuaj yeem sib sau ua ke nrog Tuam Tshoj RF raj thiab kev kub ceev scanning lub taub hau, lawv kuj zoo li ruaj khov
raws li imported Cheebtsam, tab sis nws yog economic ntau.
Lub hauv paus ntsiab lus ntawm 30W CO2laser marking tshuab.
Siv lub teeb ci infrared, 10.64μm roj laser qhov chaw, cov pa roj carbon dioxide tau them rau hauv lub tshuab hluav taws xob siab kom ua kom muaj hluav taws xob tawm, kom cov roj molecules tso laser beam, tom qab lub zog laser yog amplified, lub laser beam rau cov khoom. kev ua haujlwm yog tsim. Qhov saum npoo ntawm lub cev ua tiav yog vaporized kom ua tiav lub hom phiaj ntawm kev kos.
cov khoom siv thev naus laus zis
Vim li cas thiaj xaiv 30W CO2laser npav tshuab los ntawm DOTSLASER?
Cov kab kos cim zoo heev, yam tsawg kawg nkaus tuaj yeem yog 0.15mm:
Sib dhos nrog RF tube los yog Tuam Tshoj sab saum toj hom RF raj, nws yog ruaj khov thiab txhim khu kev qha, siab repeatability thiab positioning
raug, tsis tu ncua qhuas los ntawm cov neeg siv khoom.
Lub neej ntev:
Lub neej ntawm ntau lub Hoobkas lub raj laser tsuas yog 4,000 teev nyob ib puag ncig, tab sis lub neej ntawm DOTSLASER's tuaj yeem yog 40,000 teev, ntau dua.Nws tuaj yeem khiav ntawm lub peev xwm 24 teev ib day.It tuaj yeem ua tau raws li cov kev xav tau ntawm cov lag luam rau kev tsim khoom loj thiab kev ua haujlwm.
Muaj feem xyuam ntawm 30W CO2laser marking tshuab
Ntau yam ntawm daim ntawv thov teb:qhov siab tshaj plaws kev ceev ntawm 7000mm / s txhim kho kev ua haujlwm zoo; Nws tuaj yeem yooj yim ua ke ntawm cov kab ntau lawm lossis ua haujlwm ntawm nws tus kheej; haum rau kos, engraving thiab txiav rau feem ntau cov ntaub ntawv uas tsis yog-hlau;
Flexible thiab yooj yim operating system:Cov txheej txheem ua haujlwm yog tus neeg siv khoom zoo, thiab cov khoom siv ruaj khov; cov software tswj tshwj xeeb yog sib xws nrog AutoCAD, CorelDRAW, Photoshop thiab lwm yam software tso zis; Nws tuaj yeem paub qhov kev npaj tsis siv neeg ntawm cov ntawv cim, cov duab nraaj, barcodes, QR cov lej, thiab cov lej tsis siv neeg nce ntxiv.
Kev ua tau zoo ntawm cov khoom raug nqi:imported RF lasers yog siv, nrog zoo nqaj kev ua tau zoo, ntev kev pab cuam lub neej, ruaj khov kev kawm thiab txij nkawm-dawb;
Kev pab cuam sai, kev siv tsis muaj kev txhawj xeeb; yooj yim thiab siv-phooj ywg tsim, txuag cov nqi kawm siab; Cov cuab yeej ua tiav kev ua tau zoo yog ruaj khov, nrog 24- teev ua haujlwm tsis tu ncua;
Muaj feem xyuam kev lag luam ntawm 30W CO2laser marking tshuab

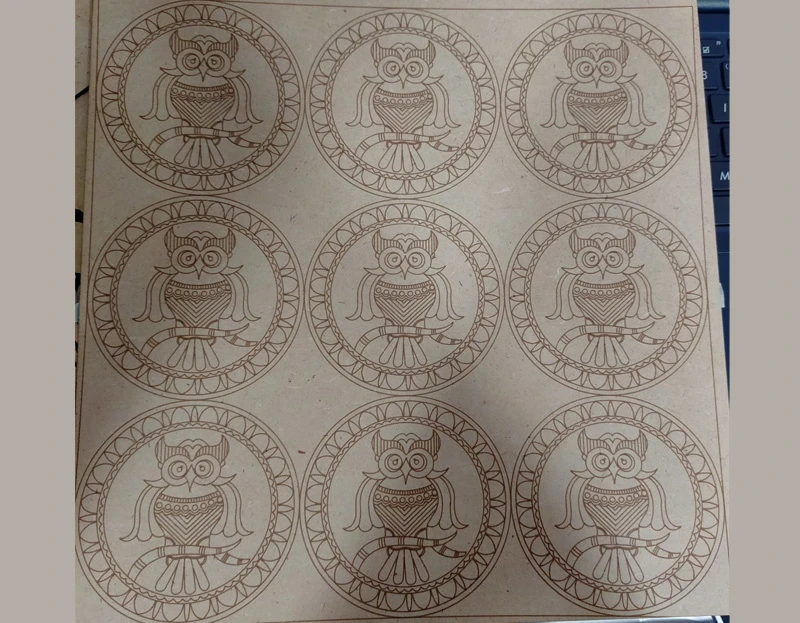

Nws tuaj yeem kos ntau yam khoom tsis yog xim hlau thiab qee cov khoom siv hlau, xws li cov khoom siv xyoob, ntoo, acrylic, tawv, iav, architectural ceramics, roj hmab thiab lwm yam. Siv dav hauv kev ntim tshuaj, ntim khoom noj, ntim dej haus, plastics, textiles, tawv, ntoo, handicrafts, electronics Cheebtsam, kev sib txuas lus, watches, tsom iav, luam ntawv thiab lwm yam lag luam.
Nws yog tsim rau kev kos, engraving, hollowing thiab txiav ntawm ntau yam ntaub ntawv uas tsis yog-hlau thiab cov khoom. Nws tuaj yeem kos, kos, hollow tawm, thiab txiav ntau yam cim, cim, duab, duab, barcodes, serial tooj, thiab lwm yam.
Cov khoom sib piv - cov ntsiab lus txiav txim siab zoo
-

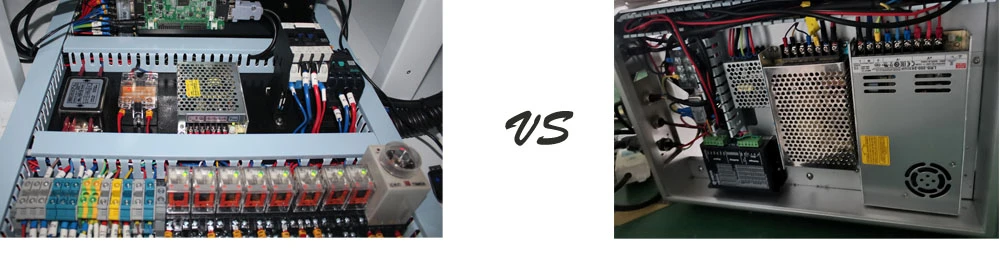

Hlau kev twb kev txuas
DOTSLASER:Sab hauv layout yog tsim nyog Cov neeg sib tw:Internal layout
Cov kab hluav taws xob zoo huv si thiab zoo, thiab cov khoom sib txuas muaj lub tes tsho xaim tsis zoo, tsis muaj lub tes tsho los qhia yuav ua li cas txuas nws.
1. Kev ruaj ntseg zoo thiab kev pab cuam tom qab muag
Lub sijhawm lav ntawm cov cuab yeej yuav tsum yog 12 lub hlis txij li cov khoom siv los ntawm cov neeg siv khoom, kev teeb tsa thiab kev debugging tiav thiab cov khoom siv tau txais los ntawm tus neeg thov. Dotslaser muab qhov tseem ceeb rau kev ua haujlwm tom qab muag ntawm cov khoom, thaum cov khoom xa tuaj rau tus neeg siv, lub tuam txhab tam sim ntawd tsim cov ntaub ntawv cov neeg siv khoom tom qab muag, thiab tsis tu ncua taug qab tus neeg siv khoom siv cov xwm txheej, daws thiab teb tag nrho cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom siv tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem ua cov lus teb sai hauv 2 teev. Yog tias kev taw qhia hauv xov tooj yog qhov nyuaj rau kev daws teeb meem, peb lub tuam txhab cov neeg ua haujlwm txawj tuaj yeem tuaj txog ntawm qhov chaw neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Kev teeb tsa thiab kev debugging
Ua ntej kev teeb tsa lub tshuab, peb lub Hoobkas yuav muab cov ntaub ntawv tsim nyog rau koj, qhov xav tau zoo 2 lub lis piam xa tuaj rau koj nyob ntawd, cov engineers ntawm Dotslaser yuav tuaj txog ntawm koj qhov chaw thiab tshuaj xyuas lub tshuab dua. Xyuas kom meej tag nrho cov xwm txheej ua tau raws li qhov yuav tsum tau ua ntawm installation thiab commissioning, cov cuab yeej yuav thauj mus rau lub sijhawm. Lub sijhawm teeb tsa thiab kev ua haujlwm ntawm cov cuab yeej siv yog li tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv lub tshuab, thiab lub kaw lus ua haujlwm tom qab qhov kev pabcuam. Tus kws ua haujlwm yuav cob qhia cov neeg ua haujlwm tsim nyog ntawm cov txheej txheem kev saib xyuas yooj yim thiab cov yam ntxwv ntawm cov khoom siv hauv ob hnub tom ntej
3. Kev pab txhawb nqa
Yog tias muaj teeb meem nrog ib feem ntawm lub cev thaum lub sijhawm lav, Dotslaser cov kws tshaj lij pabcuam kev pabcuam tau npaj los muab kev pabcuam hauv xovtooj lossis pib pabcuam ntawm qhov chaw, yog tias lub tshuab muaj teeb meem thaum lub sijhawm lav, thov hu rau peb ncaj qha !
