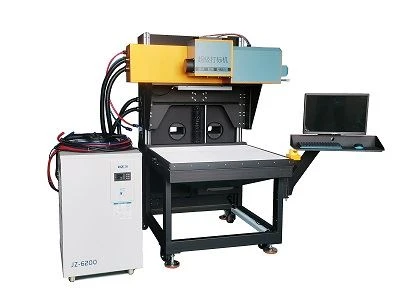

CO2 Laser Engraving Rau Cov Khoom Muag

CO2 laser engraving thev naus laus zis tau hloov kho cov khau kev lag luam los ntawm kev muab cov nqi tsim nyog thiab muaj txiaj ntsig ntawm kev kho cov khau. Lub tshuab no siv lub tshuab hluav taws xob muaj zog laser los hlawv lossis kos cov qauv tsim rau ntau yam khau xws li tawv, roj hmab, thiab cov ntaub hluavtaws. Lub CO2 laser engraving tshuab muaj qib siab tshaj ntawm qhov tseeb thiab qhov tseeb, tso cai rau kev tsim cov qauv tsim kom ntxaws thiab nyuaj uas yav tas los tsis tuaj yeem ua tiav. Nws tseem ua kom cov txheej txheem ntau lawm, txo cov sijhawm tsim khoom thiab cov nqi thaum txhim kho cov khoom sib txawv thiab tus kheej.

Xa kev nug

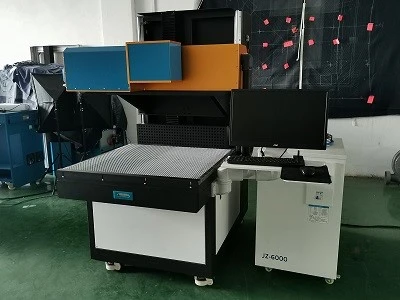

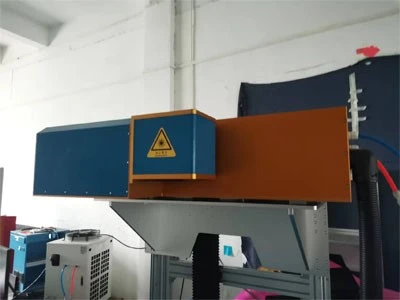

Khoom Taw qhia

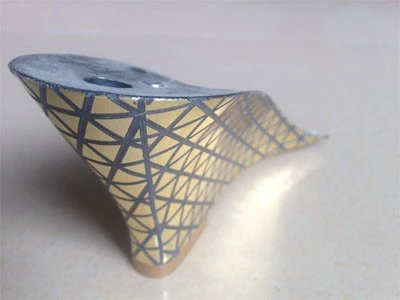

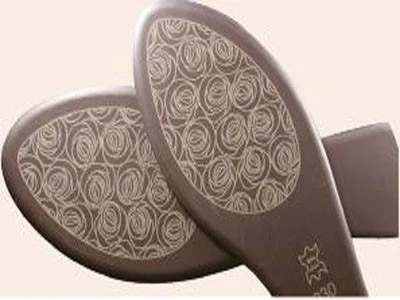

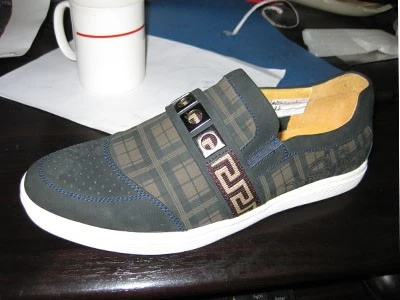

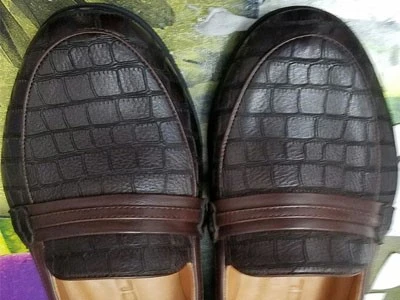

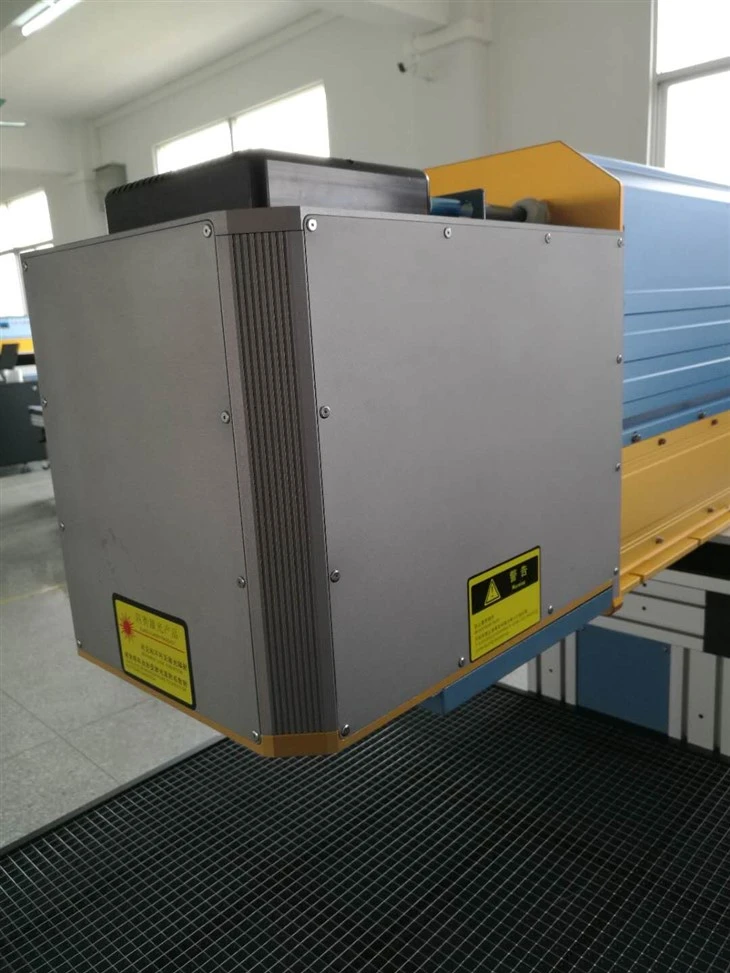

CO₂laser engraving ntawm cov khoom khau

Khoom Description

CO₂laser engraving thev naus laus zis tau hloov kho cov khau kev lag luam los ntawm kev muab tus nqi zoo thiab muaj txiaj ntsig ntawm kev kho cov khau. Lub tshuab no siv lub tshuab hluav taws xob muaj zog laser los hlawv lossis kos cov qauv tsim rau ntau yam khau xws li tawv, roj hmab, thiab cov ntaub hluavtaws. The CO₂laser engraving tshuab muaj qib siab tshaj ntawm qhov tseeb thiab qhov tseeb, tso cai rau kev tsim cov ncauj lus kom ntxaws thiab nyuaj uas yav tas los tsis tuaj yeem ua tiav. Nws tseem ua kom cov txheej txheem ntau lawm, txo cov sijhawm tsim khoom thiab cov nqi thaum txhim kho cov khoom sib txawv thiab tus kheej.

tshuab nta

01/

Lub cim software muaj zog, nrog cov duab kos duab nplua nuj thiab cov duab kho kom raug, ntawm cov kev txheeb xyuas ceev tau zoo heev txhim kho cov cim kev ua haujlwm.

02/

Lub zog loj laser, siab txiav efficiency, tshwj xeeb tshaj yog tsim rau kev txiav cov tawv tuab, txiav efficiency dua li tib hom khoom ntawm kev ua lag luam ntau dua ob zaug sai dua.

03/

Tshuab qauv txiv neej-tshuab tsim, xws li: qhov tsim nyog qhov siab ntawm lub workbench, txo tus neeg teb xov tooj lub sij hawm ua hauj lwm qaug zog, thiab lwm yam.

04/

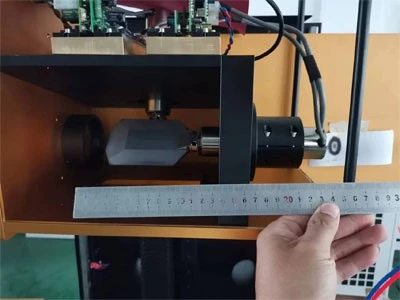

Fast focusing, digital qhia qhov siab ntawm lub ntsiab beam, high-precision digital zaub focal ntev

05/

Lub laser hom yog ib hom, ib leeg mem tes lub zog thiab lub zog yog siab, thermal nyhuv ntawm cov khoom me me, thiab nws tsis yooj yim rau hlawv ntawm ntug.

06/

Lub teeb liab saib ua ntej kom yooj yim sib dhos ntawm laser npav lossis txiav txoj haujlwm

Parameter

Laser raj tsis muaj	Max tso zis muaj peev xwm	250W
	Nominal Peak Pov	Ntau tshaj lossis sib npaug rau 450W
	Hom Zoo	M²Tsawg dua los yog sib npaug rau 1.2
	Duty Cycle Limit	Tsawg dua los yog sib npaug li 70%
	Hom Laser	CO₂
	Laser wavelength	10.6μm
Kos npe kev ua tau zoo	Hom ntawv cim	Qauv, Lo lus, Barcode, QRcode, Hnub tim, Serial Number
	Kos cim hom	Qauv thiab cov lus ntawm vectordiagram & bitmap
	Kos thaj tsam	400X400-700X700(mmXmm) Kho tau
	Kev Ntsuas Qhov tob	0-5mm (Raws li cov ntaub ntawv)
	Marking Ceev	<7000mm/s
	Min Kab Dav	0.3mm (Raws li cov ntaub ntawv)
	Min Cim	0.4 hli
	Rov ua qhov tseeb qhov tseeb	0.01 hli
Tshuab ntaub ntawv	Tag Nrho Lub Zog	6 KW
	Fais fab mov	AC220V / 50Hz / 30A
	Txoj kev txias	Qhov ntsuas kub tsis tu ncua dej txias chav tsev
	Ua haujlwm kub	15-30 degree
	Ua haujlwm av noo	<75 No condensation
	Ua haujlwm ib puag ncig	Tsis muaj plua plav, tsis muaj kev vibration
	Tshuab Packing Size	1010 * 1340 * 1740 hli
	Tswj txee packing loj	1060 * 660 * 1100 hli
	Chiller packing loj	660 * 760 * 1080 hli

Siv tau kev lag luam:

Peb Axis Dynamic CO₂Laser Marking Tshuab yog dav haum rau cov kev lag luam, xws li Thaum tshav kub kub hloov zaj duab xis (paillette, TPU cov ntaub ntawv, Reflective hloov zaj duab xis, thiab lwm yam), tawv, ntoo thawv, ntawv card, khaub ncaws denim, illuminator, txawb kev sib txuas lus, pwm, precision machinery, IT Digital plhaub, Tub rog aviation Cheebtsam, handicrafts, Advertisement kho kom zoo nkauj, thiab lwm yam.
