Khoom Description

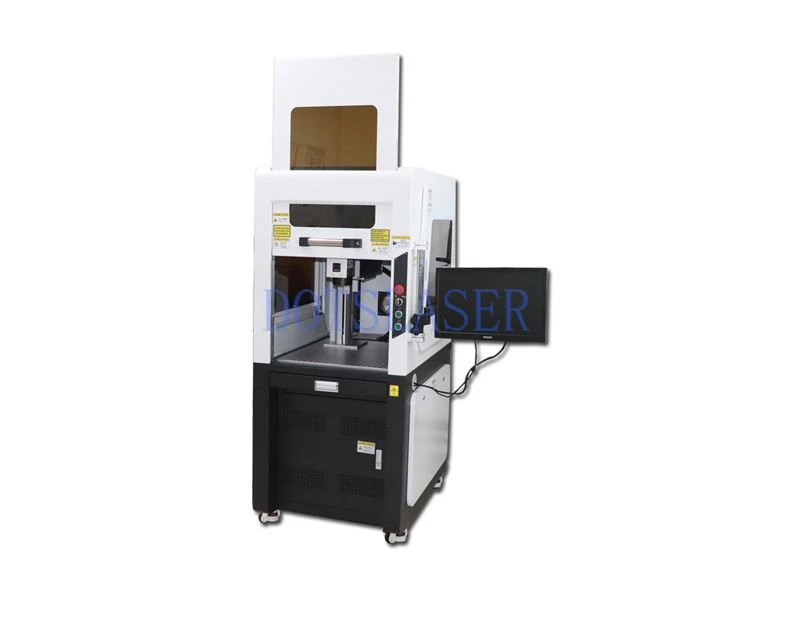

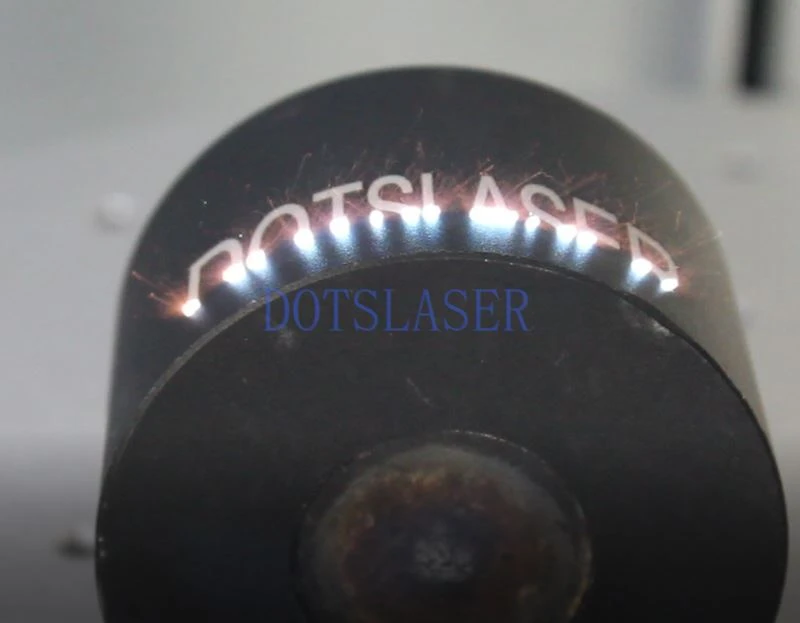

3D Fiber Laser Marker yog ib yam khoom tsim los ntawm peb. Lub cim trajectory yog cia li ntes, nrog cov neeg siab thiab ceev ceev. Peb cov khoom muaj qhov zoo ntawm kev ua haujlwm yooj yim, tsis muaj phaj ua thiab tsis muaj khoom siv, txuag hluav taws xob thiab txuag hluav taws xob, thiab tuaj yeem ua haujlwm tsis tu ncua rau 24 teev nrog kev ua haujlwm siab. 3D Fiber Laser Marker yog dav siv rau engraving ntawm hlau qhov chaw, tshwj xeeb tshaj yog haum rau cov khoom nto sib txawv, xws li cones, cylinders, thiab nto hlau qhov chaw.
Dab tsi yog qhov zoo ntawm 3D fiber ntau laser marker?

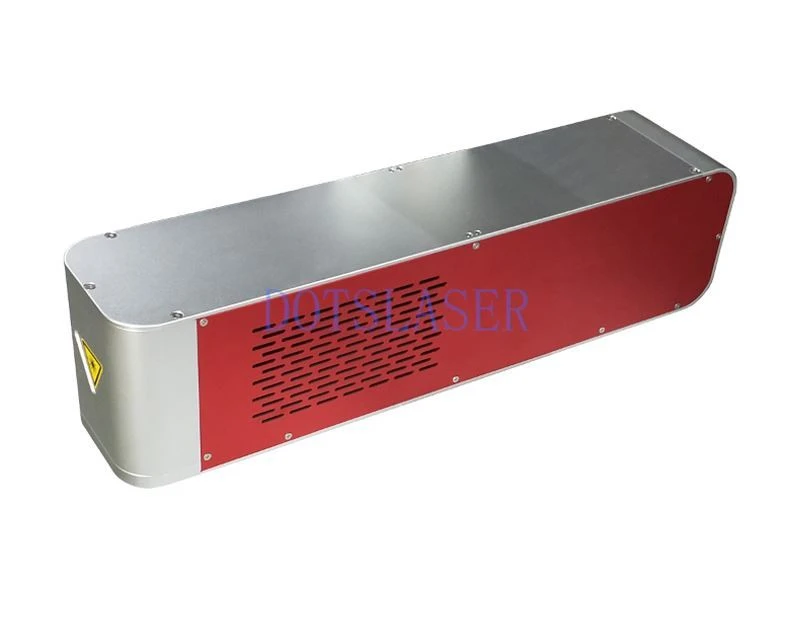

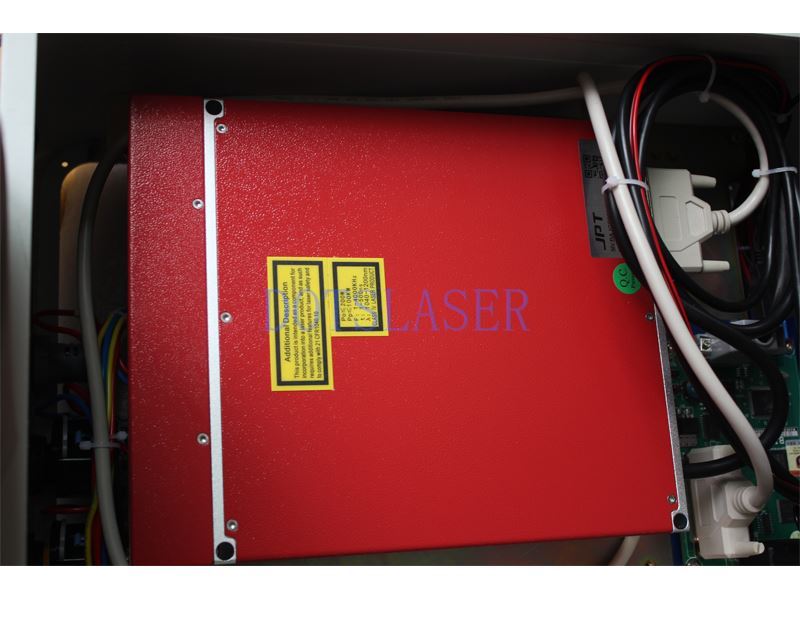

1. Siv fiber ntau laser qhov, lub neej ntev
2.Digital 3D scanner lub taub hau uas hloov kho rau kev kub ceev kev cim thiab sib sib zog nqus engraving
3. 3D system uas ua rau tib neeg tuaj yeem ua haujlwm ntawm qhov chaw sib txawv, thiab txhua qhov chaw

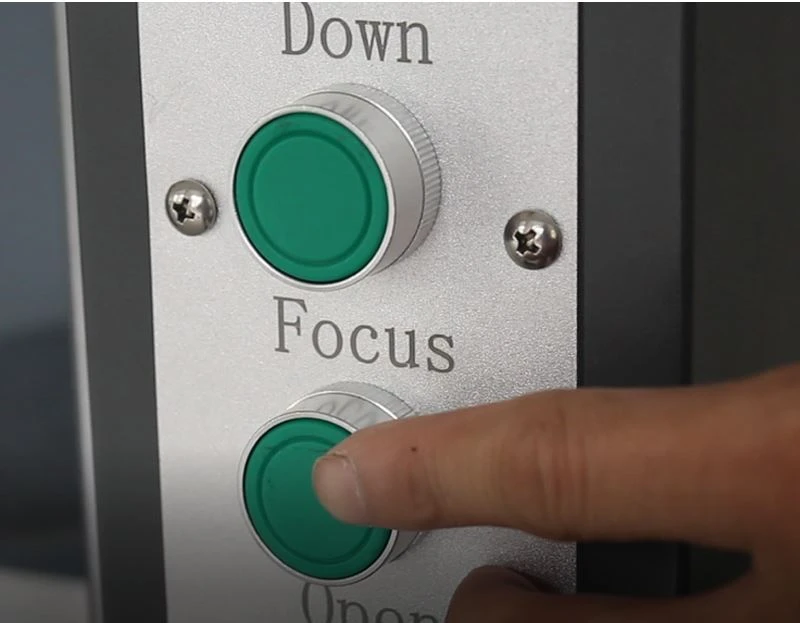

4. Autofocus system - yooj yim rau kev nrhiav foucs, zoo dua rau cov neeg ua haujlwm ua haujlwm

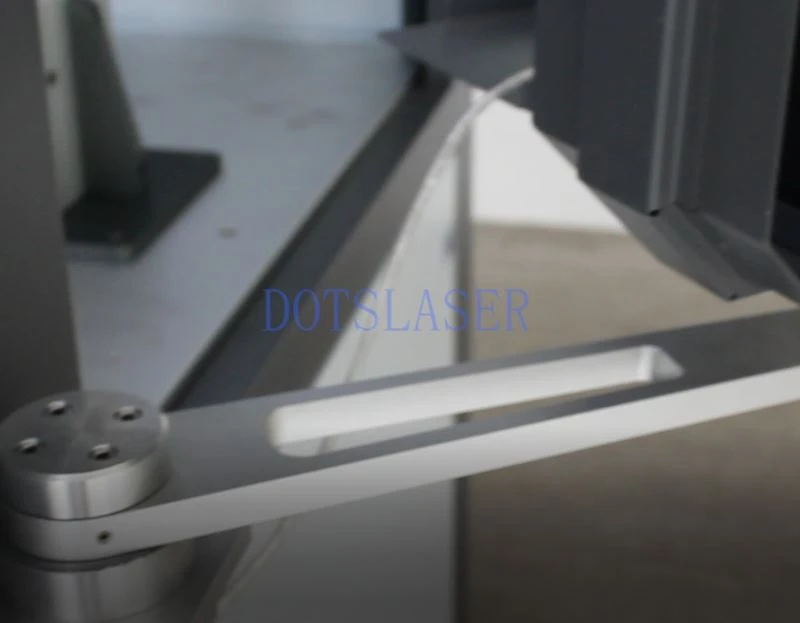

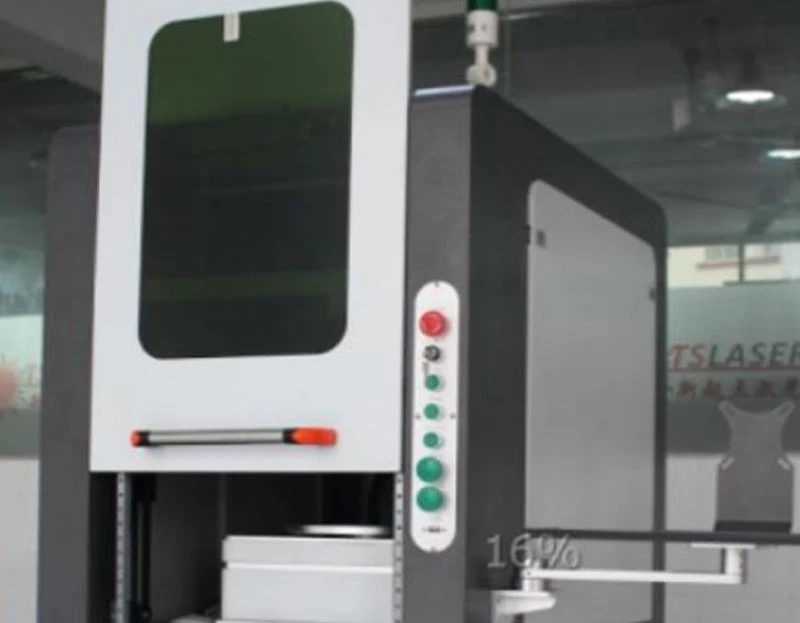

5. Nws pib qhov rooj kaw lus, Kev tiv thaiv tag nrho ntawm cov neeg ua haujlwm kev nyab xeeb, kev ua haujlwm yooj yim

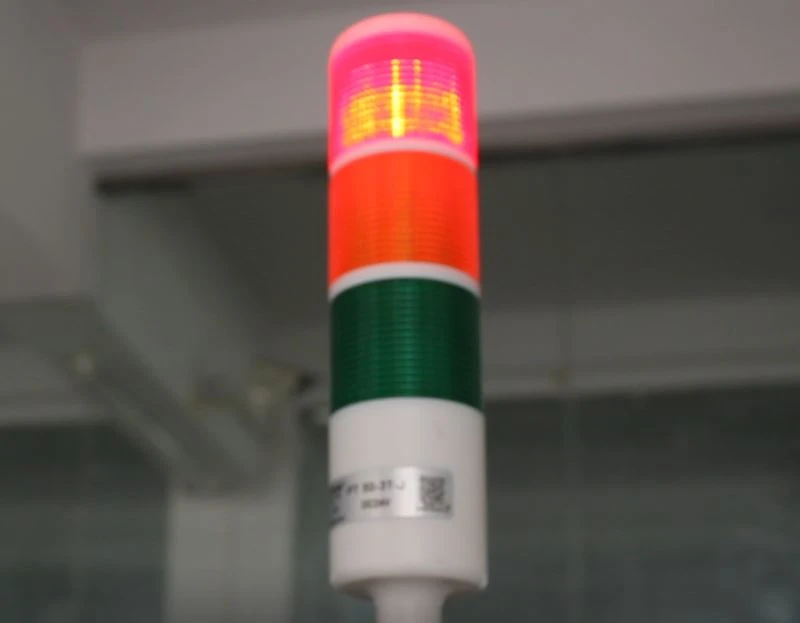

6. 3 xim lub teeb, kuaj xyuas lub tshuab siv raws li txoj cai, ua haujlwm raws sijhawm thiab tswj cov neeg ua haujlwm nyab xeeb txhua lub sijhawm

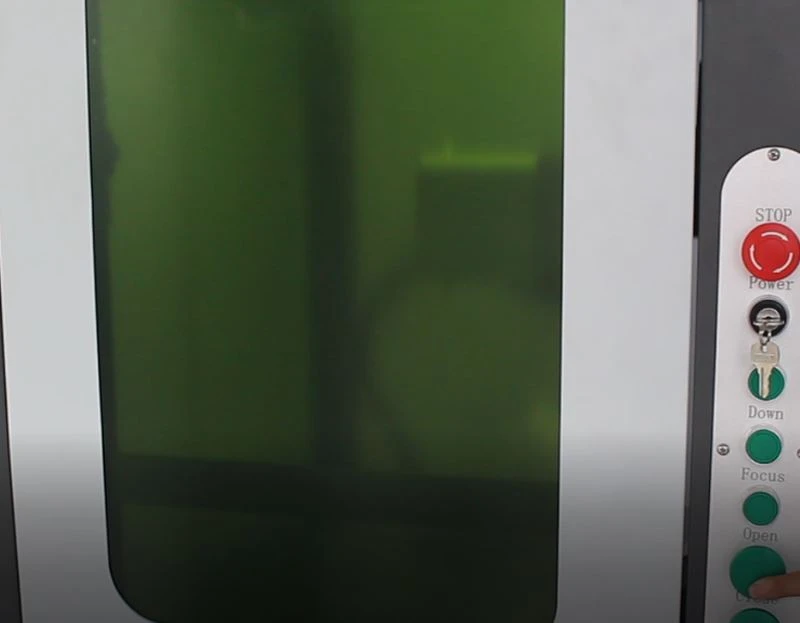

7. Class 1 laser radiation iav, tiv thaiv lub laser tso zis thiab tib neeg txoj kev nyab xeeb
8. Multi-function zaub kov, Txuag qhov chaw, yooj yim rau cov neeg ua haujlwm ua haujlwm thiab siv
Parameter
|
Qauv |
DS-LM20-3D/DS-LM30-3D/DS-LM50-3D/DS-LM60-3D/DS-LM100-3D |
|
Laser zog |
20W/30W/50W/60W/100W |
|
mem tesRov ua duaNtau zaus |
30 kHz-1000kHz |
|
Beam quality (㎡ |
<1.6 |
|
Qhov tob ntawm engraving (nyob ntawmntawm cov khoom) |
<5mm ib |
|
Kev siv fais fab |
Tsawg dua los yog sib npaug rau 1200W |
|
Kev khiav haujlwmhluav taws xob |
Ib leegTheem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Ua haujlwmcheeb tsam |
1 |
|
Repetition precision |
± 0.003mm |
|
Maxkos duabceev |
Tsawg dua los yog sib npaug10000 hli/s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kos npetxoj kev |
nyob ruaj ruajKos npe, Flying Marking, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
TxiasQhov system |
CuaTxias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawmNtev |
3m (5monal) |
|
Ua hauj lwm kub ntau yam |
5-38 degree |
|
Ua haujlwmCov av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
146kg ua |
|
Dimension ntawm MainLub cev (L × W × H) |
8 5mm x115mm × 185 hli |

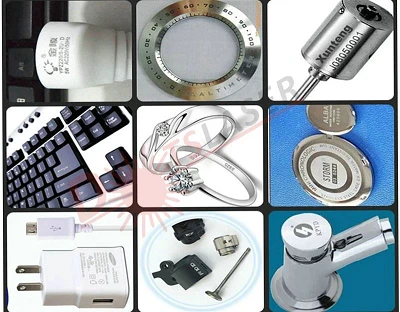

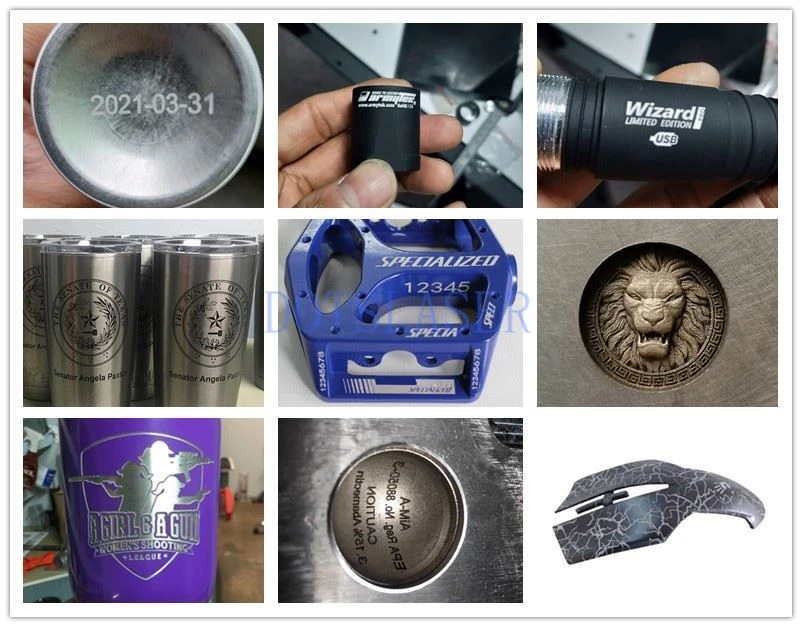

Cov qauv
Kev xa khoom
FAQ
Q1: Kuv tsis paub dab tsi txog lub tshuab no, hom laser twg kuv yuav tsum coj?
Q2: Thaum kuv tau txais lub tshuab no, tab sis kuv tsis paub yuav siv nws li cas. Kuv yuav ua li cas?
Q3: Dab tsi yog consumables ntawm laser npav tshuab?
Q4: Dab tsi yog pob, nws puas yuav tiv thaiv cov khoom?
