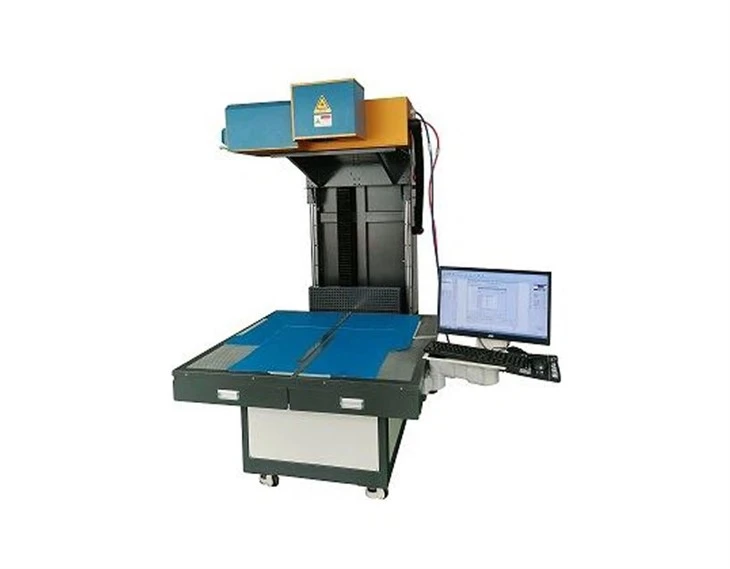

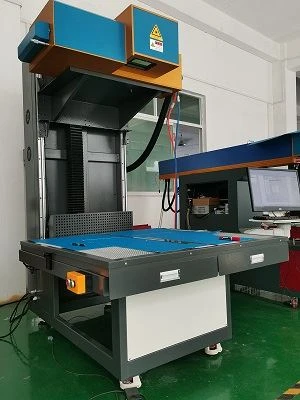

Laser Engraving Tshuab Rau Roj Hmab Khoom
Laser engraving tshuab rau cov khoom siv roj hmab
Khoom Description
Nrog laser engraving tshuab, customization yog ib qho yooj yim, ceev, thiab meej. Cov txheej txheem ntawm engraving yog ua los ntawm laser beams uas subtly vaporize rau sab saum toj txheej ntawm roj hmab yam tsis muaj kev puas tsuaj rau cov khoom. Cov txiaj ntsig yog cov qauv huv thiab ntse uas yuav tsis ploj lossis tev tawm. Raws li cov neeg siv khoom xav tau cov khoom tshwj xeeb thiab tus kheej, cov tshuab laser engraving rau cov khoom siv roj hmab muab cov kev daws teeb meem yooj yim kom tau raws li cov kev xav tau no. Los ntawm kev ntim khoom mus rau kev tshaj tawm, lub tshuab laser engraver tuaj yeem txhim kho qhov zoo ntawm cov khoom siv roj hmab, yog li ua rau nws muaj nqis.
tshuab nta

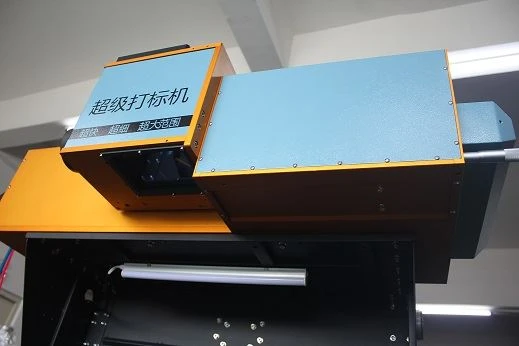

Peb qhov kev tsom xam qhov system
CO2marking tshuab nruab nrog loj ua hauj lwm cheeb tsam thiab finer optical chaw txoj kab uas hla.Qhov siab tshaj plaws marking cheeb tsam ntawm lub customizedsystem yuav ncav cuag 2mX 2m.
Siab raug
Nws muaj qhov me me tsom qhov chaw thiab lub zog ntau dua uas tsim nyog rau kev txiav, xuas nrig ntaus thiab kos duab.
Yooj yim rau kev khiav lag luam
Lub Fully kaw free-maintenance laser optical system yog npaj siv tom qab installation yam tsis muaj kev hloov kho.
High speed marking / txiav kev ua tau zoo
Xyuas kom tus ntse txiav ntug. Cov txiaj ntsig ua tiav yog qhov nruab nrab ntau dua, tsis muaj siab dhau lossis qis zog txhaj rau hauv ib feem.
Muaj kev nyab xeeb rau kev siv lub tshuab
Kev tswj hwm kev tswj hwm nruj nruj yog siv tau rau ntau qhov chaw ntawm qhov kub thiab txias kom ntseeg tau tias kev ua haujlwm ruaj khov ntawm lub laser npav system.
Advanced software
Daim ntawv thov hauv qab Windows interface tuaj yeem sib xws nrog cov ntaub ntawv tawm tswv yim ntawm AutoCAD, CorelDraw thiab lwm yam software, xws li PLT, DXF, thiab lwm yam.
Parameter
|
Laser raj tsis muaj |
Max tso zis muaj peev xwm | 250W |
| Nominal Peak Pov | Ntau tshaj lossis sib npaug rau 450W | |
| Hom Zoo | M2Tsawg dua los yog sib npaug rau 1.2 | |
| Duty Cycle Limit | Tsawg dua los yog sib npaug li 70% | |
| Hom Laser | CO2 | |
| Laser wavelength | 10.6μm | |
|
Kos npe kev ua tau zoo |
Hom ntawv cim |
Qauv, Lo lus, Barcode, QRcode, Hnub tim, Serial Number |
| Kos cim hom | Qauv thiab cov lus ntawm vectordiagram & bitmap | |
| Kos thaj tsam | 400X400-700X700(mmXmm) Kho tau | |
| Kev Ntsuas Qhov tob | 0-5mm (Raws li cov ntaub ntawv) | |
| Marking Ceev | <7000mm/s | |
| Min Kab Dav | 0.3mm(Raws li cov ntaub ntawv) | |
| Min Cim | 0.4 hli | |
| Rov ua qhov tseeb qhov tseeb | 0.01 hli | |
| Tshuab ntaub ntawv | Tag Nrho Lub Zog | 6 KW |
| Fais fab mov | AC220V / 50Hz / 30A | |
| Txoj kev txias | Qhov ntsuas kub tsis tu ncua dej txias chav tsev | |
| Ua haujlwm kub | 15-30 degree | |
| Ua haujlwm av noo | <75 No condensation | |
| Ua haujlwm ib puag ncig | Tsis muaj plua plav, tsis muaj kev vibration | |
| Tshuab Packing Size | 1010 * 1340 * 1740 hli | |
| Tswj txee packing loj | 1060 * 660 * 1100 hli | |
| Chiller packing loj | 660 * 760 * 1080 hli |
Peb Axis Dynamic CO2Laser Marking Tshuab yog dav haum rau cov kev lag luam, xws li Thaum tshav kub kub hloov zaj duab xis (paillette, TPU cov ntaub ntawv, Reflective hloov zaj duab xis, thiab lwm yam), tawv, ntoo thawv, ntawv daim ntawv, khaub ncaws denim, illuminator, txawb kev sib txuas lus, pwm, precision machinery, IT Digital plhaub, Tub rog aviation Cheebtsam, handicrafts, Advertisement kho kom zoo nkauj, thiab lwm yam.

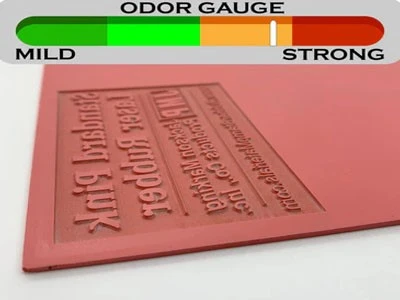

Ntau hom roj hmab uas haum rau laser npav
Laser roj hmab.
Silicone roj hmab.
Ntuj roj hmab.
Roj hmab tsis muaj ntxhiab.
Synthetic roj hmab.
Ua npuas ncauj roj hmab.
Roj resistant laser roj hmab.

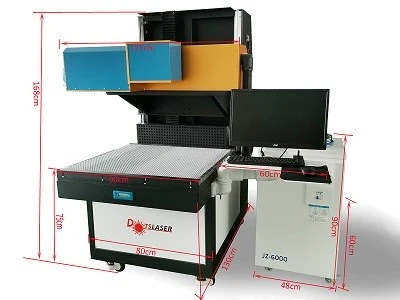

Tshuab qhov loj

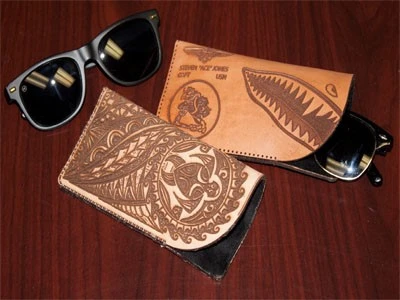

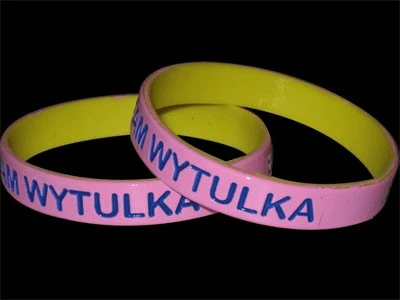

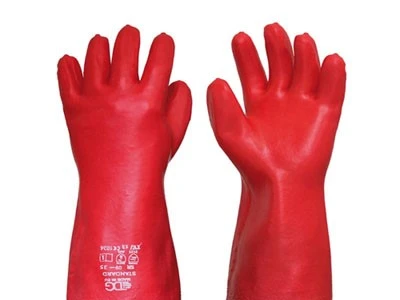

Cov qauvNtawm Laser Marking Tshuab
Shipping thiab pob
Kev tu txhua hnub
● Tom qab ua haujlwm tiav, xyuas kom cov hauv pem teb huv si. Tom qab ntawd ntxuav lub tshuab nrog rau saum npoo ntawm lub tshuab, rooj plaub ntawm qhov kho qhov muag, qhov chaw ntawm lub monitor, lub rooj ua haujlwm, thiab lwm yam.
● Thov tua txhua ntu thiab lub zog loj thaum lawv huv si.
● Tshawb xyuas lub lens tsis tu ncua rau cov plua plav. Thaum nws huv si, siv cov paj rwb wool nrog ntau dua 95% cawv qib kho mob los so clockwise los ntawm qhov chaw ntawm lub lens. Thaum koj xav tau txav lub tshuab kom tsis txhob muaj pob. Txheeb xyuas qhov kev sib txuas ntawm cable raws li daim ntawv teev npe cable.
Daim ntawv thov ntawm Laser Engraving Tshuab rau Roj Hmab
Roj Hmab tau siv rau laser npav. Cov cav tov tuaj yeem siv rau kev kos thiab kos cov khoom siv roj hmab xws li gaskets, seals, siv, o-rings, thiab lwm yam khoom siv hauv tsheb, aviation, thiab kev lag luam.
Cov khoom siv roj hmab tuaj yeem siv rau hauv qhov kub thiab txias thiab hnyav, dab tsi ntxiv, nws tseem siv tau rau qhov kub thiab txias, tshuaj lom neeg, thiab kev puas tsuaj. Laser engraving tshuab muab cov tshuaj zoo meej rau qhov kev xav tau no. Lawv tsim cov cim meej thiab ruaj khov uas tiv taus hnav thiab tsim kua muag, ua rau lawv zoo tagnrho rau kev siv hauv chaw tsim khoom.
FAQ
Q1: Lub pob zoo li cas?
Q2: Lub pob puas puas thaum thauj?
Q3: Yuav ua li cas rau nruab thiab khiav lub tshuab?
Q4: Kuv tuaj yeem ua li cas yog tias lub tshuab ua yuam kev?
