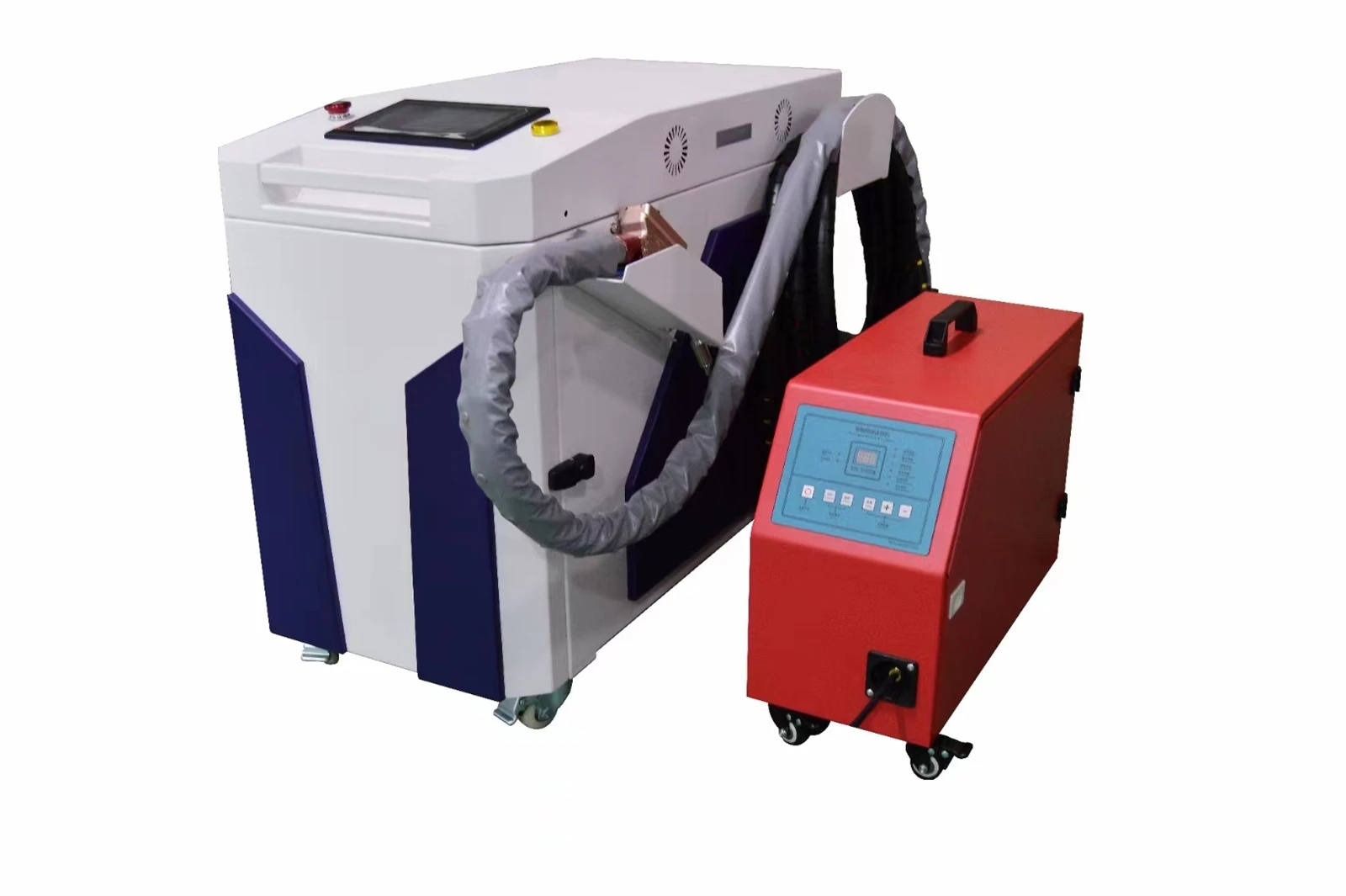

1000W Fiber Laser Vuam Tshuab
1000W Fiber Laser Vuam Tshuab
Khoom Description
Lub 1000W Fiber Laser Vuam Tshuab yog ib qho kev txiav-ntug vuam uas muab cov kev daws teeb meem zoo thiab meej rau ntau yam kev siv hauv kev lag luam. Nrog nws lub zog tshwj xeeb, ceev, thiab raug, lub tshuab hluav taws xob hauv lub xeev no zoo tagnrho rau kev lag luam xws li aerospace, tsheb, nkoj tsim, hluav taws xob, tshuab hnyav, thiab ntau lwm yam uas yuav tsum tau muaj zog, ruaj, thiab zoo welds. .
Ntsiab nta
High-Speed Vuam
Lub 1000W Fiber Laser Vuam Tshuab muaj kev vuam ceev ceev, ua kom muaj peev xwm nce thiab txo cov sij hawm vuam piv rau cov txheej txheem vuam.
Top-Quality Welds
Lub tshuab no muab cov vuam vuam zoo nrog qhov sib txawv me me thiab cov txiaj ntsig zoo ib yam, ua kom muaj kev vam meej thiab txhim khu kev koom ua ke ntawm cov khoom.
Muaj peev xwm nkag mus tob
Lub 1000W fiber ntau laser muaj peev xwm ua tau qhov sib sib zog nqus welds uas ua rau muaj kev sib txuas ruaj khov thiab kav ntev.
Saj zawg zog txheej txheem tswj
Lub tshuab tus neeg siv-phooj ywg tswj interface tso cai rau cov tswv lag luam kom yooj yim kho thiab kho cov teeb meem laser kom haum rau cov kev xav tau tshwj xeeb rau cov khoom siv sib txawv thiab kev siv.
Tau tshaj ntau yam khoom siv
Lub 1000W Fiber Laser Vuam Tshuab tuaj yeem tswj tau ntau yam hlau, xws li stainless hlau, carbon hlau, txhuas, tooj liab alloys, thiab lwm yam.
Txhim khu kev ruaj ntseg ntsuas
Lub tshuab suav nrog kev tiv thaiv cov ntaub thaiv npog, kev sib cuam tshuam, thiab cov yam ntxwv kev nyab xeeb tsis siv neeg kom txo qis kev pheej hmoo rau cov neeg ua haujlwm thaum lub sijhawm vuam
Daim ntawv thov
Lub 1000W Fiber Laser Vuam Tshuab yog ib qho zoo heev .efficient, meej tshuab nrog ntau yam vuam muaj peev xwm. Qhov kev ua haujlwm siab tshaj no tso cai rau koj los txhim kho koj cov txheej txheem vuam, kom ntseeg tau qhov zoo ntawm cov vuam zoo thiab cov qauv kev ncaj ncees rau koj cov haujlwm thaum tau txais txiaj ntsig los ntawm kev txhim kho kev tsim khoom thiab txo cov nqi.
Aerospace
Precision vuam ntawm aircraft Cheebtsam, xws li cav qhov chaw, airframes, thiab tsaws iav
01
Automotive
Koom nrog cov khoom tseem ceeb ntawm lub tsheb, xws li chassis, lub cev vaj huam sib luag, thiab lub tshuab tso pa tawm
02
Shipbuilding
Sib sau ua ke cov qauv ntawm cov nkoj, xws li hulls, decks, thiab superstructures
03
Electronics
High-precision vuam ntawm cov khoom siv hluav taws xob, Circuit Court boards, thiab connectors
04
Hnyav Machinery
Koom nrog cov txheej txheem tseem ceeb thiab cov khoom siv rau cranes, excavators, bulldozers, thiab lwm yam khoom siv hnyav.
05
Parameters
|
TSIS MUAJ. |
Lub npe |
Parameter |
|
1 |
Tshuab qauv |
Tes tuav fiber ntau laser vuam tshuab |
|
2 |
laser zog |
1000W,1500W,2000W,3000W |
|
3 |
laser wave length |
1070 NIM |
|
4 |
Fiber ntev |
standard 10M / siab tshaj 15M |
|
5 |
ua haujlwm hom |
continuation/modulate |
|
6 |
Vuam ceev ntau yam |
0~ 120 mm/s |
|
7 |
Txias chiller |
Industrial dej chiller |
|
8 |
Kev ua haujlwm ib puag ncig qhov kub thiab txias |
15-35 ° C |
|
9 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
< 70% No condensation |
|
10 |
Vuam thickness pom zoo |
0 5-3mm |
|
11 |
Vuam qhov sib txawv yuav tsum |
Tsawg dua los yog sib npaug rau 0.5mm |
|
12 |
ua haujlwm voltage |
220 V |
Cov kws tshaj lij
Laser qhov chaw tsom kab.
Txoj kab uas hla ntawm lub laser qhov chaw tsom xam yog ib qho tseem ceeb heev parameter uas qhia txog tus tsim kev ua tau zoo ntawm lub laser, thiab chav tsev yog hli (mm), uas txiav txim siab lub hwj chim ceev thiab kev ua ntau yam ntawm lub laser. Lub laser optical tsim yog tsim nyog thiab siab heev, lub zog laser yog concentrated, lub hom phiaj yog qhov tseeb, thiab lub laser qhov chaw txoj kab uas hla yog tswj nyob rau hauv ntau ntawm {{0}}.2mm-1.5mm. Txawm hais tias lub laser tsom txoj kab uas hla tuaj yeem tswj tau hauv 0.2 hli yog qhov kev sim nruj rau lub tshuab hluav taws xob laser
Qhov zaus ntawm laser mem tes.
Qhov zaus ntawm lub laser mem tes qhia txog lub peev xwm ntawm lub laser kom emit pes tsawg pulses hauv ib ob.
Piv txwv 1: hlau vuam. Lub vuam hlau siv lub zog ntawm lub laser, thiab thaum lub zog laser nyob tas li, qhov ntau zaus, qhov me dua lub zog ntawm txhua lub laser, yog li ntawd, peb yuav tsum xyuas kom meej tias lub zog ntawm lub laser yog txaus los yaj cov hlau. .
Piv txwv 2: Vuam tshuab ua los ntawm HGLASER. lub laser mem tes zaus yog adjustable los ntawm 1 mus rau 100Hz, uas muaj peev xwm ua tau raws li qhov tseeb vuam ntawm cov khoom sib txawv thiab cov duab sib txawv ntawm pwm. Cov ntsiab lus vuam yog du thiab zoo nkauj, thiab cov vuam seams yog tiaj tus. Tsis muaj pores, lub zog thiab toughness ntawm weld tsawg kawg yog sib npaug los yog ntau tshaj ntawm lub hauv paus hlau.
Xav txog qhov sib thooj configuration thiab siv
Kev teeb tsa ntawm lub tshuab laser vuam muaj ntau yam. Qhov sib txawv ntawm lub laser vuam tshuab rau ntau lub hom phiaj, xws li pwm vuam tshuab rau vuam pwm, cov hniav nyiaj hniav kub vuam tshuab rau vuam hniav nyiaj hniav kub, thiab galvanometer vuam tshuab thiab fiber ntau kis tau tus mob laser vuam nyob rau hauv lub tshuab vuam tsis siv neeg. Cov cav tov, thiab lwm yam, kev teeb tsa ntawm cov cuab yeej sib txawv, tus nqi yuav txawv.
FAQ
Q:Dab tsi ntawm cov hlau tuaj yeem welding los ntawm 1000W Fiber Laser Vuam Tshuab?
Q: Yuav ua li cas xav txog 1000W Fiber Laser Vuam Tshuab?
