Laser Vuam Tshuab Rau Galvanized kav
Laser Vuam Tshuab Rau Galvanized kav
Khoom Description
Laser vuam tau dhau los ua neeg nyiam hauv kev lag luam xws li tsheb, aerospace, thiab nkoj tsim. Qhov no yog vim nws lub peev xwm los tsim cov khoom zoo thiab meej welds hauv qhov nrawm thiab ua haujlwm tau zoo. Nyob rau hauv xyoo tas los no, laser welding kuj tau siv nyob rau hauv vuam ntawm galvanized kav.Lub laser vuam tshuab yog zoo tagnrho rau vuam nrog precision thiab ceev, txo qhov kev pheej hmoo ntawm kev ua yuam kev. Tsis tas li ntawd, nws txo qis lub sijhawm thiab tus nqi ntawm cov txheej txheem vuam.
Qhov zoo
1. Ceev vuam ceev, 2 ~ 10 lub sij hawm sai dua li ib txwm YAG vuam.
2.Kev khiav hauj lwm yooj yim yuav tsum tsis muaj kev cob qhia.
3.welding seam zoo nkauj du thiab zoo nkauj, tsis xav tau polish, txuag koj lub sijhawm.
4.No deformation los yog vuam caws pliav, ruaj welding ntawm workpiece.
5.Laser vuam muaj tsawg consumables thiab ntev kev pab cuam lub neej.
6.Safer, ntau tus phooj ywg ib puag ncig.

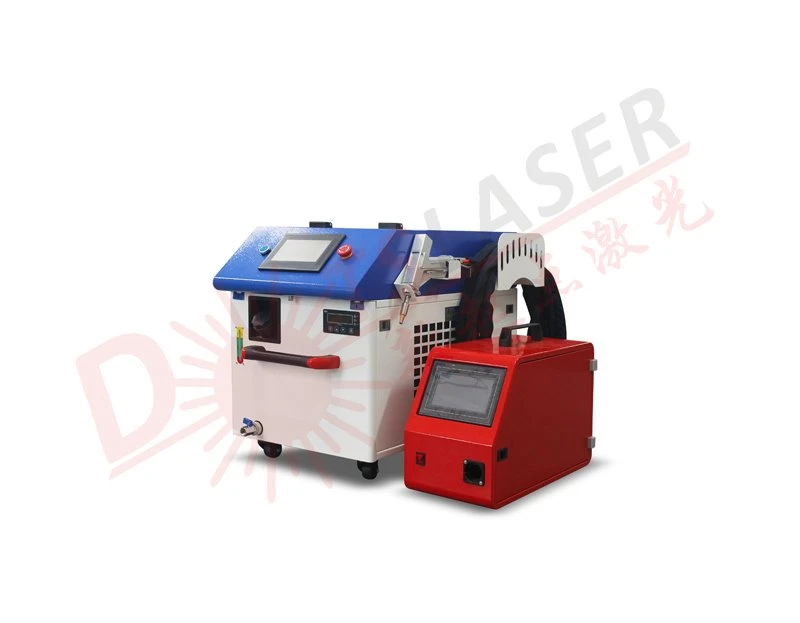

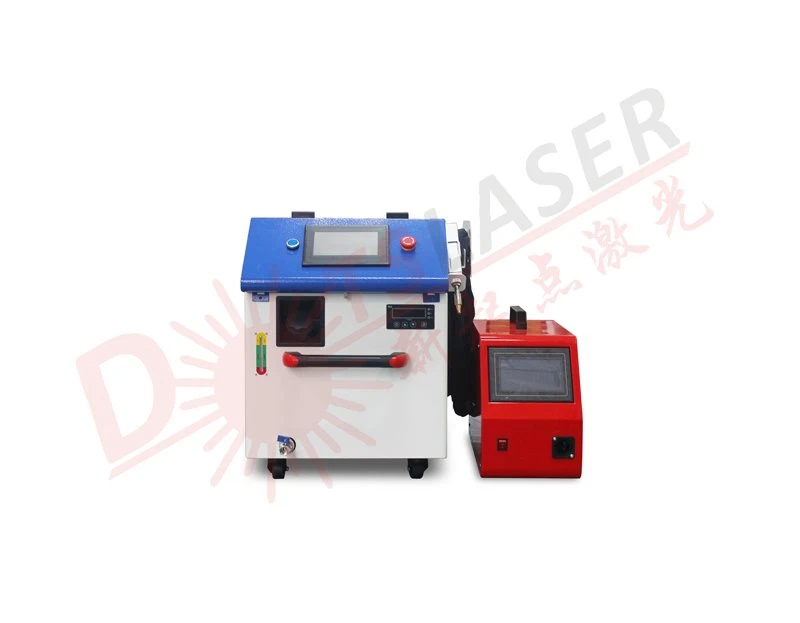

Tshuab duab
Parameters:
|
TSIS MUAJ. |
Lub npe |
Tes tuav fiber ntau laser vuam tshuab |
|
1 |
Tshuab qauv |
DS-LW 1000, DS-LW 1500, DS-LW 2000, DS-LW 3000 |
|
2 |
laser zog |
1000W,1500W,2000W,3000W |
|
3 |
laser wave length |
1070 NIM |
|
4 |
Fiber ntev |
standard 10M / siab tshaj 15M |
|
5 |
ua haujlwm hom |
continuation/modulate |
|
6 |
Vuam ceev ntau yam |
0~ 120 mm/s |
|
7 |
Cua txias chiller |
Industrial dej chiller |
|
8 |
Kev ua haujlwm ib puag ncig qhov kub thiab txias |
15-35 ° C |
|
9 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
< 70% No condensation |
|
10 |
Vuam thickness pom zoo |
0 5-5mm |
|
11 |
Vuam qhov sib txawv yuav tsum |
Tsawg dua los yog sib npaug rau 0.5mm |
|
12 |
Fais fab mov |
220V ± 10% / 50HZ / 30A 380V ± 10% / 50HZ / 30A |
Configurations
|
Lub npe |
Duab |
Chav tsev |
Ntau |
Lus hais |
|
Vuamphom
|
|
teeb |
1 |
SUP |
|
Laser qhov chaw |
|
teeb |
1 |
BWT/MAX |
|
Dej chiller |
|
teeb |
1 |
Muaj chav kawm |
|
Kev tiv thaiv lens |
|
teeb |
1 |
|
|
Tooj lub qhov ncauj |
|
nos |
6 |
Y hom thiab hlau pub tooj liab lub qhov ncauj |
|
Toolbox |
|
teeb |
1 |
suav nrog |
|
tsom iav |
|
teeb |
1 |
Cov tsom iav tiv thaiv hluav taws xob |
|
Hlau feeder |
|
teeb |
1 |
Txuj |
|
Allen ciaj ntswj |
|
teeb |
1 |
suav nrog |
Laser Vuam Tshuab Rau Galvanized kav uas ntawm cov kub-dip galvanized ntau yam, ib daim ntawv alloyed galvanized tau tsim los ntawm post-plating thermal diffusion kev kho mob, uas ntau tshaj ob npaug rau corrosion kuj piv rau cov ntawv kub-dip galvanized zoo tib yam.
Qhov kev kho alloying no tso cai rau kev tshem tawm cov zinc tawg ntawm qhov chaw ntawm txheej; Nws kuj txo cov evaporation ntawm zinc thaum lub sij hawm vuam thiab txo qhov degree ntawm zinc vapor paug ntawm tooj liab electrode ntawm qhov chaw welder, yog li txhim kho lub neej ntawm cov electrode.
uas yog peb cov kev pabcuam

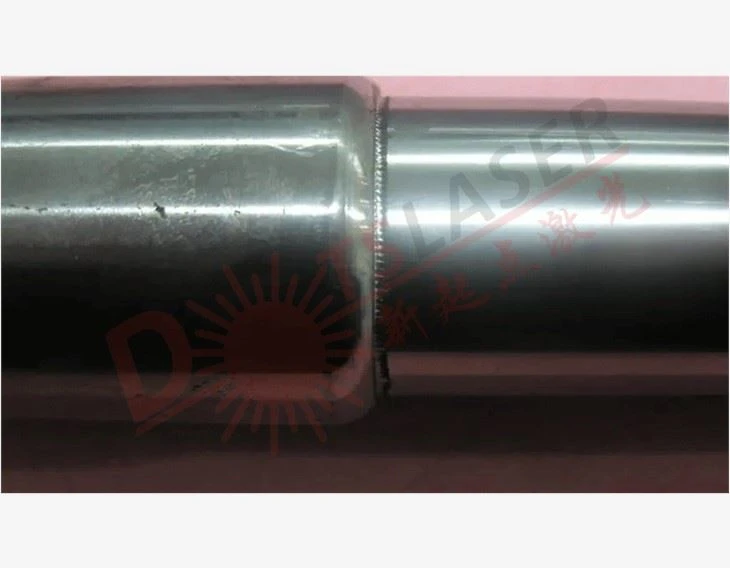

Laser Vuam Tshuab Rau Galvanized kav
Vuam ceev faj rau cov kav dej galvanized:
Ua ntej, txheej galvanized ntawm lub vuam yuav tsum tau polished, thiab txheej galvanized yuav tsum tau ntxuav nrog ib tug tes log los yog sandpaper, los yog lub galvanized txheej yuav tsum tau ntxuav nrog ib tug roj vuam nplaim. Txwv tsis pub, npuas, trachoma, cuav welds, thiab lwm yam yuav raug tsim. Cov yeeb nkab txoj kab uas hla ntau dua 100mm galvanized steel yeeb nkab yuav tsum yog flanged lossis ferrule hom tshwj xeeb yeeb nkab fittings txuas.
Yam dab tsi los them rau Machine?
1) Nws yuav txo qhov ntom ntawm cov vuam tam sim no thiab cuam tshuam rau lub melting ntawm lub hauv paus cov ntaub ntawv los tsim ib tug nucleus. Qhov no feem ntau yog vim qhov qis qis thiab qis melting point ntawm zinc. Galvanized sheet hlau yuav tsum muaj vuam tam sim no ntau dua piv rau cov ntawv hlau zoo tib yam thiab qhia tau tias muaj kev nyiam los txo qhov vuam tam sim no thiab ua kom cov vuam nruab nrab ntawm cov txheej txheem thicker.
2) Txhawm rau ua kom lub vuam zoo ntawm cov vuam sib txuas ntawm galvanized steel yeeb nkab thiab flange, vuam sib txuas yuav tsum tau galvanized. Siv lub log sib tsoo los yog cov ntawv xuab zeb los ntxuav cov txheej galvanized, los yog siv cov roj vuam nplaim kom tshem tawm cov txheej galvanized.
3) Yooj yim los tsim qhov chaw vuam spatter. Peb paub tias qhov chaw vuam spatter yog tshwm sim los ntawm kev tawg lossis tsis tiav ntawm lub nplhaib yas, uas ua rau poob ntawm nws txoj hlua khi rau cov kua hlau. Xav txog qhov tsis zoo ntawm qhov chaw vuam kev ua tau zoo ntawm cov hlau galvanized, nws yooj yim los tsim qhov chaw vuam spatter. Thiab qhov chaw vuam spatter muaj kev cuam tshuam rau vuam zoo, ib puag ncig tsim khoom, thiab lwm yam.
Vim Li Cas Peb Yuav Tsum Siv Laser Vuam Tshuab Rau Galvanized Yeeb Nkab
1. Weld refractory cov ntaub ntawv xws li high melting point hlau, thiab txawm siv tau rau welding non-metallic cov ntaub ntawv xws li ceramics, organic iav, thiab lwm yam welding ntev ntawm qhov chaw uas nyuaj rau kev nkag mus rau vuam.
2 .Laser welding yog tsis sib cuag welding, cov txheej txheem ua haujlwm tsis tas yuav tsum muaj lub siab, vuam ceev, kev ua haujlwm siab, qhov tob, qhov seem ntawm kev ntxhov siab thiab deformation me me, tuaj yeem nyob hauv chav tsev kub lossis tshwj xeeb (xws li qhov chaw kaw) rau vuam, vuam cov cuab yeej cuab yeej yog yooj yim, tsis tsim X-rays.
3 .Lub laser beam yog ib qho yooj yim kom paub txog lub beam raws li lub sij hawm thiab qhov chaw faib lub teeb, yuav hloov lub ntaus ntawv mus rau hloov lub laser beam nqa ntau workstations, yog li ntawd, muaj peev xwm nqa tawm multi-beam simultaneous ua thiab multi-chaw nres tsheb ua, muab cov xwm txheej rau kev vuam ntau dua.
4 .Lub laser beam tuaj yeem tsom mus rau qhov chaw me me, thiab vim tias nws tsis cuam tshuam los ntawm cov chaw sib nqus thiab tuaj yeem ua qhov tseeb, nws tuaj yeem siv rau micro vuam thiab tsim rau huab hwm coj ntau lawm ntawm micro thiab me workpieces hauv pawg vuam.
5. Cov kev xav tau tshwj xeeb raws li kev paub hauv computer yooj yim, cov neeg ua haujlwm zoo tib yam tuaj yeem ua tau, tsis zoo li cov tshuab vuam ib txwm xav tau kev ua haujlwm siab, tus tswv zoo. Ib zaug ntxiv, qhov no txuag ib feem ntawm cov nyiaj rau lub lag luam.
6. Laser vuam yog cov txheej txheem tsis sib cuag, tsis muaj cov cuab yeej poob thiab cov cuab yeej pauv teeb meem, tib lub sijhawm, nws tsis tas yuav siv cov electrodes, yog li tsis muaj electrode muaj kuab paug los yog kev puas tsuaj, thiab yooj yim rau automate high-speed vuam. Nws tuaj yeem ua tau digitally lossis computer tswj.

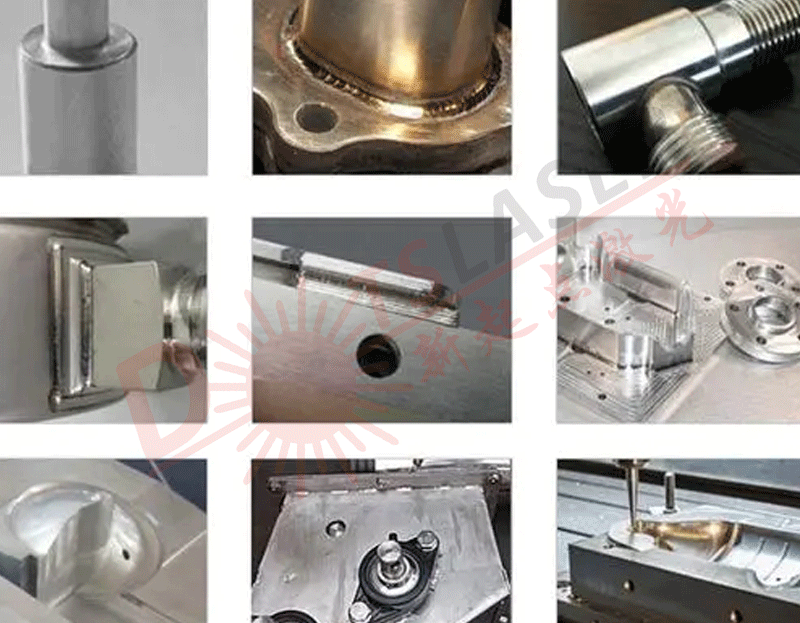

Cov qauv
Shipping thiab pob
Kev tu txhua hnub
● Tom qab ua tiav cov txheej txheem engraving, xyuas kom cov chaw ua haujlwm huv si. Tom qab ntawd remenber los ntxuav lub tshuab nto, rooj plaub ntawm qhov kho qhov muag, qhov chaw ntawm lub monitor, lub rooj ua haujlwm, thiab lwm yam.
● Thov tua txhua qhov chaw thiab lub zog hluav taws xob tseem ceeb thaum koj ntxuav lub tshuab, kom tsis txhob muaj dej ua rau cov chaw sab nrauv thiab sab hauv.
● Tshawb xyuas lub lens tsis tu ncua kom tsis txhob muaj plua plav npog nws. Thaum koj pib ntxuav, thov siv cov paj rwb wool nrog ntau dua 95% cawv qib kev kho mob los so clockwise los ntawm qhov chaw ntawm lub lens. Thaum koj xav tau txav lub tshuab kom tsis txhob muaj pob. Txheeb xyuas qhov kev sib txuas ntawm cable raws li daim ntawv teev npe cable.
