Hlau Sheet Laser Vuam System
Hlau Sheet Laser Vuam System
Khoom Description
Lub tshuab hlau laser vuam tshuab yog ib qho cuab yeej siv feem ntau siv los koom lossis vuam ob lossis ntau daim hlau, feem ntau hauv kev tsim khoom thiab kev siv. Lub kaw lus siv lub teeb pom kev zoo laser kom zoo yaj thiab fuse cov ntaub ntawv ua ke, ua rau muaj zog thiab txhim khu kev qha.
Benefits ntawm hlau ntawv laser vuam tshuab
High precision
Laser welding muaj qhov tseeb thiab qhov tseeb, tso cai rau kev pom zoo thiab kev sib haum xeeb ntawm cov ntawv hlau.
High-zoo welds
Lasers tsim welds huv si nrog tsawg tshav kub cuam tshuam cheeb tsam (HAZ) thiab me ntsis kom tsis muaj distortion, ua rau txo qis rework thiab txhim kho cov khoom zoo.
Vuam ceev ceev
Laser vuam tshuab tau paub txog lawv cov vuam ceev ceev, ua kom muaj txiaj ntsig zoo.
Yooj yim
Laser vuam tshuab tuaj yeem yooj yim haum rau ntau hom hlau thiab thicknesses, muab versatility rau ntau daim ntawv thov thiab kev lag luam.
Automation
Laser vuam tshuab txhawb nqa automation, ua kom muaj txiaj ntsig zoo, zoo ib yam thiab cov txheej txheem zoo thaum txo cov kev xav tau ntawm kev ua haujlwm.
Kev sib cuag tsawg kawg nkaus
Raws li cov txheej txheem tsis sib cuag, laser vuam txo qhov hnav ntawm cov khoom siv thiab txo qhov kev pheej hmoo ntawm kev sib kis.
Thaum xav txog cov ntawv hlau laser vuam, nco ntsoov cov yam ntxwv xws li muaj qhov chaw, yuav tsum tau vuam ceev, cov khoom siv sib xws, thiab lub zog yuav tsum tau ua. Tsis tas li, xyuas kom lub kaw lus ua raws li koj lub hom phiaj kev lag luam tag nrho thiab muab cov khoom rov qab los ntawm kev nqis peev.
Daim ntawv thov:

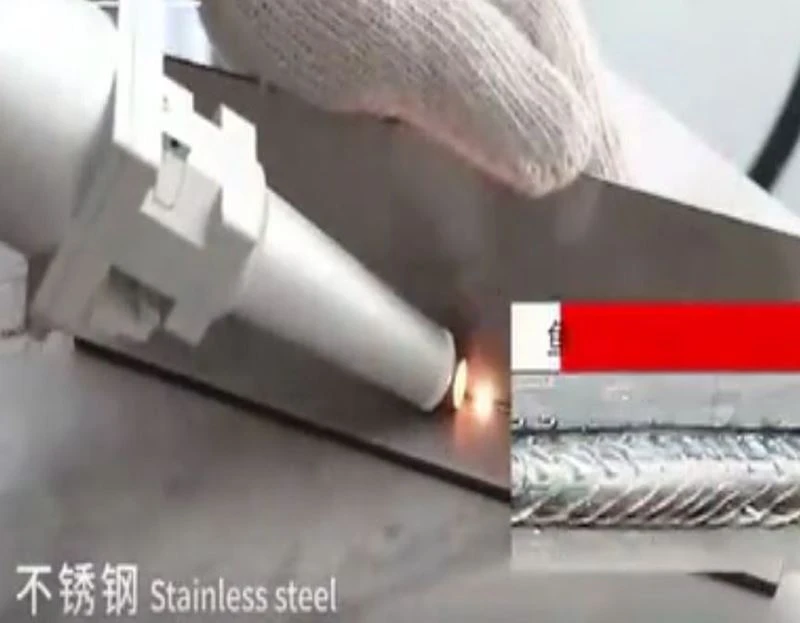

Hlau stainless hlau yog cov khoom siv dav siv. Nws yog siv rau hauv kev lag luam tsheb, chav ua noj thiab chav dej, khoom siv hauv tsev, chaw tsim khoom thiab lwm yam lag luam. Nyob rau hauv tus txheej txheem ntawm kev ua thiab daim ntawv thov, vuam yog feem ntau yuav tsum tau kom paub qhov sib txuas ntawm workpieces.
Technical paramter
| Qauv series | DS-LW series (RAYCUS laser qhov chaw) | ||
| Qauv | DS-LW 1000 | DS-LW 1500 | DS-LW 2000 |
| Laser qhov chaw qauv | RFL-QCW 1000 | RFL-QCW 1500 | RFL-QCW 2000 |
| Tso zis zog | 1000W | 1500W | 2000W |
| Laser wavelength | 1080 ± 5 nm | ||
| Kev ua haujlwm hom | Nruam / Modulation | ||
| Kev kho lub zog ntau |
10~100% | ||
| Fiber tub ntxhais txoj kab uas hla | 50 (25,100, 200 yeem) | ||
| Aiming thiab positioning | Lub teeb liab | ||
| Fiber ntev | 10 m | ||
| Vuam ceev | 0~ 120 mm/s | ||
| Siv tau thickness | <3.5mm (depending on the material) | ||
| Hlau feeder | Txheem xaim pub ceev 38-600mm/min | ||
| Hlau feed diameter | {{0}}.8/1.0/1.2/1.6/2.0mm | ||
| Txoj kev txias | Dej txias | ||
| Ua haujlwm ib puag ncig | 10 ~ 40 degree, av noo 10-85%, tsis muaj condensation | ||
| Rated zog | 4 KW | 6 kWm | 8 kWm |
| Kev khiav hauj lwm voltage | 380+10% VAC, 50/60Hz | ||
| Qhov ntev | 1150 X 630 X 1080 mm | ||
| Qhov ntev | Txog 250 kg | ||
Fiber laser vuam tshuab yog dav siv nyob rau hauv:
Cov khoom siv hluav taws xob daim ntawv thov hardware sheet hlau kev lag luam aluminium yeeb nkab vuam stainless hlau ntau yam khoom siv hlau vuam dav siv nyob rau hauv lub thawv xa khoom chav ua noj lub elevator racks qhov cub stainless hlau qhov rooj thiab qhov rais guardrails tsev neeg thiab lwm yam kev lag luam.
cov khoom siv thev naus laus zis

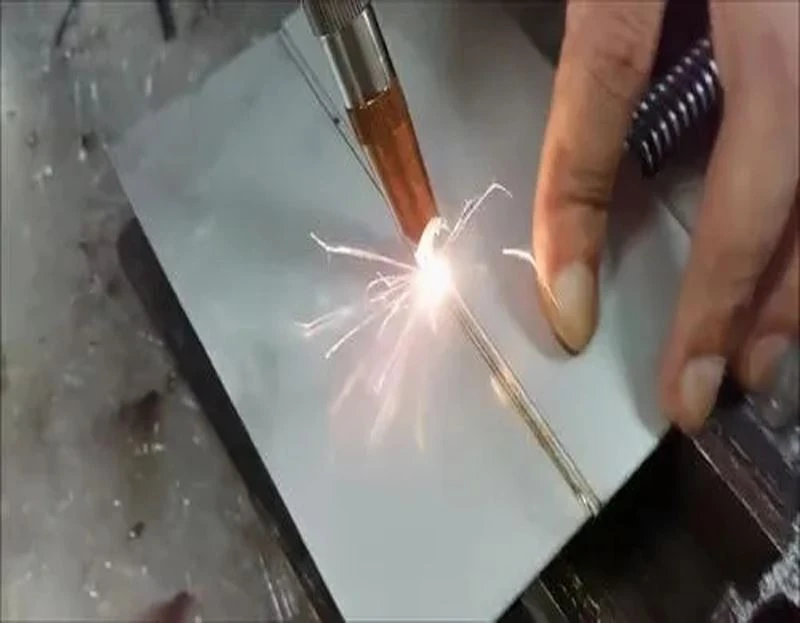

Txij li thaum laser vuam yog txawv los ntawm ib txwm welding, lub laser siv high-zog laser pulses rau lub zos sov cov khoom nyob rau hauv ib tug me me cheeb tsam.
Lub zog ntawm cov hluav taws xob laser diffuses rau hauv cov khoom siv los ntawm cov khoom siv hluav taws xob, thiab cov khoom siv yog yaj los ua ib lub pas dej molten kom ua tiav lub hom phiaj vuam. Yog li ntawd, nws muaj cov yam ntxwv ntawm qhov sib piv siab, qhov sib txawv me me ntawm qhov sib txawv, qhov chaw me me thaum tshav kub kub cuam tshuam, me me deformation, ceev vuam ceev, thiab lwm yam.
Nyob rau tib lub sijhawm, tom qab laser vuam ua tiav, nws yog du thiab du, thiab tsis muaj kev ua haujlwm tom qab lossis kev ua haujlwm yooj yim tom qab ua tiav.

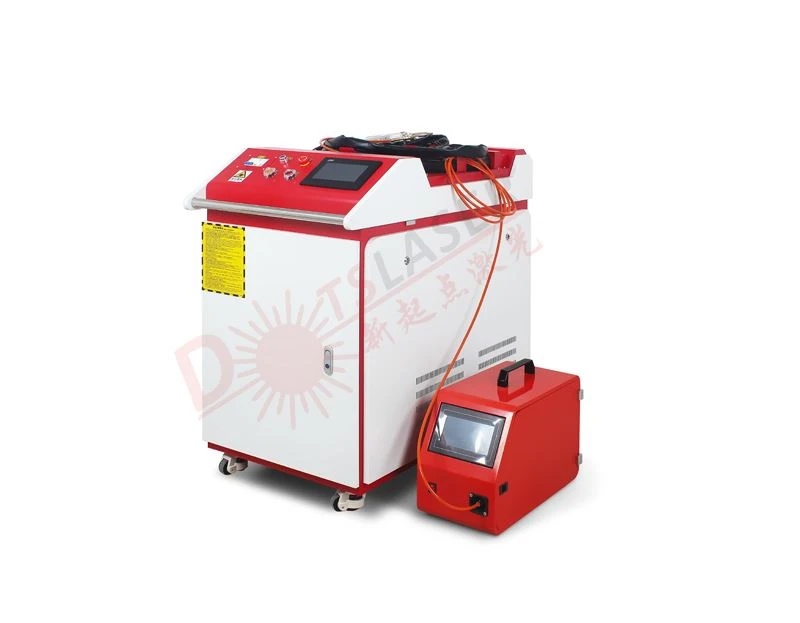

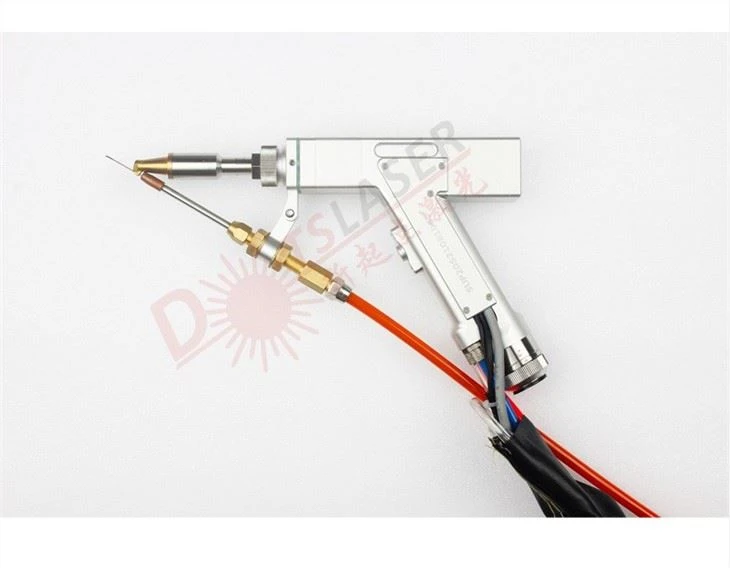

Vuam Phom
Kev ua haujlwm yooj yim tuaj yeem ua rau txhua yam khoom siv nyuaj
Tswj System
Ua kom muaj kev nyab xeeb ntawm kev ua haujlwm, tuaj yeem nres qhov xwm txheej ceev
Dej Chiller
Kev tswj qhov kub thiab txias
Laser Source
Lub zog laser sib txawv tuaj yeem xaiv, nrawm nrawm, vuam zoo
Hlau Feeder
Nws pib pub mis, ua haujlwm siab
Kev tiv thaiv corrosion ntawm stainless hlau yog nyob ntawm cov alloying ntsiab nyob rau hauv cov hlau. Muaj ntau thiab ntau daim ntawv thov ntawm laser vuam tshuab hauv kev lag luam. Raws li cov neeg siv khoom muaj kev xav tau siab dua thiab siab dua rau kev vuam raug, kev lag luam tau tsim cov khoom lag luam uas tuaj yeem hloov kho rau lub sijhawm no. Hauv kev lag luam welding tshuab, hlau laser vuam tshuab tuav ib qho tseem ceeb hauv kev tsim khoom. Rau feem ntau cov ntaub ntawv hlau, txawm tias lawv nyuaj npaum li cas, lawv tuaj yeem welded infinitely.
Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau

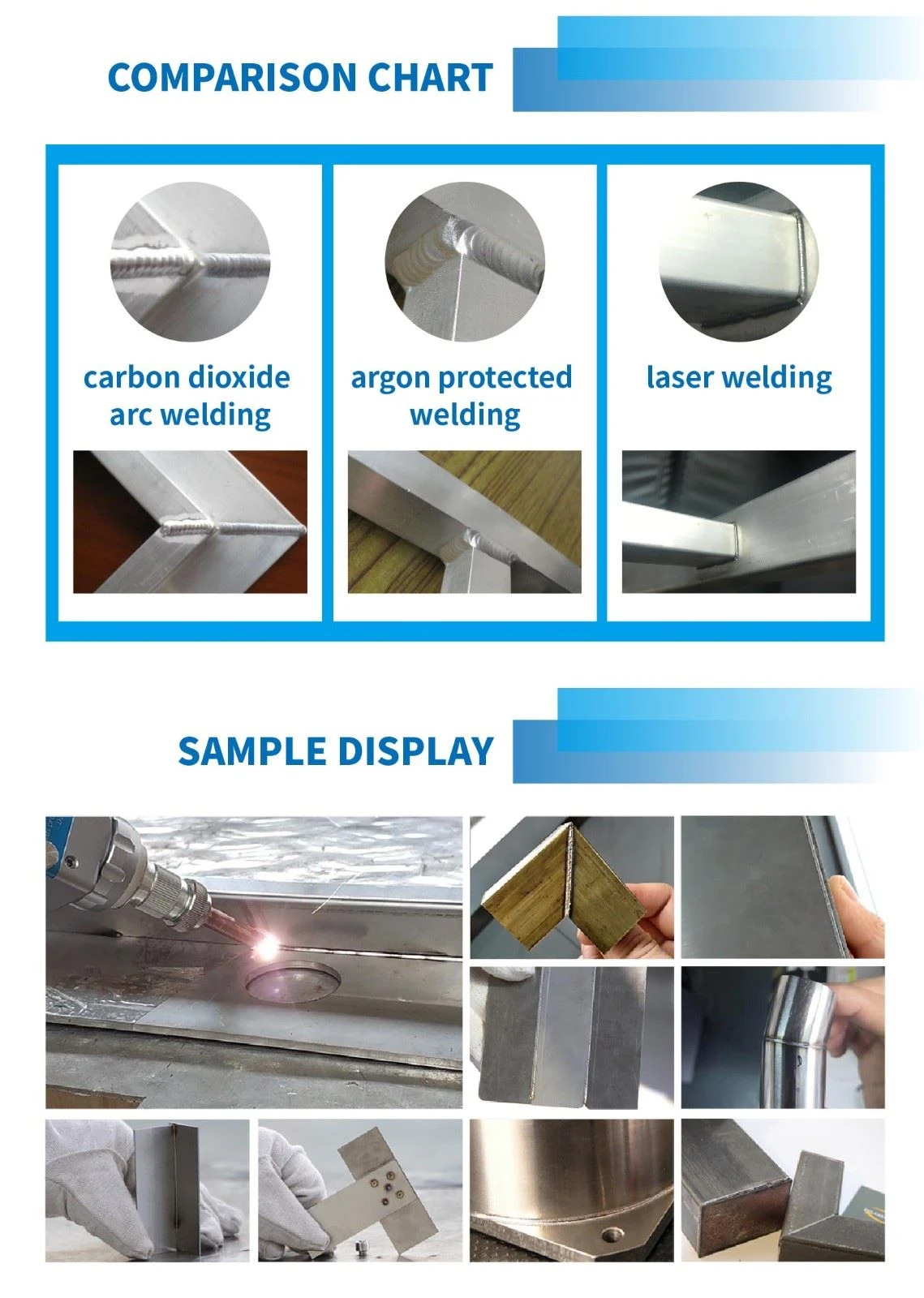

Lub laser vuam tshuab txais lub laser vuam tshuab hlau stainless hlau, vuam ceev ceev, vuam hlaws yog dawb thiab ci, tsis muaj xim txawv tom qab vuam, vuam seam zoo nkauj, tiaj tus, thiab tsis muaj pores. Cov tsis xws li laser tso zis fais fab, zaus thiab mem tes dav tuaj yeem xaiv los ntawm kev ua haujlwm kov hom vaj huam sib luag.
Lub laser pulse waveform thiab tsis tuaj yeem ua haujlwm los ntawm cov keyboard, kom cov vuam tsis tuaj yeem ua tau raws li qhov xav tau ntawm vuam, thiaj li ua tiav cov txiaj ntsig zoo dua vuam, uas txhim kho qhov zoo thiab qib ntawm lub raj mis cawv.
Pob
1. Kev ruaj ntseg zoo thiab kev pab cuam tom qab muag
Lub sijhawm lav ntawm cov cuab yeej yuav tsum yog 12 lub hlis txij li cov khoom siv los ntawm cov neeg siv khoom, kev teeb tsa thiab kev debugging tiav thiab cov khoom siv tau txais los ntawm tus neeg thov. Dotslaser muab qhov tseem ceeb rau kev ua haujlwm tom qab muag ntawm cov khoom, thaum cov khoom xa tuaj rau tus neeg siv, lub tuam txhab tam sim ntawd tsim cov ntaub ntawv cov neeg siv khoom tom qab muag, thiab tsis tu ncua taug qab tus neeg siv khoom siv cov xwm txheej, daws thiab teb tag nrho cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom siv tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem ua cov lus teb sai hauv 2 teev. Yog tias kev taw qhia hauv xov tooj yog qhov nyuaj rau kev daws teeb meem, peb lub tuam txhab cov neeg ua haujlwm txawj tuaj yeem tuaj txog ntawm qhov chaw neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Kev teeb tsa thiab kev debugging
Ua ntej kev teeb tsa lub tshuab, peb lub Hoobkas yuav muab cov ntaub ntawv tsim nyog rau koj, qhov xav tau zoo 2 lub lis piam xa tuaj rau koj nyob ntawd, cov engineers ntawm Dotslaser yuav tuaj txog ntawm koj qhov chaw thiab tshuaj xyuas lub tshuab dua. Xyuas kom meej tag nrho cov xwm txheej ua tau raws li qhov yuav tsum tau ua ntawm installation thiab commissioning, cov cuab yeej yuav thauj mus rau lub sijhawm. Lub sijhawm teeb tsa thiab kev ua haujlwm ntawm cov cuab yeej siv yog li tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv lub tshuab, thiab lub kaw lus ua haujlwm tom qab qhov kev pabcuam. Tus kws ua haujlwm yuav cob qhia cov neeg ua haujlwm tsim nyog ntawm cov txheej txheem kev saib xyuas yooj yim thiab cov yam ntxwv ntawm cov khoom siv hauv ob hnub tom ntej
3. Kev pab txhawb nqa
Yog tias muaj teeb meem nrog ib feem ntawm lub cev thaum lub sijhawm lav, Dotslaser cov kws tshaj lij pabcuam kev pabcuam tau npaj los muab kev pabcuam hauv xovtooj lossis pib pabcuam ntawm qhov chaw, yog tias lub tshuab muaj teeb meem thaum lub sijhawm lav, thov hu rau peb ncaj qha !
