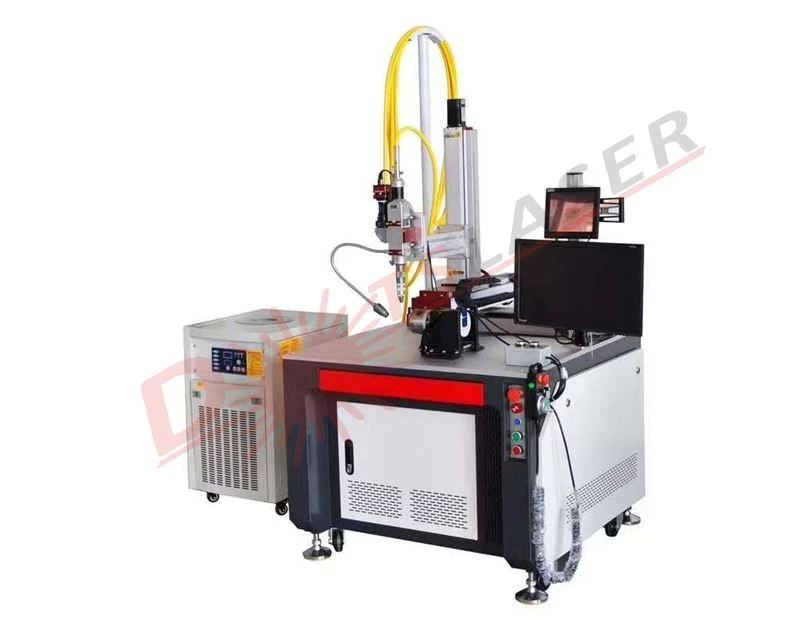

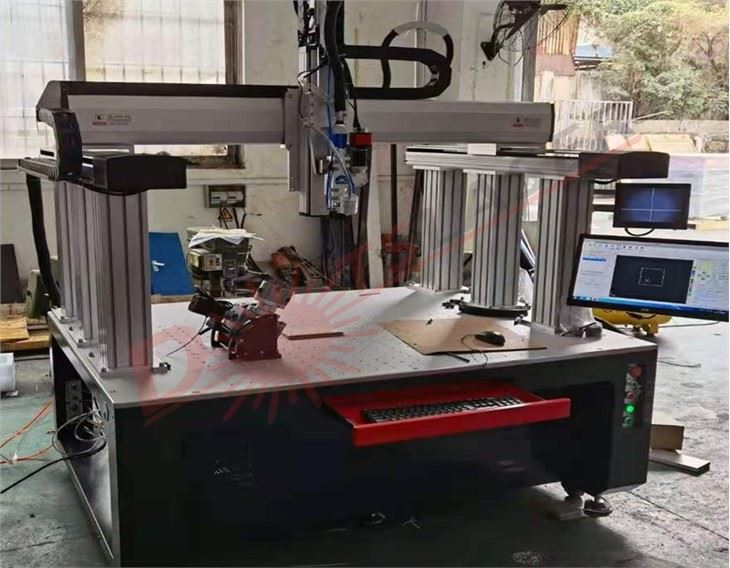

Laser Welder rau Sheet Hlau
Laser Welder rau Sheet Hlau
Khoom Description
Laser Welder Rau Sheet Hlau yog tsuas yog siv rau ntau qhov me me thiab nruab nrab cov qauv ntawv hlau, nrog cov khoom lag luam siab. Kev ua batch tuaj yeem ua tiav los ntawm kev ua cov khoom sib dhos thiab cov khoom siv. Nws cov yam ntxwv tseem muaj xws li lub zog loj laser tso zis, high-precision rov positioning, tej thaj chaw deb plaub-dimensional worktable, ultra-zoo kev khiav hauj lwm system, tsis siv neeg tsom rotation ntawm vuam taub hau, kom ua tiav high-efficiency piv ntawm kev ua thiab ntau lawm automation, ruaj thiab zoo nkauj: cov weld muaj qhov sib piv siab (qhov tob tob), tsis xav tau cov xaim xaim, kom qhov chaw melting tsis tshua muaj kuab paug.
Laser Welder Rau Sheet Hlau tshuab muaj kev vuam zoo, cov nyhuv zoo, kev ua haujlwm yooj yim thiab yooj yim, thiab tsim nyog rau kev vuam ntawm cov kab ncaj nraim, arcs thiab arbitrary trajectories ntawm ntau yam ntaub ntawv.
Laser vuam precision muaj ib tug zoo tsos. Nws kuj tseem tuaj yeem siv cov vuam tsis sib cuag rau qhov chaw uas nyuaj rau vuam, uas yooj yim dua rau kev ua haujlwm. Tsis tas li ntawd, nws tau nruab nrog CCD lub koob yees duab saib xyuas qhov system, uas yog qhov tsim nyog rau qhov tseeb qhov chaw thiab yooj yim rau kev soj ntsuam vuam.
Thaum lub sij hawm tus txheej txheem, lub vuam chaw lub zog yog sib npaug zos faib, xyuas kom meej qhov zoo nkauj thiab usability ntawm lub welded workpiece, thiab pab lub Hoobkas kom paub automated vuam.
Tsis muaj
| TSIS MUAJ. | laser zog | laser zog |
| 1 | laser wave length | 1070 NIM |
| 2 | Fiber ntev | Fiber ntev |
| 3 | ua haujlwm hom | txuas ntxiv / modulate |
| 4 | Vuam ceev ntau yam | 0~ 120 mm/s |
| 5 | Cua txias chiller | Industrial dej chiller |
| 6 | Kev ua haujlwm ib puag ncig qhov kub thiab txias | 15-35 ° C |
| 7 | Humidity ntau ntawm kev ua haujlwm ib puag ncig | < 70% No condensation |
| 8 | Vuam thickness pom zoo | 0 5-3mm |
| 9 | Vuam qhov sib txawv yuav tsum | Tsawg dua los yog sib npaug rau 0.5mm |
| 10 | ua haujlwm voltage | 220 V |
| 11 | Machinery Test Report | Muab |
| 12 | Video tawm-kev soj ntsuam | Muab |
| 13 | Core Components | laser qhov chaw |
| 14 | Siv Tau Kev Lag Luam | Cov khw muag khoom siv hauv tsev, chaw tsim khoom, chaw kho tshuab |
Yog tias koj xav tau kev saib xyuas, thov hu rau peb ncaj qha, peb tus kws tshaj lij engineer yuav muab koj daim tshev dawb online.
Rau koj qhov kev nyab xeeb, ua ntej koj siv lub tshuab no, koj yuav tsum kawm qee yam kev paub txog kev nyab xeeb thiab npaj cov khoom siv kev nyab xeeb tsim nyog
1.High Voltage Khaws lub hwj chim tawm thaum kho thiab kho.
2.Pinching Tes Thaum lub sij hawm tu thiab kho, tsis txhob muab tes los yog lwm yam hauv lub cev nyob rau hauv lub taub hau laser lossis rau pem hauv ntej ntawm lub axis txav.
3. Laser Khaws lub hwj chim tawm thaum kho thiab kho. Lub tshuab laser yuav tsim qib 4 laser thaum ua haujlwm.
4. Khaws lub qhov muag lossis tawv nqaij los ntawm kev txhaj tshuaj ncaj qha lossis tawg los ntawm laser.
Tsis txhob ntsia ncaj qha rau hauv lub teeb laser txawm tias hnav cov khoom tiv thaiv qhov muag.
Nyob rau hauv cov ntaub ntawv ntawm plua plav los yog av nyob rau hauv lub lens, los yog nws yuav ua rau scorch puas.

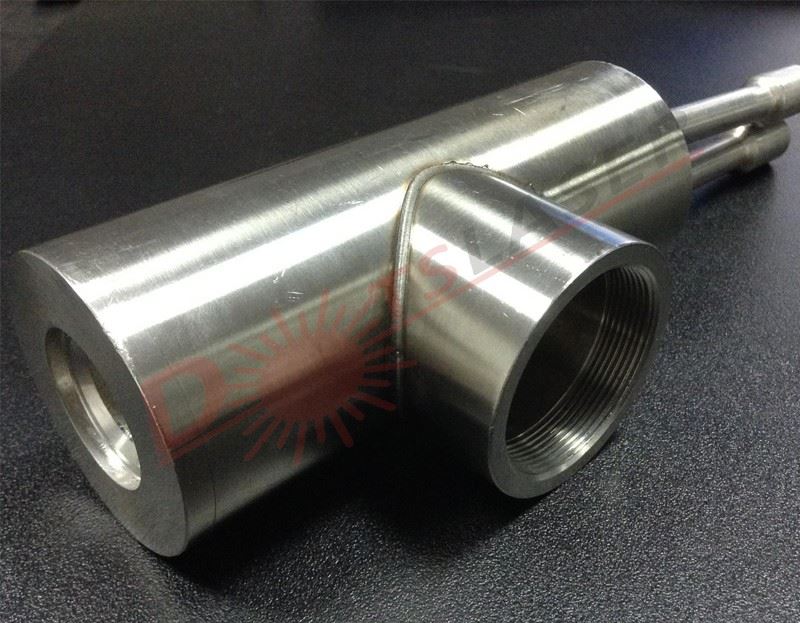

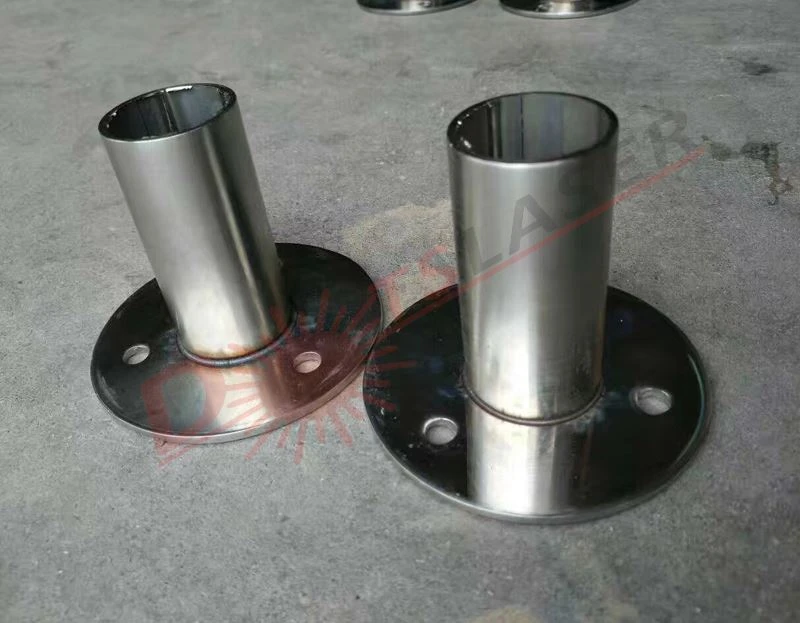

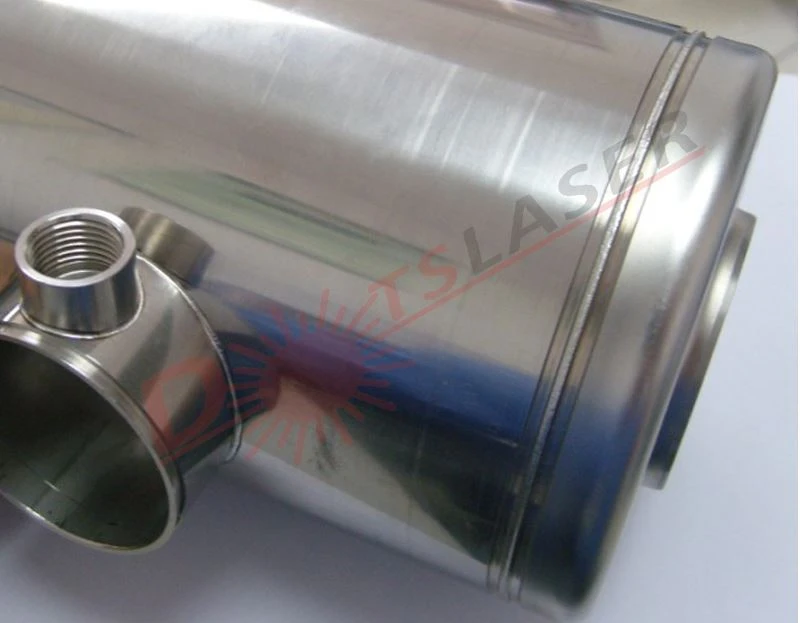

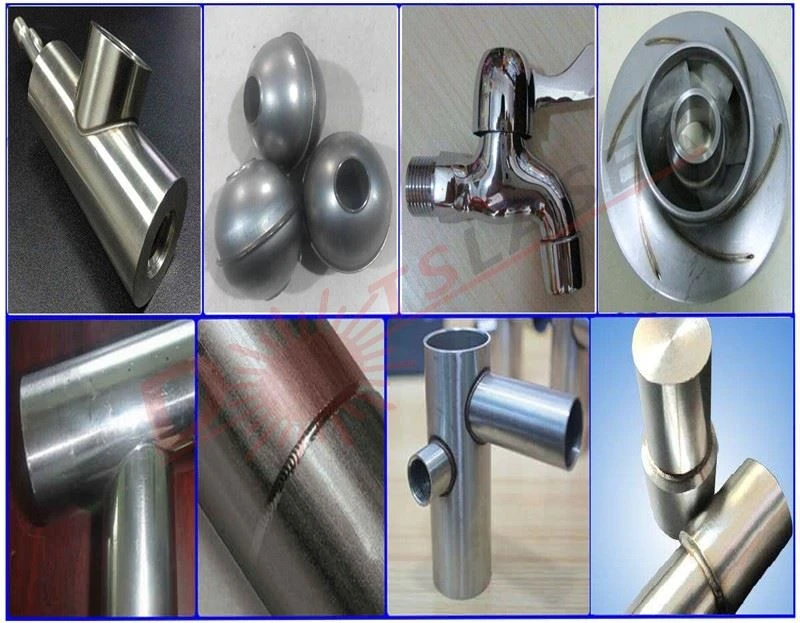

Cov qauv qhia
