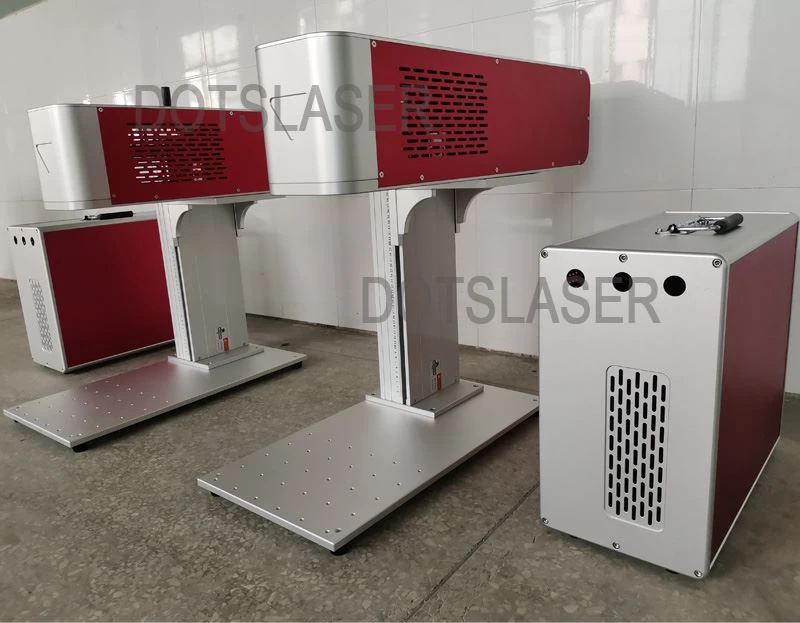

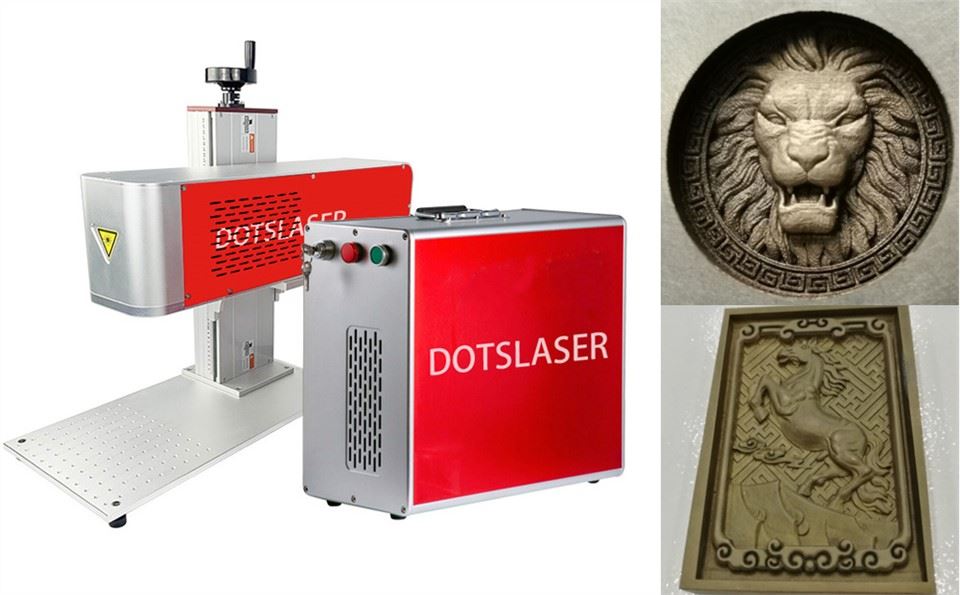

3D Curved Surface Laser Marker

3D Curved Surface Laser Marker

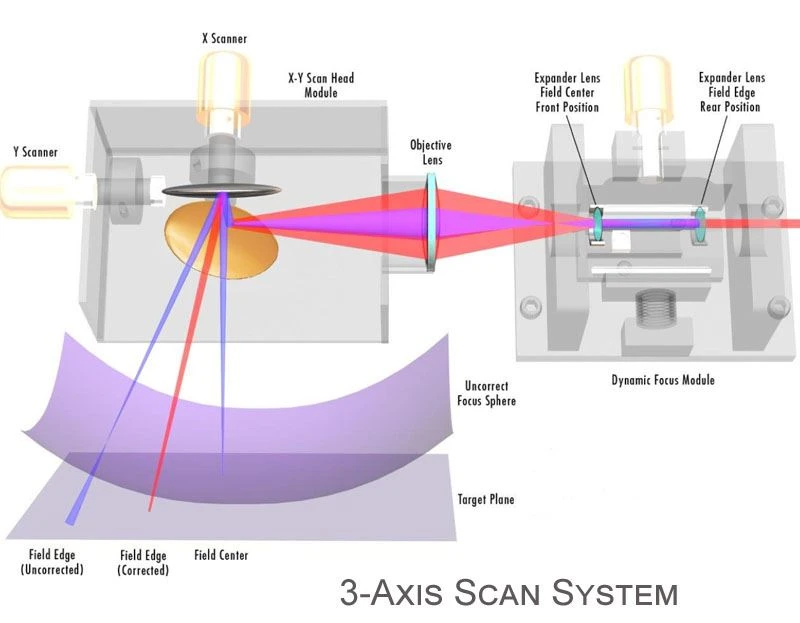

3D Curved Surface Laser Marker yog ib txoj kev ua haujlwm tshwj xeeb ntawm cov khoom tsis zoo. Piv nrog 2D laser npav, 3D npav tau zoo heev hauv techonology, nws yog tswj los ntawm 3-axis hauv lub taub hau scan, xws li X-axis, Y-axis, Z-axis, 3 axis co hauv super ceev ceev hauv kev ua haujlwm, Z-axis tswj qhov tsom mus deb tau los ntawm kev txav mus rau pem hauv ntej thiab rov qab. kom qhov tsom xam qhov deb yog tib yam nyob rau hauv qhov sib txawv ntawm cov khoom.

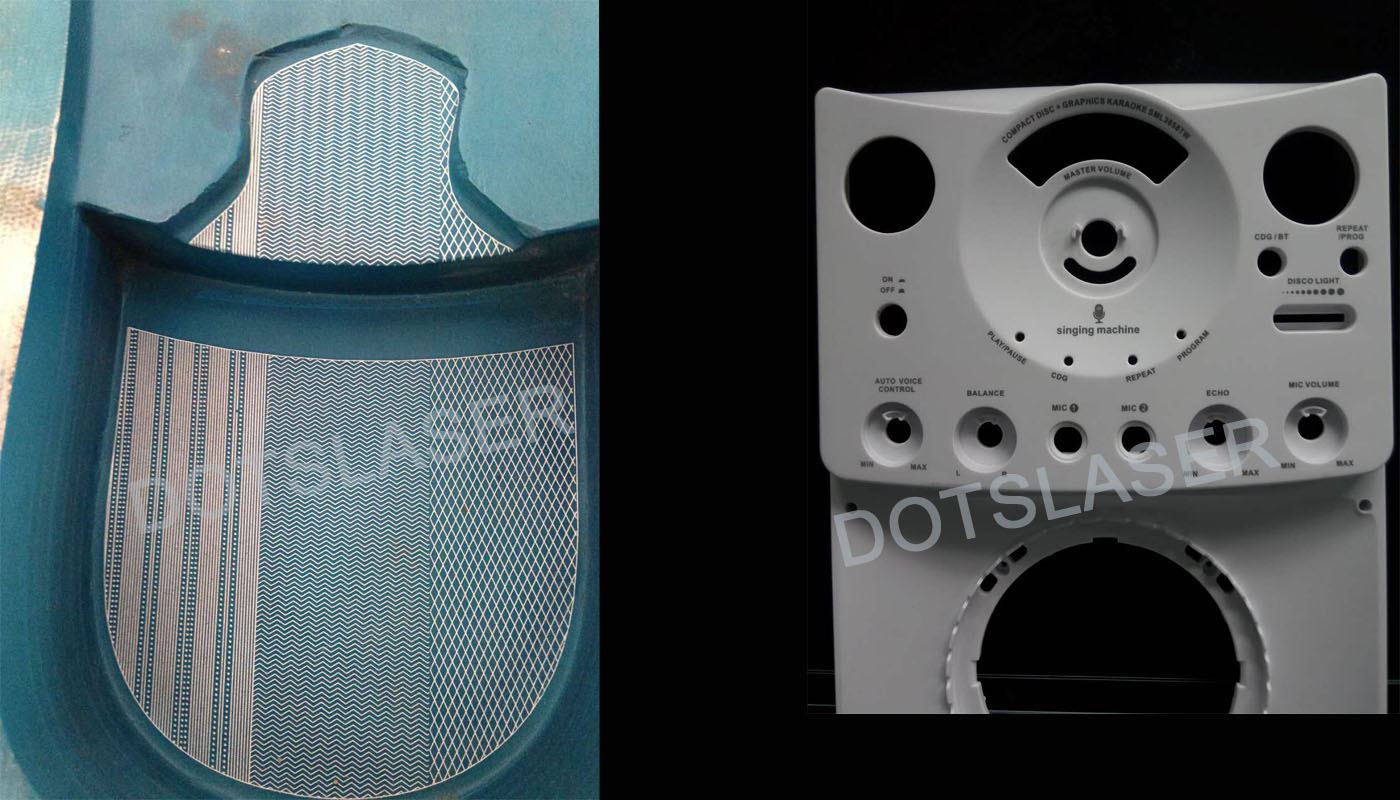

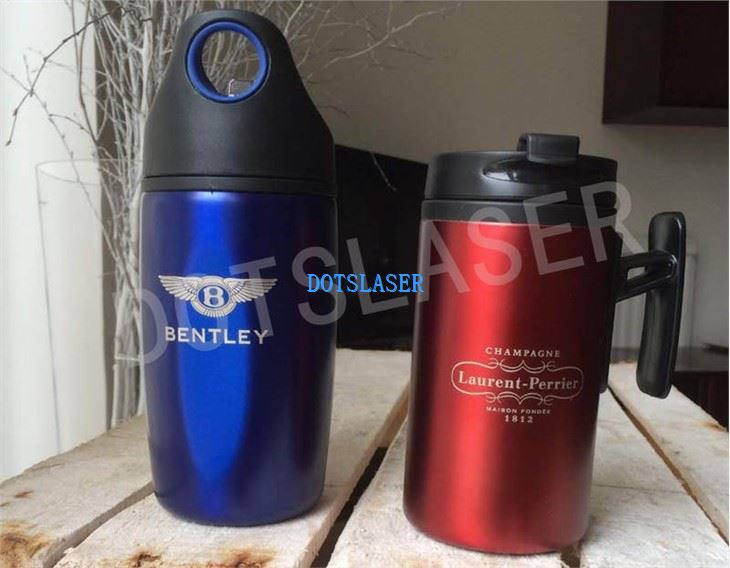

Lub 3D nkhaus laser npav tshuab tuaj yeem ua qhov cim zoo tshaj plaws ntawm cov khoom tsis sib xws yam tsis muaj defocusing ua, txawm rau qhov chaw nyuaj. Nws tuaj yeem paub ntau yam kev kos npe nto moo xws li inclined nto, siab thiab qis nto, cylindrical nto, conical nto, kheej kheej nto thiab extruded nto. Nws tshem tawm phau ntawv hloov ntawm kev ua kom pom tseeb, kev sib tw thiab lwm yam txheej txheem nyuaj. Los ntawm peb-axis tswj qhov system, qhov sib txawv thiab qhov siab tuaj yeem hloov kho kom tau raws li qhov yuav tsum tau ua ntawm cov cim zoo meej.

Muaj kev lag luam

Automotive, aerospace, electronics, cov khoom siv kho mob, cov khoom siv, thiab lwm yam, tso cai rau kev ua haujlwm zoo thiab meej ntawm cov khoom xws li lub tog raj kheej, raj, spheres, lossis cov khoom tsis zoo.

Technical parameters

Qhia meej





3D dynamic tsom laser npav tshuab muaj qhov zoo hauv qab no uas 2D laser npav tshuab tsis muaj:

1.  Lub focal ntev tuaj yeem hloov kho dynamically rau 3D npav

   3D npav tuaj yeem hloov pauv qhov ntev thiab qhov ntev ntawm lub teeb pom kev zoo, yog li nws tuaj yeem kos rau ntawm cov khoom nkhaus, uas yog tsis yooj yim sua rau 2D npav. 3D npav tuaj yeem ua tiav txhua qhov chaw kos npe nyob rau hauv kab teeb pom kev ntawm ib zaug, uas tuaj yeem txhim kho kev ua haujlwm zoo. Cov duab saum npoo ntawm ntau cov khoom lag luam tsis tiaj tus, thiab 2D npav yog qhov tsis muaj zog, tab sis 3D kos npe yooj yim ua tiav.

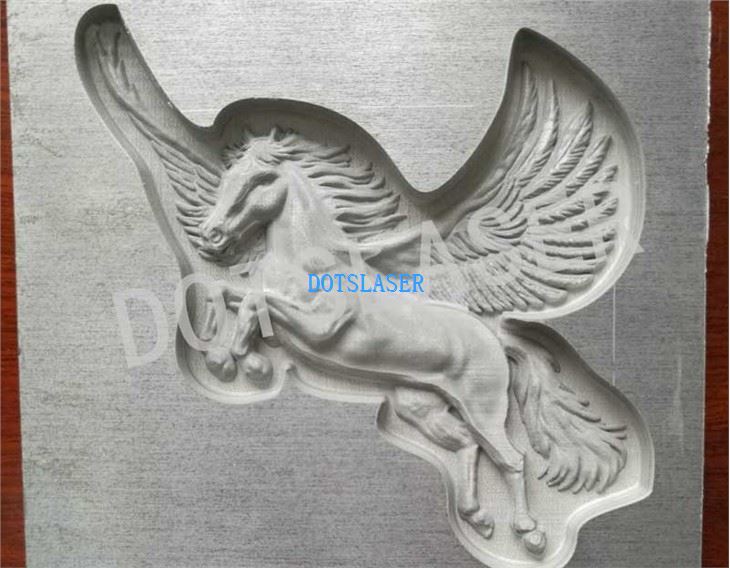

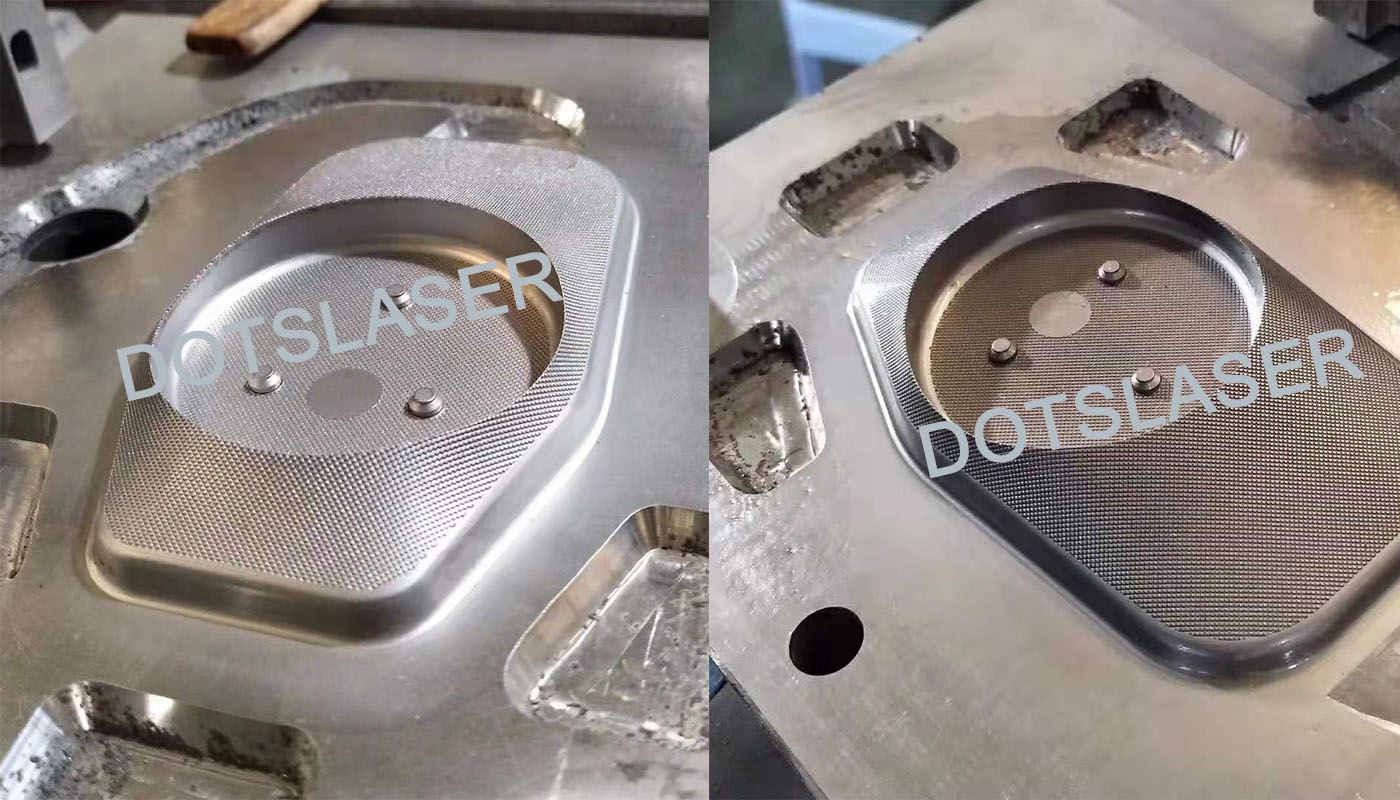

2.   Nws yog qhov tsim nyog rau kev sib sib zog nqus engraving.

   Pa 2D npav tshuab muaj qhov tsis xws luag hauv kev sib sib zog nqus engraving rau saum npoo ntawm cov khoom. Thaum lub sij hawm engraving txheej txheem, raws li lub laser tsom mus rau pem hauv ntej, lub laser hluav taws xob hluav taws xob nyob rau saum npoo ntawm cov khoom yuav maj mam txo. Tom qab qee lub sij hawm, lub laser beam nyob rau hauv lub xeev defocused, uas cuam tshuam rau cov nyhuv thiab efficiency ntawm sib sib zog nqus engraving.



    Rau txoj kev sib sib zog nqus engraving ib txwm, lub rooj nqa nqa yuav txav mus rau qhov siab haum raws li lub sijhawm ua haujlwm kom ntseeg tau tias qhov ntev focal nyob rau hauv lub xeev tsim nyog. 3D sib sib zog nqus engraving ua tsis muaj cov teeb meem no, yog li nws tuaj yeem lav cov txiaj ntsig thiab txhim kho qhov ua tau zoo, thaum txuag tus nqi ntawm lub rooj nqa hluav taws xob.

3.

4.  Ntau qhov chaw ua haujlwm dav thiab zoo dua laser beam.

   3D npav yog muab faib ua hom kev tsom mus rau pem hauv ntej thiab nraub qaum. Siv hom kev tsom mus rau pem hauv ntej kom ua tiav qhov cim loj dua. Feem ntau, loj X thiab Y axis deflection lo ntsiab muag yog siv los ua qhov teeb meem laser qhov chaw loj dua, kom tau txais qhov chaw me me, thiab lub zog ceev yuav siab dua, txhawm rau ua kom tau raws li qhov xav tau ntawm thaj chaw loj dua.



5.  Kev kos xim dub thiab dawb thiab txawm tias ntau xim cim tuaj yeem ua tiav hauv tib lub dav hlau, nrog cov txiaj ntsig zoo dua.

   Blackened nto, xws li anodized txhuas, feem ntau yog cim nrog ib co defocusing siv ntau zaus pulses ntawm lub zog tsim nyog. Qhov deb ntawm defocusing ho cuam tshuam lub zog faib thiab xim nyhuv ntawm lub laser ntawm qhov chaw ntawm cov khoom. Rau cov neeg siv 2D kos npe dav dav, txawm tias tsis tas yuav muaj kev ua haujlwm siab heev xws li kos npe saum npoo, 3D npav tshuab kuj tuaj yeem ua lub dav hlau ua haujlwm nrog ntau qhov grey thiab ntau xim.

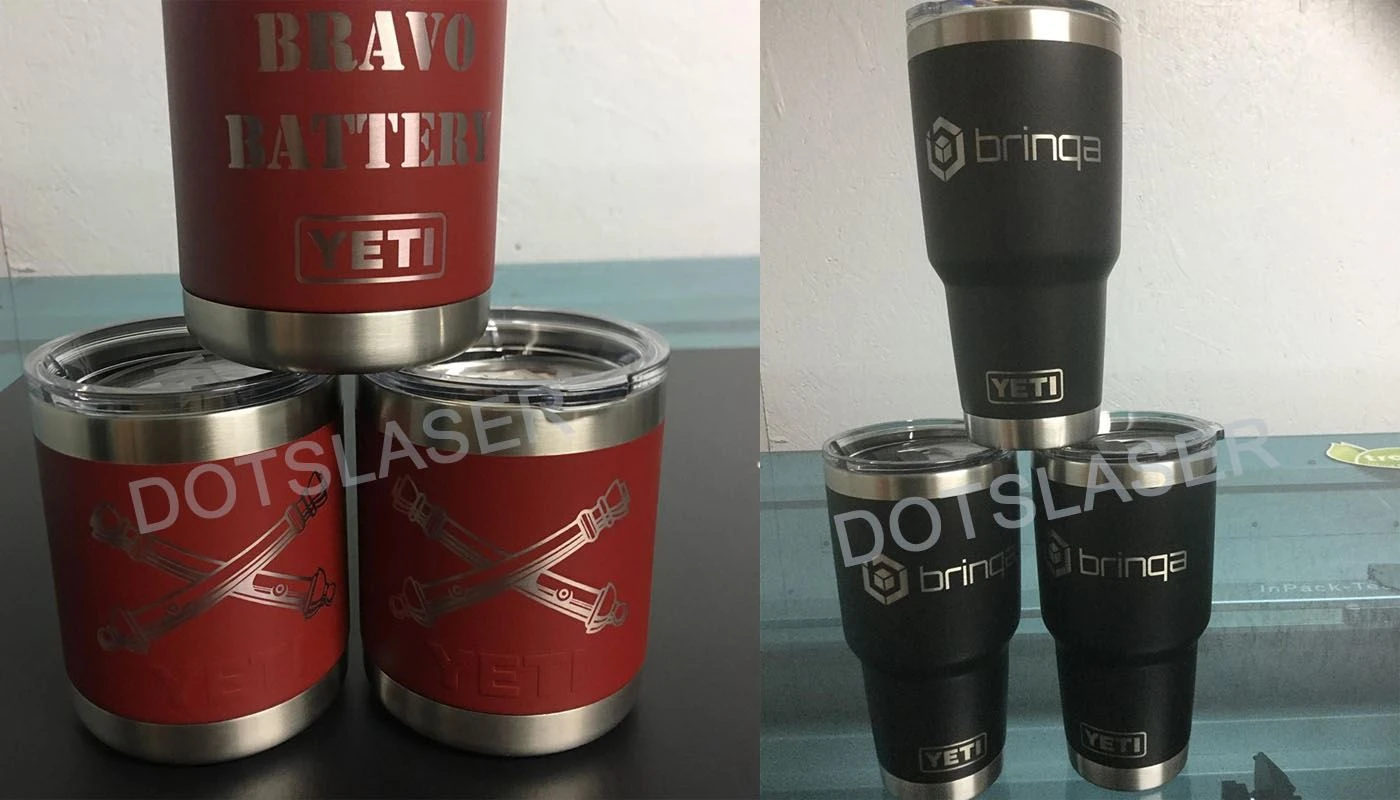

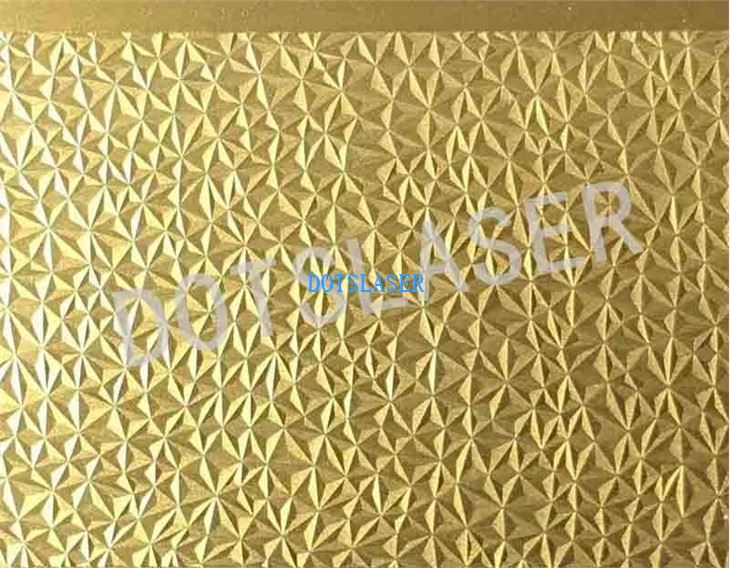

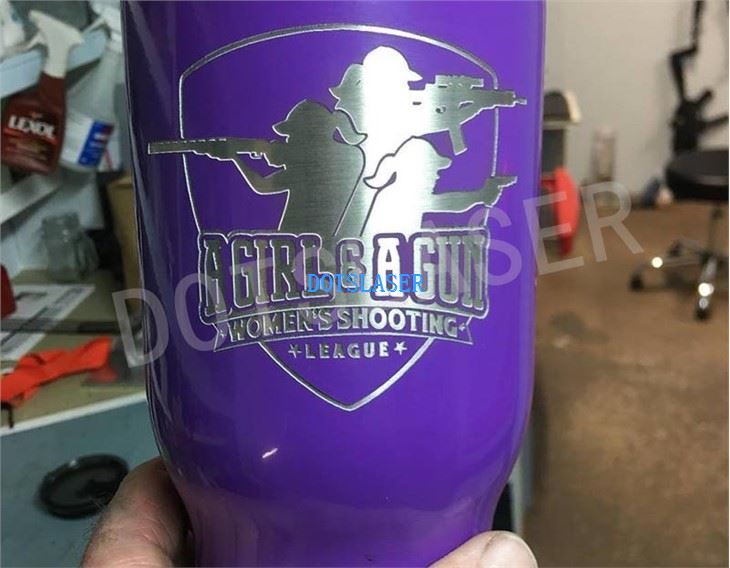

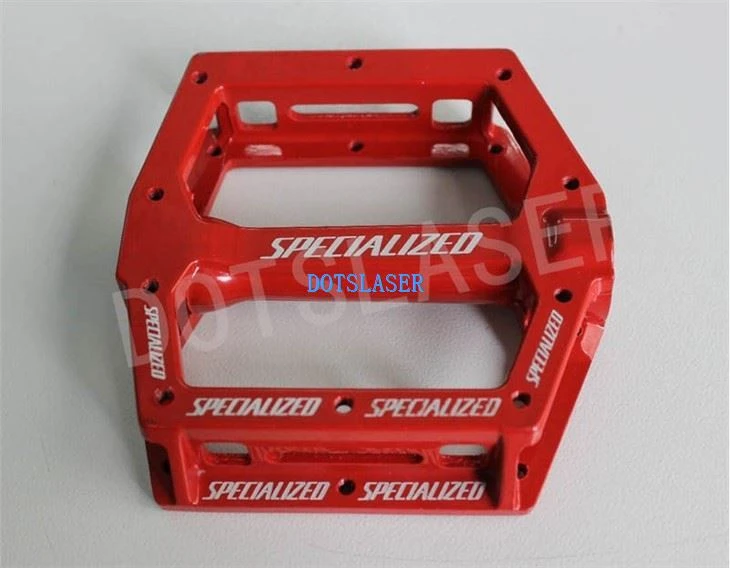

Qauv ua yeeb yam









Shipping thiab pob
