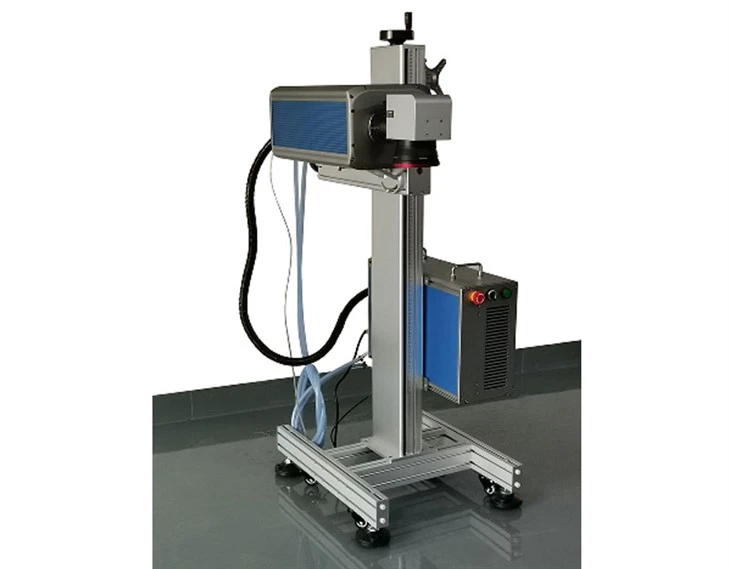

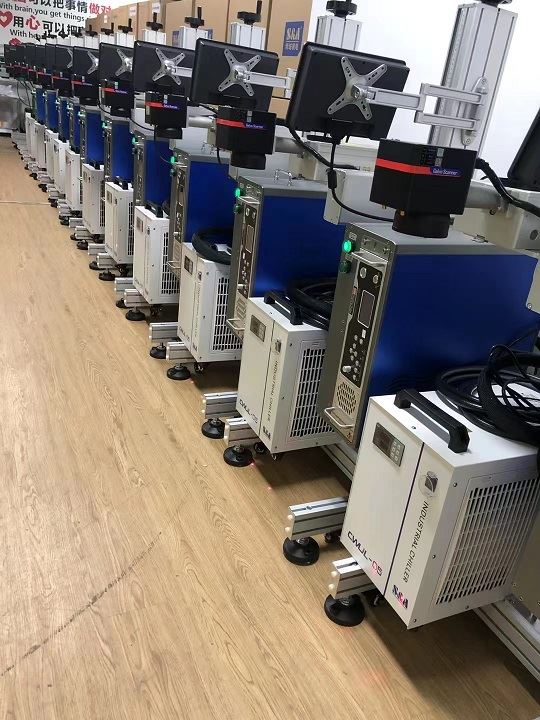

Ntawm Fly UV Laser Marking Tshuab
Ntawm Fly UV Laser Marking Tshuab
Khoom Description
Txoj kev ua ntawm On The Fly UV Laser Marking Machine yog txawv ntawm lwm yam khoom siv laser npav. Feem ntau, rau CO2laser npav tshuab thiab fiber ntau laser npav tshuab, lawv yog tag nrho cov siv rau laser npav txoj kev, thaum nws siv tshuaj ua txoj kev, mas photochemical tshua. Qhov sib txawv ntawm ob txoj kev ua haujlwm sib txawv no yog tias laser lub cev ua cov txheej txheem feem ntau yog ua tiav ntawm cov khoom thiab cov khoom siv, thaum lub laser chemical processing method tuaj yeem siv lub laser nkag mus rau sab hauv ntawm cov khoom siv rau kev ua haujlwm.
Nyob rau hauv lub Fly UV Laser Marking Tshuab yog tshwj xeeb tshaj yog haum rau high-end kev ua lag luam ntawm ultra-fine ua thiab cim lub nto ntawm ntim fwj tshuaj pleev ib ce, tshuaj, video thiab lwm yam ntaub ntawv polymer.
Cov nyhuv ntawm cov khoom ua tiav yog qhov zoo, cov cim thiab kev tu kom ruaj khov, thiab nws zoo dua li inkjet luam ntawv. Nws yuav tsis ua rau muaj kuab paug thaum ua haujlwm. Nws siv lub rooj tsavxwm pcb hloov tau rau kev kos, dicing, silicon wafer micro-qhov thiab qhov muag tsis pom qhov ua. Ntawm lawv, 80% ntawm cov ntaub ntawv cables nyob rau hauv kev ua lag luam thiab adapter marking los ntawm UV laser npav.
Technical parameter
|
Qauv |
DS-UV 3 |
DS-UV 5 |
DS-UV 10 |
|
Laser fais fab tso zis |
>3W |
>5W |
>10W |
|
laser wavelength |
355nm ua |
||
|
Xaiv txoj kev |
3D/2D |
||
|
Kos thaj tsam |
100x100mm / 150x150mm |
||
|
Pulse zog |
＞200µJ |
||
|
Tus nqi rov ua dua |
20 ~ 150KHz |
||
|
Max marking ceev |
10, 000mm/s |
||
|
Beam zoo |
＜1.2 ㎡ |
||
|
Min. kab dav |
0.01 hli |
||
|
Rov ua qhov tseeb |
± 0.003mm |
||
|
Txias |
Cua / Dej txias |
||
|
Ua haujlwm temp |
15-35 ° C |
||
|
Qhov hnyav tag nrho |
190 KG |
||
|
Qhov loj ntawm lub tshuab |
1000x735x1630mm |
||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
||
| Graphic Format txaus siab | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | ||
| Txias hom | Cua txias | ||
| Cov Ntsiab Lus Muag | Yooj yim rau kev khiav lag luam | ||
| Tswj Software | Ezcad/MarkingMate | ||
| Cov Ntsiab Lus Muag | Kev tsim khoom siab | ||
| Warranty | 1 xyoo | ||
| Software | JCZ EZCAD Software | ||
|

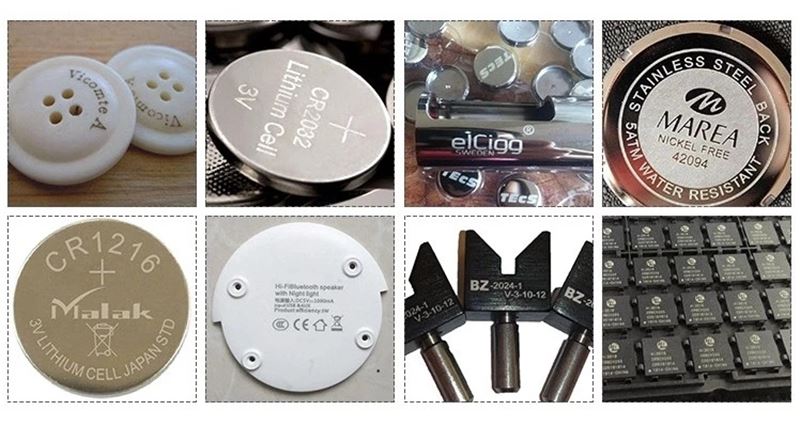

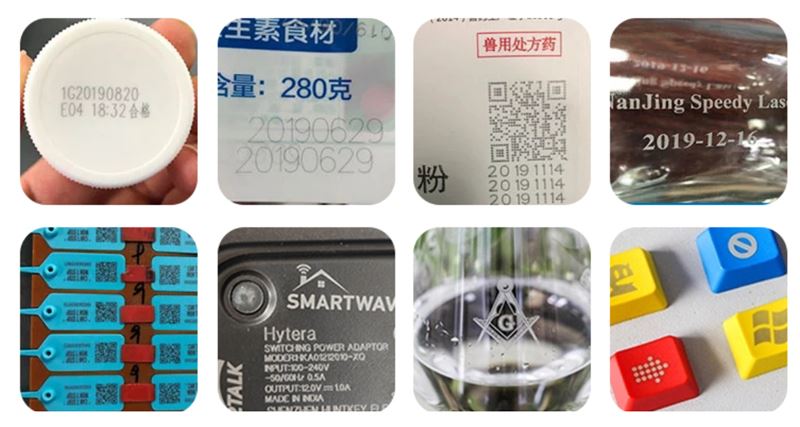

Daim ntawv thov: Nyob rau ntawm ya UV laser npav tshuab tuaj yeem kos cov tshuaj pleev ib ce, xov tooj ntawm tes, tshuaj, ntim khoom noj, hlau, iav, yas, cov ntaub ntawv polymer, cov ntaub ntawv siv, cov ntaub ntawv tshwj xeeb ABS, hloov pauv PCB boards, cov nyees khawm yas, silicon wafer microvias, thiab cov khoom siv hluav taws xob qub. , khoom siv sib txuas lus, LCD kua siv lead ua iav thiab ntau lwm yam khoom. |
Kev tu txhua hnub:
● Tom qab ua haujlwm tiav, xyuas kom cov hauv pem teb huv si. Tom qab ntawd ntxuav lub tshuab nrog rau saum npoo
ntawm lub tshuab, rooj plaub ntawm qhov kho qhov muag, qhov chaw ntawm lub monitor, lub rooj ua haujlwm, thiab lwm yam.
● Thov tua txhua qhov thiab lub zog loj thaum lawv huv si.
● Tshawb xyuas lub lens tsis tu ncua rau cov plua plav. Thaum nws huv si, siv cov paj rwb ntaub nrog ntau dua 95%
kev kho mob qib cawv los so clockwise los ntawm qhov chaw ntawm lub lens. Thaum koj xav tau txav lub tshuab kom tsis txhob muaj pob. Txheeb xyuas qhov txuas cable raws li
kab lis.
Cov kev ceev faj:
● nruj me ntsis raws li kev hloov ua ntu zus rau tig lub tshuab rau thiab tawm.
● Ua zoo hauv av kom tsis txhob muaj kev puas tsuaj rau cov khoom los ntawm kev cuam tshuam lossis zoo li qub
hluav taws xob.
● Txwv tsis pub qhib cov kab noj hniav kom txav lub bracket. Tsis tuaj yeem ua rau optical lossis lub teeb hloov pauv.
● Tsis muaj internet rau lub computer. Thaum luam cov ntaub ntawv, thawj zaug hauv Antivirus rau Sab Nraud Cia
Ntaus ntawv

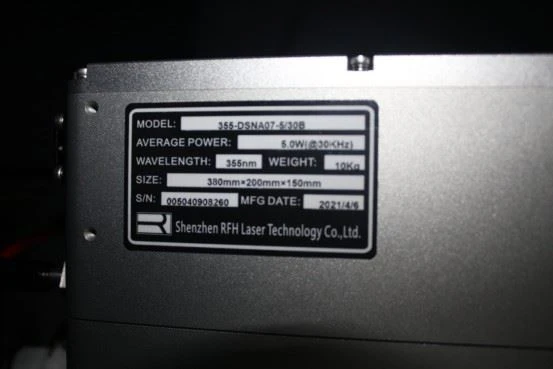

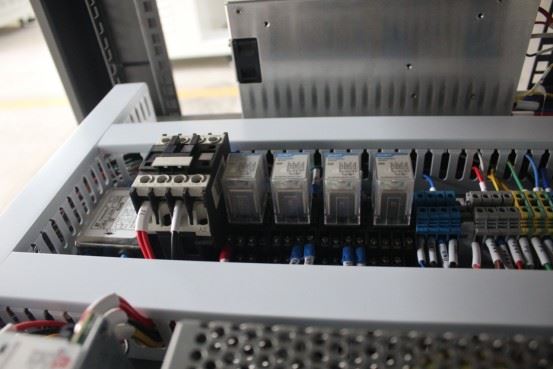

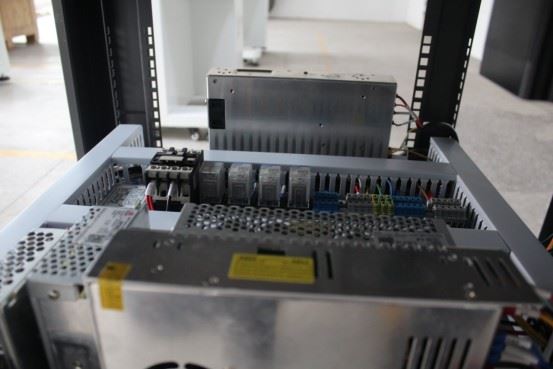

Tshuab Paub meej

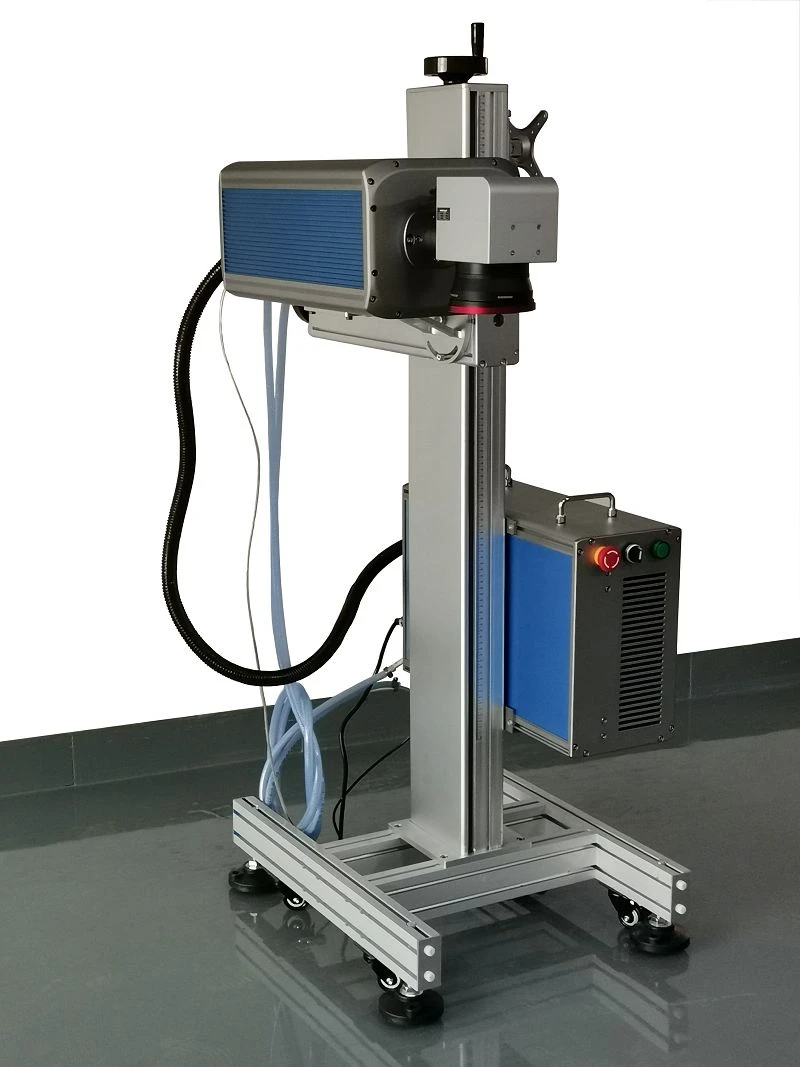

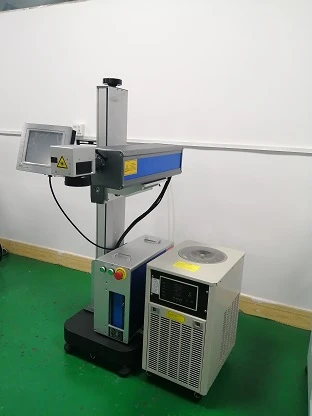

Cov qauv
Shipping thiab pob
Unpacking Ceev faj:
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Seb puas muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps yog nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
