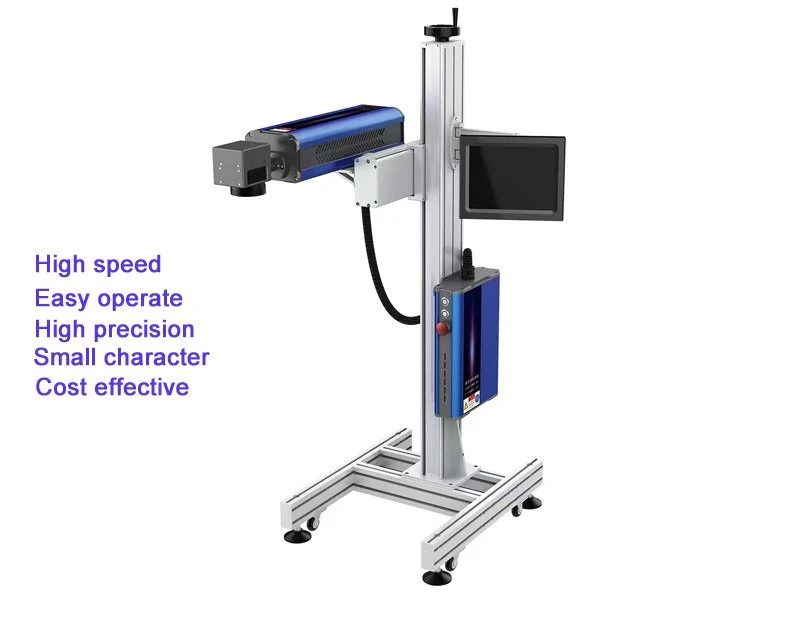

Lub raj mis Flying Laser Marker

Lub raj mis dej ya ya laser marker yog lub tshuab uas yog tsim los rau kos lub raj mis nrog cov khoom siv yas lossis cov khoom siv hlau nrog txheej. Nws muaj qhov zoo ntawm kev kub ceev, lub sijhawm ua haujlwm ntev, txuag nqi, thiab lwm yam.

Xa kev nug

Khoom Taw qhia

Haus fwj ya laser marker

Khoom Description

Dej fwj ya laser marker yog ib qho kev txiav-ntug thiab cov thev naus laus zis tshiab uas siv lasers los cim thiab sau cov raj mis dej thaum lawv taug kev los ntawm cov kab ntau lawm. Cov thev naus laus zis no tau txais kev pom zoo los ntawm cov tuam txhab dej haus vim nws muaj ntau yam txiaj ntsig tshaj li cov txheej txheem ntawm kev sau npe. Nws yog qhov tsim nyog rau cov khoom siv hlau lossis cov hlau tsis yog hlau, tsuav yog nws yog ntoo, tawv, dej ntxhia thiab lwm yam khoom yas kos npe, kos cov nyhuv yog qhov zoo, koj tuaj yeem hloov kho cov cim ya hauv online, koj tuaj yeem txuas nws thiab muab teeb liab mus rau cov kab ntau lawm ua lub cim ya.

Technical nta

1, kev ua haujlwm zoo, siab dhau-tus nqi;

2, tsis muaj consumables, siv tsawg thiab tu nqi;

3, kev ua haujlwm siab ruaj khov thiab lwm yam zoo;

4, kev txheeb xyuas yooj yim ntawm cov khoom kom ua tiav kev txheeb xyuas cov khoom cuav;

5, txoj kev ua laser, qhov precision yog siab;

6, tag nrho lub tshuab ua haujlwm ruaj khov, tuaj yeem ua haujlwm ntev.

7. Muaj peev xwm luam tawm ntau yam ntawm Suav thiab Askiv fonts, vector graphics PLT, DXF cov ntaub ntawv, BMP cov ntaub ntawv, bitmap graphics, kwj naj npawb, bar code, ob-dimensional code, nyob rau hauv lub dav hlau, nkhaus nto thiab lub tog raj kheej cim.

Daim ntawv thov

Muaj txhua yam ntawm cov ntaub ntawv uas tsis yog xim hlau thiab cov khoom nto kos npe, xws li plexiglass, ceramics, plastics, ntoo, roj hmab, tawv, khoom siv;
Kev lag luam Electronics: laser marking rau capacitors, inductors, luam ntawv Circuit Court board, integrated circuits, hluav taws xob connectors, ntau yam twj paj nruag thiab tswj vaj huam sib luag.
Cov khoom siv niaj hnub thiab kev lag luam khaub ncaws: khawm, ntim tshuaj pleev ib ce, ntim khoom noj, ntawv sau, khoom siv tes ua thiab lwm yam cim. Nto oxidized los yog pleev xim rau hlau (xws li txhuas profiles), ntsaws ruaj ruaj, khoom siv tes ua, cov khoom siv hluav taws xob, cov plaub hau cab, cov khaub ncaws fabrics, cov qauv tsim, cov khoom siv ntoo, tawv, cov khoom siv lead ua, ob-xim panels, roj hmab phaj, acrylic khoom, xyoob thiab ntoo crafts, ceramics, marble dluab.

Basic parameters ntawm cov cuab yeej

Laser tso zis zog	20W/30W/50W
Kos ntau yam	110*110
Nqa qhov siab	300 hli
Yam tsawg kawg kab dav	0.01 hli
Yam tsawg kawg nkaus tsom qhov chaw	0.01 hli
Yam tsawg kawg cim cim	0.03 hli
Rov ua dua	± 0.002mm
Kev hloov kho lub zog	10 ~ 100%
Repetition zaus hloov ntau yam	20 ~ 80KHZ
Marking qhov tob	{0}.01 ~ 0.2 hli
Scanning ceev	7000mm / s, 1mm cov ntawv Askiv siab 150 cim / s
Kev taw qhia luam ntawv	nce, nqis, sab laug, sab xis, arc luam ntawv tuaj yeem hloov kho arbitrarily
Tus naj npawb ntawm fonts	Ntau tshaj 140 fonts, cov neeg siv khoom tuaj yeem ntxiv lawv tus kheej fonts raws li cov neeg siv khoom xav tau
Ob-dimensional code luam ntawv	QRCode, Code 39, Code 128, PDF417, DatyaMatrix (dot hom thiab square hom) thiab lwm yam 21 hom
Laser kev pabcuam lub neej	100, 000 teev
Lub sijhawm ua haujlwm tsis tu ncua	24 teev
Txias qhov system	cua txias, tsis xav tau dej txias
Input zog	220V ± 15%, 50 Hz ± 3%, kev siv hluav taws xob<500W
Kev sib hloov	Lub worktable yuav tig los yog lub laser yuav tig tau thaum luam ntawv lub workpiece
