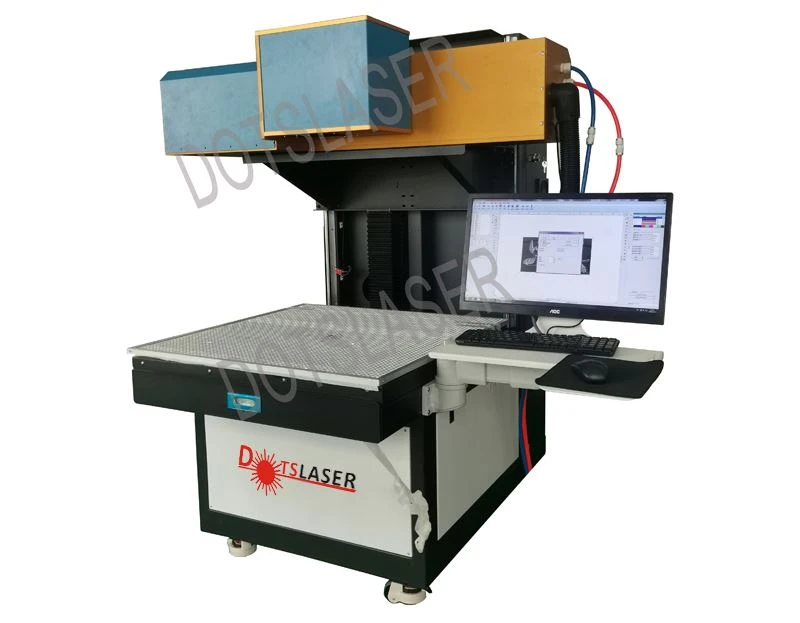

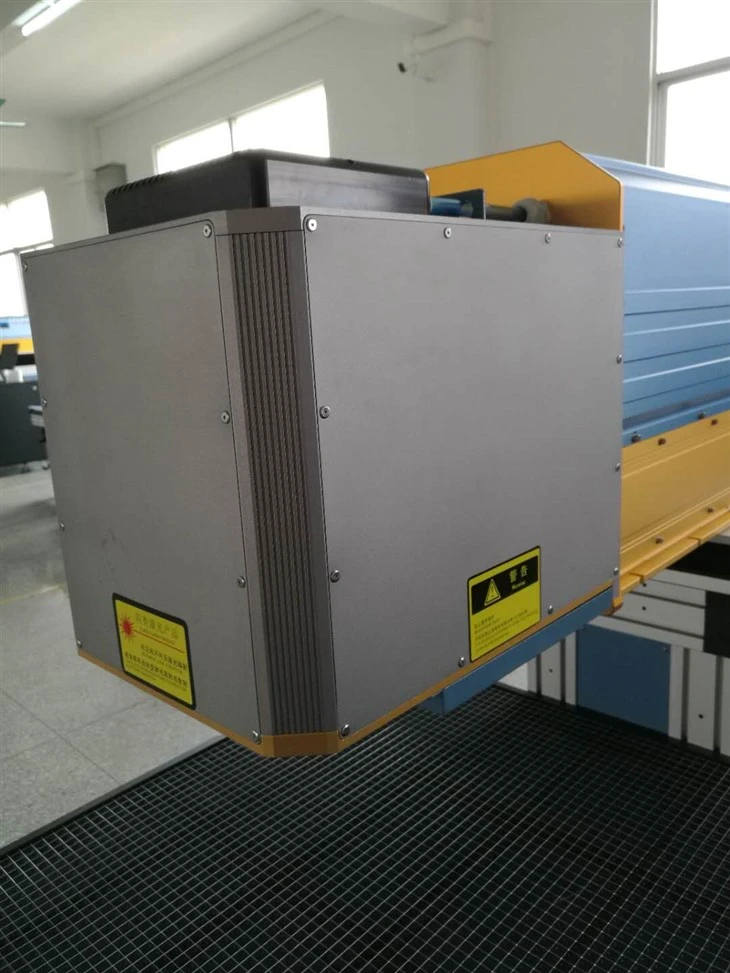

Marble Pob Zeb Laser Engraving Tshuab
Marble Pob Zeb Laser Engraving Tshuab
Khoom Description
Marble Pob Zeb Laser Engraving Tshuab yog lub tshuab tshwj xeeb tsim rau kev kos duab ntawm marble thiab lwm yam pob zeb. Lub tshuab yog tsim los nrog high precision thiab raug los xyuas kom meej qhov zoo tshaj plaws tau tiav. Nrog nws cov thev naus laus zis laser siab, lub tshuab muaj peev xwm kos cov qauv tsim thiab cov duab ntawm txhua qhov marble lossis pob zeb nto.
tshuab zoo
Marble Pob Zeb Laser Engraving Tshuab yog tsim nrog lub taub hau laser ua haujlwm siab, uas muaj peev xwm xa tau cov haujlwm siab ceev thiab siab precision engraving. Lub taub hau nta ib qho tshwj xeeb kho qhov muag system uas lav qhov tseeb tsom, ua rau cov duab tsis tu ncua thiab meej.
Lub tshuab no yooj yim heev rau kev khiav lag luam, nrog rau tus neeg siv-phooj ywg interface uas tso cai rau koj los tswj tag nrho cov haujlwm yooj yim. Lub software yog sib xws nrog ntau hom duab, xws li BMP, PLT, AI, DXF, thiab lwm yam nrov tawm tswv yim, ua rau koj import thiab kos ib daim duab ntawm koj xaiv. Lub software kuj tso cai rau koj los kho cov engraving ceev thiab qhov tob, kom ntseeg tau tias koj tuaj yeem ua tiav cov qauv zoo meej.

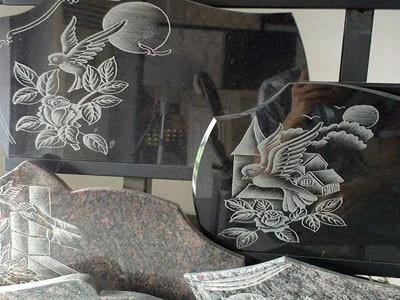

Ib qho ntawm cov yam ntxwv ntawm Marble Pob Zeb Laser Engraving Tshuab yog nws ntau yam. Lub tshuab tuaj yeem kos rau ntawm pob zeb nto, nrog rau marble, granite, sandstone, thiab lwm yam. Qhov no ua rau nws tshwj xeeb tshaj yog tsim rau kev tsim cov qauv zoo nkauj ntawm tombstones, monuments, thiab headstones.
Lub tshuab yog tsim kom kawg, nrog lub hauv paus ruaj khov thiab ruaj khov uas ua kom muaj kev ruaj ntseg thiab raug. Nws kuj los nrog lub tshuab cua txias uas tswj qhov kub thiab txias, tiv thaiv kev puas tsuaj rau lub tshuab. Nrog nws cov kev siv hluav taws xob tsawg, Marble Pob Zeb Laser Engraving Tshuab yog eco-friendly thiab nqi-npaum.
Marble Pob Zeb Laser Engraving Tshuab yog ib lub tshuab tshwj xeeb rau engraving ntawm pob zeb nto. Nws qhov siab precision, ntau yam, thiab siv tau yooj yim ua rau nws xaiv zoo tshaj plaws rau txhua daim ntawv thov, suav nrog pob zeb engraving, monument thiab tombstone tsim, thiab ntau dua. Nrog nws cov yam ntxwv siab heev, lub tshuab no yog ib qho yuav tsum muaj rau txhua lub lag luam lossis ib tus neeg tab tom nrhiav los tsim cov qauv tsim tshwj xeeb thiab zoo nkauj ntawm cov pob zeb.
Muaj feem xyuam:

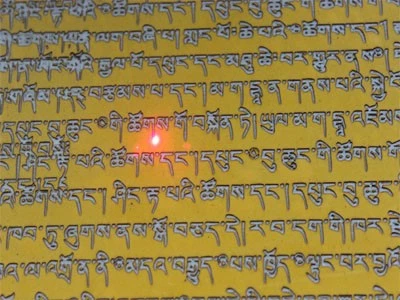

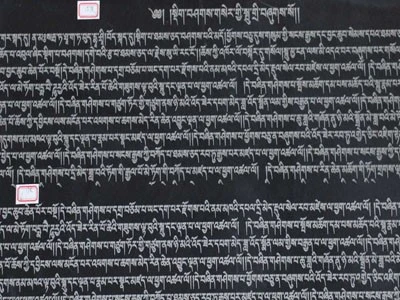

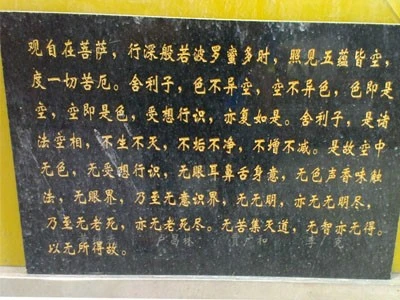

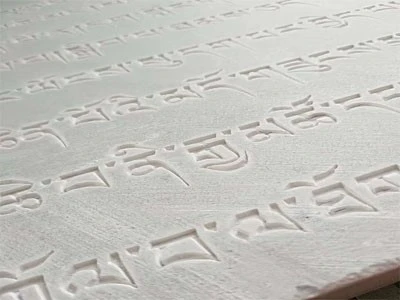

Nws yog tsim rau laser engraving nyob rau hauv lub pob zeb kev lag luam xws li Tibetan vaj lug kub, Tibetan los yog lwm yam ntawv carvings, duab ntxoov ntxoo engravings, toj roob hauv pes duab ntxoov ntxoo engravings, tsiaj duab ntxoov ntxoo engravings, Buddha duab carvings, loj mural carvings, tombstone carvings, khoom plig, thiab lwm yam.
Cov khoom siv:
Ntau lub pob zeb xws li marble, granite, dawb marble, slate, sandstone, quartz pob zeb, limestone, xiav (liab) sandstone.
Nta thiab kev ua yeeb yam:
Fast marking / engraving ceev
Kev ua haujlwm yooj yim, tsis tas yuav hloov cov khoom tom qab siv sijhawm ntev.
High precision marking, swift, engraving qhov tob controllable.OEM customization tuaj yeem txais.
Zoo beam zoo, siab photoelectric conversion efficiency, kev ua tau zoo thiab muaj peev xwm ua tau zoo ntawm kev ua haujlwm zoo.
Lub neej ntev: lub sijhawm lub neej expectant tuaj yeem ncav cuag li 20, 000 teev.
All-in-one tsim, txuag chaw.
Tsis muaj cov khoom siv uas xav tau / Txhawb cov ntaub ntawv sib txawv: PLT, DXF, BMP, JPG, thiab lwm yam.
Tsis muaj
|
TSIS MUAJ. |
Lub npe |
DS-LMC series Galvo laser system |
|
1 |
Tshuab qauv |
DS-LMC150/DS-LMC250/DS-LMC350 |
|
2 |
Max laser zog |
150W/250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beam zoo |
＜1.2㎡ |
|
5 |
Lub luag haujlwm lub voj voog txwv |
Tsawg dua lossis sib npaug li 60% |
|
6 |
Min. kab dav |
0.17mm (nyob ntawm cov khoom siv) |
|
7 |
Qhov loj me me |
0.4 hli |
|
8 |
Max marking ceev |
Tsawg dua lossis sib npaug li 8,000mm/s |
|
9 |
Chaw ua haujlwm |
400x400mm / 500x500mm / 600x600mm / 800x800mm |
|
10 |
Txias |
Cov dejcoj |
|
11 |
Kev ua haujlwm ib puag ncig qhov kub thiab txias |
5 ~ 35 degree |
|
12 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
< 70% No condensation |
|
13 |
Fais fab mov |
220V, 50/60Hz |
|
14 |
Kev siv fais fab |
6 KW |
Vim li cas thiaj xaiv DOTSLASER's laser?

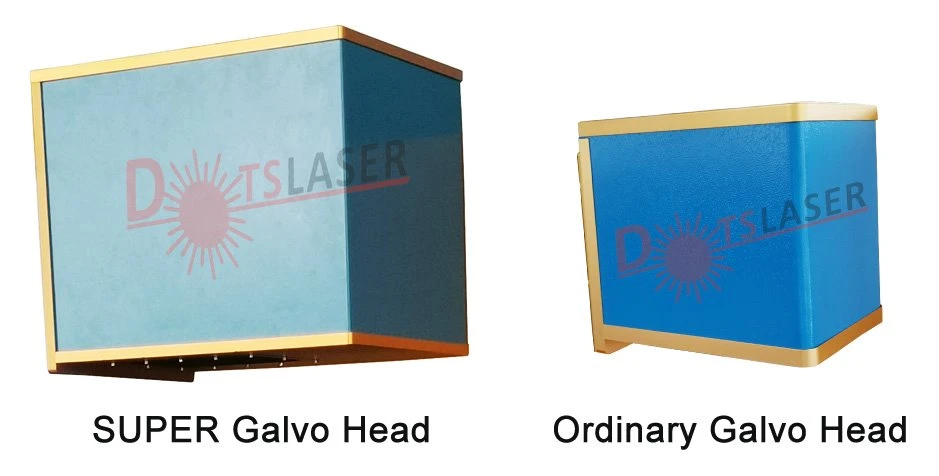

Super Galvo
Peb tsim thiab tsim ua SUPER galvo, piv nrog cov tsoos zoo tib yam laser engraving tshuab, nws qhov chaw me me yog qhov zoo dua, yog li nws tuaj yeem kos rau ntawm thaj chaw dav ntawm tib lub zog laser. los yog muaj 30% ~ 50% ntau cov kab zoo ntawm tib qhov chaw ua haujlwm. yog li engrave me me ntawv yog ua tau.

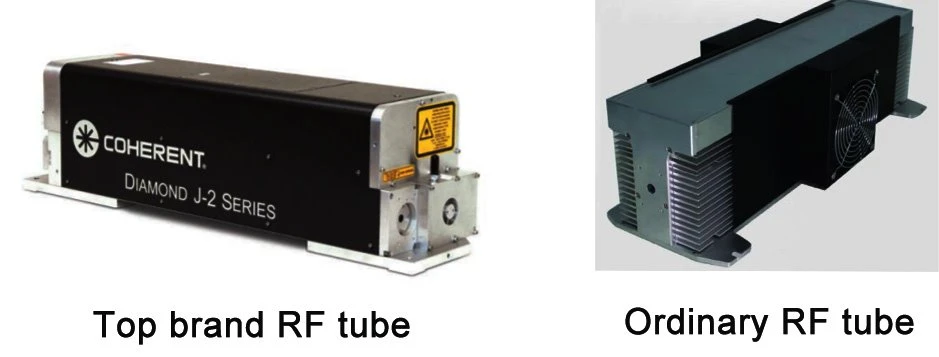

Ntau ruaj khov laser qhov chaw / generator
DOTSLASER txais yuav thoob ntiaj teb ua laser qhov chaw, nws yog ruaj khov heev thiab nrog zoo laser beam tso zis, siab mem tes zog, nplua rau lub sij hawm ntev laser ua rau harden pob zeb; Ntau tus neeg sib tw sib sau ua ke tsis paub laser qhov chaw, uas tsis ruaj khov thiab muaj qhov tsis ua haujlwm siab, tsis zoo rau lub sijhawm ntev engraving pob zeb nyuaj.

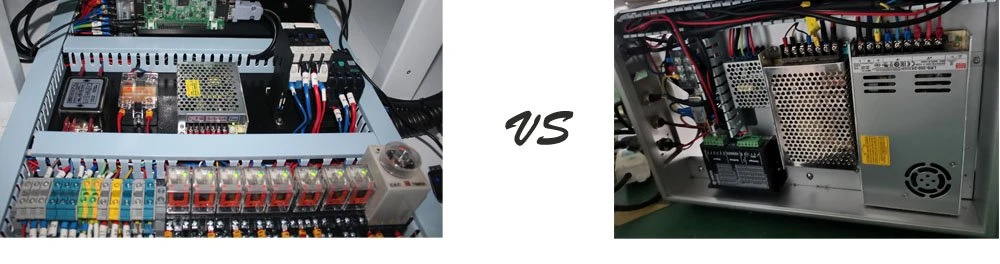

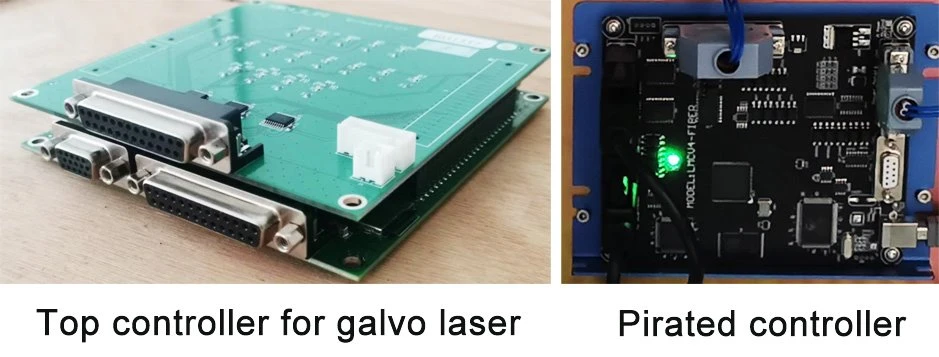

Zoo dua maub los thiab software
Lub Rooj Tswjhwm Saib Xyuas yog "lub hlwb" ntawm lub laser engraving, ib tug kws tshaj lij tswj board thiab software yuav muab ib tug zoo txiav txim rau lub tshuab mus ua hauj lwm zoo. DOTSLASER txais cov txheej txheem tswj kev tswj hwm thiab software haum rau peb cov tshuab zoo kawg nkaus. Yooj yim rau kev khiav lag luam, tsis xav tau kev cob qhia nyuaj. Ntau tus neeg sib tw siv cov maub los uas tau theej lossis pirated los ntawm cov programmer uas tsis muaj kev tshaj lij. Yog li nws ua rau muaj teeb meem xws li kab laum ntau, tsis ua haujlwm, kev sib txuas, tsis muaj kev hloov kho, kev cai.
International assembly standard
Compared nrog ib txwm ua tshuab, nws cov txheej txheem yog yooj yim dua, yooj yim, tus nqi qis dua, Siv lub tshuab laser engraving tuaj yeem tshem tawm cov txheej txheem ntawm pob zeb, sandblasting, zaj duab xis tshem tawm, thiab lwm yam, thiab kev ua haujlwm yooj yim. Cov tsoos CNC pob zeb engraving tshuab ua cov khoom tsim tau tsawg heev, nyuaj los hloov cov ntawv me me thiab cov kab tuab. Kev ua cov khoom tsim tawm yog qhov nyuaj. consumables nqi ntau dua.

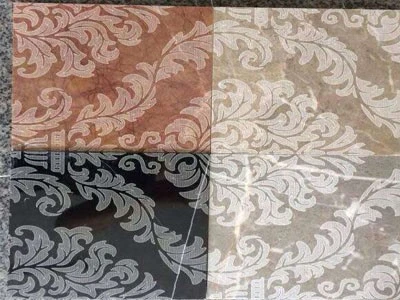

Cov qauv qhia
Tag nrho peb cov marble zeb laser engraving tshuab tau sib sau ua ke nrog cov txheej txheem thoob ntiaj teb, tag nrho cov khoom raug tshuaj xyuas los ntawm QC. txawm tias qhov teeb meem me me peb yuav tsum kho nws. peb paub meej ua qhov txawv. yog li peb tsom rau cov txheej txheem sib dhos nruj heev txhua lub sijhawm.

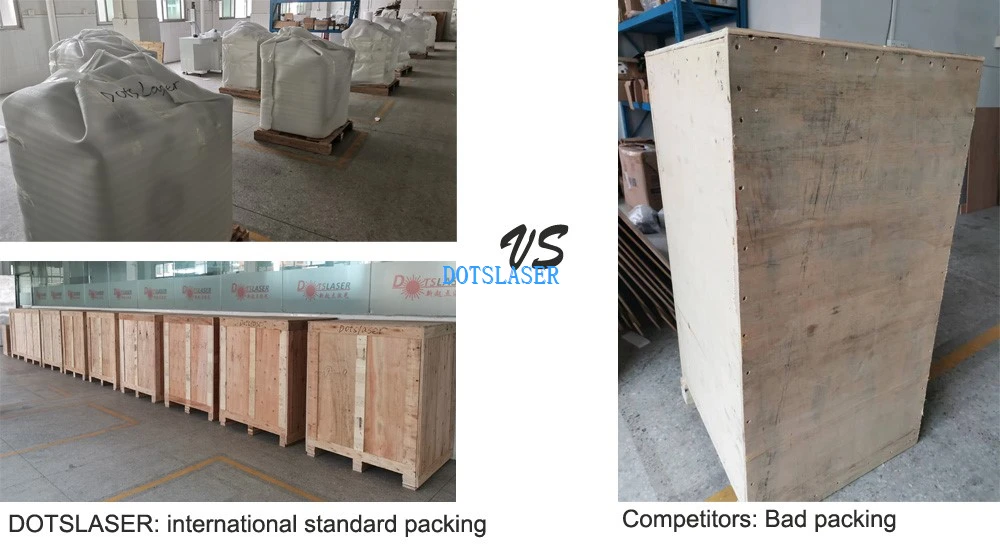

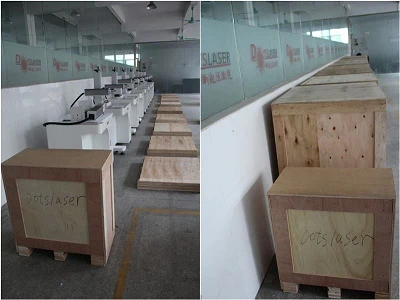

Ntim thiab shipping.
Cov ntawv pov thawj
