CO2 Flying Laser Mark Cloths
CO2ya laser npav daim ntaub
Khoom Description

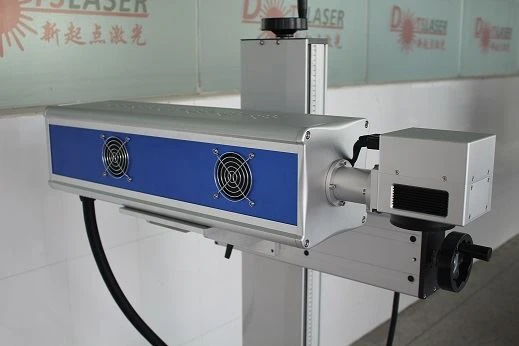

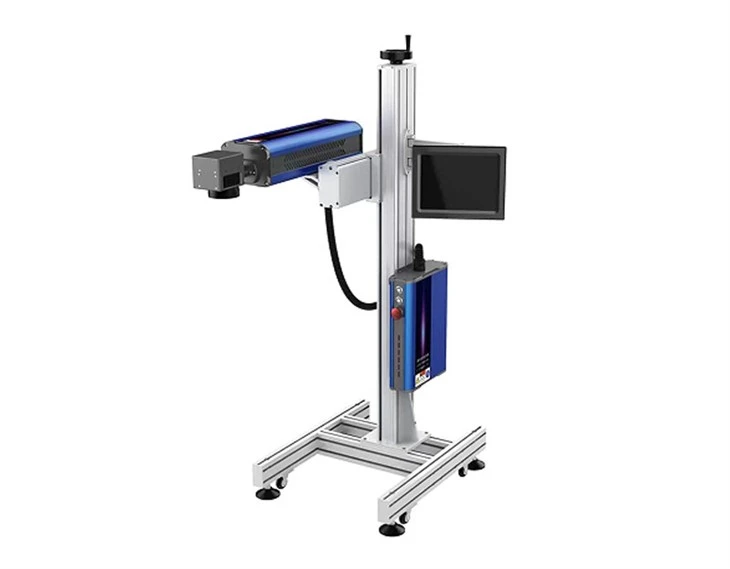

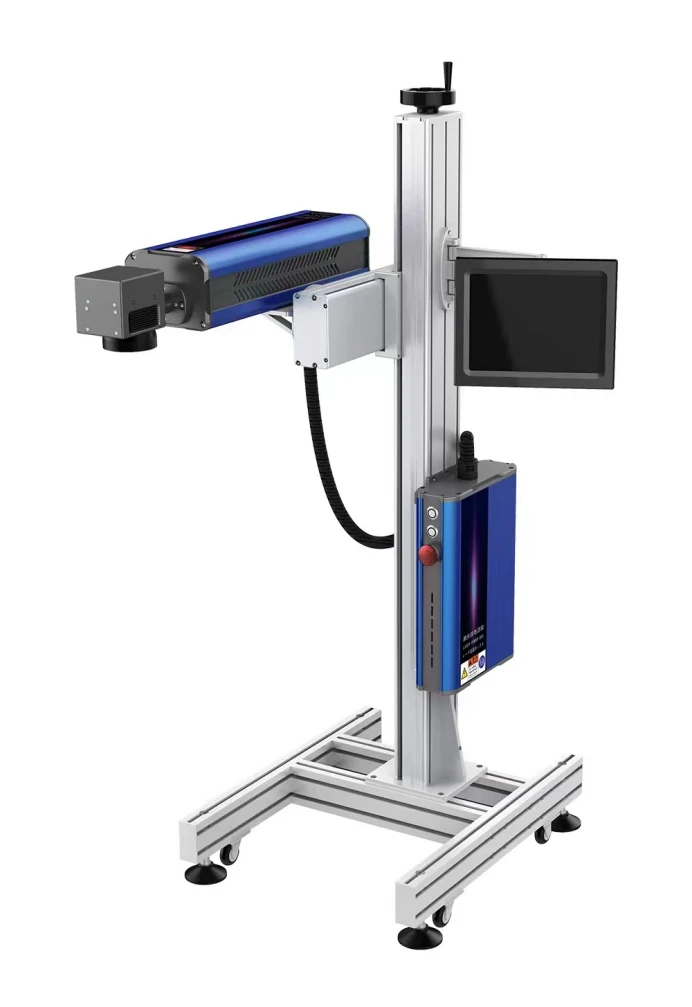

DS-LMC30 laser tshuab yog Dotslaser tshwj xeeb tshaj yog tsim rau engraving cov ntaub ntawv uas tsis yog xim hlau, nws muaj compact loj, nruab nrog rau cov menyuam casters, yooj yim rau tsiv, saws zoo zoo laser qhov chaw, kom ruaj khov laser beam, nws ua tau zoo cim. Txhawb nqa ntev coding muaj nuj nqi, coding cov ntsiab lus npog cov lej, cim tshwj xeeb, ntawv, Suav thiab lwm yam cim thiab LOGO.
CO2Flying tshuab nta
High marking raug
CO2ya laser tshuab yog nruab nrog high-speed galvanometer scanning system, yog li cov cim
qhov tseeb yog qhov siab thiab kev ua haujlwm ceev ceev.
Kev siv dav
CO2laser tshuab feem ntau siv hauv cov ntaub ntawv uas tsis yog xim hlau, xws li ntoo, ntawv, xyoob, pob zeb, roj hmab, ntaub, arcylic, yas, ceramic, thiab lwm yam.
Kev cim tas mus li
CO2laser marking tshuab nrog siab photoelectric conversion efficiency, ruaj khov laser beam, me me beam qhov chaw loj, nws cov qhabnias tshwm sim yuav tsis hloov txawm nyob rau hauv ib tug hash ib puag ncig.
Kev tsim khoom siab dua
Parameter
|
Qauv |
DS-LWM 30 |
|
Laser fais fab tso zis |
>30W |
|
Laser wavelength |
9.3μm/10.6μm |
|
Kos thaj tsam |
100x100mm (tus qauv) |
|
Pulse zaus |
1 ~ 100KHZ |
|
Max marking ceev |
12, 000mm/s |
|
Font hom ntawv |
Dot, ib kab, hom muaj tseeb |
|
Code hom ntawv
|
Feem ntau 1D & 2D codes muaj |
|
Txhawb interface |
USB, TCP / IP, RS219 rau encoder thiab sensor |
|
Rov ua qhov tseeb |
± 0.001 hli |
|
Min. kab dav |
0.1 hli |
|
Qhov loj me me |
0.2 hli |
|
Txias |
Cua txias |
|
Ua haujlwm temp |
5 ~ 35 degree |
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|
Qhov hnyav tag nrho |
90 KG |
FlyMarking ntawm qhov chaw ntawm ntau yamcov ntaub ntawv uas tsis yog xim hlauthiab cov khoom lag luam, xws li plexiglass, ceramics, plastics, cov khoom siv hluavtaws, ntoo, roj hmab tawv, pob zeb, xyoob, cov khoom siv ntawv;
Kev lag luam Electronic:laser flymarking ntawm capacitors, inductors, luam ntawv Circuit Court boards, integrated circuits, hluav taws xob plug-in phaib, ntau yam twj paj nruag thiab tswj vaj huam sib luag;
Cov khoom siv niaj hnub thiab khaub ncaws kev lag luam:kos cim khawm, ntim khoom kom zoo nkauj, ntim khoom noj, luam yeeb thiab cawv, ntawv sau, khoom siv tes ua, thiab lwm yam.
Superiority ntawm Dotslaser lub tshuab:

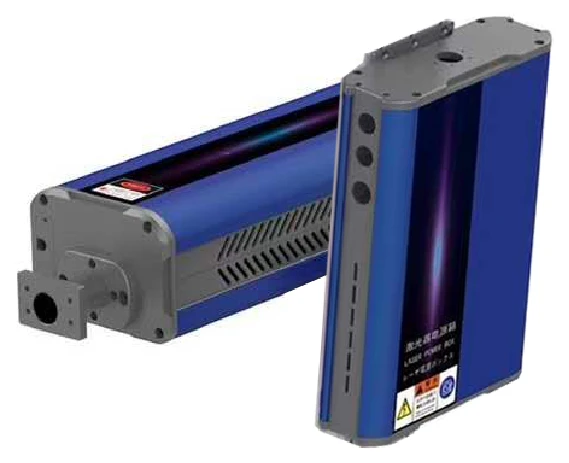

Laser qhov chaw:
Lub rooj tswj xyuas kev tshaj lij thiab software tuaj yeem muab kev txiav txim zoo rau lub tshuab ua haujlwm zoo. DOTSLASER txais lub npe nrov laser qhov chaw, haum rau peb lub tshuab zoo kawg nkaus. Ntau tus neeg sib tw siv cov maub los uas tau theej lossis pirated los ntawm cov programmer uas tsis muaj kev tshaj lij. Yog li nws ua rau muaj teeb meem xws li kab laum ntau, tsis ua haujlwm, kev sib txuas, tsis muaj kev hloov kho, kev cai. DOTSLASER txais yuav thoob ntiaj teb ua laser qhov chaw, nws yog ruaj khov heev thiab nrog zoo laser beam tso zis, siab mem tes zog, nplua rau lub sij hawm ntev laser ua rau harden pob zeb; Ntau tus neeg sib tw sib sau ua ke tsis paub laser qhov chaw, uas tsis ruaj khov thiab muaj qhov tsis ua haujlwm siab, tsis zoo rau lub sijhawm ntev engraving pob zeb nyuaj.
Peb tsim thiab tsim ua SUPER galvo, piv nrog cov tsoos zoo tib yam laser engraving tshuab, nws qhov chaw me me yog qhov zoo dua, yog li nws tuaj yeem kos rau ntawm thaj chaw dav ntawm tib lub zog laser. los yog muaj 30% ~ 50% ntau cov kab zoo ntawm tib qhov chaw ua haujlwm. yog li engrave me me ntawv yog ua tau.
Ob chav liab lub teeb hlau galvanometer:
Hlau lub cev qauv, built-in dual lub teeb liab cim cov lus qhia, nrog rau qhov zoo ntawm kev hloov kho-dawb, txij nkawm-dawb, thiab siab ruaj khov, nws tuaj yeem hloov kho nrog high-speed digital scanning galvanometer.
Powerful marking software:

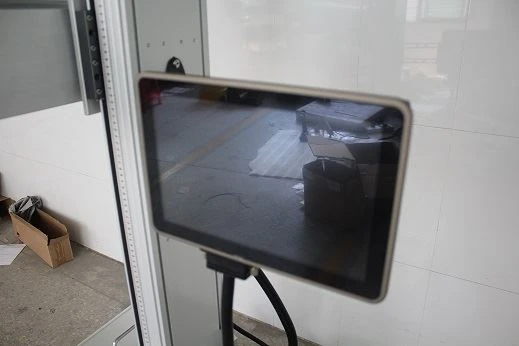

Lub kaw lus tswj tau muaj zog, nws tuaj yeem ua kom zoo rau ntau yam ntaub ntawv raws li cov txheej txheem sib txawv thiab txhawb nqa ntau hom lus ib qho tseem ceeb hloov, nws ua tau raws li cov txheej txheem kev thov ntawm feem ntau cov kev lag luam hauv kev lag luam.

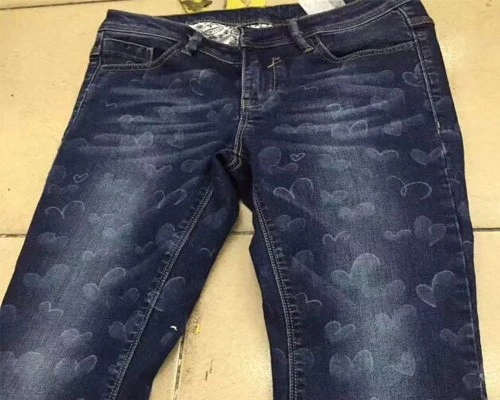

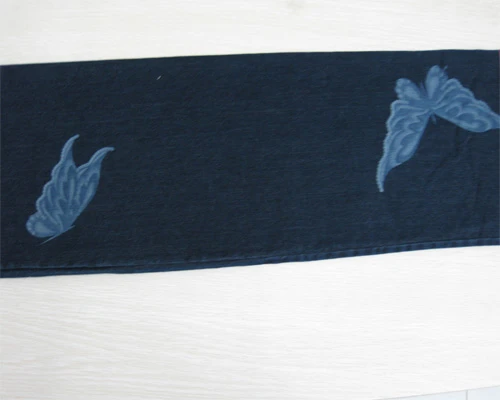

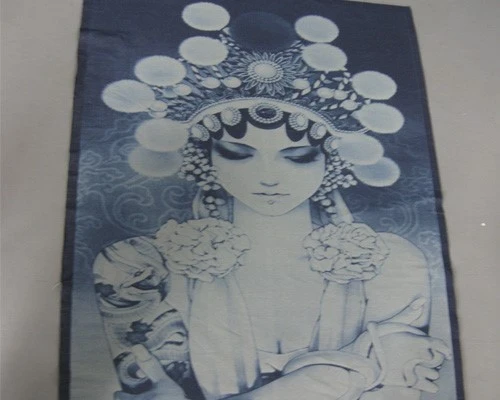

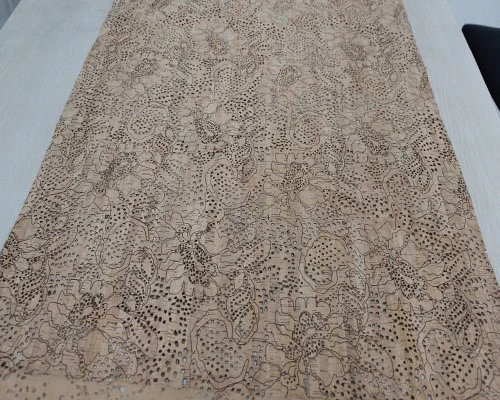

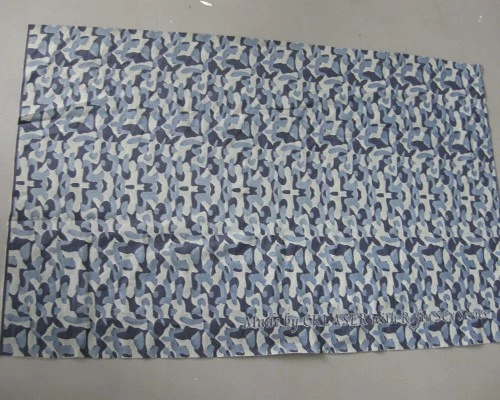

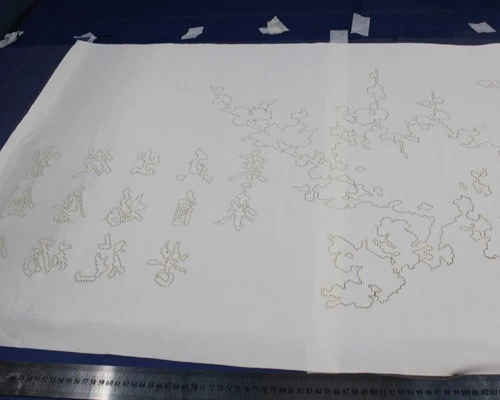

Cov qauvNtawm CO2Laser Marking
Shipping thiab pob
Unpacking Ceev faj
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
Kev pab cuam tom qab muag
Txoj kev pabcuam ntawm DOTSLASER yog: "kom cov neeg siv txaus siab thiab pab cov neeg siv ua tiav". Peb tsis tsuas yog sau nws mus rau hauv lub tuam txhab cov khoom ntawm kev koom tes thiab luam tawm ntawm lub tuam txhab cov nplooj ntawv tshaj tawm xim, tab sis kuj siv zog los siv rau hauv peb lub siab thiab kev ua. Peb siv software tswj kev sib raug zoo ntawm cov neeg siv khoom los ua cov ntaub ntawv ntxaws ntxaws ntawm peb cov neeg ua haujlwm hauv qhov rooj, cov neeg siv kev sib cuag, qhov tshwm sim txhaum cai, thiab cov txheej txheem daws teeb meem rau txhua qhov kev pabcuam hauv qhov rooj.
Kev cog lus kev pab cuam:
Kev txhawb nqa: Tom qab koj yuav lub tshuab, peb yuav muab kev cob qhia cov neeg ua haujlwm pub dawb rau koj thiab 24-teev kev sib tham. Kev pab cuam muag khoom ua ntej: Raws li cov neeg siv khoom xav tau, peb lub tuam txhab tuaj yeem muab ntau yam kev kuaj ntsuas laser.
Kev pabcuam hauv kev muag khoom:
Cov neeg siv khoom tuaj yeem tuaj kawm dawb, thiab peb tuaj yeem cob qhia 1-2 cov neeg siv khoom thiab cov neeg ua haujlwm tu rau cov neeg siv khoom. Yog tias peb cov kws tshaj lij yuav tsum tau muab kev pabcuam hauv qhov rooj, tus neeg siv khoom tsuas yog yuav tsum tau them tus nqi ntawm daim pib dav hlau mus ncig, chav tsev thiab lub rooj tsavxwm.
Kev pab cuam tom qab muag:
Tom qab cov neeg siv khoom yuav lub tshuab, cov neeg siv khoom yuav tau txais kev lees paub ib xyoos thiab kev pabcuam tu lub neej. Lub Sijhawm Kev Pabcuam: Peb yuav npaj cov kws tshaj lij los qhia kev saib xyuas tam sim tom qab tau txais koj cov lus qhia yuam kev. Peb lub tuam txhab tsis tu ncua mus ntsib cov neeg siv, sau thiab ua cov lus qhia rau cov neeg siv raws sijhawm, txhim kho peb cov kev pabcuam zoo thiab qib kev ua haujlwm txhua lub sijhawm, thiab muab cov neeg siv khoom nrog cov khoom thiab cov kev pabcuam zoo dua.
