Co2 Laser npav

Co2 Laser Marking yog cov roj laser uas muaj lub zog muaj zog thiab kuj muaj kev hloov pauv hluav taws xob zoo li qub.

Xa kev nug

Khoom Taw qhia

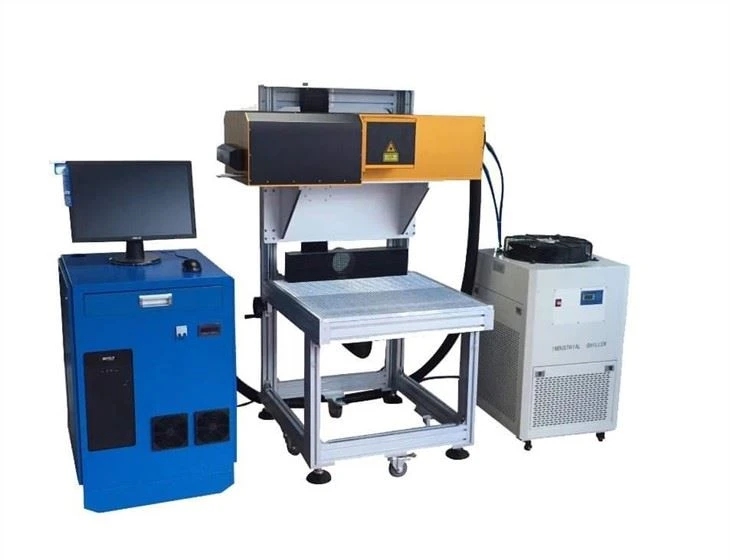

CO₂Laser Marking

Khoom Description

CO₂Laser Marking tshuab yog siv rau hauv: cov khoom siv hluav taws xob, kev ntsuas, khaub ncaws, tawv, hnab, khau, khawm, tsom iav, tshuaj, zaub mov, dej haus, tshuaj pleev ib ce, ntim khoom, khoom siv hluav taws xob, thiab lwm yam. Nws kuj yog tsim rau kev kos, kos duab, hollowing thiab txiav ntau yam khoom siv tsis yog hlau thiab cov khoom. Ntau yam cim, cim, duab, duab, barcodes, serial tooj, thiab lwm yam. Nws tuaj yeem raug cim, kos, hollowed, thiab txiav.

Tshuab Nta

CO₂Laser Marking yog ib qho roj laser uas muaj lub zog muaj zog thiab kuj muaj qhov ua tau zoo ntawm kev hloov kho qhov muag. Tam sim no nws yog tsuas yog siv rau engraving uas tsis yog-hlau thiab qee cov ntaub ntawv hlau.

Nws yog txawm peem rau nrog German high-speed scanning vibrating daim iav thiab nthuav dav beam focusing system, nrog high marking raug thiab ceev ceev.

Nws muaj lub sijhawm ua haujlwm ntev ntev, pom meej thiab zoo nkauj kos npe, thiab software muaj zog.

Nws yog ib qho yooj yim rau kev khiav lag luam thiab muaj lub zoo meej nce thiab nqis cua extraction system, uas yog ib puag ncig zoo.

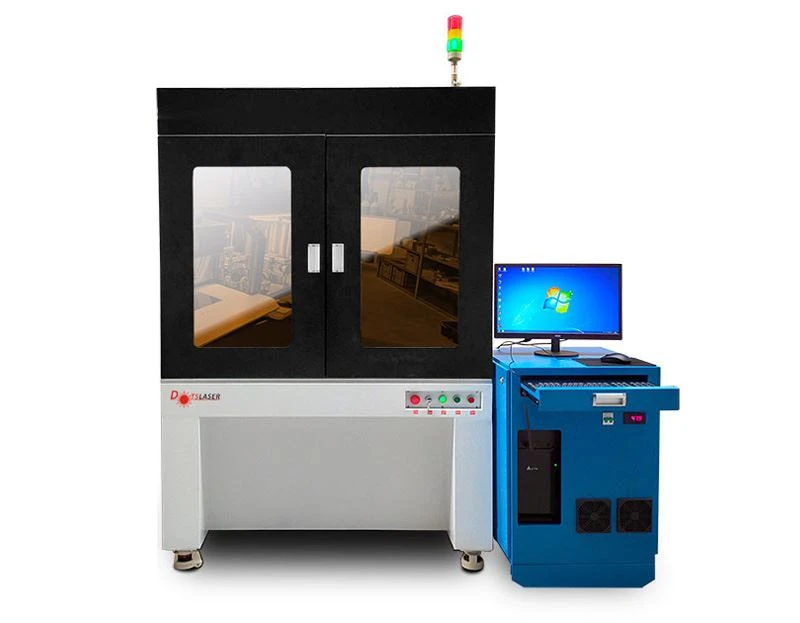

TPU heat transfer vinyl film laser cutting machine

Tsis muaj

Qauv	DS-LWM 150	DS-LWM 250	DS-LWM 350
Laser fais fab tso zis	150W	250W	350W
laser wavelength	10.6μm
Kos thaj tsam	400x400mm, 500x500mm, 600x600mm, 800x800mm, 1.2mx1.2m (yeem)
Pulse zaus	1 ~ 130KHZ
Max marking ceev	10, 000mm/s
Tswj txoj kev	xyz 3 axis dynamic tsom
Min. kab dav	0.2 hli
Txias	Dej txias
Ua haujlwm temp	10 ~ 30 degree
Qhov hnyav tag nrho	3 90 KG
Qhov loj ntawm lub tshuab	1200x800x1580mm
Fais fab mov	AC220V ± 10% / 20A, 50Hz lossis AC110V ± 10%, 60Hz

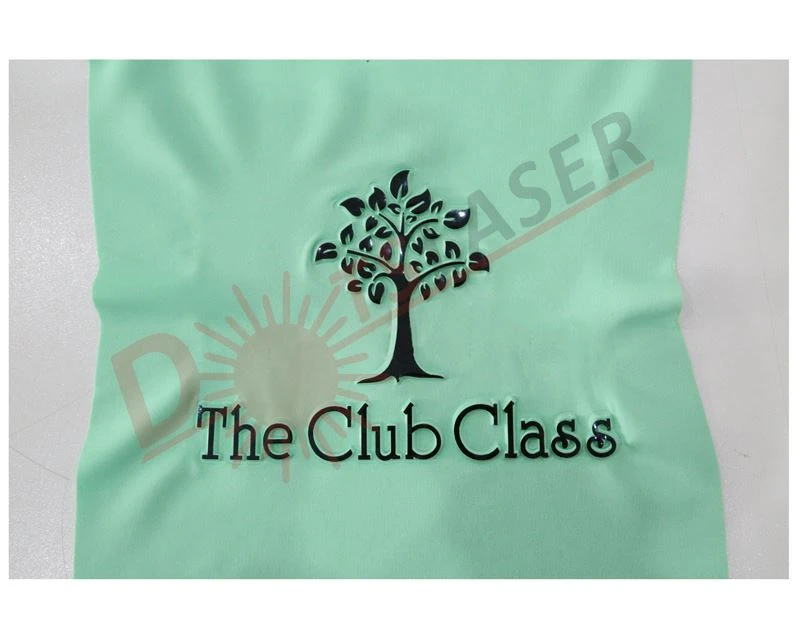

CO₂laser npav tshuab yog siv rau cov khaub ncaws.

Peb ntseeg hais tias lub tswv yim tiag tiag ntawm cov khaub ncaws accessories yog: thaum sau khaub ncaws, txhua yam khoom siv ntawm cov khaub ncaws tshwj tsis yog cov ntaub yog hu ua khaub ncaws accessories. Cov khaub ncaws accessories nyob rau hauv kev ua lag luam feem ntau muaj xws li cov ntaub ntawv woven, interlinings, linings, zippers, nyees khawm, hlau fasteners, xov siv, cov cim lag luam, flocculation thiab padding, thiab lwm yam.

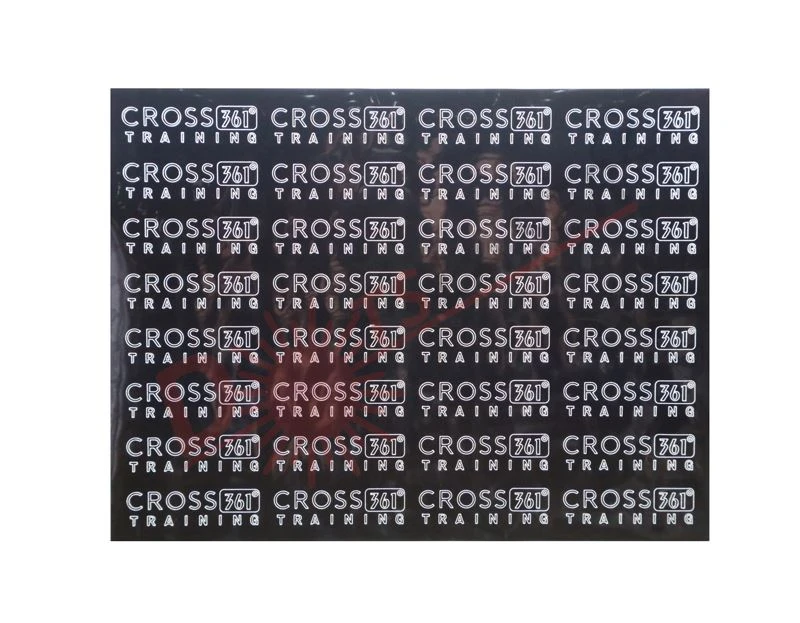

Cov qauv qhia

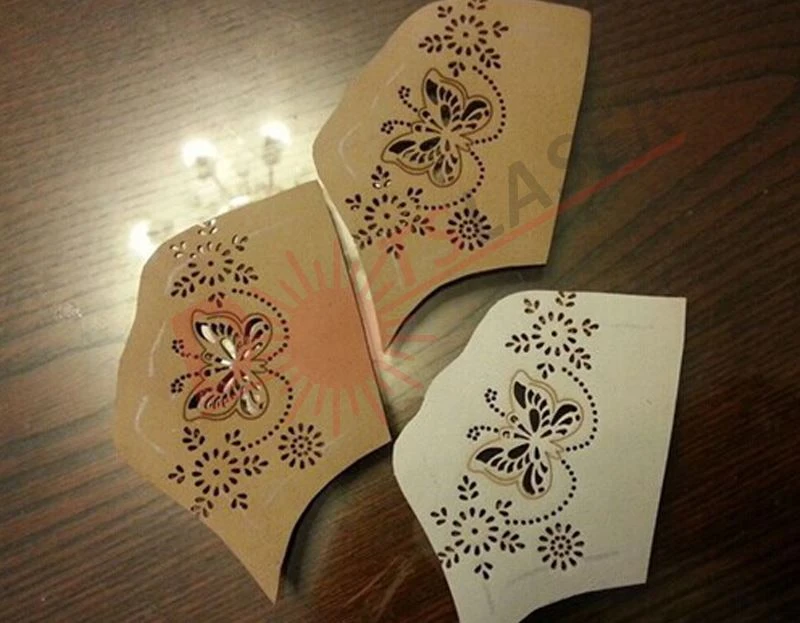

Laser marking engraving

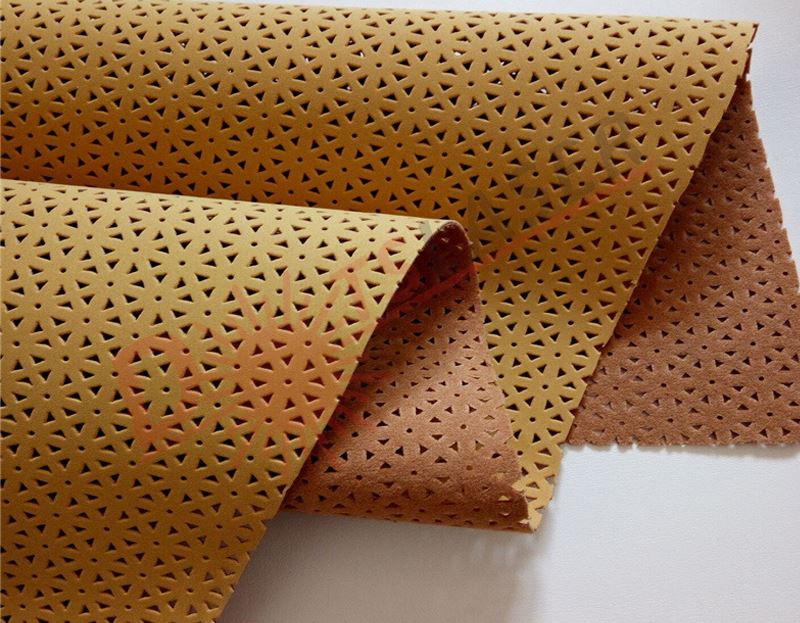

CO₂laser npav tshuab yog siv rau PU

01.

PVC thiab PU yog polyvinyl chloride (ib hom yas), tab sis cov txheej txheem tsim khoom ntawm ob yam khoom no txawv. Nyob rau hauv cov txheej txheem ntawm PVC tawv, cov yas hais yuav tsum tau yaj thiab nplawm rau hauv ib lub paste, uniformly coated ntawm T / C knitted npuag puag raws li cov thickness, thiab ces nkag mus rau hauv lub foaming cub rau foaming, thiaj li hais tias nws muaj peev xwm. yoog rau Tsim ntau yam khoom sib txawv nrog cov kev xav tau sib txawv, thiab ua tiav kev kho deg (tuag, embossing, polishing, matting, polishing, thiab lwm yam, feem ntau raws li cov khoom xav tau) tib lub sijhawm ua ci.

02.

Cov txheej txheem tsim khoom ntawm PU tawv yog qhov nyuaj dua li ntawm PVC tawv. Txij li thaum lub hauv paus ntaub ntawm PU yog canvas PU cov ntaub ntawv uas muaj zog tensile zoo, nws muaj peev xwm coated nyob rau sab saum toj ntawm lub hauv paus ntaub, thiab lub hauv paus ntaub kuj yuav muab tso rau hauv nruab nrab kom nws zoo li tsis pom nyob rau hauv lub xub ntiag. ntawm daim ntaub hauv qab. Lub cev lub cev ntawm PU tawv yog zoo dua li ntawm PVC tawv. Nws yog resistant rau tortuosity, softness, tensile zog, thiab huab cua permeability (PVC tsis).
