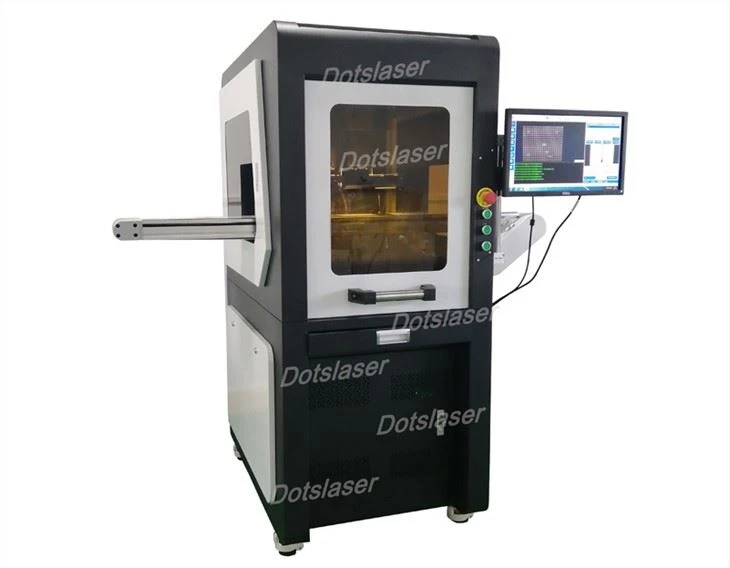

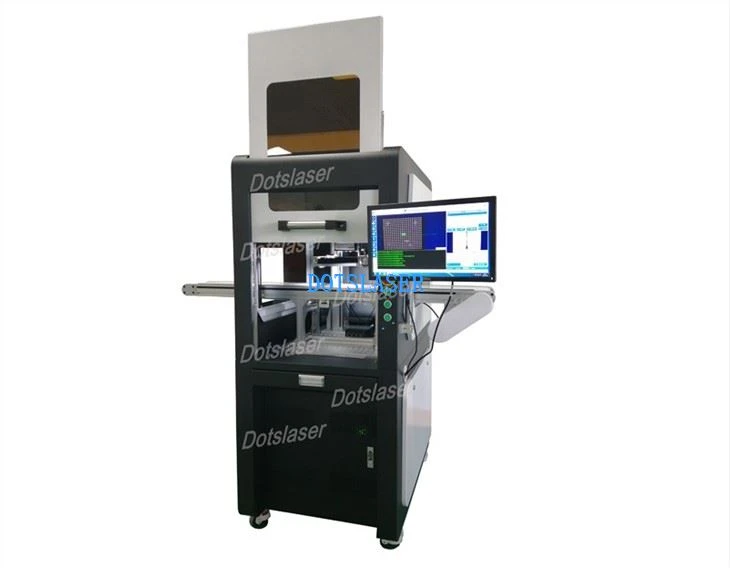

CCD Lub Koob Yees Duab Pom Kev Laser Marker
CCD Lub Koob Yees Duab Pom Kev Laser Marker
Khoom Description

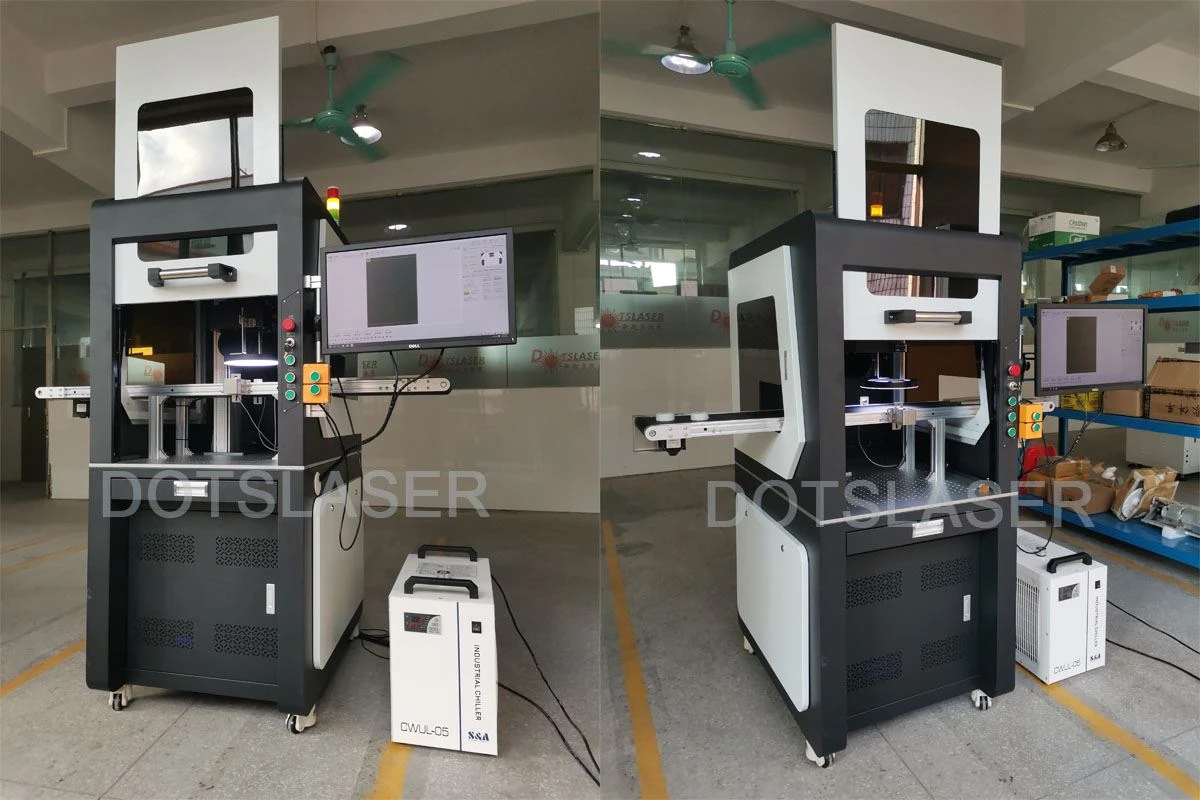

CCD Lub Koob Yees Duab Tso Npe Laser Marker tuaj yeem ua tiav cov txiaj ntsig ntawm kev kos cim meej ntev npaum li cov khoom lag luam nyob hauv qhov kev ua haujlwm ntawm lub laser marking scanning oscillator. Nws siv lub hauv paus ntsiab lus ntawm kev pom qhov pom kev, ua ntej tsim cov qauv rau cov khoom, txuag nws raws li tus qauv qauv, coj ib daim duab ntawm cov khoom thaum lub sij hawm ua, sib piv txoj hauj lwm ntawm lub computer, thiab kho nws kom meej cov khoom. Nws zoo heev txuag lub voj voog ua haujlwm ntawm laser npav.
1. CCD Lub Koob Yees Duab Tso Tawm Laser Marker txais kev pom qhov pom kev ua haujlwm siab, txoj haujlwm meej thiab nrawm nrawm.

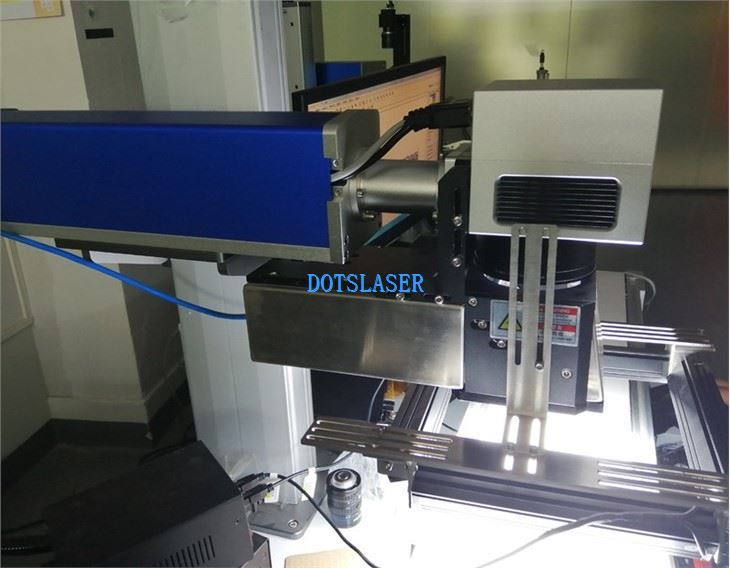

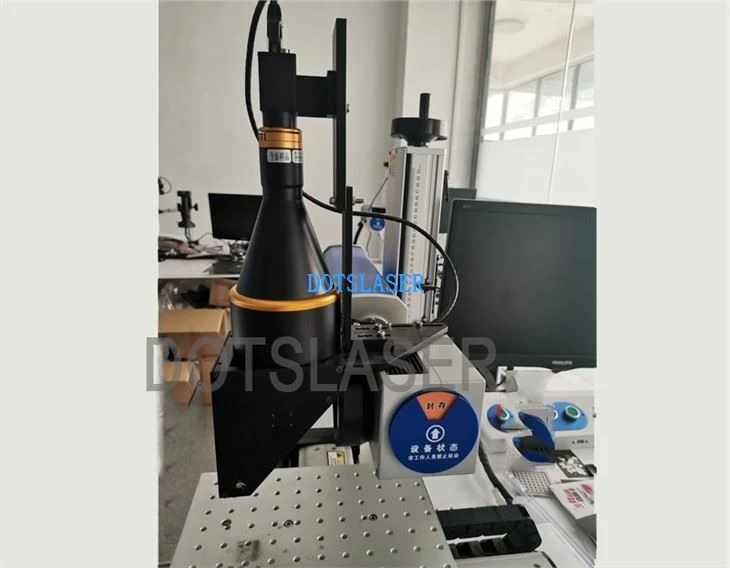

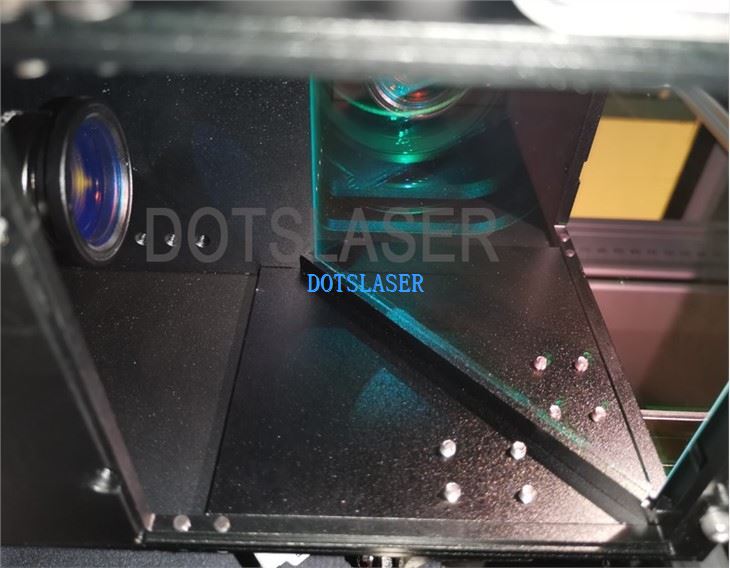

2. Qhov loj coaxial vision system txhawb mainstream lasers qhov chaw xws li ultraviolet, fiber, CO2, thiab lwm yam, thiab tsim nyog rau kev kos cov khoom nrog ntau yam khoom siv.
3.Txhua txoj haujlwm, txhua lub kaum sab xis, thiab ib qho ntawm cov khoom lag luam, qhov pom kev pom qhov system tau txais kev pom zoo, tuaj yeem kuaj pom thiab txoj haujlwm, thiab txiav cov cim laser.
4. Dedicated precision synchronous conveyor txoj siv txhawb nqa hom stepping thiab photoelectric induction hom, uas tuaj yeem hloov tau raws li qhov xav tau.
5. Tus kheej tsim qhov muag pom kev software system, tom qab xyoo ntawm kev ua kom zoo thiab ua pov thawj, lub interface yog ntau tus phooj ywg thiab yooj yim rau kev khiav lag luam.
6. Txoj siv conveyor tuaj yeem hloov kho raws li cov khoom loj thiab cov yam ntxwv ntawm cov khoom.
Tsis muaj
| Lub wavelength ntawm laser | 355nm ua |
| Laser tso zis zog | 3W,5W,10W,15W |
| Marking ceev | 400 cim ib ob |
| Beam zoo | <1.1 |
| Rov ua qhov tseeb | ± 0.001 hli |
| Chaw ua haujlwm | 70 * 70mm, 110 * 110mm 150 * 150mm 175 * 175mm 200 * 200mm yeem |
| Tshuab fais fab | 800W |
| Yam tsawg kawg nkaus | 0.1 hli |
| Txoj kev txias | Force-cua txias |
| Fais fab mov | 220V / 50Hz / 2kVA Cov |
| Yam tsawg kawg kab dav | 0.015 hli |
| Txhawb hom ntawv | PLT, BMP, DXF, JPG, TIF, AI thiab lwm yam |
| Cov khoom siv txheej txheem | Iav Plastic Crystal Non-metal Materials thiab lwm yam. |

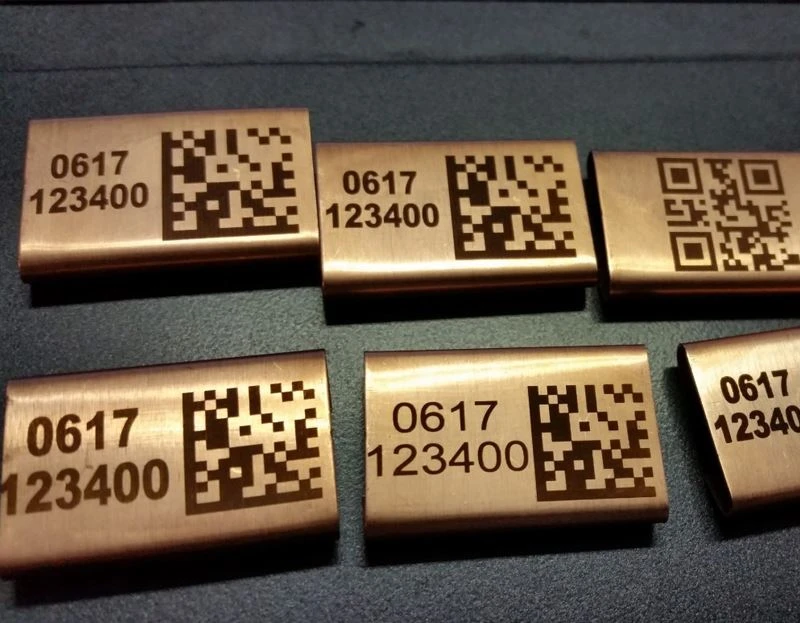

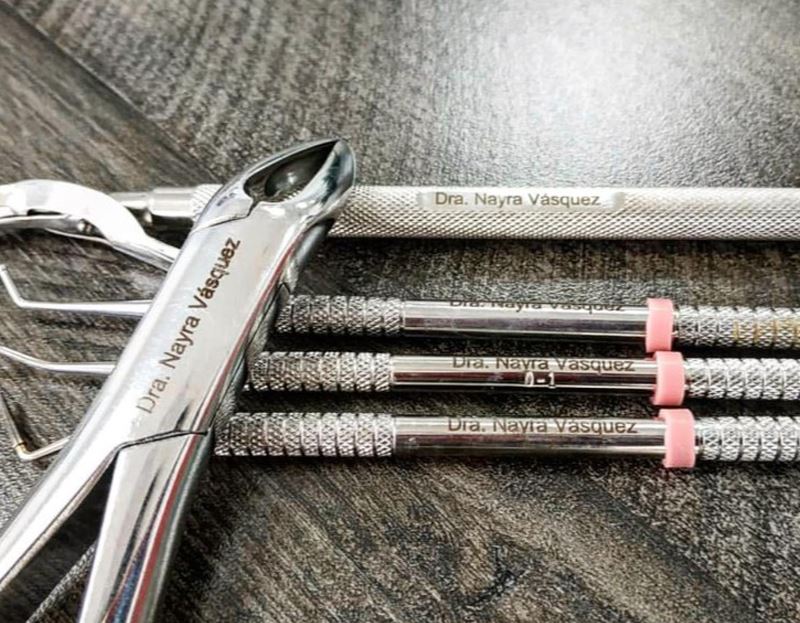

Cov qauv qhia

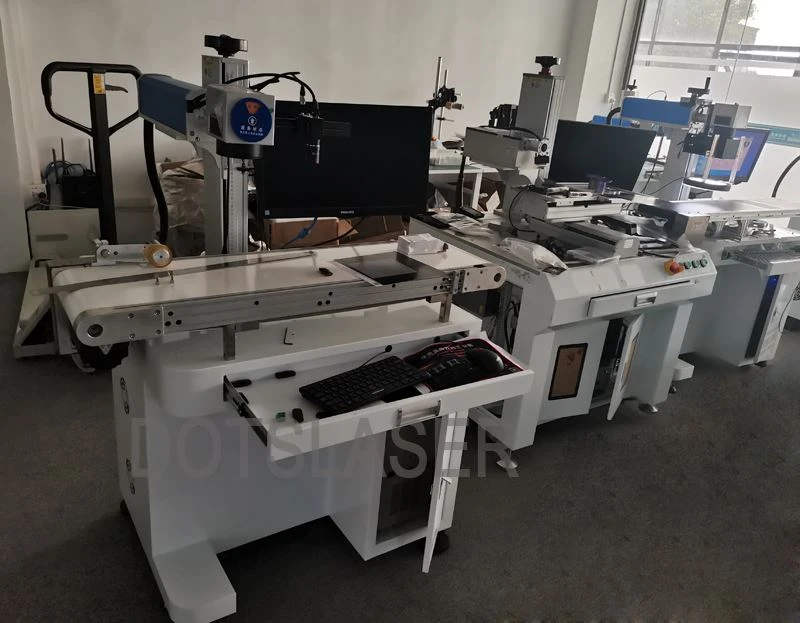

Cov cuab yeej kos npe
Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau
CCD lub koob yees duab positioning laser marker tsim thiab tsim los ntawm DOTSLASER muab ntau yam kev cob qhia thiab kev txhawb nqa kom ntseeg tau tias cov neeg siv khoom tuaj yeem ua haujlwm ntawm nws tus kheej.
Tsis tas li ntawd, nws tseem yuav muab cov lus qhia ua haujlwm video, kev ua qauv qhia kev ua haujlwm nyob deb, thiab lwm yam. Ua kom lub sijhawm sijhawm ntawm cov neeg siv khoom.

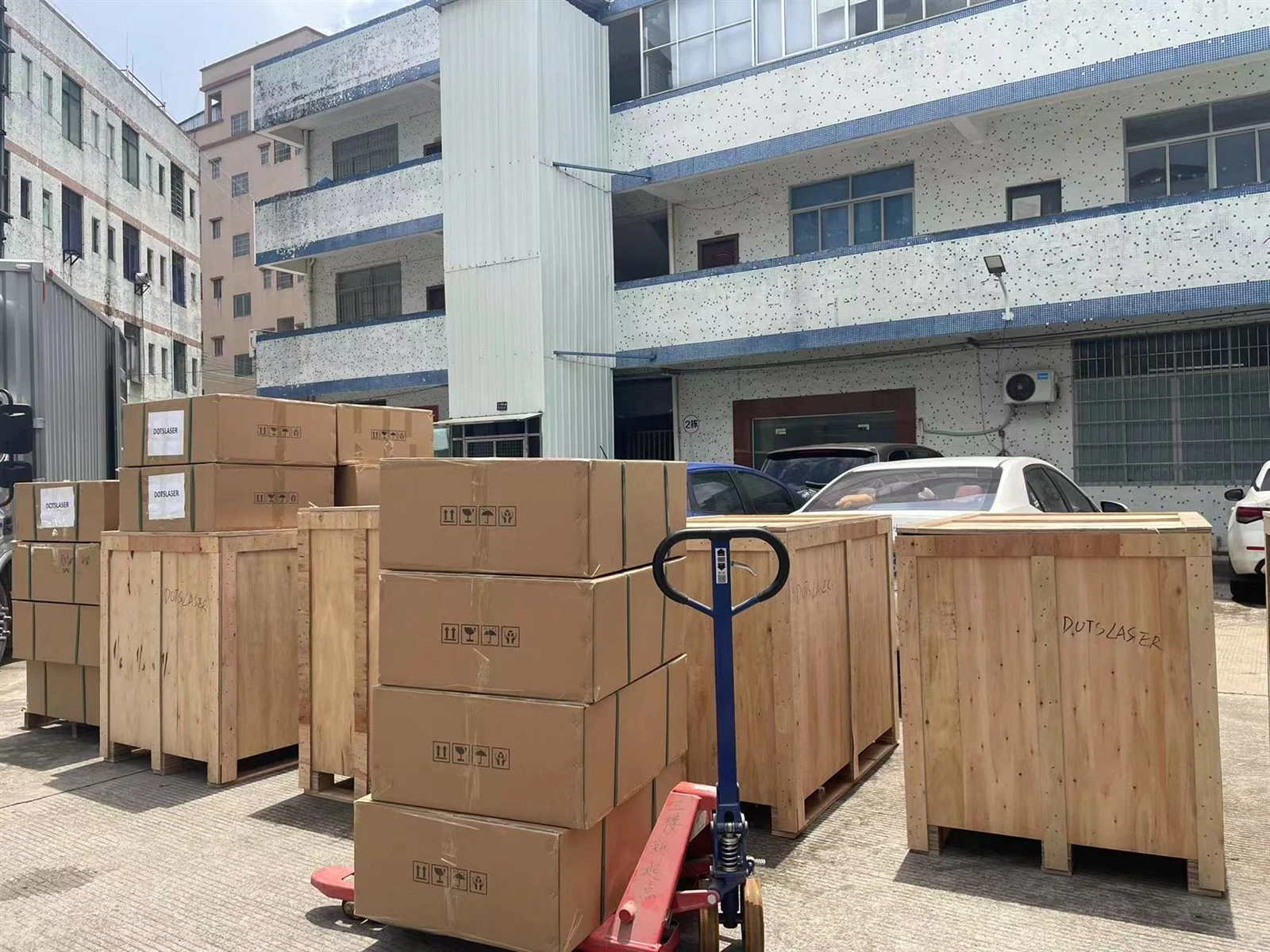

Shipping thiab pob
Unpacking Ceev faj:
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps yog nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
