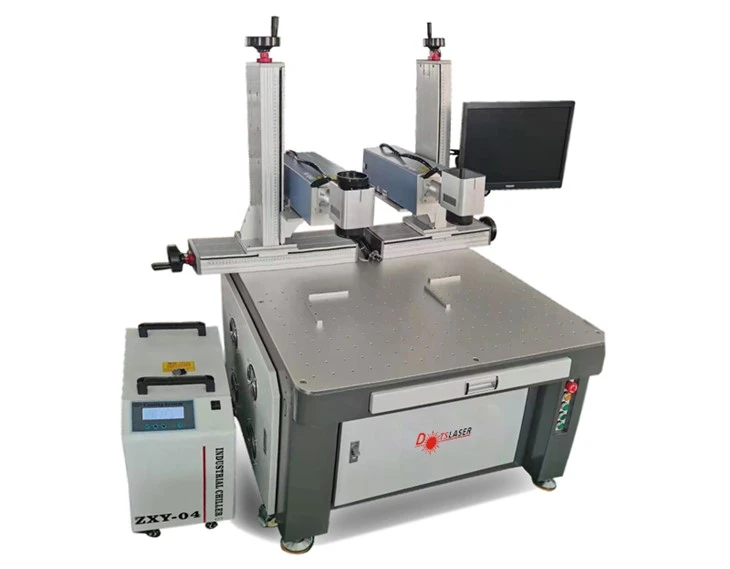

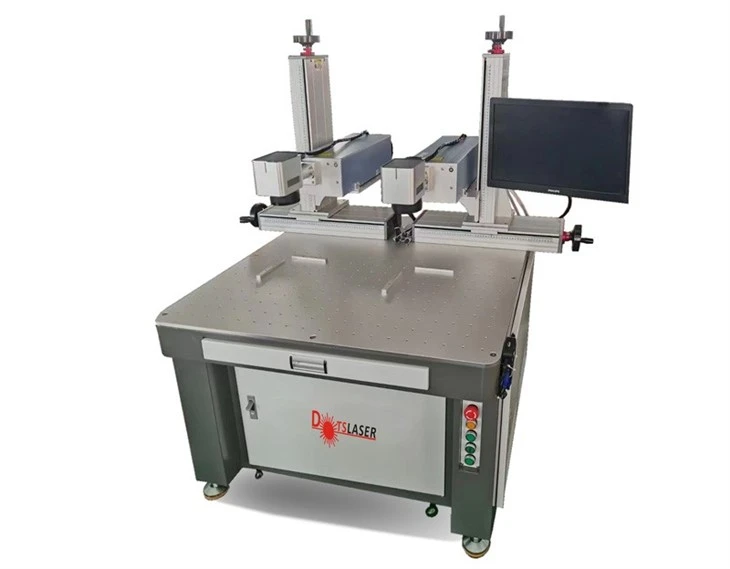

Dual Lub taub hau UV Laser Marker
Dual Lub taub hau UV Laser Marker
Khoom Description
Ib lub taub hau dual UV laser marker yog ib hom laser npav tshuab uas siv ob lub ultraviolet (UV) laser qhov chaw ntawm nws tus kheej los yog ua ke. Cov tshuab no feem ntau yog siv rau kev kos, kos duab lossis micro-processing daim ntaub ntawv, tshwj xeeb tshaj yog rau cov ntaub ntawv rhiab thiab kub-tshuaj.
UV lasers tsim ib lub wavelength luv heev (feem ntau nyob ib ncig ntawm 355 nm), uas tso cai rau high-precision thiab minimally invasive marking los yog cov khoom tshem tawm. Qhov no ua rau muaj cua sov me ntsis hloov mus rau cov khoom siv nyob ib puag ncig, ua rau UV laser markers yog qhov kev xaiv zoo tshaj plaws rau cov ntaub ntawv rhiab xws li plastics, iav, ceramics, lossis nyias zaj duab xis.
Ua kom cov khoom tsim tau thiab ua haujlwm tau zoo hauv kev kos lossis kos daim ntawv thov.
Kev siv ob lub taub hau laser ib txhij tso cai rau thaj tsam ntau dua thiab ua haujlwm sai dua, vim tias ob ntu ntawm cov khoom tuaj yeem ua tiav tib lub sijhawm.
Lub taub hau ntawm tus kheej kuj tuaj yeem raug tsim los ua cov haujlwm sib cais, yog tias xav tau, rau cov ntawv thov uas xav tau ntau yam cim lossis kos duab hauv ib qho haujlwm.
Technical parameters
|
TSIS MUAJ. |
Lub npe |
Dual Lub taub hau UV Laser Marker |
|
1 |
Tshuab qauv |
DS-UV 5, DS-UV 10, DS-UV 15 |
|
2 |
lajr zog |
＞5W;＞10W;15W |
|
3 |
laser wavelength |
355nm ua |
|
4 |
Pulse zog(µJ) |
＞200 |
|
5 |
Tus nqi rov ua dua |
20 ~ 150KHz |
|
6 |
Pulse duratintawm |
＜15ns@30KHz / ＜18ns@30KHz |
|
7 |
Beam zoo |
＜1.2㎡ |
|
8 |
Beam diameter |
~0.45mm |
|
9 |
Laser qib |
Chav Kawm 4 |
|
10 |
Rov ua dua acckev ntxub ntxaug |
±0.001mm |
|
11 |
Min. kab dav |
0.01 hli |
|
12 |
Min. cwj pwmua size |
0.15mm |
|
13 |
Marking ceev |
Tsawg dua lossis sib npaug li 8,000mm/s |
|
14 |
Ua haujlwmcheeb tsam |
100x100mm (tus qauv) / 150x150mm / 300x300mm |
|
15 |
Txias |
Cua / Dej txias |
|
16 |
Ua haujlwm ib puag ncig temperaturentau |
15~ 35 degree |
|
17 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
20 ~ 80% tsis-condensing |
|
18 |
ua haujlwm voltage |
220V, 50/60Hz |
|
19 |
Kev siv fais fab |
Tsawg dua lossis sib npaug li 800W |
Yuav ua li cas xaiv dual lub taub hau UV laser marker?
Laser zog
Xyuas kom meej tias UV laser qhov chaw muab lub zog txaus rau koj daim ntawv thov tshwj xeeb.
Precision thiab raug
Paub meej tias lub kaw lus tuaj yeem ua tiav qib ntawm qhov tseeb thiab qhov tseeb uas xav tau rau koj qhov project.
Scanning ceev
Ntsuam xyuas seb qhov scanning ceev ua tau raws li koj qhov kev tsim khoom thiab kev ua haujlwm tau zoo.
Kev sib haum xeeb
Xyuas kom meej tias lub dual lub taub hau UV laser marker yog sib xws nrog koj cov khoom kho vajtse thiab software uas twb muaj lawm.
Kev ntseeg tau thiab kev txhawb nqa
Xaiv lub npe nrov npe nrog cov ntaub ntawv teev tseg ntawm cov khoom siv txhim khu kev qha thiab cov neeg siv khoom zoo.
Nco ntsoov tias cov ntawv thov tshwj xeeb kuj yuav xav tau cov yam ntxwv ntxiv lossis cov khoom siv ntxiv, xws li cov khoom siv hluav taws xob tshem tawm, cov ntaub thaiv kev nyab xeeb, lossis cov tshuab neeg hlau rau kev tuav lossis kev taw qhia.
Muaj kev lag luam
Ntau yam iav thiab cov khoom yas xws li cov khoom siv hluav taws xob, ntim khoom noj, cov khoom siv hluav taws xob sib txuas (IC), cov khoom siv hluav taws xob, kev sib txuas lus ntawm tes, hniav nyiaj hniav kub, khoom siv hauv tsev, PVC yeeb nkab, PPR yeeb nkab, khoom siv kho mob thiab lwm yam.
Warranty
1 Xyoo rau tag nrho lub tshuab tshwj tsis yog siv cov khoom siv (lub computer, daim iav, hloov, cables).
Kev tu lub neej thiab cov khoom seem muab
Kev cob qhia pub dawb rau cov neeg ua haujlwm ua haujlwm hauv peb sab. (engineer mus txawv tebchaws yuav tsum tau sib tham.)
Pab neeg ua haujlwm tshaj lij, Pab koj daws teeb meem tom qab muag txhua lub sijhawm, Cov lus teb ceev thiab muab kev daws teeb meem hauv 24 teev.
Yog tias xav tau peb tus kws kho mob mus rau koj sab rau kev teeb tsa thiab kev cob qhia, koj yuav tsum tau them tag nrho cov nqi ntawm peb cov kws kho mob mus rau koj sab, suav nrog daim pib dav hlau, tsev so thiab zaub mov, thiab lwm yam.

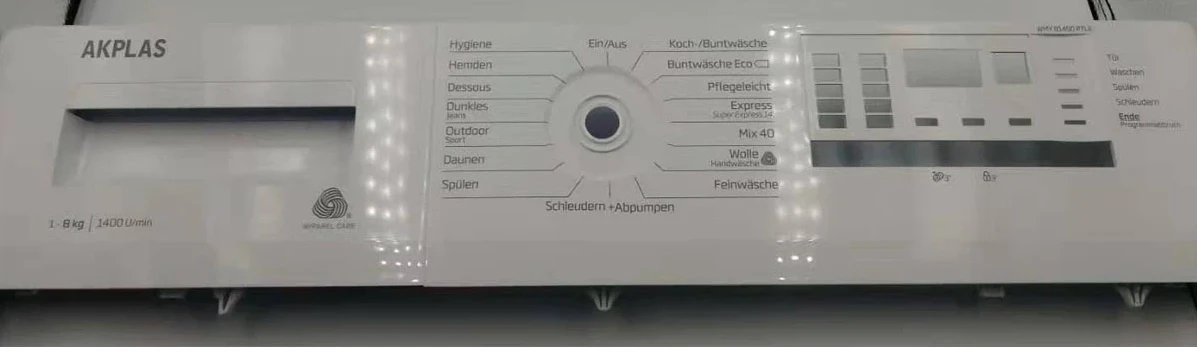

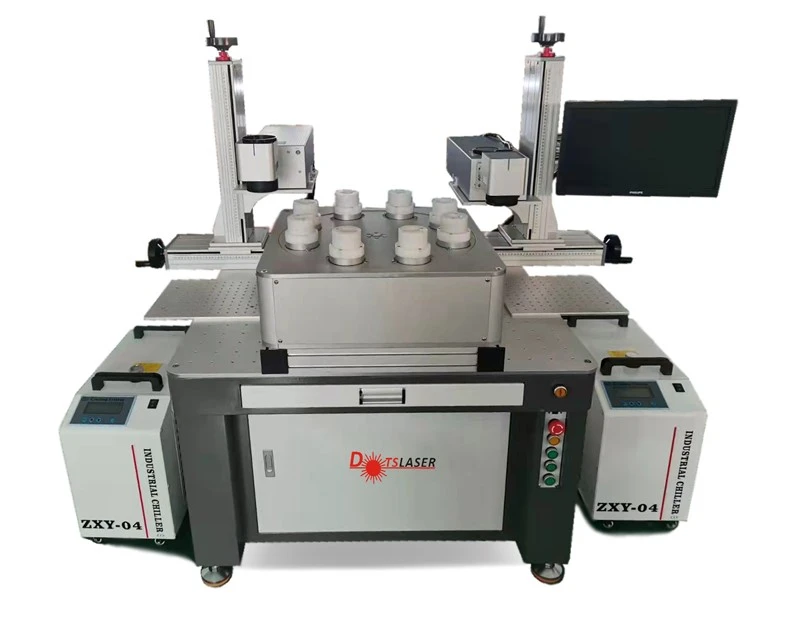

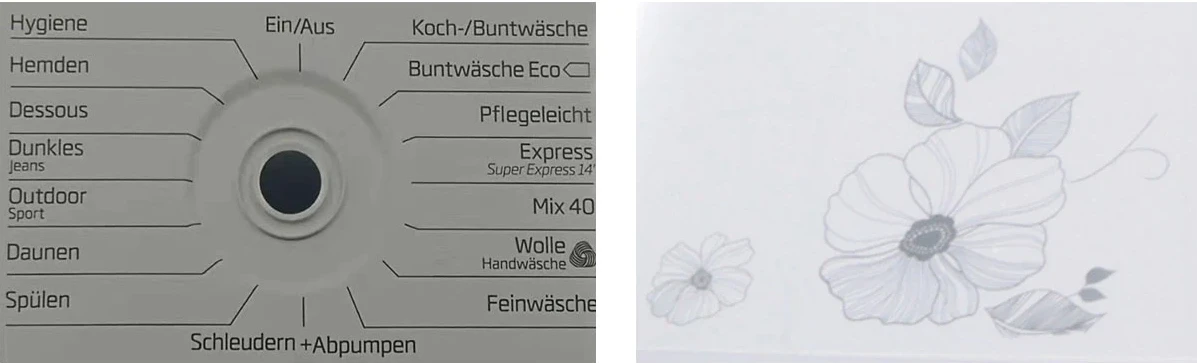

Qauv qhia ntawm Dual Head UV Laser Marker
Ntim & shipping.
Tuam txhab patent daim ntawv pov thawj thiab honorary daim ntawv pov thawj
