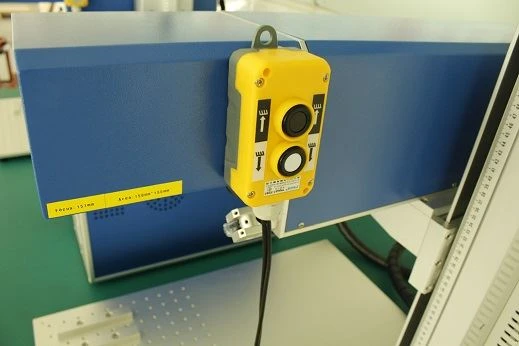

UV Laser Engrave Ceramic Khoom
UV laser engraving ceramic khoom
Khoom Description

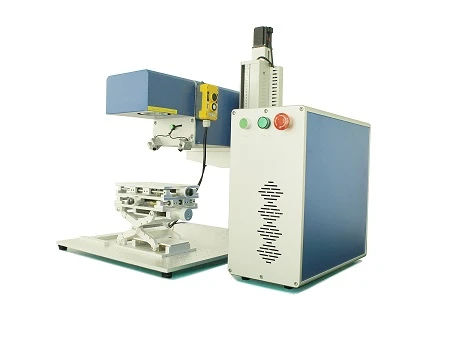

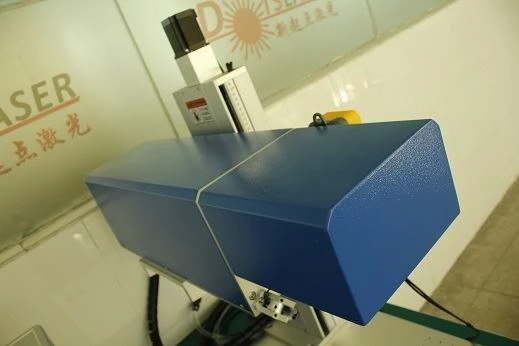

Dotslaser 3D 10W UV laser tshuab xav tau lub zog siv tsawg, nrog cov cuab yeej ntawm dej-txias, portable cais cov duab kab noj hniav, nws yog ib qho yooj yim rau disassemble, nruj haum, siab photoelectric hloov dua siab tshiab tus nqi, ntau tus neeg txaus siab rau nws cov cim cim, ceev engraving. ceev haum rau huab hwm coj ntau lawm, nws txuag tau ntau lub sijhawm ua haujlwm thiab tus nqi zog.
3D UV laser qhov zoo
Precision thiab nthuav dav

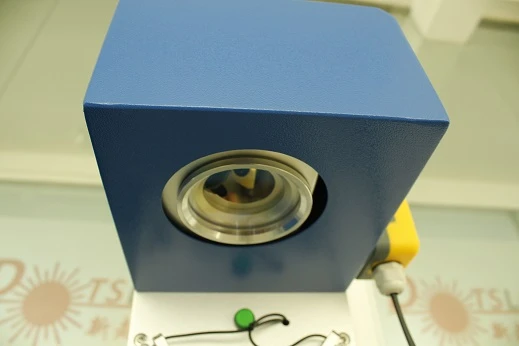

3D UV laser tshuab txais me me tsom teeb pom kev, zoo dua kho qhov muag hom, kos cov nyhuv ntau ilv thiab nthuav dav, meej kos rau ntawm cov khoom siv ceramic.
Khoom siv ncaj ncees
Peb muaj tag nrho cov cua txias UV laser tshuab nrog kev tswj siab precision thiab zoo laser stability. Peb cov tshuab tuaj yeem ua haujlwm tsis tu ncua rau 24 teev ntawm chav tsev kub;
Cov khoom siv tsawg dua
Kev ruaj khov kev ua tau zoo, lub tshuab compact loj, txav tau yooj yim thiab yooj yim rau kev khiav lag luam, tsis sib cuag nrog laser ua, txuag nqi, tsis muaj pov tseg consumables.
Kev cim tas mus li
UV laser marking kom ntev ntev, nws yuav tsis ploj txawm nyob rau hauv ib puag ncig hash, nws muaj anti-fake functions, ua kom koj cov khoom yog tshwj xeeb nyob rau hauv kev ua lag luam.
Parameter
| Qauv | DS-UV 10 |
| Kos thaj tsam | 100x100mm --180x180mm |
| Min. kab dav | 0.01mm (Raws li cov khoom siv) |
| Yam tsawg kawg nkaus tus cim | 0.3mm (raws li cov khoom siv) |
| Laser zog | 10W |
| Lub wavelength | 355nm ua |
| Standard marking cheeb tsam | 180 x 180 mm |
| Fais fab mov | Ib theem 200-240 VAC 50/60 HZ |
| Txias | dej txias |
| Core Components | Laser Source |
| Kev Ntsuas Qhov tob | 0 01-2mm |
| CNC los tsis yog | Yog lawm |
| Warranty ntawm cov khoom tseem ceeb | 1 xyoo |
| Machinery Test Report | Muab |
| Video tawm-kev soj ntsuam | Muab |
PCB board, LCD npo, cov khoom siv hluav taws xob cov keyboards, yas laub khawm cim, kua cystal galsss / QR code cim, cov khoom siv silicon, sib txuas lus.
Kev tu txhua hnub ntawm UV Laser Machine:
Tom qab ua haujlwm tiav, xyuas kom cov hauv pem teb huv si. Tom qab ntawd ntxuav lub tshuab nrog rau saum npoo ntawm lub tshuab, rooj plaub ntawm qhov kho qhov muag, qhov chaw ntawm lub monitor, lub rooj ua haujlwm, thiab lwm yam.
Thov tua txhua qhov thiab lub zog loj thaum lawv huv si.
Tshawb xyuas lub lens tsis tu ncua rau cov plua plav. Thaum nws huv si, siv cov paj rwb wool nrog ntau dua 95% cawv qib kho mob los so clockwise los ntawm qhov chaw ntawm lub lens.
Thaum koj xav tau txav lub tshuab kom tsis txhob muaj pob. Txheeb xyuas qhov kev sib txuas ntawm cable raws li daim ntawv teev npe cable.

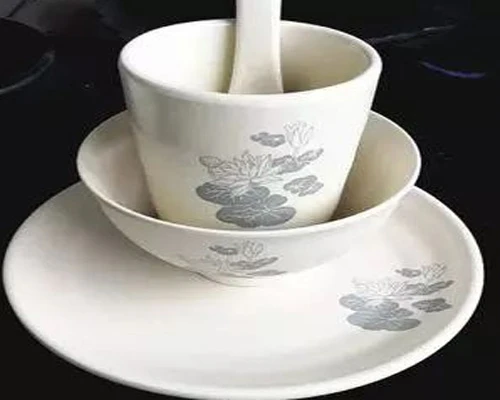

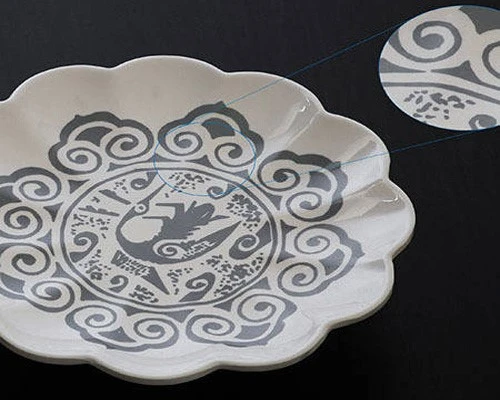

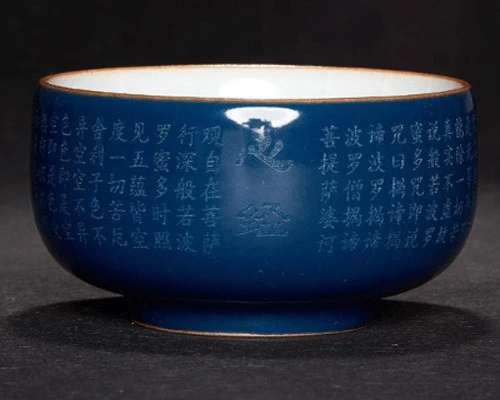

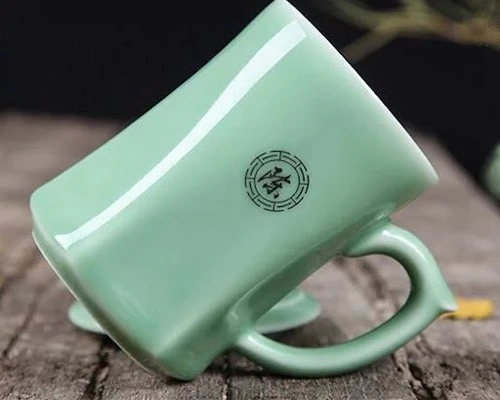

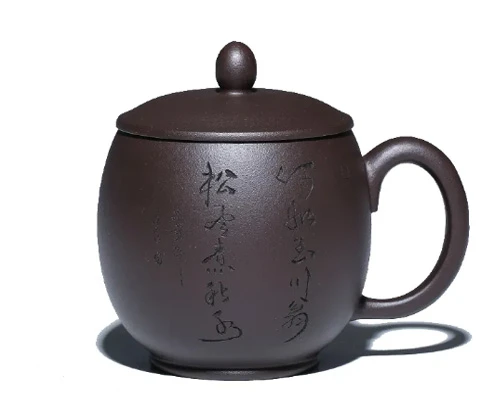

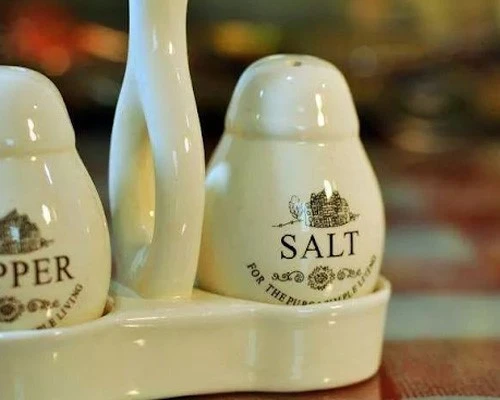

Cov qauvNtawm UV Laser Marking
Shipping thiab pob
Qhov luv luv wavelength 355nm tso cai rau kev nqus siab, nws yog cov txheej txheem txias txias, nws txhais tau tias tsis tas yuav muaj cua sov ntau, txawm tias thaum kos cov ceramics. Qhov no ua rau muaj qhov sib txawv siab, tsis muaj kev pheej hmoo ntawm kev puas tsuaj rau cov ceramic.

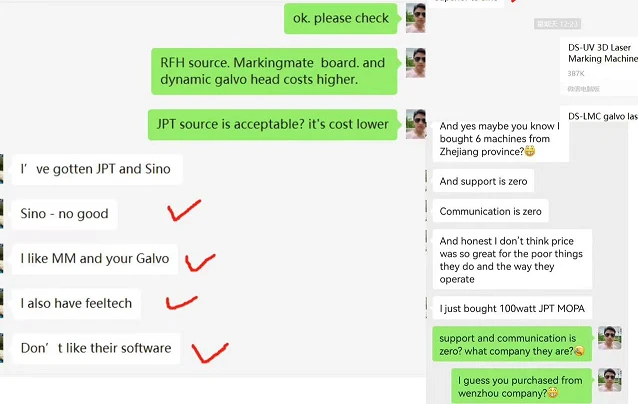

Cov neeg siv khoom tawm tswv yim
Kev pab cuam tom qab muag
1. Kev ruaj ntseg zoo thiab kev pab cuam tom qab muag
Lub sijhawm lav ntawm cov cuab yeej yuav tsum yog 12 lub hlis txij li cov khoom siv los ntawm cov neeg siv khoom, kev teeb tsa thiab kev debugging tiav thiab cov khoom siv tau txais los ntawm tus neeg thov. Dotslaser muab qhov tseem ceeb rau kev ua haujlwm tom qab muag ntawm cov khoom, thaum cov khoom xa tuaj rau tus neeg siv, lub tuam txhab tam sim ntawd tsim cov ntaub ntawv cov neeg siv khoom tom qab muag, thiab tsis tu ncua taug qab tus neeg siv khoom siv cov xwm txheej, daws thiab teb tag nrho cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom siv tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem ua cov lus teb sai hauv 2 teev. Yog tias kev taw qhia hauv xov tooj yog qhov nyuaj rau kev daws teeb meem, peb lub tuam txhab cov neeg ua haujlwm txawj tuaj yeem tuaj txog ntawm cov neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Kev teeb tsa thiab kev debugging
Ua ntej kev teeb tsa lub tshuab, peb lub Hoobkas yuav muab cov ntaub ntawv tsim nyog rau koj, qhov xav tau zoo 2 lub lis piam xa tuaj rau koj nyob ntawd, cov engineers ntawm Dotslaser yuav tuaj txog ntawm koj qhov chaw thiab tshuaj xyuas lub tshuab dua. Xyuas kom tag nrho cov xwm txheej ua tau raws li kev teeb tsa thiab kev ua haujlwm ntawm cov khoom siv, cov cuab yeej yuav thauj khoom raws sijhawm. Lub sijhawm teeb tsa thiab kev ua haujlwm ntawm cov cuab yeej siv yog li tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv lub tshuab, thiab lub kaw lus ua haujlwm tom qab qhov kev pabcuam. Tus kws tshaj lij yuav cob qhia cov neeg ua haujlwm tsim nyog ntawm cov txheej txheem kev saib xyuas yooj yim thiab cov yam ntxwv ntawm kev ua haujlwm ntawm cov cuab yeej hauv ob hnub tom ntej
3. Kev pab txhawb nqa
Yog tias muaj teeb meem nrog ib feem ntawm lub cev thaum lub sijhawm lav, Dotslaser cov kws tshaj lij pabcuam kev pabcuam tau npaj los muab kev pabcuam hauv xovtooj lossis pib pabcuam ntawm qhov chaw, yog tias lub tshuab muaj teeb meem thaum lub sijhawm lav, thov hu rau peb ncaj qha !
Unpacking Ceev faj
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
