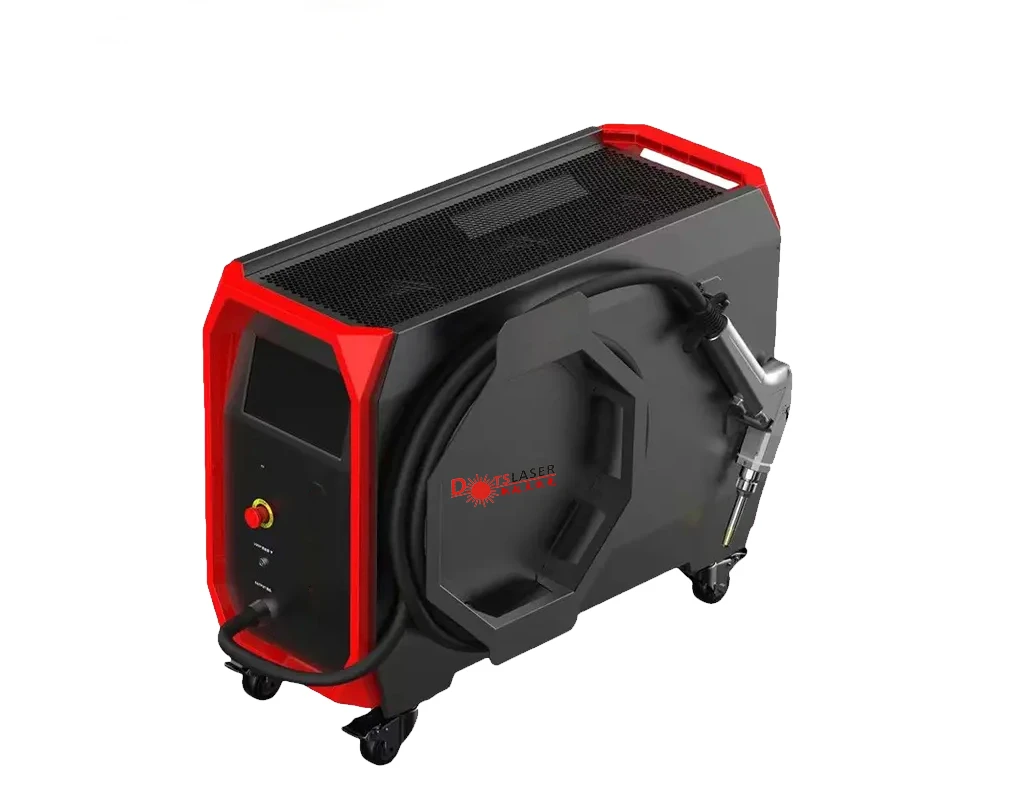

1.5KW Fiber Laser Vuam Tshuab
1.5 KW fiber ntau laser vuam tshuab
Khoom Description
Lub 1.5 KW fiber ntau laser vuam tshuab yog lub xeev-of-the-art technology uas muab tau zoo thiab meej vuam daws. Lub tshuab no siv cov thev naus laus zis tshiab fiber ntau laser uas muab lub zog siab thiab nrawm, tso cai rau kev sib tsoo ceev thiab raug. Nws yog qhov zoo tshaj plaws rau ntau yam kev siv, nrog rau cov vuam hlau xws li steel, aluminium, thiab titanium.
Nta
| 1. welding ceev ceev, 2 ~ 10 lub sij hawm sai dua li ib txwm vuam. | |||
| 2.Kev khiav hauj lwm yooj yim, kev cob qhia thiab kev saib xyuas. | |||
| 3.Vuam seam du thiab zoo nkauj, tsis xav tau polishing, txuag koj lub sijhawm. | |||
| 4.Tsis muaj deformation lossis vuam caws pliav, ruaj khov ntawm lub workpiece. | |||
| 5.Laser vuam muaj tsawg consumables thiab ntev kev pab cuam lub neej. | |||
| 6.Kev nyab xeeb, ntau tus phooj ywg ib puag ncig. | |||
| 7.Nws tuaj yeem welding cylindrical, square, triangular, kheej kheej thiab lwm yam khoom tsis zoo. | |||
| 8.High efficiency efficiency, ceev vuam ceev thiab tsis siv neeg ntau lawm. |
Parameters ntawm1.5KW fiber ntau laser vuam tshuab
|
Qauv |
DS-LW1200-1500 |
|
Laser zog |
1200-1500W |
|
Lub wavelength |
1080 ± 5nm |
|
Kev ua haujlwm hom |
Nruam/Modulation |
|
Lub zog hloov kho ntau yam |
10~100％ |
|
Fiber tub ntxhais txoj kab uas hla |
50 |
|
Fiber cable ntev |
10 meters |
|
Vuam ceev |
0~120mm/s |
|
Vuam thickness |
<3.5mm(depend on the material) |
|
Txoj kev txias |
Cua txias |
|
Ua haujlwm ib puag ncig |
10 ~ 40 degree, av noo 10 ~ 85%, tsis muaj hws |
|
Rated zog |
3 KW |
|
Fais fab mov |
110-220± 10% VAC, 50/60Hz |
|
Qhov ntev |
667 × 276 × 542mm |
|
Tag nrho qhov hnyav |
Kwv yees li 39 kg |

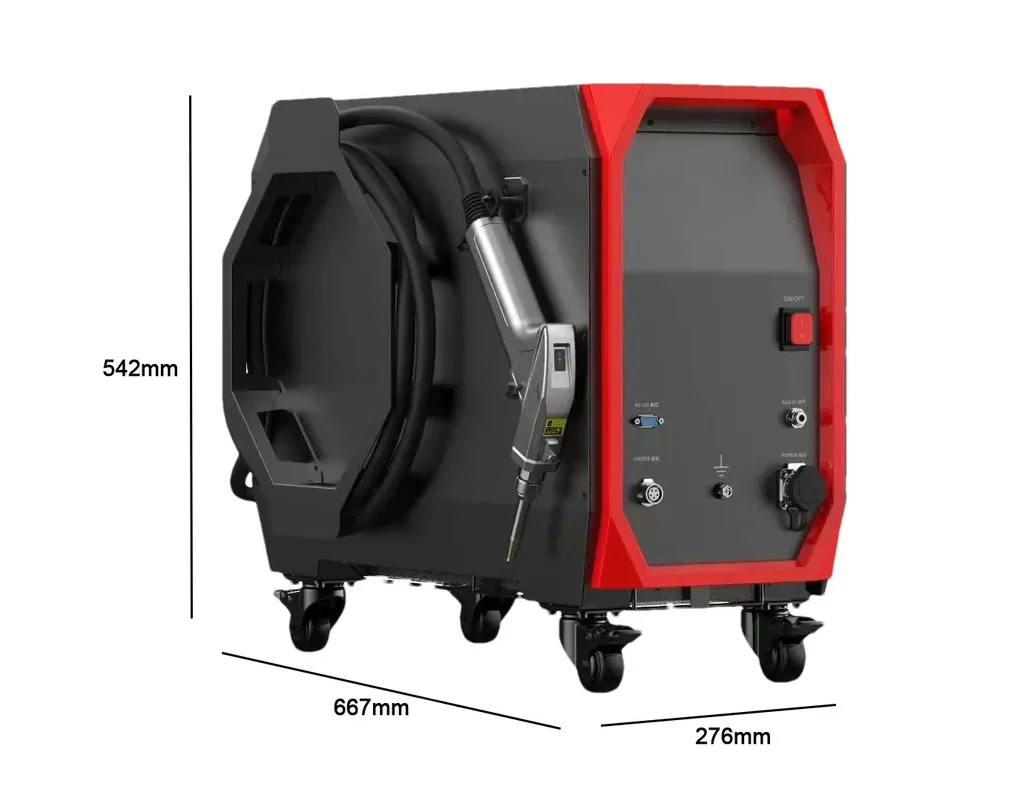

Qhov loj ntawm 1.5KW fiber ntau laser vuam tshuab
Lub ntsiab nta:
Tsim me me
Handheld thiab hloov tau
Vuam
39 KG qhov hnyav
Yooj yim rau siv
High efficiency thiab zoo meej nyhuv

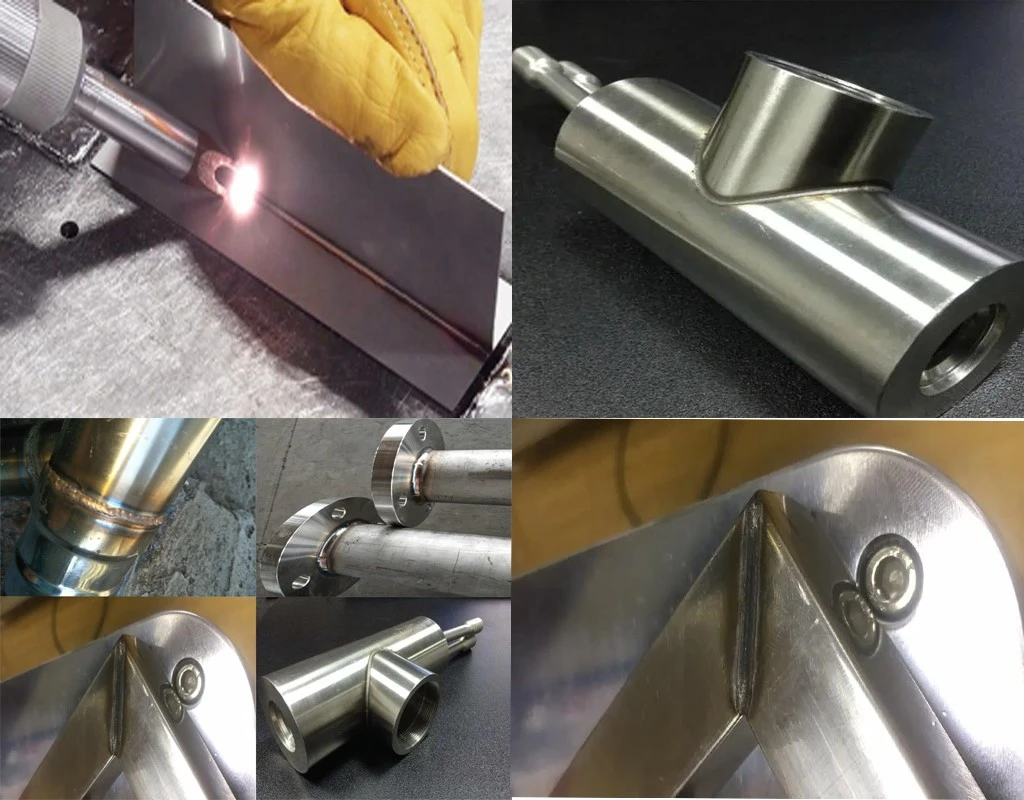

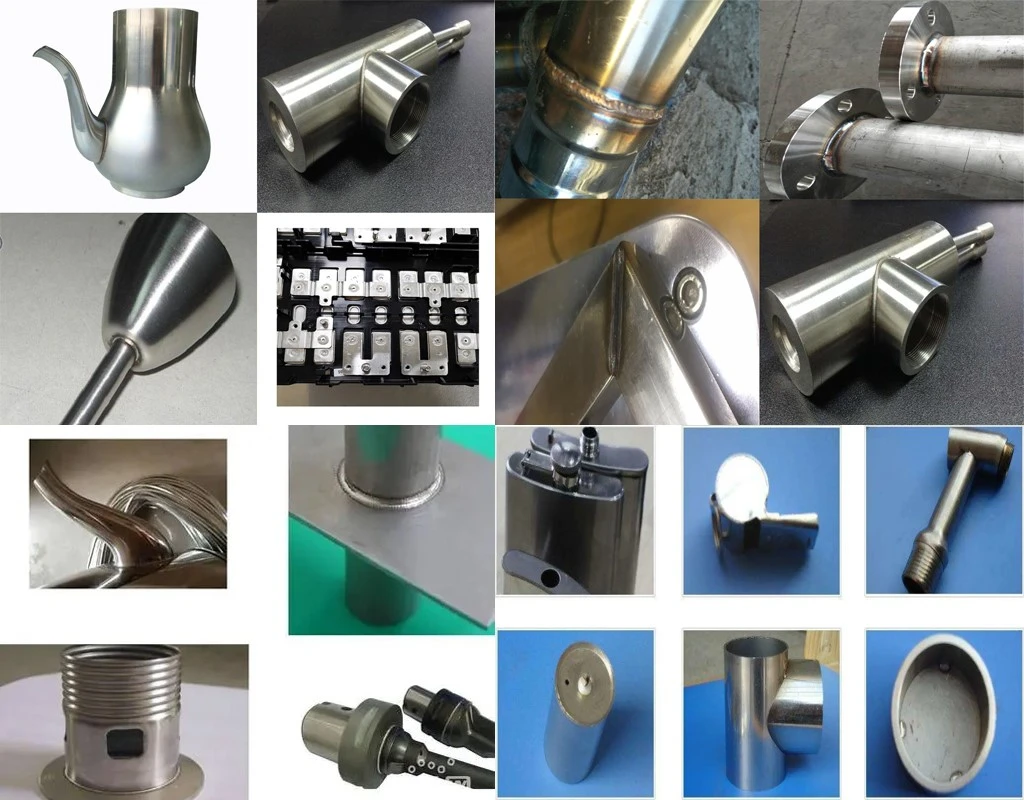

Cov qauv ntawm 1.5KW fiber ntau laser vuam tshuab

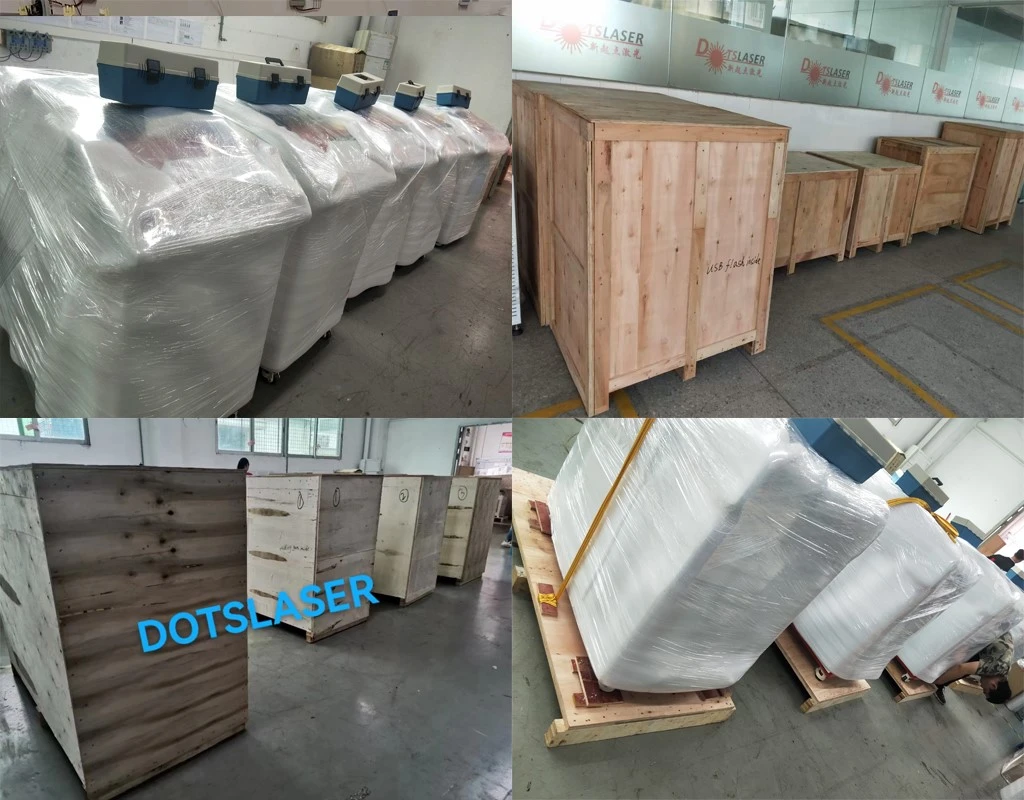

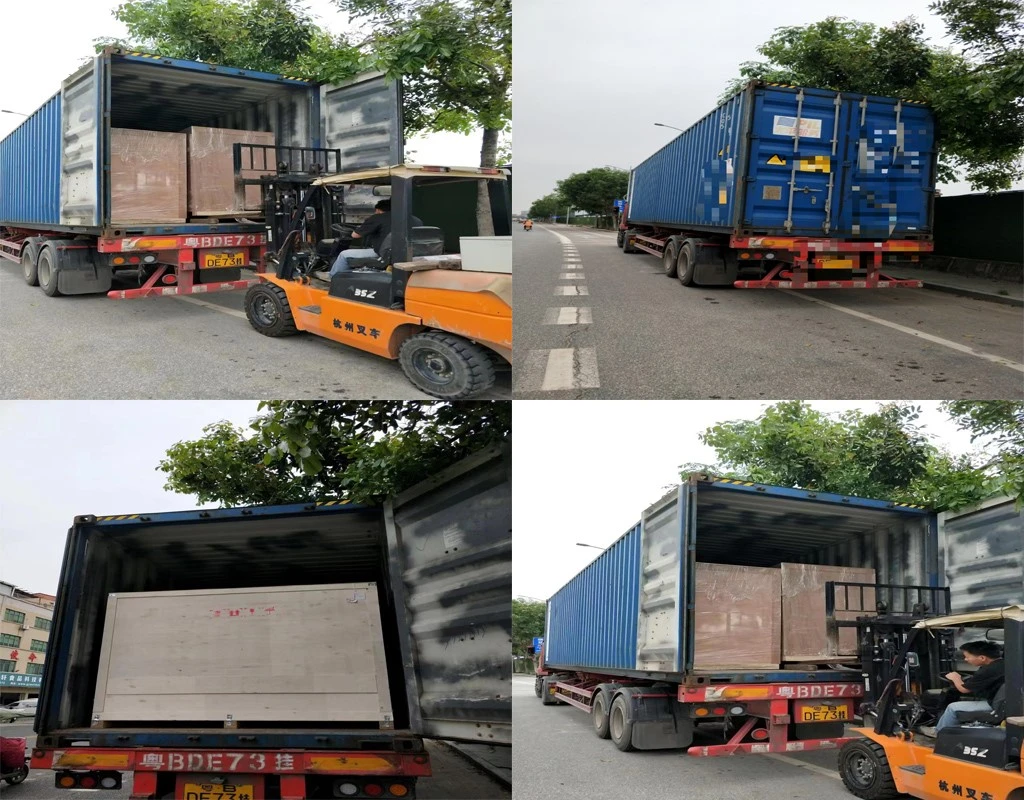

Kev xa khoom ntawm 1.5KW Fiber Laser Vuam Tshuab
Kev ceev faj shipping:
Nyob rau hauv tus txheej txheem ntawm kev txav thiab xa cov khoom siv, peb tau xyuam xim rau cov khoom hauv qab no kom tsis txhob muaj kev puas tsuaj rau cov khoom siv los yog kev raug mob ntawm tus kheej:
ib. Ua raws li cov cai tswj kev nyab xeeb, thiab cov neeg ua haujlwm thauj khoom yuav tsum hnav cov kaus mom hlau, hnab looj tes thiab khau kev nyab xeeb.
b. Thaum lub sij hawm shipping txheej txheem, lub khob ko taw ntawm lub cuab yeej yuav tsum tau muab tshem tawm tag nrho, thiab cov hlua sab nraud thiab cov khoom siv yuav tsum tau muab tshem tawm thiab muab pov tseg.
c. Kev txav ntau dhau thiab kev quab yuam ntau dhau yuav tsum tau zam thaum lub sijhawm txav thiab xa khoom. Nws yog txwv tsis pub deflect los yog tig lub cuab yeej upside down.
d. Rau kev thauj mus los ntev lossis khaws cia ntev, cov khoom siv yuav tsum tau ntim rau hauv nruj raws li cov kev cai ntim khoom.
e. Nws yuav tsum tsis txhob muab tso rau hauv cov cab cab thiab cov tsheb thauj mus los ntev, yuav tsum tsis txhob muab khaws cia rau hauv cov tsev khaws khoom qhib, thiab yuav tsum tsis txhob muab xa mus ua ke nrog cov khoom tawg, tawg thiab corrosive kom tsis txhob raug los nag, daus los yog lwm yam kua los yog tshuab. . kev puas tsuaj.
