Pwm Fiber Laser Vuam Tshuab

Pwm Fiber Laser Vuam Tshuab yog cov cuab yeej siv vuam tam sim no. Nws yog cov cuab yeej tshwj xeeb vuam laser tshwj xeeb tsim rau kev lag luam pwm. Nws yog siv los kho precision pwm thiab kho qhov yuam kev tshwm sim los ntawm kev tsim khoom.

Xa kev nug

Khoom Taw qhia

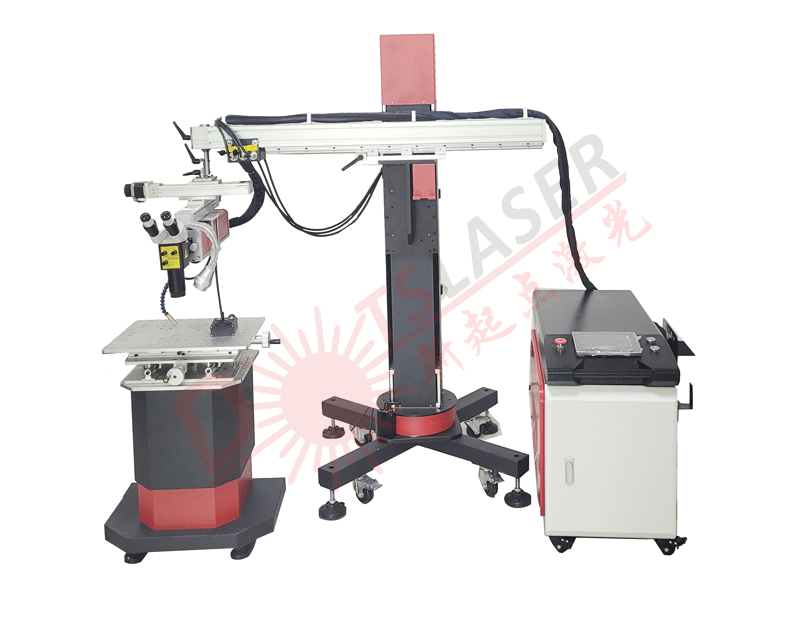

Pwm Fiber Laser Vuam Tshuab

Khoom Description

Pwm fiber ntau laser welding tshuab yog ib qho kev hloov pauv ntawm cov khoom siv vuam tshuab. Nws siv cov tshuab laser siab heev los muab cov khoom zoo thiab precision vuam rau ntau yam pwm.Mould Fiber Laser vuam tshuab yog cov cuab yeej siv vuam tam sim no. Nws yog cov cuab yeej tshwj xeeb vuam laser tshwj xeeb tsim rau kev lag luam pwm. Nws yog siv los kho precision pwm thiab kho qhov yuam kev los ntawm cov khoom manufacturin.Nrog nws cov qauv compact thiab cov neeg siv-phooj ywg interface, nws yog ntau yam cuab yeej rau vuam sib txawv cov ntaub ntawv xws li stainless hlau, txhuas, thiab tooj dag.

Qhov zoo ntawm Mould Fiber Laser welding tshuab

1. Tom qab lub laser dhau los ntawm cov fiber ntau optical, qhov chaw yuav zoo ib yam thiab ruaj khov, uas txhim kho qhov zoo ntawm vuam. Tom qab cov nqaj Laser yog tsom mus, ib qho me me, lub teeb pom kev muaj peev xwm siab dua thiab tuaj yeem yog qhov chaw raug. Nws yog tshwj xeeb yog optimized rau pwm kho, muaj zog pertinence thiab zoo dua.

2.Txais kev ua haujlwm siab tsis siv neeg shading system tshem tawm cov stimulation ntawm lub laser ntawm lub qhov muag ntawm cov neeg ua haujlwm thaum ua haujlwm.

3.CCD lub koob yees duab system nrog lub tshuab tsom iav thiab txav X axis rau txoj haujlwm siab vuam.

4. Qhov peb-seem boom tuaj yeem pab koj daws qhov teeb meem ntawm kev kho pwm loj yam tsis tau txav cov pwm, thiab lub joystick tswj cov theem txhais lus (200mm × 300mm Tsis Siv Neeg txhais lus theem) txav. Nws yog ib qho yooj yim kom paub laser kho ntawm cov pwm loj thiab super loj pwm nrog cov cuab yeej ntse, lub neej ntev thiab siab precision;

5. High precision marking, nrawm, engraving qhov tob tswj tau.

6.Lub worktable tuaj yeem tsav tsheb lossis manually.

7.Qhov chaw me me tau raug kho tshwj xeeb ntawm nws tus kheej.

Daim ntawv thov

Pwm Fiber Laser welding tshuab yog siv nyob rau hauv ntau yam 3C hluav taws xob cov khoom, xov tooj ntawm tes, khoom ua si, tsheb, maus taus thiab lwm yam pwm manufacturing thiab molding industries.

Kev siv laser vuam hlau los kho cov pwm tuaj yeem rov siv cov pwm siv dua, uas txuag cov nqi tsim pwm thiab txhim kho kev ua haujlwm zoo.

Pwm Fiber Laser welding machinetechnology tseem tuaj yeem siv los hloov kho thiab tsim cov qauv tsim lossis qhov loj ntawm cov pwm, ua kom luv lub voj voog ntau lawm thiab lub sijhawm ntawm pwm tsim khoom.

Nws yog tsim rau kev kho thiab vuam ntawm precision mechanical li, vuam ntawm ntau yam hlau structural qhov chaw thiab kub thiab nyiaj hniav nyiaj hniav kub.

Tsis muaj

TSIS MUAJ.	Lub npe	Pwm Laser Vuam Tshuab
1	Tshuab qauv	DS -1500
2	Laser zog	1500W
3	Laser wavelength	1080 ± 10nm
4	mem tes dav	1-100ms
5	Laser zaus	1-1000Hz
6	Spot loj adjustable ntau yam	0 3-2mm
7	Txias qhov system	Dej txias
8	Worktable mus ncig teb chaws	200 x 300 mm
9	Rated zog noj	7 kWm
10	Laser qauv	CW
11	Lub zog ntau	0-100%
12	Kev soj ntsuam system	Microscope (rotatable 360 degree) lossis tso saib
13	Kev tiv thaiv roj	Argon
14	Fiber cable ntev	8m
15	Fais fab mov	Txheem peb-theem 220v ± 5% / 50Hz / 20A;
16	Txoj kev ua kom txias	Dej txias (dual kub thiab dual tswj)
17	Rated zog	5.6 kWs
18	Vuam qhov tob	Tsawg dua los yog sib npaug rau 3.0 mm(nyob ntawm cov khoom)
19	Fiber Core Diameter	50 μm
20	Fais fab mov	Fais fab mov

cov khoom siv thev naus laus zis

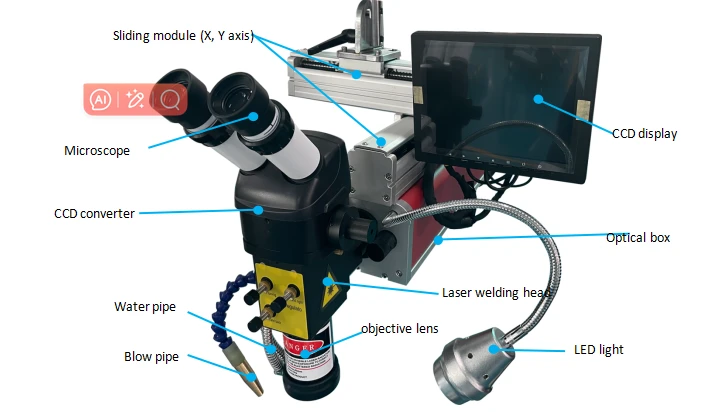

product-722-412

01.

Microscope: high-txhais soj ntsuam qhov rais, high-precision vuam khoom.

Lub hom phiaj lens: laser tsom.

Laser vuam taub hau: laser hloov dua siab tshiab tivthaiv, kho qhov chaw ntawm lub teeb laser.

Tshuab raj: tiv thaiv roj tso zis chaw nres nkoj.

Sliding module: tsav lub taub hau laser txav mus rau pem hauv ntej, rov qab, sab laug thiab sab xis (hluav taws xob).

LED teeb:Lub teeb qhov chaw rau microscope.

Optical Box:Muab cov fiber ntau optic cables thiab lwm yam fais fab cables.

Cov kav dej:Lub hom phiaj ntawm dej txias ncig system.

CCD converter:Kev hloov pauv ntawm CCD screen zaub.

CCD zaub:Vuam zaub qhov rais.

02.

Cov pwm fiber ntau laser vuam tshuab yog tsim nrog lub tshuab hluav taws xob siab tshaj plaws uas muaj txiaj ntsig zoo thiab txuag hluav taws xob. Nws siv zog tsawg dua thaum muab cov txiaj ntsig zoo sib xws thiab ruaj khov. Nws kuj muaj tus nqi saib xyuas qis dua piv rau cov tshuab vuam tsoos, txuag koj lub sijhawm thiab nyiaj txiag ntev.

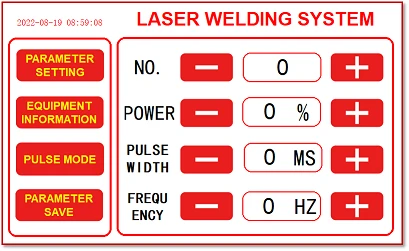

Tswj vaj huam sib luag ua haujlwm

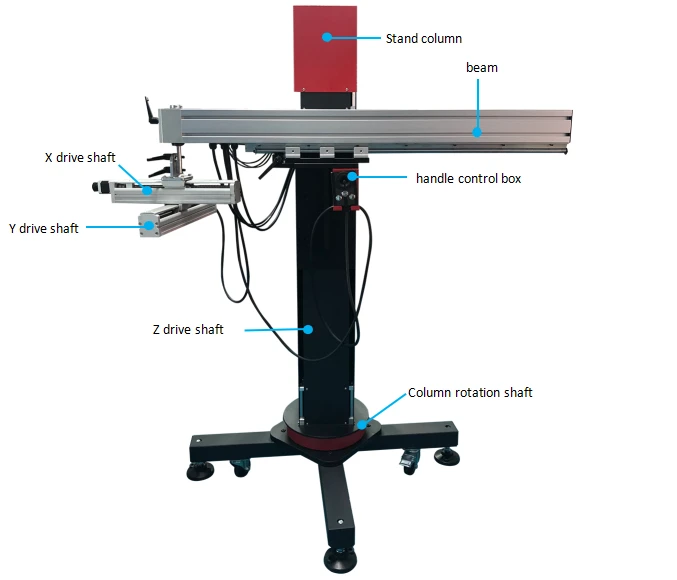

Zuag qhia tag nrho cov duab kos duab

Warranty thiab Tom qab-muag

a. Warranty

Ib xyoos rau laser qhov chaw, ib xyoos rau lwm yam accessories, xws li galvo taub hau, lens, tswj board, fais fab mov, consumable yam tsis nyob rau hauv warranty, xws li keyboard thiab nas.

DOTSLASER cog lus tias yuav tswj xyuas cov khoom uas tsim thiab xa mus raws li daim ntawv cog lus, thiab lav txhua lub tshuab kho yuav ua haujlwm zoo yog tias siv kom raug.

DOTSLASER muaj txoj cai los kho lossis hloov cov khoom hauv lub sijhawm lav yog tias nws muaj cov khoom siv lossis cov teeb meem. Peb yuav them nyiaj rau kev saib xyuas raws li qhov xwm txheej ib txwm muaj. Nws yuav pub dawb yog tias lub tshuab muaj teeb meem tshwj xeeb.

b. Warranty Scope

DOTSLASER yuav tsis muab kev pabcuam pub dawb hauv cov xwm txheej hauv qab no: cov khoom lossis cov khoom raug puas tsuaj vim yog kev hloov kho, tshem tawm, kev txhim kho yam tsis tau tso cai; cov khoom lossis cov khoom puas vim muaj xwm txheej lossis tsis saib xyuas; cov khoom lossis cov khoom puas vim tsis muaj kev khaws cia ……. muaj lub luag haujlwm los kawm cov lus qhia ntawm tus neeg siv phau ntawv qhia thiab ua haujlwm lub tshuab kom raug. Kev puas tsuaj ua rau kev ua haujlwm tsis zoo yuav tsis tau txais kev pabcuam warranty. Accessories tsis nyob rau hauv warranty.

Cov neeg siv khoom yuav tsum tau sau ntawv thov hauv 30 hnub sai li sai tau thaum lawv pom qhov teeb meem uas nyob hauv qhov kev lees paub, tsis muaj tus neeg thib peb yuav tsum koom nrog hauv kev tswj cov txheej txheem thiab cov khoom lossis ib feem uas tsis tsim los ntawm DOTSLASER yuav tsum tsis suav nrog.

c. Kev them nyiaj yug thiab kev tu cov khoom

Tiv tauj nrog Dotslaser tus engineer txawm muaj teeb meem dab tsi tshwm sim thaum siv, thiab ua kev daws teeb meem raws li tus kws tshaj lij kev taw qhia.

Txhua yam khoom tos kho lossis hloov pauv yuav tsum muab tso rau hauv rooj plaub uas DOTSLASER muab, txwv tsis pub DOTSLASER yuav them rau qhov kev puas tsuaj nws yuav ua rau.

Thaum cov neeg siv khoom tau txais DOTSLASER cov khoom, thov xyuas seb cov khoom puas puas lawm thiab seb cov khoom siv puas tiav lossis tsis tiav.

DOTSLASER txuas ntxiv txhim kho cov khoom tshiab, cov ntaub ntawv thiab cov kev txwv hauv cov ntaub ntawv no tuaj yeem hloov pauv. Tag nrho cov kev ntsuas tsis raug raws li daim ntawv cog lus.

Warranty thiab tom qab-muag clauses saum toj no tsuas yog siv rau kev siv xwb, thiab ua raws li qhov sib txawv.

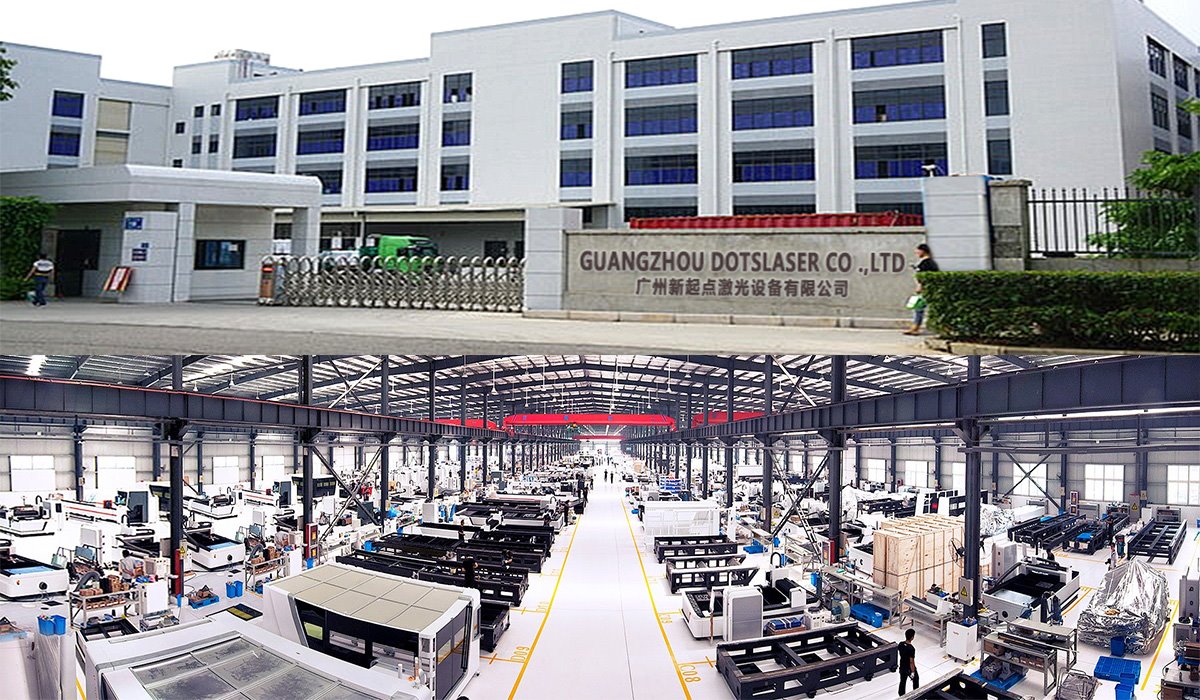

Hoobkas

Laser marking cutting

20240729151737

Cov neeg siv khoom tawm tswv yim

Cov neeg siv khoom no los ntawm South America, nws tuaj rau peb lub Hoobkas thiab tuaj xyuas peb lub Hoobkas engineers, tom qab kev sib tham, peb thaum kawg tau txais kev pom zoo, cov neeg siv khoom kuj txaus siab rau peb cov khoom.
