Tsab ntawv zaj duab xis Laser Tej Tshuab

Lettering zaj duab xis laser txiav tshuab yog siv rau ib nrab txiav TPU, PVC, PU, reflective films, nrog high efficiency thiab zoo.

Xa kev nug

Khoom Taw qhia

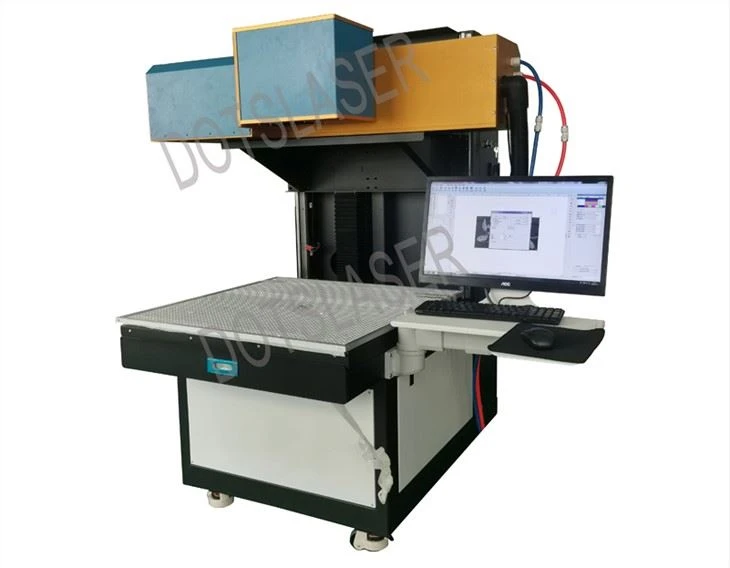

Tsab ntawv zaj duab xis Laser Tej Tshuab

Khoom Description

Lettering Film Laser Tej Tshuab, tsim los xa cov txiaj ntsig tsis zoo ntawm ntau yam khoom siv. Cov tshuab no zoo tagnrho rau cov lag luam tshwj xeeb hauv kev kos npe, kos duab tsim, kev tshaj tawm, thiab kev lag luam ntim khoom. Peb cov tshuab txiav muaj qhov txawv tshaj plaw, kev ua tau zoo, thiab kev ntseeg tau, ua rau lawv qhov zoo tshaj plaws ntxiv rau koj cov txheej txheem ntau lawm.

Ntsiab nta

1. Qhov zoo ntawm Laser Technology:Peb Cov Ntawv Sau Zaj Duab Xis Laser Txiav Tshuab muaj cov cuab yeej siv laser txiav, muaj peev xwm ua tau zoo, txiav txiav ntau yam ntawm cov ntaub ntawv xws li ntawv zaj duab xis, yas, ntawv, thiab yas. Lub laser muaj zog ua kom raug txiav thiab ntxuav cov npoo, muab cov txiaj ntsig tshwj xeeb txhua lub sijhawm.

2. Kev ua tau zoo thiab ceev ceev:Tsim los xa cov kev txiav nrawm dua, peb cov cav tov txo cov sij hawm ntau lawm, tso cai rau koj los tswj cov ntim loj ntawm cov haujlwm hauv lub sijhawm luv. Qhov no txhais ua kom muaj peev xwm thiab txhim kho kev ua haujlwm zoo.

3. Tus neeg siv-phooj ywg interface:Lub intuitive kov npo interface ua kom muaj kev sib txuas ua haujlwm los ntawm kev tso cai rau cov neeg siv khoom yooj yim nkag mus, saib xyuas kev nce qib, thiab tswj cov txheej txheem txiav. Qhov no user-friendly system minimizes downtime thiab maximizes productivity.

4. Customizable txiav tej chaw:Peb cov tshuab txiav tuaj yeem hloov kho lub zog txiav thiab nrawm, tso cai rau koj kom ua tiav cov txiaj ntsig zoo raws li koj cov ntaub ntawv tshwj xeeb thiab cov kev xav tau. Qhov kev hloov pauv no ua kom cov txiaj ntsig zoo meej rau txhua qhov haujlwm.

5.Robust Safety Nta:Cov Ntawv Sau Zaj Duab Xis Laser Tej Tshuab tau nruab nrog cov yam ntxwv tseem ceeb ntawm kev nyab xeeb, xws li cov ntaub thaiv npog thiab lub tshuab kaw tsis siv neeg. Cov kev ntsuas kev nyab xeeb no txo qis cov xwm txheej uas yuav tshwm sim thiab pab tsim kom muaj chaw ua haujlwm nyab xeeb.

6. Siv tau ntev thiab txhim khu kev qha:Tsim los ntawm cov ntaub ntawv zoo thiab cov khoom siv zoo, Cov Ntawv Sau Zaj Duab Xis Laser Tej Tshuab yog tsim los muab kev ua haujlwm ntev thiab tsim los tiv thaiv qhov xav tau ntawm ib puag ncig ntau lawm.

Daim ntawv thov:

Cov Ntawv Sau Zaj Duab Xis Laser Txiav Tshuab yog tsim rau ntau daim ntawv thov, suav nrog tab sis tsis txwv rau:

Nws yog tsim rau laser npav thiab tuag-txiav rau hauv cov khaub ncaws ncaws pob, xws li khaub ncaws, menyuam yaus cov khaub ncaws, khaub ncaws tshwj xeeb, khaub ncaws, khau, thiab lwm yam lag luam.

Signage thiab nraaj ntau lawm

Packing thiab label manufacturing

Decals thiab stencils creation

Customizable promotional khoom

Cov khoom tsim nyog:PVC lettering zaj duab xis, TPU ntawv zaj duab xis, PU matte lettering zaj duab xis, luminous lettering zaj duab xis, laser mos hlau ntawv zaj duab xis, inkjet luam ntawv zaj duab xis, reflective lettering zaj duab xis, flocking lettering zaj duab xis, glitter lettering zaj duab xis, reflective screen printing zaj duab xis, tsis muaj zog hnyav printing zaj duab xis, hniav zaj duab xis, tawv daim ntawv lo, daim ntawv lo thiab lwm yam ntaub ntawv.

Parameters

TSIS MUAJ.	Lub npe	DS-LMC series Galvo laser system
1	Tshuab qauv	DS-LMC150/DS-LMC250/DS-LMC350
2	Max laserzog	150W/250W/350W
3	laser wavelength	10.6μm
4	Beamzoo	＜1.2㎡
5	Lub luag haujlwm lub voj voog txwv	Tsawg dua lossis sib npaug li 60%
6	Min.linedav	0. 17mm (nyob ntawmntawm cov khoom)
7	Min. cwj pwm loj	0.4 hli
8	Max cimceev	Tsawg dua los yog sib npaug8, 000mm/s
9	Chaw ua haujlwm	400x400mm / 500x500mm / 600x600mm / 800x800mm
10	Txias	Dejtxias
11	Kev ua haujlwm ib puag ncig qhov kub thiab txias	5 ~ 35 degree
12	Humidity ntau yam ntawmua haujlwmib puag ncig	< 70%Tsis muaj condensation
13	Fais fab mov	220V, 50/60Hz
14	Hwj chimnoj	＜6 kWm

Cov qauv qhia

Kev hnav khaub ncaws zoo tuaj yeem tsis tsuas yog cia koj lub ntsej muag rub, tab sis kuj tuaj yeem qhia koj tus cwj pwm! Yog li tus yuam sij tuaj, yuav ua li cas thiaj ua rau tus kheej cov khaub ncaws? ntawm no peb qhia rau koj, xaiv txoj cai tsab ntawv ua cov khoom siv ua yeeb yaj kiab yog qhov tseem ceeb!

Qhov zoo ntawm lettering zaj duab xis txiav tshuab:

1. Kev ua haujlwm nrawm nrawm dua thiab ua haujlwm zoo dua.

SUPER laser engraver siv super loj qhov chaw 3d dynamical system, ua ceev tshaj li zoo tib yam laser marker 25% -30% sai. Nruab nrog cov cim cim software muaj zog, cim nrawm txog 8000mm / s, nrog 50 aperture high-speed daim iav, tsim nyog rau kev sau zaj duab xis ntau lawm.

2.Lub beam zoo yog zoo dua thiab cov nyhuv ua tau zoo dua.

Kev tswj hwm kev ua haujlwm siab thiab ruaj khov ntawm super lettering film marking tshuab, ua ke nrog lub ntsej muag loj loj ntawm daim iav kho qhov muag, tuaj yeem ua tiav cov kab teeb pom kev zoo thiab zoo ib yam hauv kev ua haujlwm, nrog rau qhov tsawg kawg nkaus kab dav ntawm 0. 18 mm.

3. Ntau ilv, zoo nkauj txiav nyhuv.

Piv nrog rau cov tshuab laser zoo tib yam, cov kab txiav yog thinner, yog li cov seem dub impurities tsawg dua, cov nyhuv txiav yog ua kom zoo dua qub, zoo nkauj dua.
